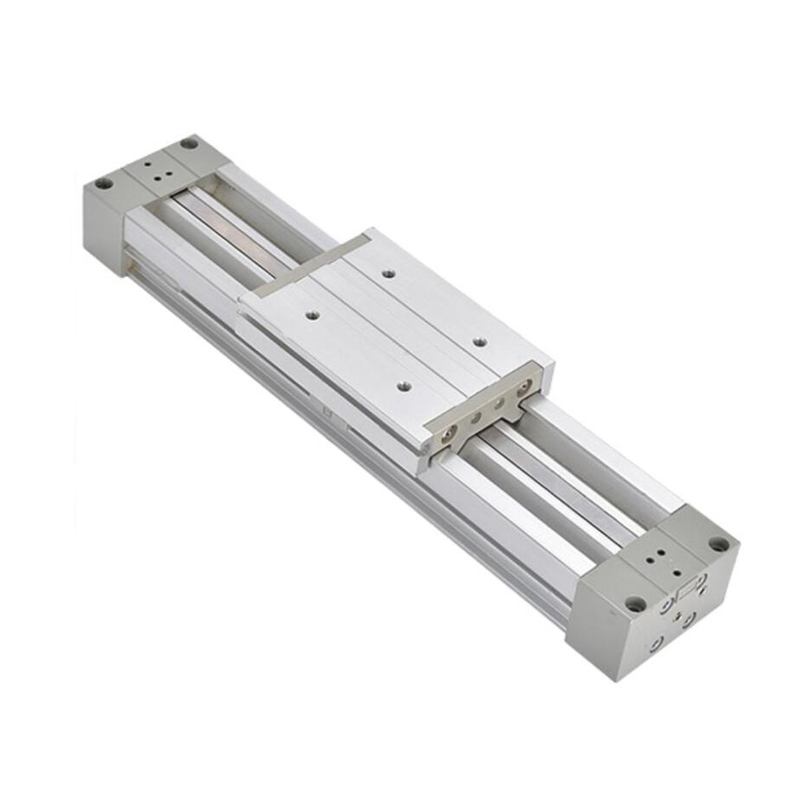

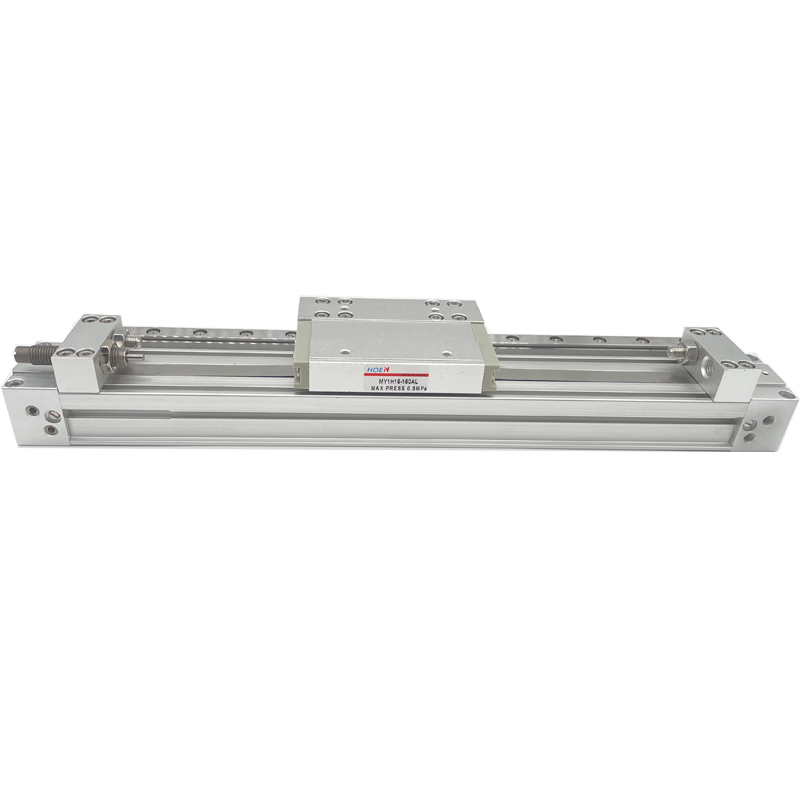

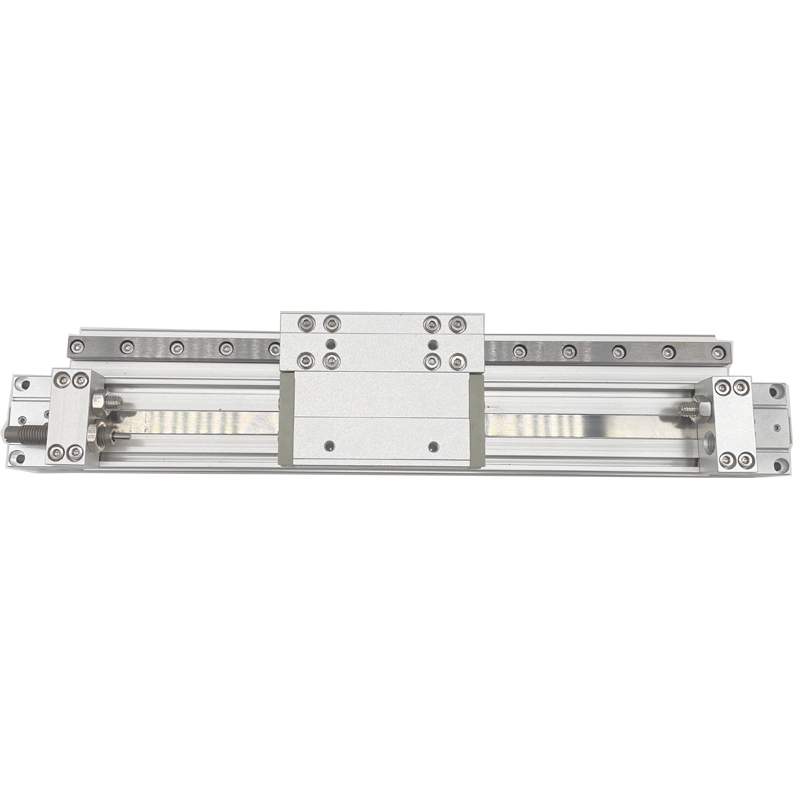

MY1H MY1HT MY2H Rodless Air Cylinder
- Integrated high-precision linear guide system
- Enhanced rigidity with strong anti-deflection performance
- 30% lower profile for compact installation
- Detachable cylinder & guide for easy maintenance
- Dual-axis guide option for heavy load handling
- Adjustable air cushions for smooth, quiet operation
- High positioning accuracy & motion repeatability
- Long stroke support up to 5000mm
- Auto switch compatible for position detection
- Space-saving design for limited machinery space
MY1H, MY2H and MY2HT series mechanically jointed rodless pneumatic cylinders are premium guided actuators designed for high-precision, heavy-load linear motion in demanding automation scenarios. All three series integrate built-in linear guide systems to eliminate deflection, enhance positioning accuracy and support complex offset loads, outperforming standard rodless cylinders in precision and stability.
The MY1H rodless cylinder features a single-axis high-precision linear guide, delivering exceptional repeatability and positioning accuracy for light-to-medium load pick-and-place, transfer and positioning tasks. It is ideal for applications requiring consistent, precise movement.
The MY2H rodless cylinder adopts a low-profile compact design, reducing installation height by 30% compared to traditional MY1 series. Equipped with a single-axis linear guide, it offers space-saving performance while maintaining stable load capacity, perfect for compact machinery layouts.
The MY2HT rodless cylinder comes with a dual-axis linear guide system, providing significantly enhanced rigidity and load capacity to handle heavy workpieces and large moments. Its detachable cylinder and guide unit design enables easy maintenance and component replacement without disassembling the entire equipment.
All series support adjustable air cushions to reduce impact and noise, long stroke options up to 5000mm, and compatibility with auto switches for position detection. They are widely used in automated assembly lines, material handling, packaging machinery, precision transfer systems and heavy-duty automation equipment.
