TAC Series Miniature Mechanical Valve
- Professional TAC series miniature mechanical valve
- Compact 3/2 way pneumatic directional control

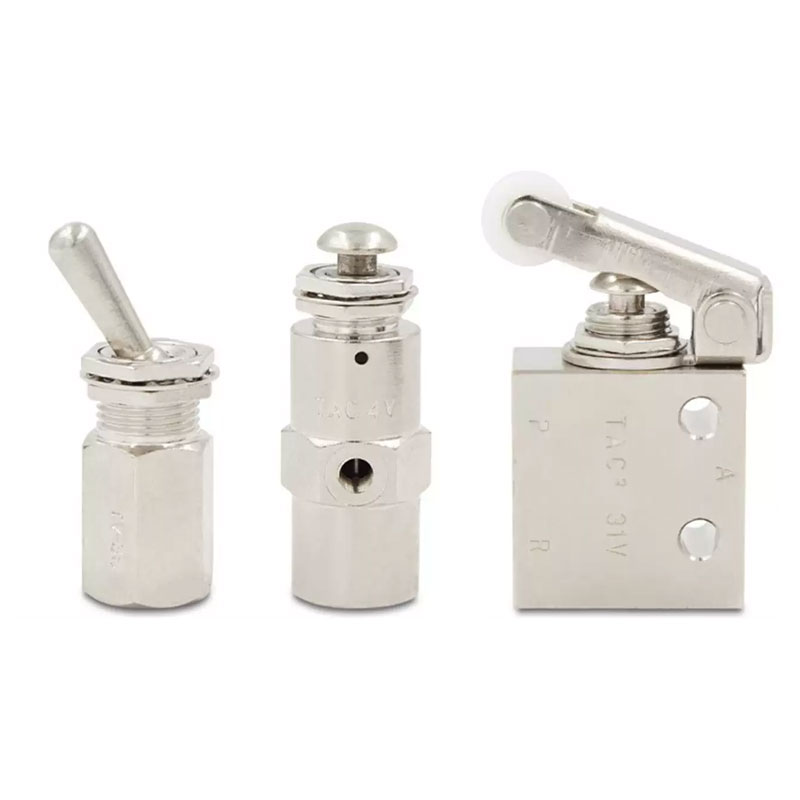

- Multiple actuator styles: Roller, Push-Button, Toggle, and Spoon
- No electricity required – 100% spark-free and safe
- Precision aluminum alloy body with durable finish
- Ideal for space-constrained automation and manual panels
- Port sizes: M5 or 1/8" (depending on model)
- High-frequency response and low operating force
- Reliable internal seals for leak-proof operation
- ISO certified global industrial quality.
TAC Series: The Definitive Miniature Mechanical Valve for Compact Automation
The TAC series (Tiny Air Components) represents the industry standard for miniature pneumatic control. These 3-port 2-position (3/2-way) valves are engineered for applications where space is at a premium but reliability is non-negotiable. Whether used as a pneumatic limit switch or a manual control interface, TAC valves provide crisp, stable actuation in a tiny footprint.

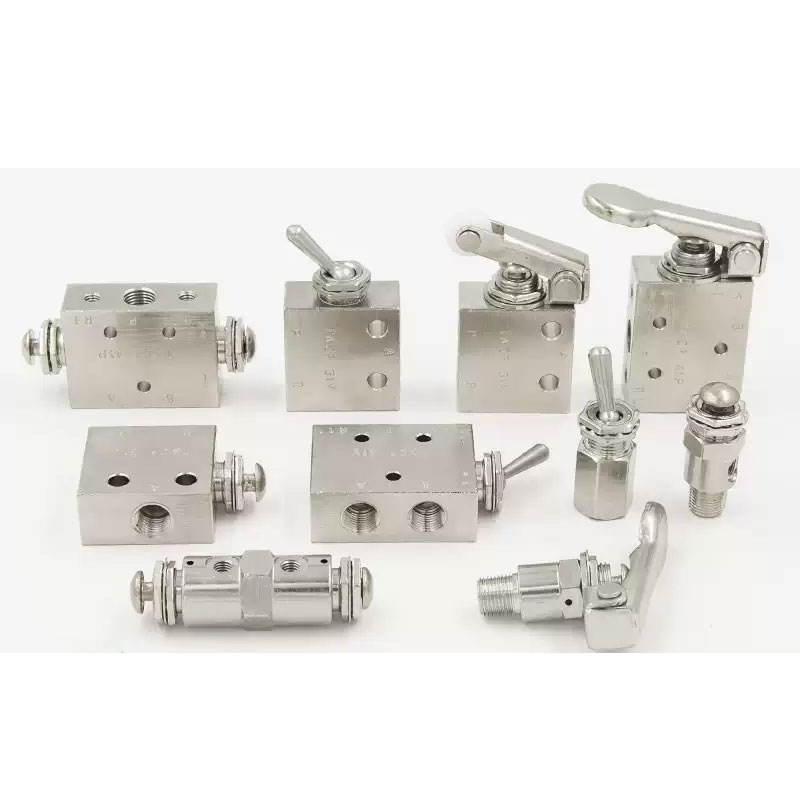

Versatile Actuator Options for Every Application
Our TAC series is available in a wide range of mechanical and manual configurations to suit your specific machine design:

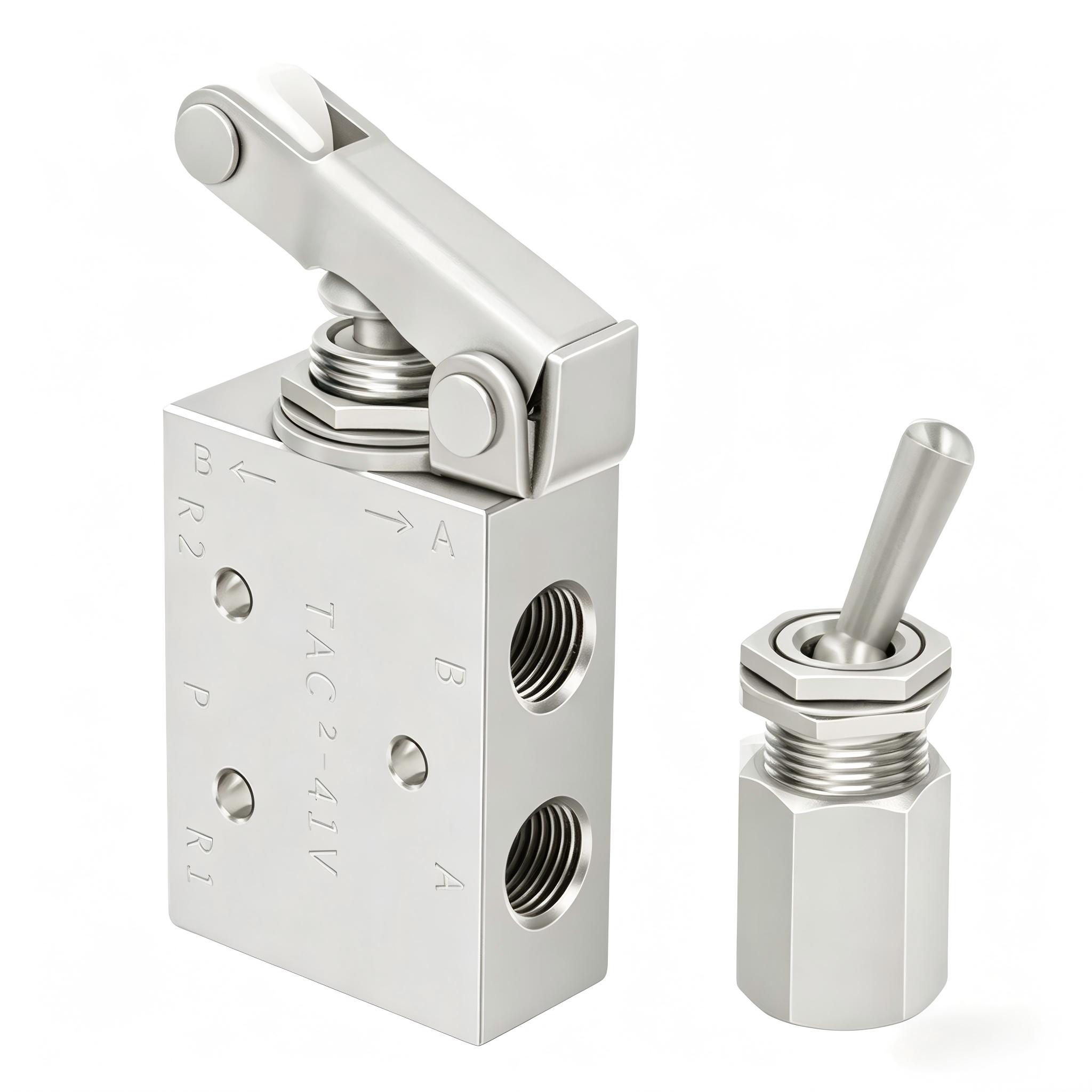

Roller Type (Limit Sensing): Equipped with a high-precision roller lever, this model is ideal for detecting the position of moving machine parts or cylinder strokes. It ensures smooth contact and long-term durability.

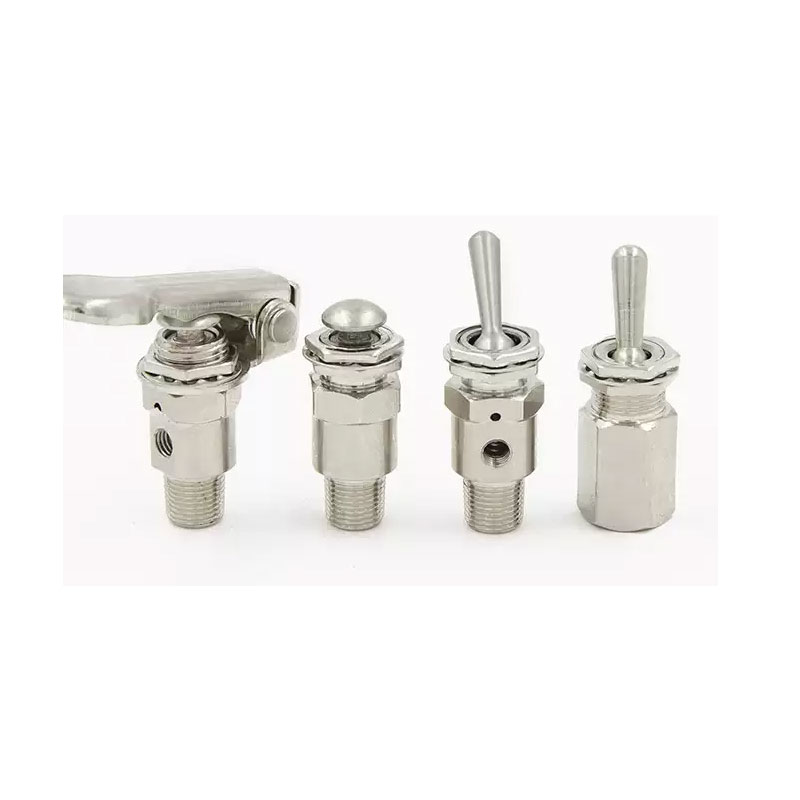

Push-Button Type (Manual Control): Designed for panel mounting, the push-button actuator is perfect for manual start/stop functions, emergency air release, or pilot signal triggering in pneumatic consoles.
Toggle / Hand Lever Type (板把型): Features a robust toggle lever that stays in position once switched. It is the preferred choice for manual directional switching where the operator needs a clear visual confirmation of the valve state.
Spoon / Flat Lever Type (勺子型): The "Spoon" or flat lever design provides a large surface area for easy manual or foot actuation. Its ergonomic shape allows for quick and comfortable triggering in high-frequency assembly tasks.
Key Technical Features & Engineering Highlights
Ultra-Compact Footprint: The miniature body allows for high-density installation in compact control cabinets and robotic end-effectors.
100% Pneumatic Operation: Requires no electricity, making these valves intrinsically safe for use in explosive, flammable, or high-moisture environments.
High-Quality Aluminum & Brass: Built with premium materials and precision internal seals to ensure zero-leakage performance and a service life of millions of cycles.
Fast Response Time: Optimized internal air passages ensure immediate signal transmission for high-speed automated processes.
Technical Specifications Overview
Primary Industrial Applications
Miniature Robotics: Rotary joints and small-scale pneumatic actuators.
Manual Control Jigs: Ergonomic air control for assembly and testing stations.
Pneumatic Logic Circuits: Serving as AND/OR gates or limit signals in complex air systems.
Medical & Lab Equipment: Compact and reliable gas control in sterile environments.
