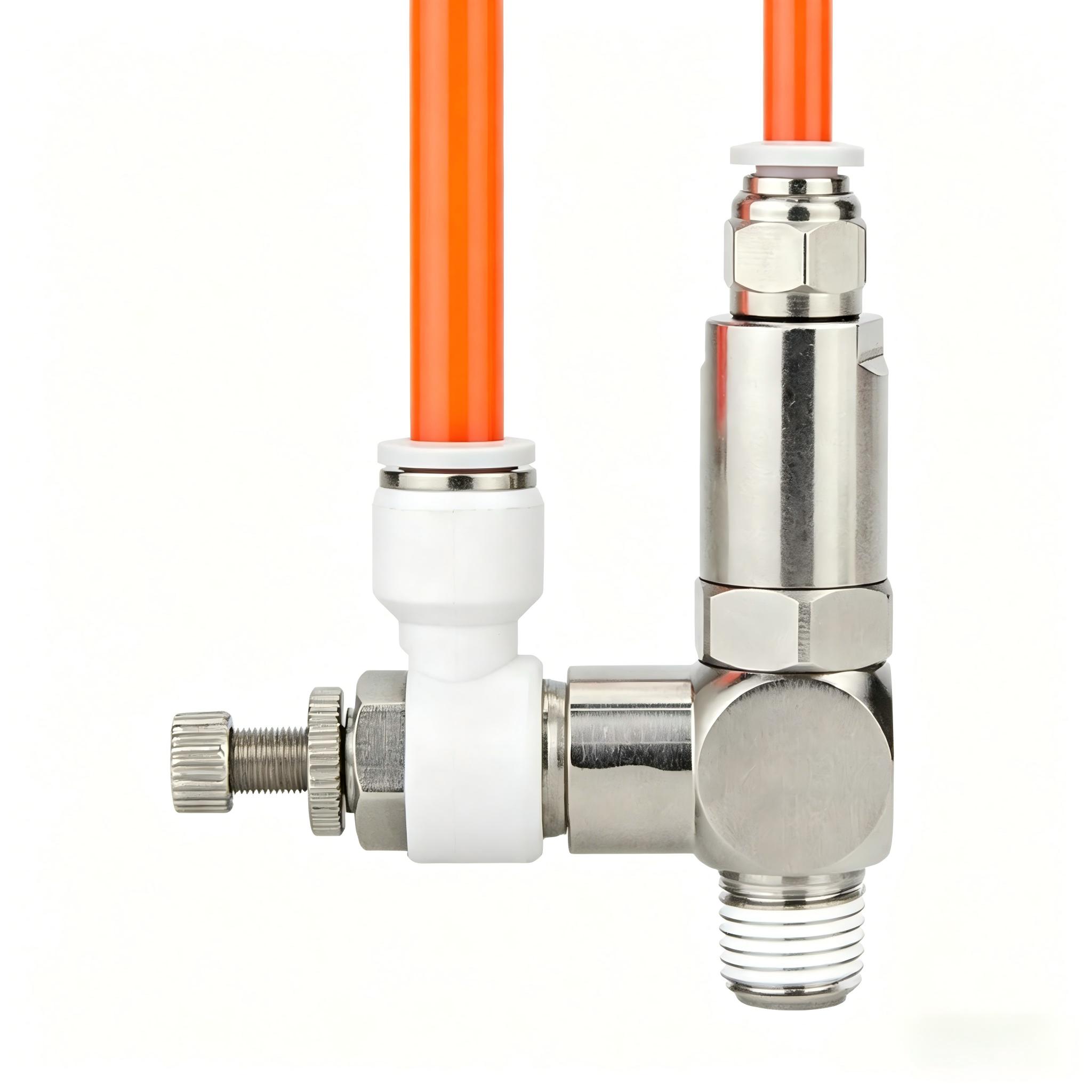

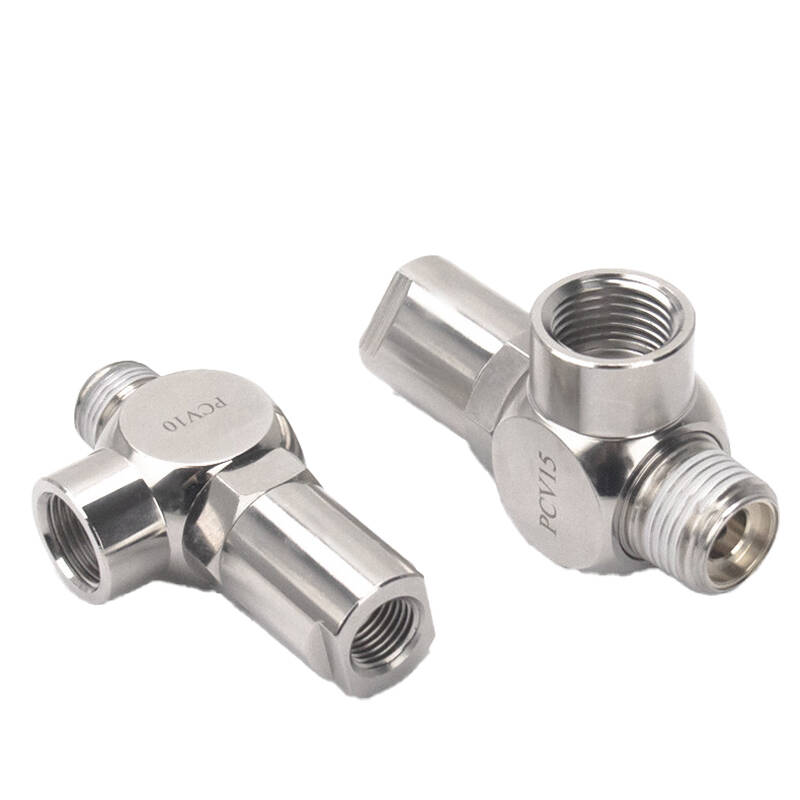

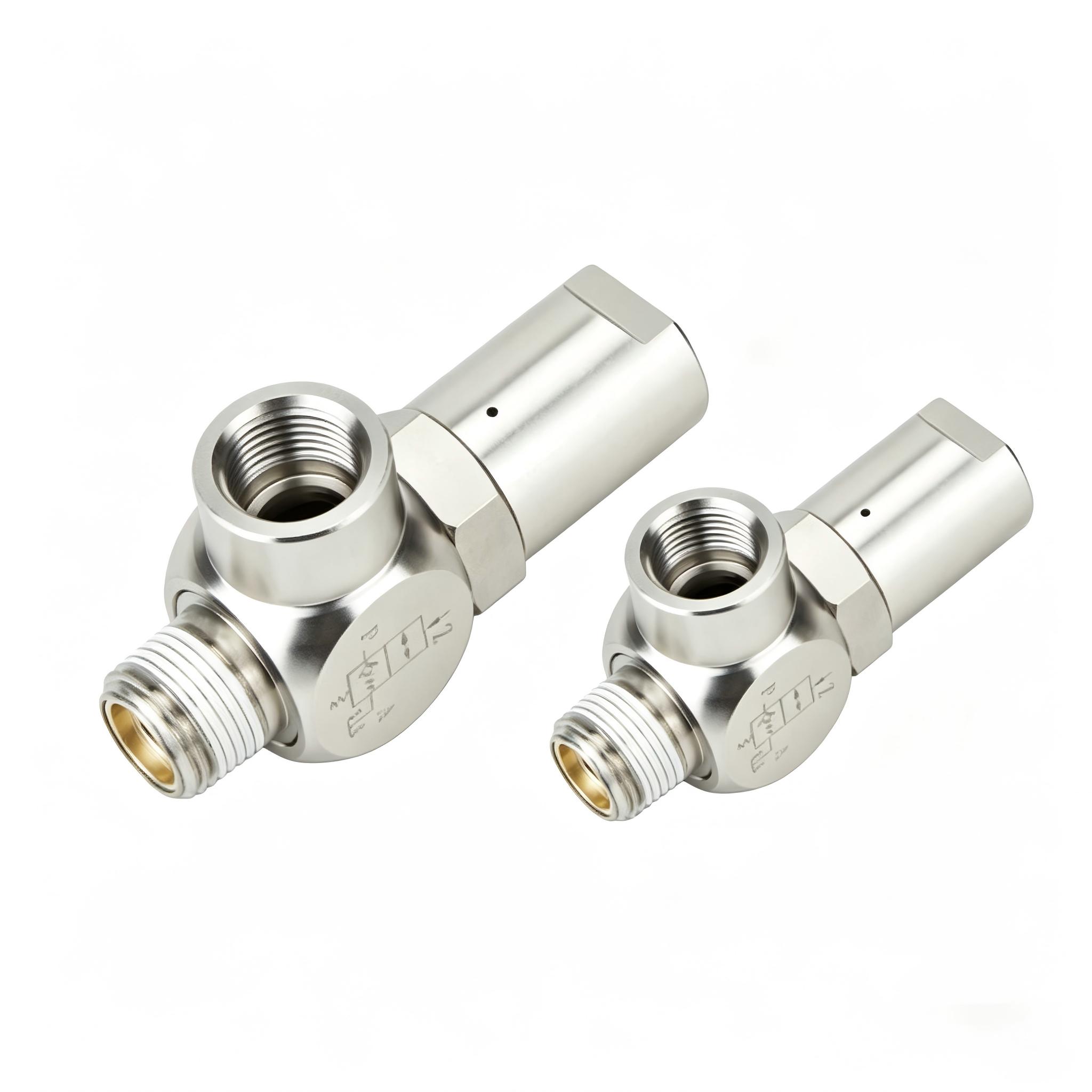

PCV Series Pneumatic Check Valve
- Professional PCV series pneumatic check valve
- Reliable one-way (non-return) flow control
- High-precision backflow prevention for air systems
- Durable brass or aluminum alloy body construction
- Low cracking pressure for maximum efficiency
- Premium NBR/Viton seals for zero-leakage performance
- Compact inline design for easy installation
- Port sizes available: 1/8", 1/4", 3/8", 1/2"
- Compatible with G, PT, and NPT thread standards
- Ideal for air compressors, vacuum systems, and FRL units
- ISO certified global industrial quality.
PCV Series: Reliable Backflow Prevention for Pneumatic Systems
The PCV series is a high-performance Pneumatic Check Valve, also known as a non-return valve. It is engineered to allow compressed air to flow freely in one direction while instantly blocking flow in the opposite direction. By preventing backflow, the PCV series protects sensitive components like air compressors, pumps, and regulators from damage caused by pressure surges or fluid reversal.
Key Technical Features & Engineering Highlights
Precision One-Way Control: Designed with a sensitive internal spring-loaded poppet, the PCV valve ensures a tight seal the moment flow reverses, maintaining system integrity.
Low Cracking Pressure: Optimized internal geometry allows the valve to open at very low pressures, ensuring minimal energy loss and efficient air distribution.
Durable Construction: Manufactured from industrial-grade brass or high-strength aluminum alloy, the PCV series is built to withstand high pressures and harsh factory environments.
Premium Sealing Technology: Equipped with high-quality NBR or Viton (FKM) seals to ensure zero-leakage performance and long-term reliability even under high-frequency operation.
Compact Inline Design: The streamlined, threaded body allows for easy installation directly into pneumatic lines or manifold ports without the need for complex mounting.
Versatile Porting: Available in standard 1/8", 1/4", 3/8", and 1/2" thread sizes (G, PT, or NPT) to match global industrial piping standards.
Technical Specifications Overview
Primary Industrial Applications
The PCV series check valve is a critical component for:
Air Compressor Systems: Preventing tank pressure from returning to the compressor head.
Vacuum Systems: Maintaining vacuum levels in reservoirs when the pump is inactive.
F.R.L. Units: Ensuring one-way flow through filter-regulator-lubricator assemblies.
Pneumatic Actuators: Preventing a cylinder from retracting due to sudden pressure loss in the supply line.
