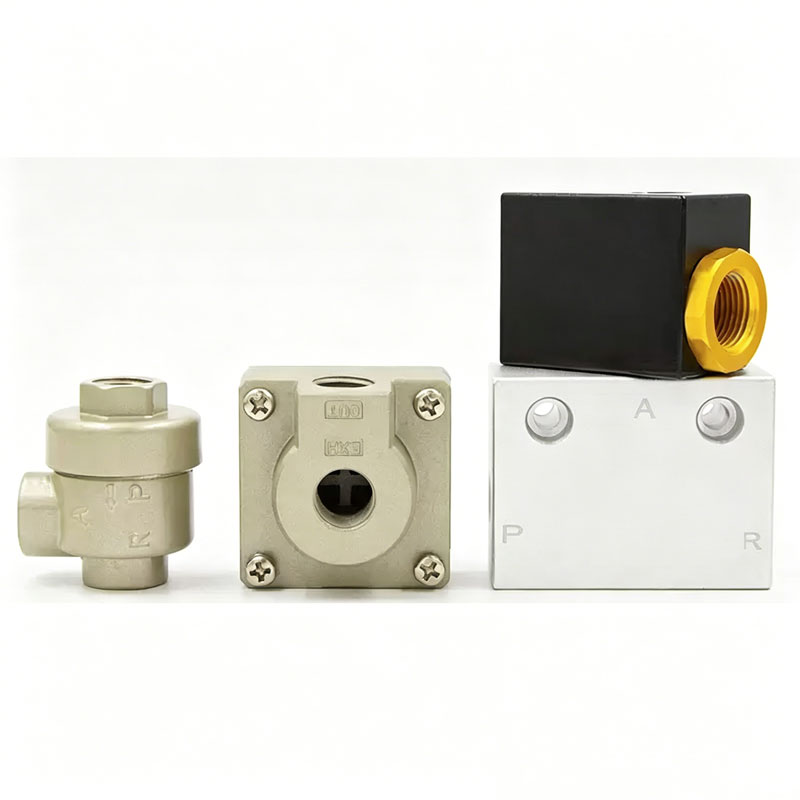

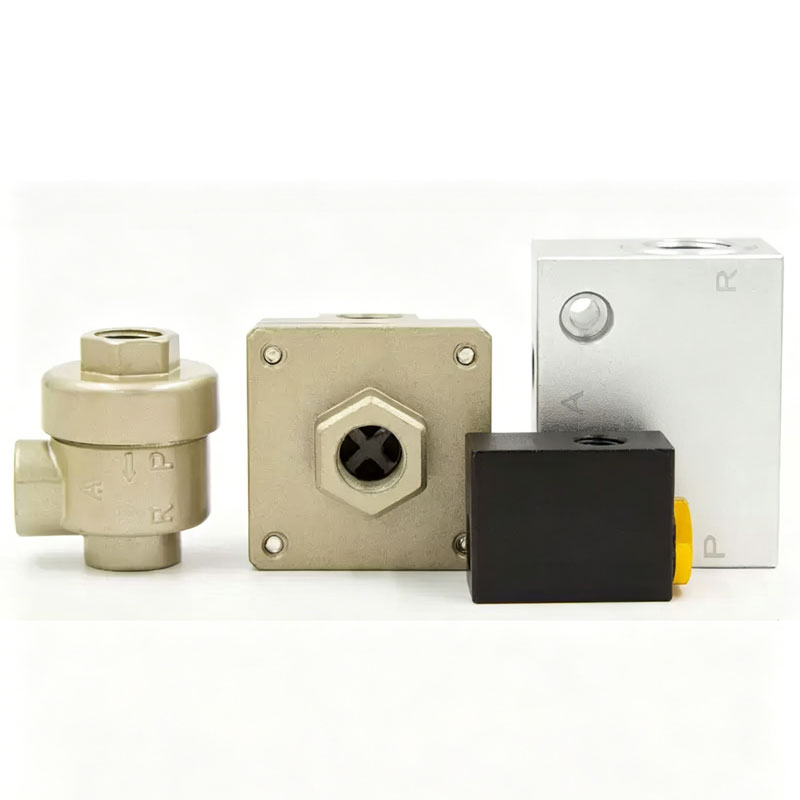

QE KKP AQ XQ Series Quick Exhaust Valve
- Professional QE KKP AQ XQ series quick exhaust valves
- Instant pneumatic cylinder speed enhancement
- Localized exhaust venting to reduce backpressure
- Durable aluminum alloy body with high-flow capacity
- High-sensitivity internal diaphragm for rapid response
- Port sizes available: 1/8", 1/4", 3/8", 1/2", 3/4"
- Compact designs (KKP) for space-saving automation
- Integrated silencer compatibility for noise reduction
- Ideal for high-frequency packaging and assembly lines
- Reliable performance in high-speed industrial environments
Quick Exhaust Valve Series: The Ultimate Solution for High-Speed Pneumatics
In high-performance pneumatic systems, the speed of a cylinder is often limited by the resistance of the exhaust air traveling back through the control valve. Our comprehensive range of Quick Exhaust Valves (QE, KKP, AQ, XQ) solves this by providing a direct, high-flow path for air to vent locally. By installing these valves directly at the cylinder ports, you can significantly reduce cycle times and increase the productivity of your automated machinery.
Series Overview & Selection Guide
QE Series (The Industrial Standard): The QE series is the most versatile and widely used quick exhaust valve. Featuring a durable aluminum alloy body and a sensitive internal diaphragm, it offers a perfect balance of high flow capacity and long service life. Available in port sizes from 1/8" to 3/4".
AQ Series (High-Capacity SMC-Type): Optimized for maximum flow, the AQ series is a high-performance alternative to major global brands. Its streamlined internal structure ensures the lowest possible pressure drop, making it ideal for large-bore cylinders and heavy-duty applications.
KKP Series (Compact & Precision): The KKP series is designed for space-constrained environments. Despite its small footprint, it provides rapid exhaust response times, making it the go-to choice for miniature automation and high-speed pick-and-place tasks.
XQ Series (Rugged & Reliable): The XQ series is engineered for harsh environments. With reinforced internal components and a robust housing, it provides stable performance in conditions with high vibration or fluctuating air quality.
Key Technical Features & Engineering Highlights
Instant Speed Boost: By venting exhaust air directly at the actuator, these valves eliminate the bottleneck of long tubing runs, allowing cylinders to achieve their maximum design speed.
High Sensitivity Diaphragm: Equipped with premium NBR or Polyurethane diaphragms that react instantly to pressure changes, ensuring reliable switching on every stroke.
Durable Construction: Manufactured from high-strength anodized aluminum or brass, ensuring resistance to corrosion and mechanical impact.

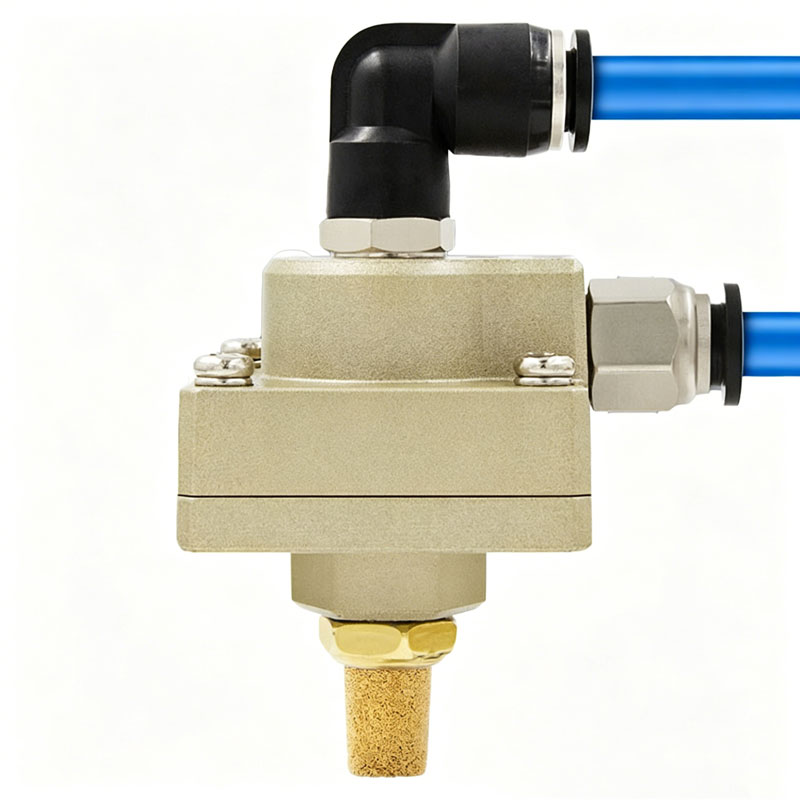

Silencer Compatible: All series feature threaded exhaust ports, allowing for the easy installation of silencers to reduce noise levels in the workspace.
Easy Inline Installation: Compact and lightweight designs allow for direct mounting to cylinder ports or inline installation within the pneumatic circuit.
ISO certified global industrial quality.
Technical Specifications Overview
Primary Industrial Applications
The QE/KKP/AQ/XQ quick exhaust valves are essential for:
High-Speed Packaging: Rapid actuation of sorting arms and boxing mechanisms.
Stamping & Pressing: Ensuring the fast return stroke of heavy-duty cylinders.
Material Handling: Improving the cycle time of conveyor diverters and lifts.
Tooling Jigs: Quick release of pneumatic clamps for faster workpiece transitions.
