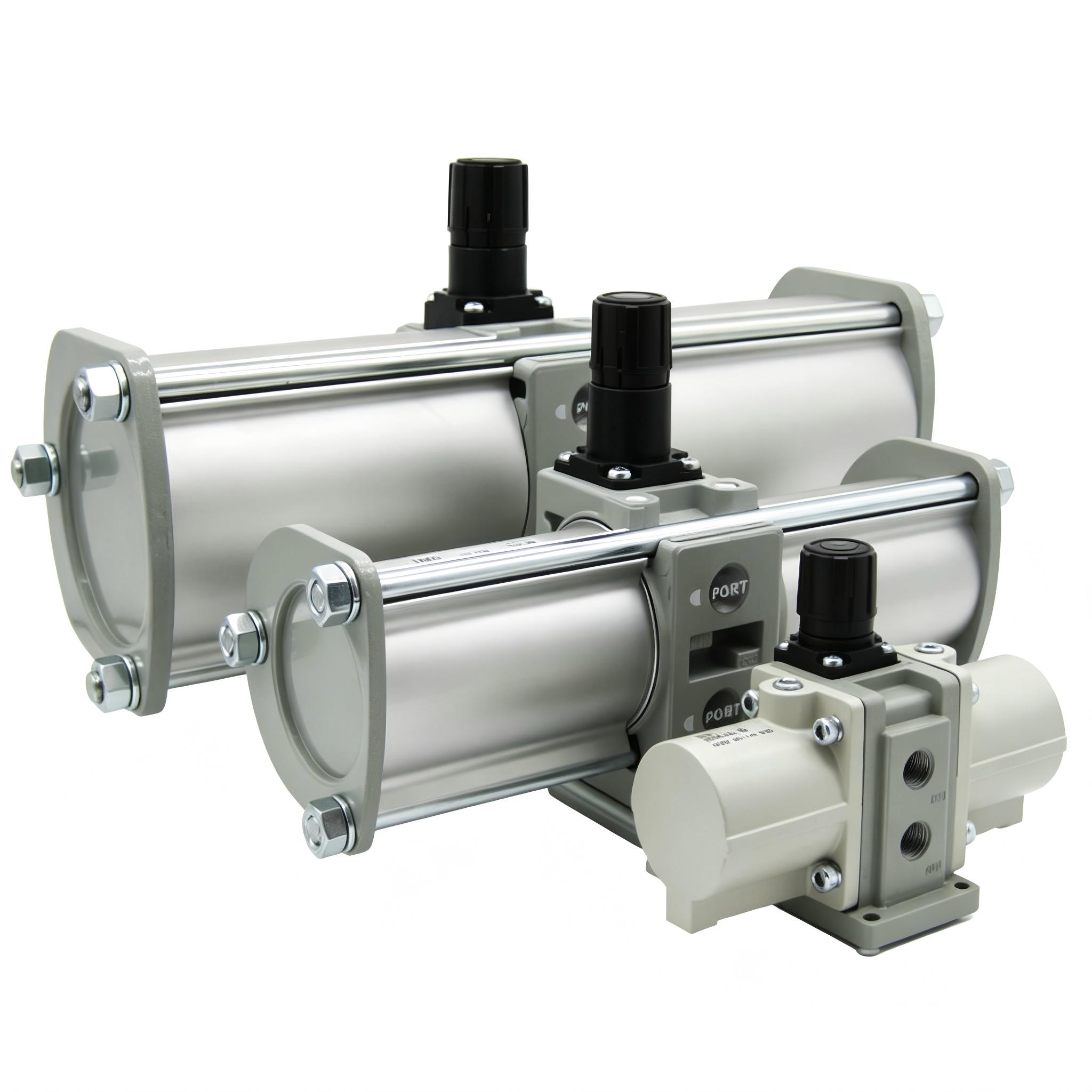

VBA Series Pneumatic Booster Valve
- Professional VBA series pneumatic booster valve
- Increases local air pressure by up to 2x
- 100% pneumatic operation – no electricity or motor required
- Integrated pressure regulator for precise output control
- Automatic start/stop functionality
- High-strength aluminum alloy body for industrial durability
- Significant energy savings over factory-wide pressure increases
- Port sizes available: 1/4", 3/8", 1/2" (G/PT/NPT)
- Optional integrated silencer and pressure gauge
- Ideal for clamping, spot welding, and high-pressure pneumatic tools
- ISO certified global industrial quality.
VBA Series: The Efficient Solution for Localized Air Pressure Boosting
The VBA series is a high-performance Pneumatic Booster Valve (also known as an Air-to-Air Intensifier) designed to increase local factory air pressure without the need for an expensive, energy-consuming secondary compressor. By utilizing a specialized piston mechanism driven solely by compressed air, the VBA valve can double your local pressure, ensuring that high-demand actuators and tools operate at peak performance.
Key Technical Features & Engineering Highlights
No Electricity Required: The VBA booster is 100% pneumatic. It operates automatically by using the energy from the supply air, making it ideal for remote locations or hazardous environments where electrical power is unavailable or prohibited.
2:1 Pressure Multiplication: Efficiently boosts input pressure by up to two times. For example, a 0.5 MPa supply can be increased to a regulated 1.0 MPa output, perfect for spot welding, clamping, or high-force pressing.
Integrated Pressure Regulator: Each VBA unit features a built-in adjustment handle, allowing for precise control of the output pressure to meet the exact requirements of your application.
Automatic Operation: The valve starts and stops automatically based on the pressure differential, maintaining a stable downstream pressure without manual intervention.
Energy-Saving & Cost-Effective: By boosting pressure only where it is needed, the VBA series prevents the need to raise the pressure of the entire factory air system, significantly reducing energy costs and compressor wear.
Improved Durability & Low Noise: Engineered with high-quality seals and integrated silencers, the VBA series offers a long service life with a noise reduction of up to 15-20 dB compared to traditional boosters.
VBA Series Model Overview
VBA10A (1/4" Port): Compact design for small-scale air boosting.
VBA20A (3/8" Port): The standard choice for medium-sized automation cells.
VBA40A / VBA43A (1/2" Port): High-flow models for large actuators and heavy machinery.
Technical Specifications Overview
Primary Industrial Applications
The VBA booster valve is the definitive choice for:
Machining Jigs: Boosting pressure for high-force pneumatic clamps.
Automotive Welding: Ensuring stable and high pressure for pneumatic spot welders.
Air Blowing: Increasing velocity and force for cleaning or sorting tasks.
Remote Workstations: Providing high-pressure air at the end of long pipe runs where pressure drop occurs.
