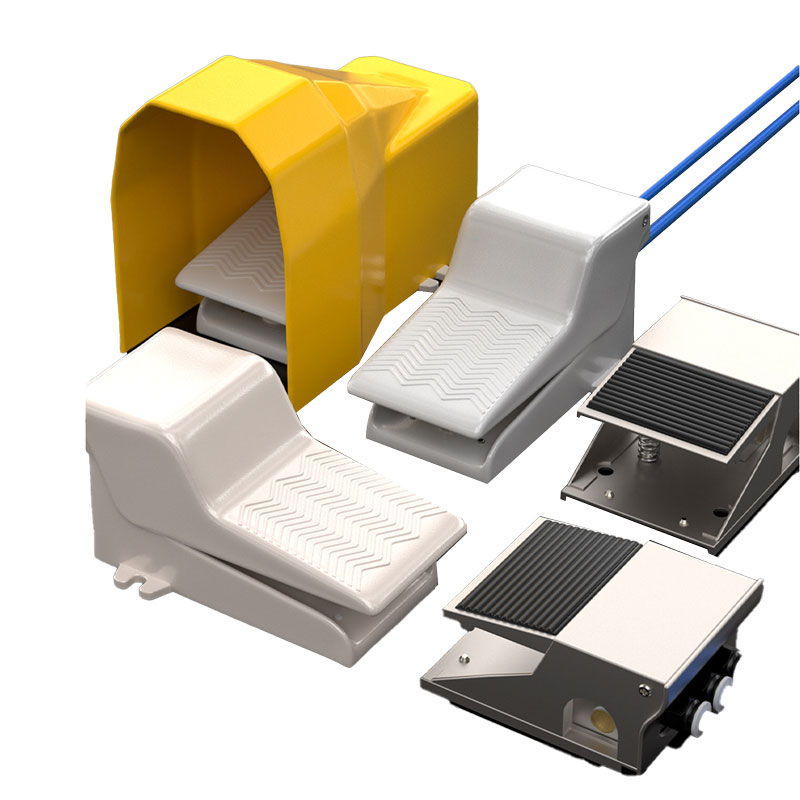

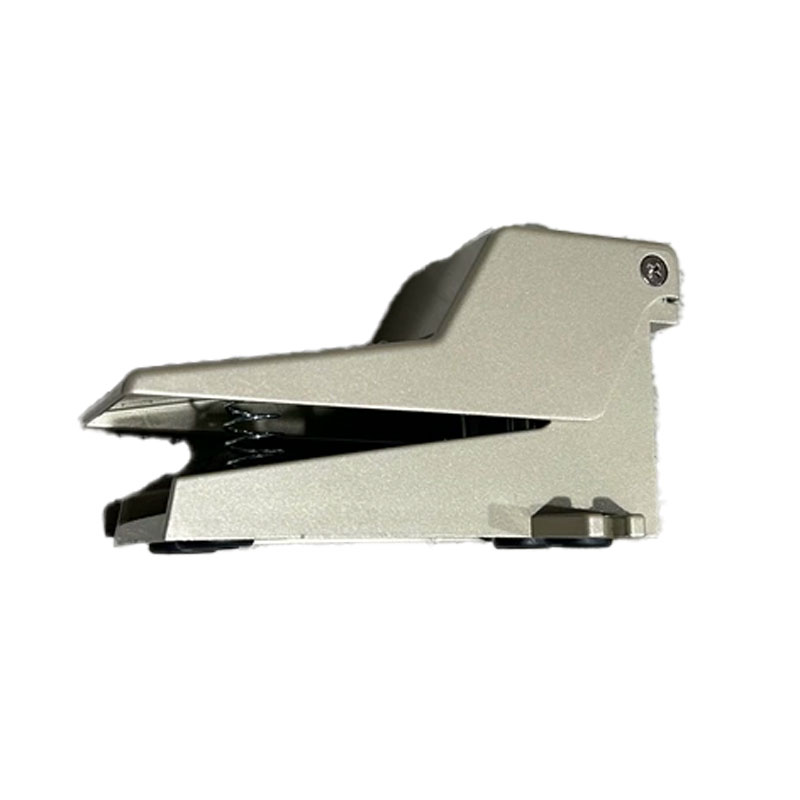

4F & FV Series Pneumatic Foot Pedal Valve
- Professional 4F and FV series pneumatic foot pedal valves
- Precise 3/2, 4/2, and 5/2 way directional control
- Hands-free operation for increased assembly productivity
- Durable aluminum alloy body with high-grade finish

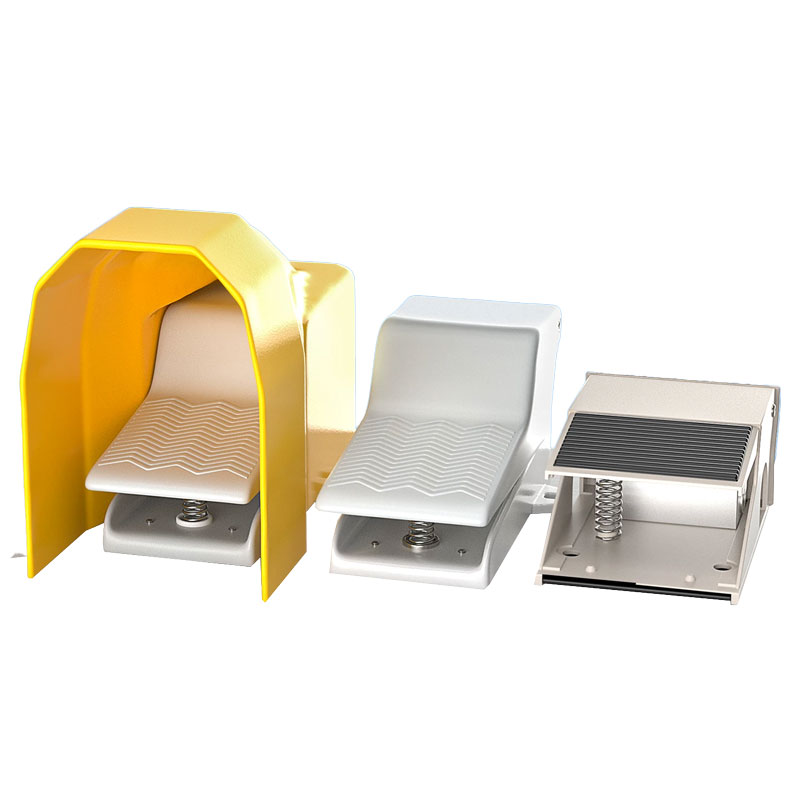

- Available with safety covers to prevent accidental actuation
- Low-friction internal hole for long service life
- Port sizes: 1/4" (08) and 1/8" (06)
- Ideal for stamping, packaging, and woodworking machinery
- Stable pneumatic performance with high-frequency response
- ISO certified global industrial quality.
4F & FV Series: The Standard for Ergonomic Pneumatic Control
The 4F and FV series represent the industry standard for manually operated pneumatic foot switches. Designed to liberate the operator's hands for workpiece handling, these valves provide precise directional control for pneumatic cylinders and actuators. Whether you require the heavy-duty protection of the 4F series or the compact versatility of the FV series, our foot valves ensure peak productivity and operator comfort.
Series Overview & Selection Guide
4F Series (Heavy-Duty Industrial): The 4F series (e.g., 4F210-08) typically features a 5/2-way configuration. It is built for rigorous environments and often comes with an integrated safety cover to prevent accidental actuation, making it the preferred choice for stamping and heavy assembly.
FV Series (Compact & Versatile): The FV series offers a wider range of porting options, including 3/2-way (FV320) and 4/2-way (FV420) models. Its low-profile design is perfect for space-constrained workstations and lighter industrial tasks like air-blowing or simple clamping.
Key Technical Features & Engineering Highlights
Robust Aluminum Alloy Construction: The valve body and pedal are manufactured from high-grade aluminum, providing excellent resistance to impact, wear, and corrosion.
Stable Sliding Column Structure: Utilizing a precision sliding column mode, these valves ensure superior tightness, low starting pressure, and a service life exceeding millions of cycles.
Safety Options: Available with locking mechanisms or protective covers (guards) to meet strict factory safety standards and prevent unintentional machine starts.
High-Frequency Response: Optimized internal air passages allow for rapid actuation and exhaust, maintaining high cycle speeds in automated production lines.
Ergonomic Design: The pedal angle and spring tension are engineered to reduce operator fatigue during high-frequency usage.
Technical Specifications Overview
Primary Industrial Applications
The 4F/FV foot pedal valves are essential for:
Manual Assembly Stations: Controlling clamping and positioning cylinders while holding parts.
Stamping & Riveting: Precise, hands-free actuation for metalworking tasks.
Packaging & Bagging: Manual air-sealing and diversion operations.
Woodworking Machinery: Controlling pneumatic vises and jigs for safe cutting.
