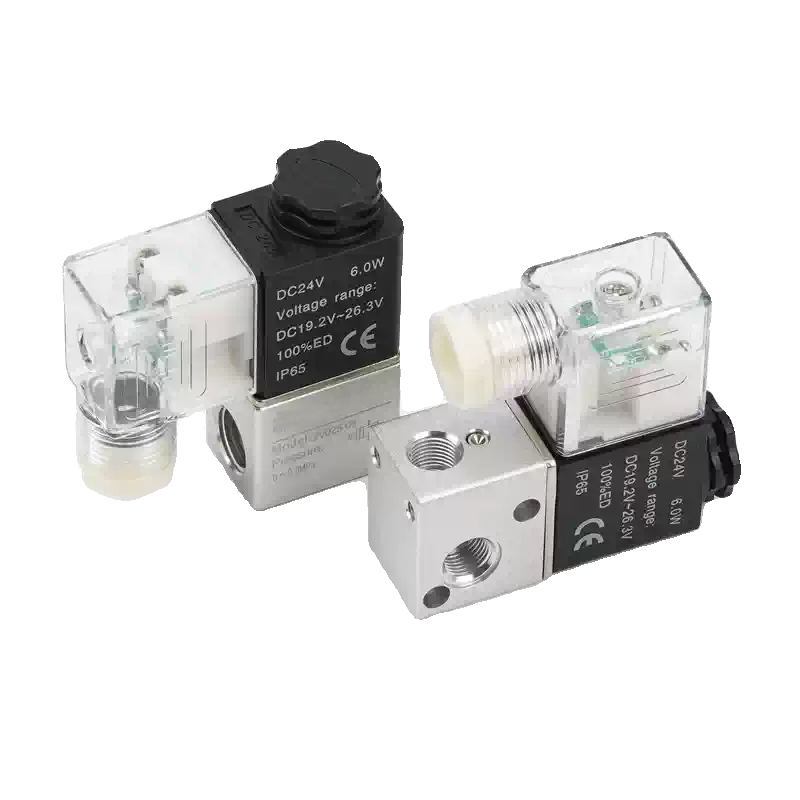

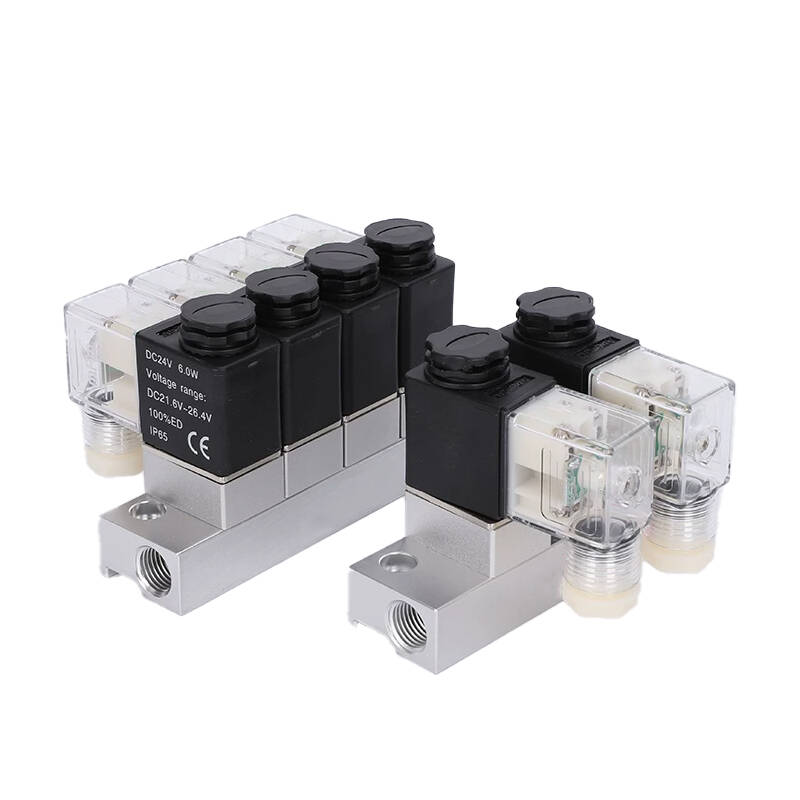

2V Series 2/2 Way Fluid Control Valve

  • 2V series fluid control valve
  • Precision 2/2 way normally closed operation
  • Direct-acting structure for zero-pressure startup
  • Compatible with air, water, and oil
  • Durable aluminum alloy or brass body construction
  • High-quality NBR/FKM seals for leak-proof performance
  • Compact design for space-constrained installations
  • Multi-voltage support (DC24V, AC110V, AC220V)
  • Reliable IP65 protection with DIN connector
  • ISO certified global industrial quality.

 2V Series: Reliable 2/2-Way Fluid Control Solutions


The AirTAC Type 2V series is a premier line of direct-acting 2-port 2-position (2/2-way) solenoid valves, specifically engineered for the precise control of various fluids, including compressed air, water, and oil. Known for its compact structure and rapid actuation, the 2V series (such as the popular 2V025) is the ideal choice for automated systems requiring reliable ON/OFF fluid management.


Core Technical Features

  • Direct-Acting Type: The direct-acting structure allows the valve to operate effectively even at zero differential pressure (0 PSI), ensuring consistent performance in gravity-fed or low-pressure systems.

  • Normally Closed (NC) Mode: Designed to remain closed when de-energized, providing a safe and fail-secure fluid control solution.

  • Multi-Media Compatibility: High-quality internal components and seals make these valves suitable for air, water, and light oil applications.

  • Compact & Lightweight Design: The small footprint and aluminum alloy body (or brass options) allow for easy installation in tight machine compartments.

  • High-Frequency Response: Optimized magnetic circuit design enables fast switching times and high-frequency operation for demanding industrial cycles.

  • Low Power Consumption: Engineered for energy efficiency, the 2V series coils minimize heat generation and operational costs.


2V Series Model Overview

  • 2V025-06: 2/2 Way Direct Acting Valve (1/8" Port).

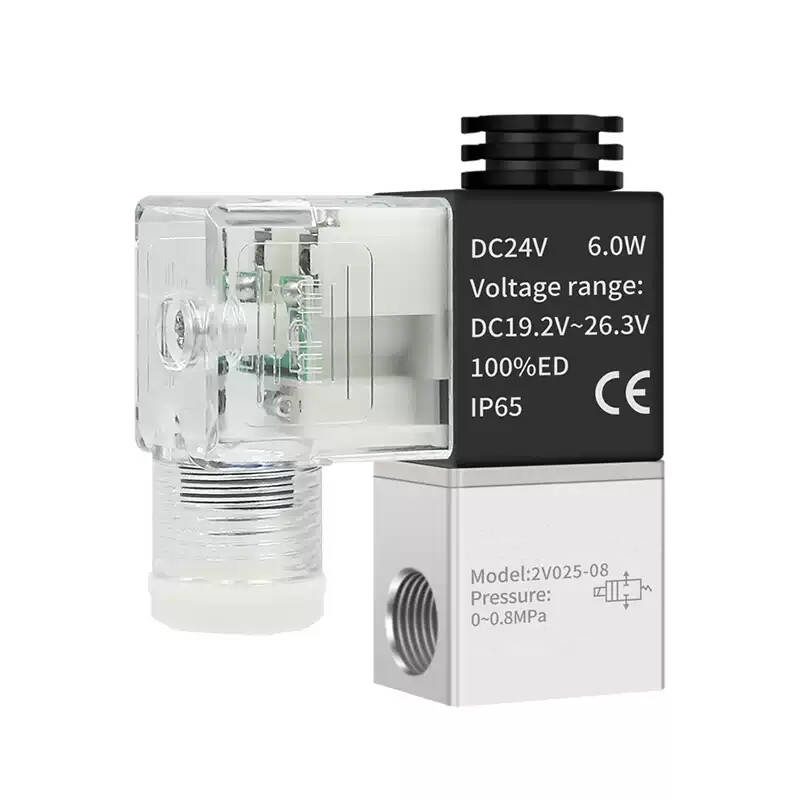

  • 2V025-08: 2/2 Way Direct Acting Valve (1/4" Port).


Technical Specifications Overview

FeatureDetails
FluidAir, Water, Oil
Acting TypeDirect Acting
TypeNormally Closed (NC)
Port Size1/8" (06), 1/4" (08)
Orifice Size2.5mm
Operating Pressure0 ~ 1.0 MPa (0 ~ 145 psi)
Temperature Range-20 ~ 70°C
Power ConsumptionAC: 7.0VA / DC: 5.0W

Primary Industrial Applications

The AirTAC type 2V series is the go-to solution for:

  • Water Treatment: Automated shut-off for filtration and dosing systems.

  • Air Automation: Precise control of air-blow or cleaning cycles.

  • Medical Equipment: Reliable fluid management in diagnostic and laboratory tools.

  • Packaging Machinery: Controlling liquid filling or vacuum-breaking lines.
