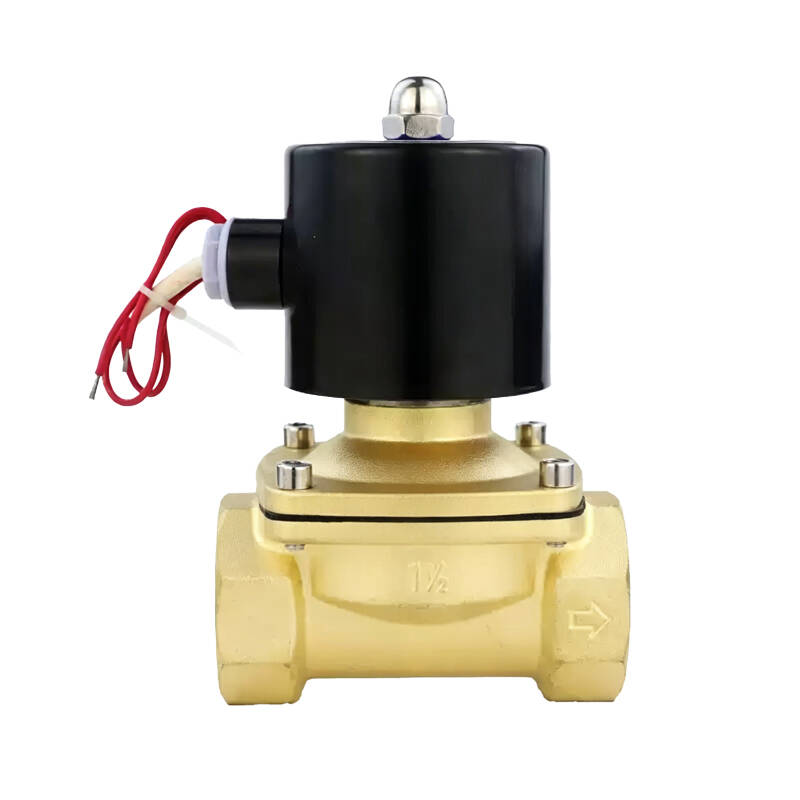

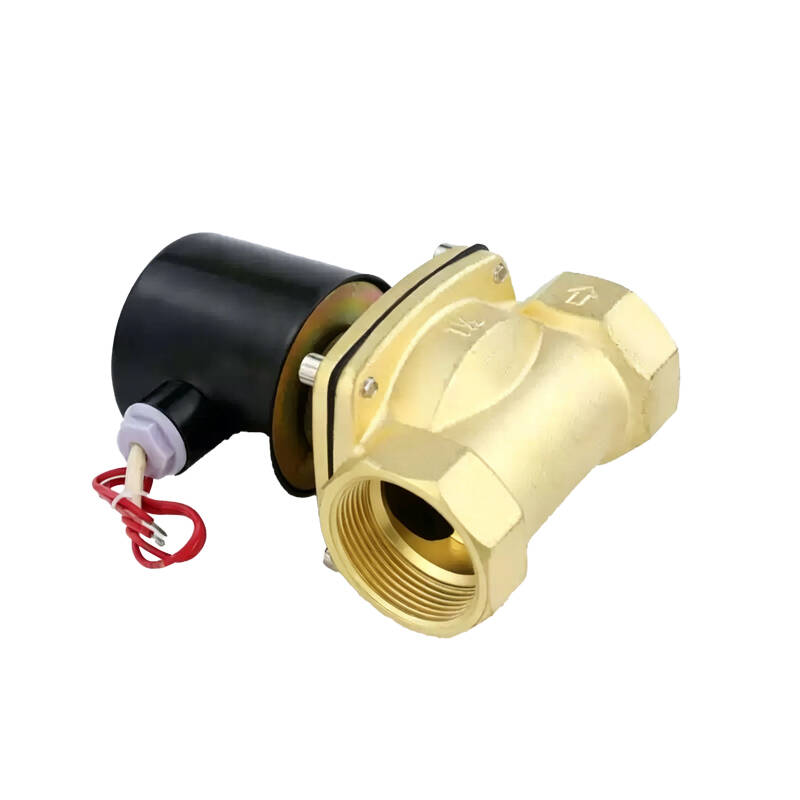

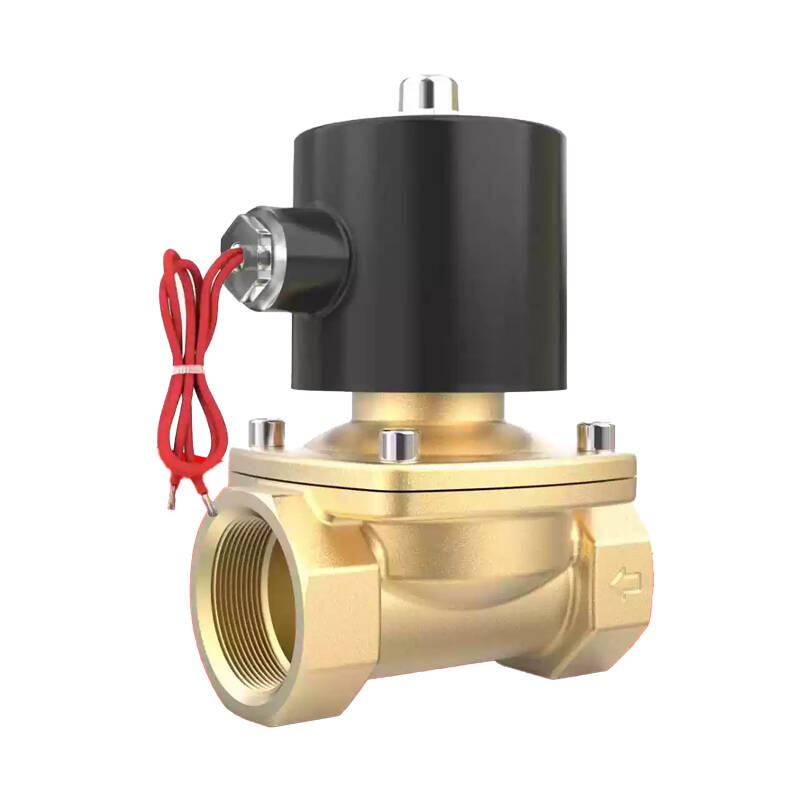

2W Series Normally Closed Solenoid Valve

  • High-quality 2W series normally closed solenoid valve
  • Reliable direct-acting structure for zero-pressure startup
  • Industrial-grade brass body for superior corrosion resistance
  • Versatile fluid control for water, air, oil, and non-corrosive gases
  • Normally Closed (NC) operation for safety and precision
  • Multiple voltage options: AC220V, AC110V, DC24V, and DC12V
  • Rapid response time with millisecond-level actuation
  • Premium NBR seals ensuring excellent leak-proof performance
  • High-purity copper coil for stable performance and low power consumption
  • Standard G and NPT thread sizes (1/2", 3/4", 1") for global compatibility
  • Wide operating pressure range from 0 to 1.0 MPa (145 psi)
  • Temperature range of -5°C to 80°C for diverse environments
  • Compact and robust design for easy installation in tight spaces
  • Maintenance-free operation with a long service life cycle
  • Ideal for automated irrigation, water treatment, and industrial fluid systems.

2W Series Normally Closed Solenoid Valve: Reliable Fluid Control


The 2W series is a versatile, direct-acting solenoid valve designed for controlling the flow of water, air, oil, and non-corrosive gases. Available in various sizes from 1/2" (4分) to 1" (1寸), these valves are essential components for irrigation systems, water treatment, and industrial automation.

Key Technical Features

  • Normally Closed (NC) Operation: The valve remains closed when de-energized and opens immediately when power is applied, ensuring safety and precision.

  • Direct-Acting Structure: Allows for quick response times and stable operation even at zero pressure (0 PSI).

  • High-Quality Brass Body: Constructed from industrial-grade brass for superior corrosion resistance and long-lasting durability.

  • Multi-Voltage Support: Choose between AC 220V for standard building power or DC 24V for safe, low-voltage control systems.

  • Nitrile (NBR) Seal: Standard high-quality seals provide excellent leak-proof performance for water and air under 80°C.

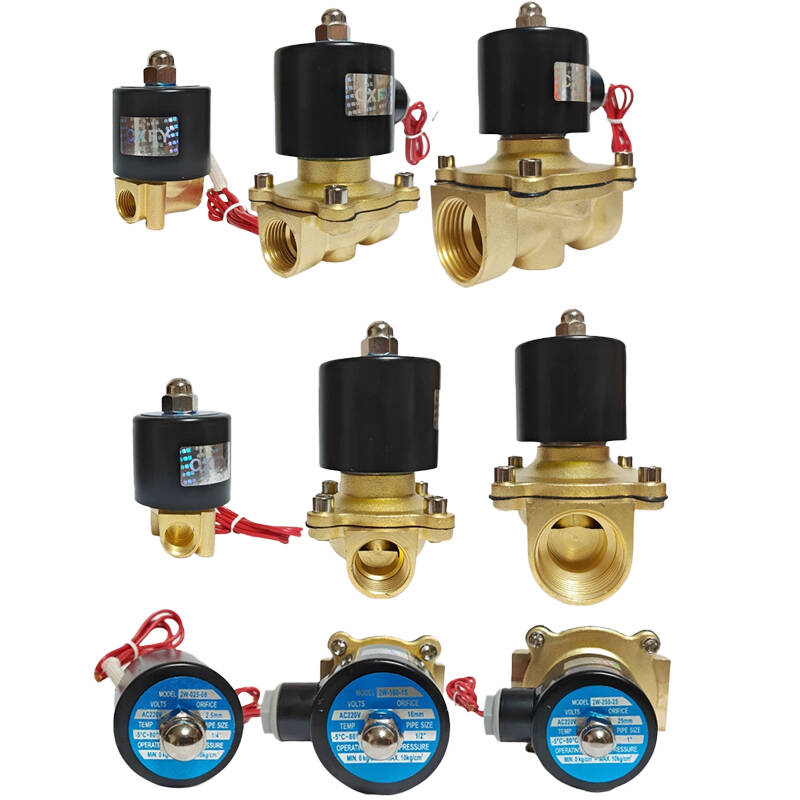

Available Sizes & Models

We offer a full range of 2W series valves to match your piping requirements:

  • 2W025-08 (1/4"): Compact control for small pneumatic or water lines.

  • 1/2" (4分 / DN15): The standard choice for domestic water pipes and small irrigation.

  • 3/4" (6分 / DN20): High-flow valve for medium-sized fluid systems.

  • 1" (1寸 / DN25): Heavy-duty valve for large-scale water distribution and industrial cooling.


Technical Specifications

FeatureDetails
Model Series2W (Normally Closed)
MaterialBrass Body / NBR Seals
Available Sizes1/2" (DN15), 3/4" (DN20), 1" (DN25)
Working MediumWater, Air, Oil, Gas
Voltage OptionsAC220V, AC110V, DC24V, DC12V
Pressure Range0 ~ 1.0 MPa (0 ~ 145 psi)
Temperature Range-5°C to +80°C

Common Applications

  • Automated Irrigation: Precise timing control for garden and farm watering.

  • Water Treatment: Automated shut-off for filtration and tank filling systems.

  • HVAC Systems: Controlling water flow in heating and cooling units.

  • Industrial Automation: Actuation for pneumatic air tools and fluid processing.
