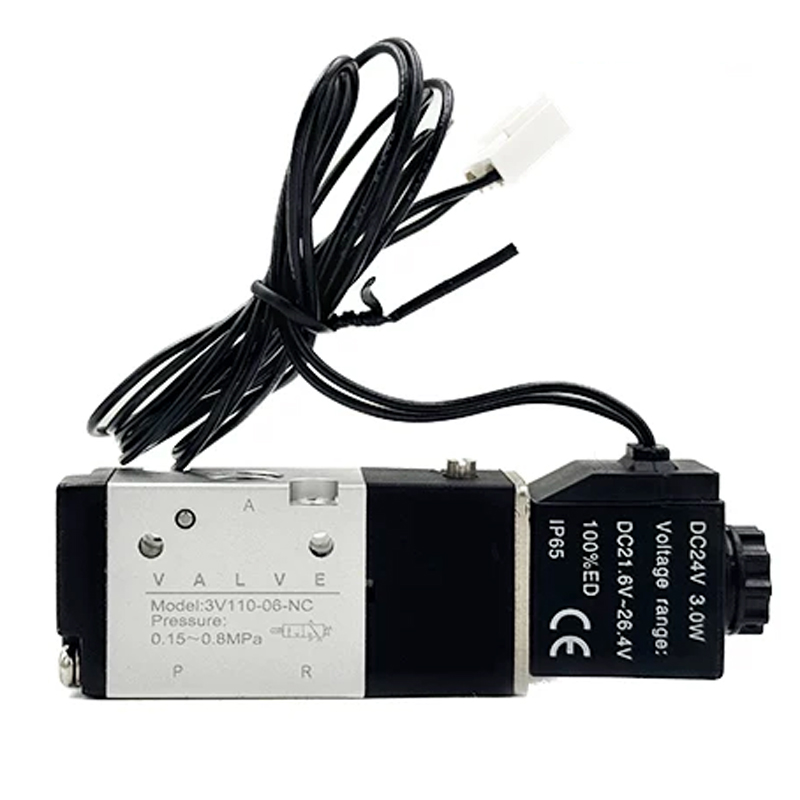

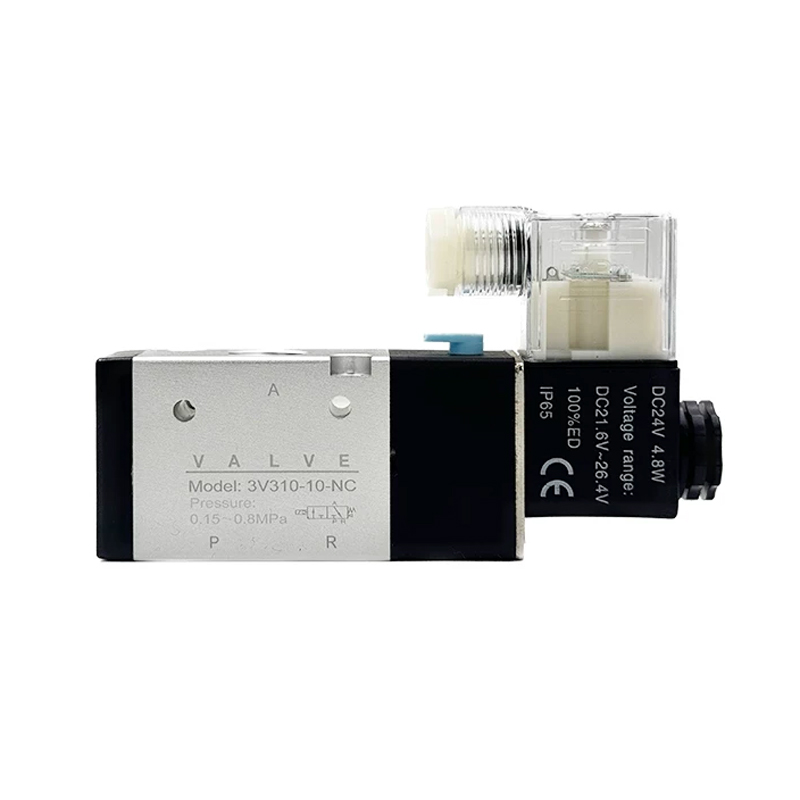

3V100, 3V200, 3V300 3/2 Way Directional Control
- High-precision 3/2 way pneumatic control
- Internal pilot-oriented sliding column structure
- Low-friction internal hole for 20M+ cycle life
- Lubrication-free design for clean environments
- Integrated manual override for troubleshooting
- Multi-voltage support (DC24V, AC110V, AC220V)
- Robust aluminum alloy body with IP65 protection
- Standard manifold mounting compatible
- ISO certified global industrial quality.
3V Series: Efficient 3/2-Way Pneumatic Control
The 3V series is a premier line of pilot-oriented 3-port 2-position (3/2-way) solenoid valves, designed for precision directional control in compressed air systems. Whether you are controlling single-acting cylinders, vacuum systems, or providing pilot signals for larger valves, the 3V series offers the perfect balance of compact design and high-flow efficiency.
Core Technical Features
3/2-Way Versatility: Specifically engineered for single-acting actuators, air-exhausting, or vacuum-breaking applications.
Pilot-Oriented Mode: Internal or external pilot-drive options provide stable performance and sensitive reaction times even at low operating pressures.
Sliding Column Structure: The internal sliding column mode ensures superior tightness and excellent sealing performance, minimizing air leakage.
Special Internal Hole Processing: The valve body hole adopts a unique processing technology, resulting in minimal attrition friction, a low starting pressure, and a service life exceeding 20 million cycles.
Lubrication-Free Operation: High-quality seals allow the 3V series to operate reliably without additional oil lubrication, keeping your compressed air system clean and maintenance-free.
Manual Override: Equipped with an integrated manual override button to facilitate easy installation, testing, and manual troubleshooting.
Manifold Integration: These valves can be used individually or integrated with a manifold to save space and simplify complex piping.

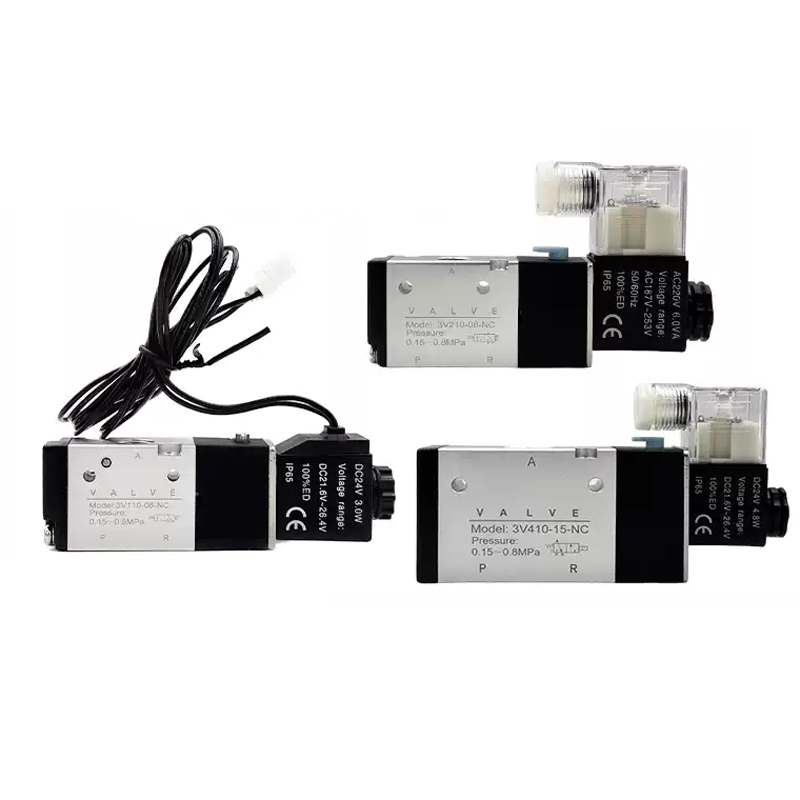

3V Series Model Ranges
3V100 Series (1/8" Port): Compact control for small actuators and electronic assembly.
3V200 Series (1/4" Port): The standard choice for general industrial automation and medium-sized single-acting cylinders.
3V300 Series (3/8" Port): High-flow control for large-scale actuators and heavy machinery.
Technical Specifications Overview
Primary Industrial Applications
Single-Acting Actuators: Controlling spring-return cylinders and air bags.
Process Signal Control: Providing pilot air signals for large process valves.
Vacuum Systems: Quick vacuum breaking and suction cup control.
Packaging Machinery: Actuating small reject arms and diversion gates.
