4V100 Series 5/2 way 5/3 way Solenoid Vlave
- 4V100 series solenoid valve
- High-speed 5/2 and 5/3 way pneumatic control
- Compact 1/8" port size (06)
- Pilot-oriented sliding column structure for superior tightness
- Internal hole with special low-friction processing
- No lubrication required for eco-friendly operation
- Integrated manual override for easy testing
- Available in DC12V, DC24V, AC110V, AC220V
- Long service life exceeding 20 million cycles
- ISO certified industrial quality.
AirTAC Type 4V100 Series: Compact & Reliable Directional Control Valves
The AirTAC type 4V100 series is a premier line of pilot-oriented solenoid valves designed for precise control of compressed air in automated systems. Known for its compact size and high flow rate, the 4V100 series (including the popular 4V110 and 4V120 models) is the industry standard for 1/8" pneumatic applications.
Core Technical Features
Pilot-Oriented Mode: Internal or external pilot options provide stable performance even at low operating pressures.
Sliding Column Structure: The internal sliding column mode ensures excellent tightness and sensitive reaction times.
Low Friction Internal Hole: The valve body hole adopts a special processing technology that results in minimal attrition friction, a low starting pressure, and an exceptionally long service life.
Lubrication-Free Operation: Specially designed seals eliminate the need for additional oil lubrication, making it ideal for clean-room and food-grade environments.
Manual Override: Equipped with a manual override button to facilitate easy installation, testing, and troubleshooting.
Memory Function: Double control solenoid valves (such as the 4V120) feature a mechanical memory function for added safety and reliability.

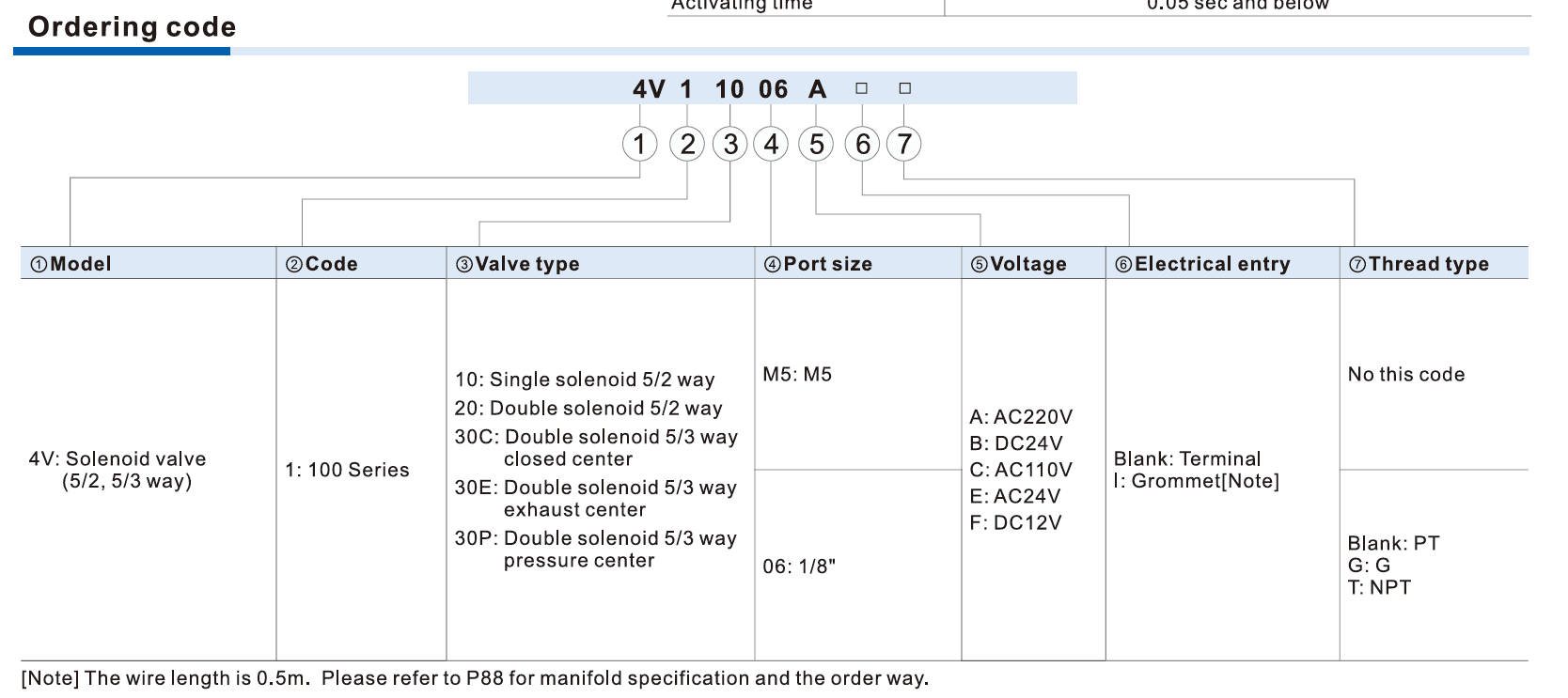

AirTAC Type 4V100 Model Overview

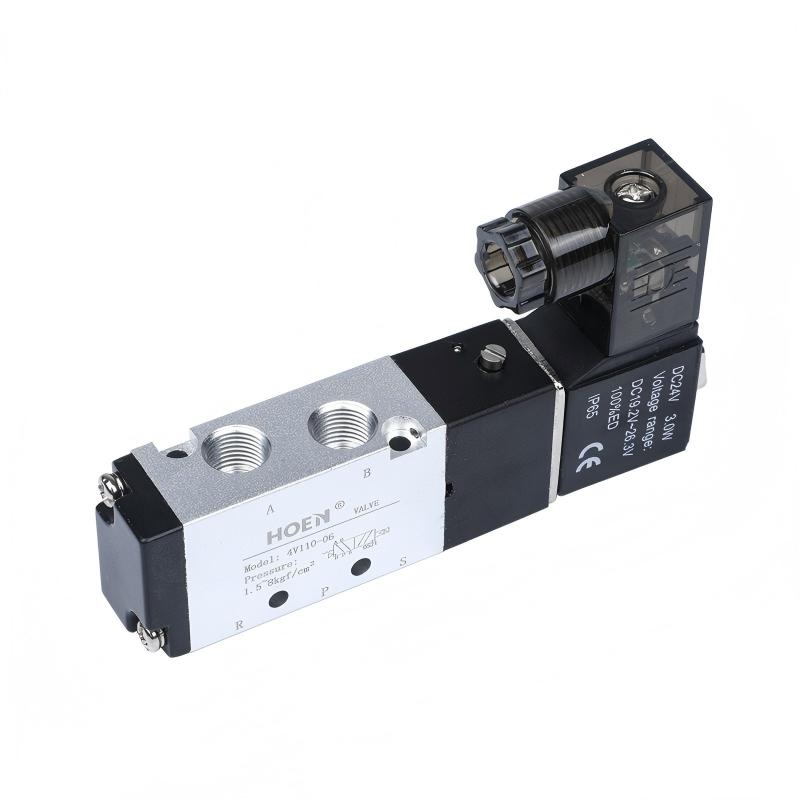

4V110-06: 5/2 Way Single Solenoid Valve (1/8" Port).

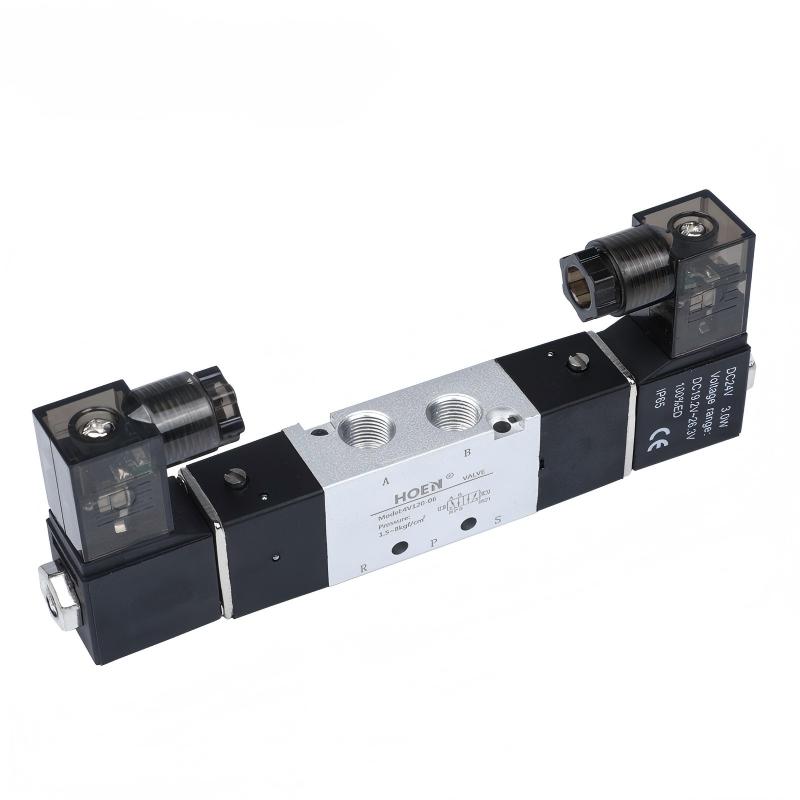

4V120-06: 5/2 Way Double Solenoid Valve (1/8" Port).

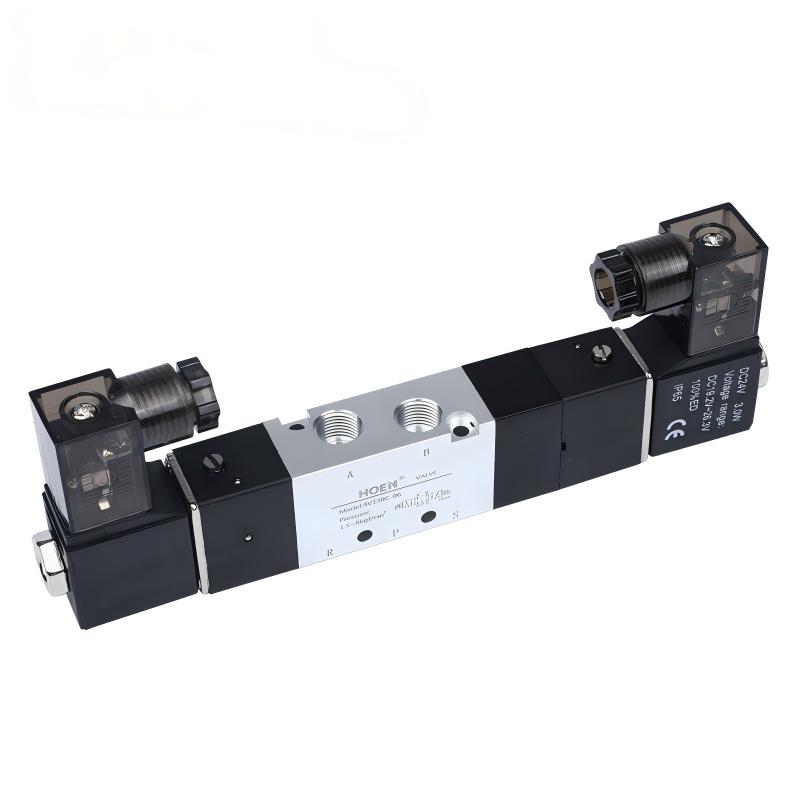

4V130C/E/P-06: 5/3 Way Double Solenoid Valve (Closed/Exhaust/Pressure Center types).

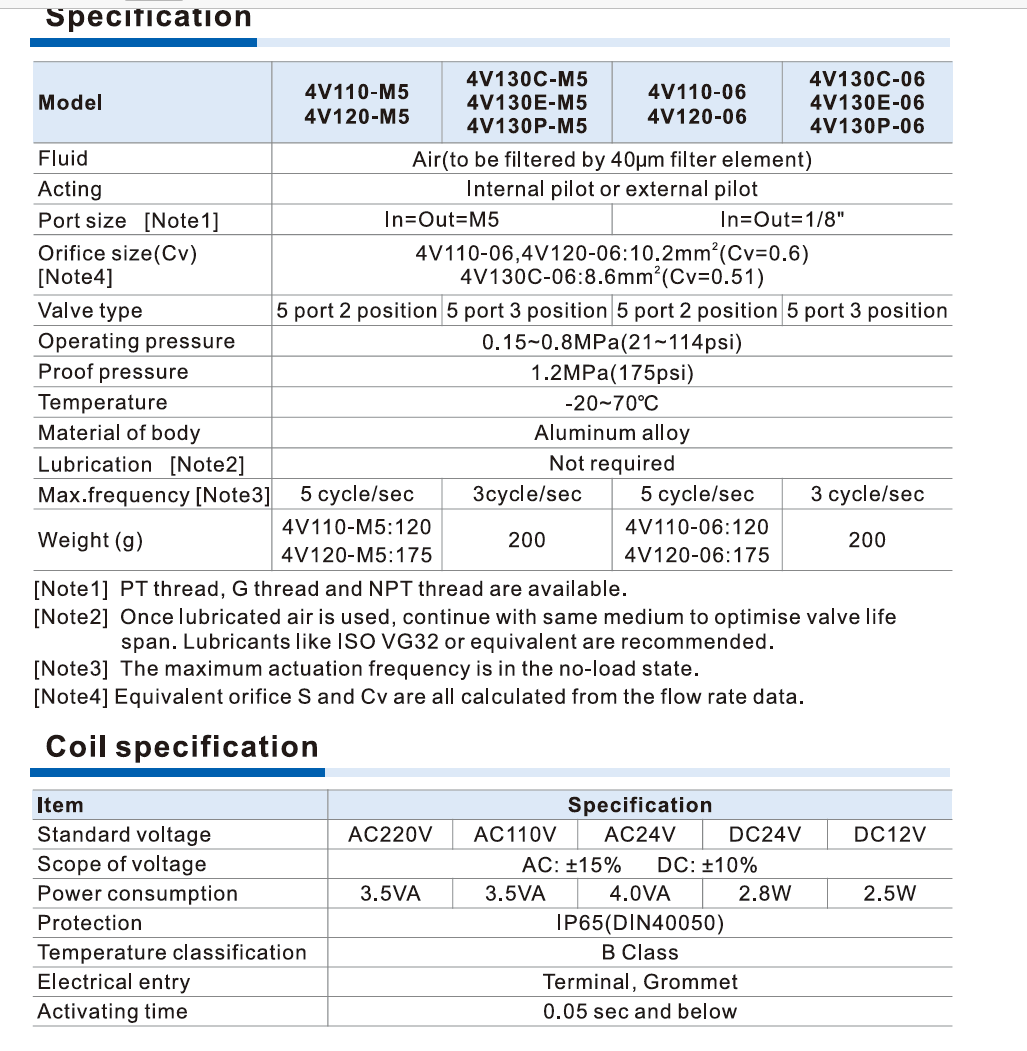

Technical Specifications Overview
Primary Industrial Applications
AirTAC 4V100 valves are widely used in:
Precision Assembly: Controlling small pneumatic cylinders in electronics.
Packaging Machinery: Managing high-speed sorting and labeling.
Textile Industry: Actuating compact loom and sewing components.
Lab Automation: Reliable gas control for medical and testing equipment.
