4V200 4V300 4V400 Series Solenoid Valve
- High-performance 5/2 and 5/3 way pneumatic control
- Standard 1/4" port size (08)
- Internal pilot-oriented sliding column structure
- Low-friction internal hole for long service life
- No lubrication required for clean-room operation
- Integrated manual override for troubleshooting
- Multi-voltage support (DC24V, AC110V, AC220V)
- Robust aluminum alloy body with IP65 protection
- ISO certified industrial standard.
AirTAC type 4V200 Series: The Industry Standard for 1/4" Directional Control
The AirTAC type 4V200 series is a flagship line of pilot-oriented solenoid valves, globally recognized for its reliability and versatile performance. Featuring a standard 1/4" port size, the 4V200 series (including the 4V210 and 4V220) is designed to provide high flow rates in a compact footprint, making it the essential choice for medium-sized pneumatic cylinders and automated systems.
Core Technical Features (Based on AirTAC Standards)
Pilot-Oriented Mode: Internal or external pilot options ensure stable and sensitive actuation even in fluctuating air pressure environments.
Sliding Column Structure: The internal sliding column mode provides excellent sealing performance and superior tightness, minimizing air leakage.
Low Friction Internal Hole: The valve body uses a specialized processing technology for the internal hole, resulting in minimal attrition friction, low starting pressure, and a service life exceeding 20 million cycles.
Lubrication-Free Design: High-quality seals allow the valve to operate without additional oil mist, reducing maintenance costs and protecting clean environments.
Safety Memory Function: Double solenoid models (such as the 4V220) include a mechanical memory function, ensuring the valve maintains its state even after power is disconnected.
Integrated Manifold Mounting: Designed for both individual use and manifold integration, allowing for centralized control of multiple valves in narrow spaces.

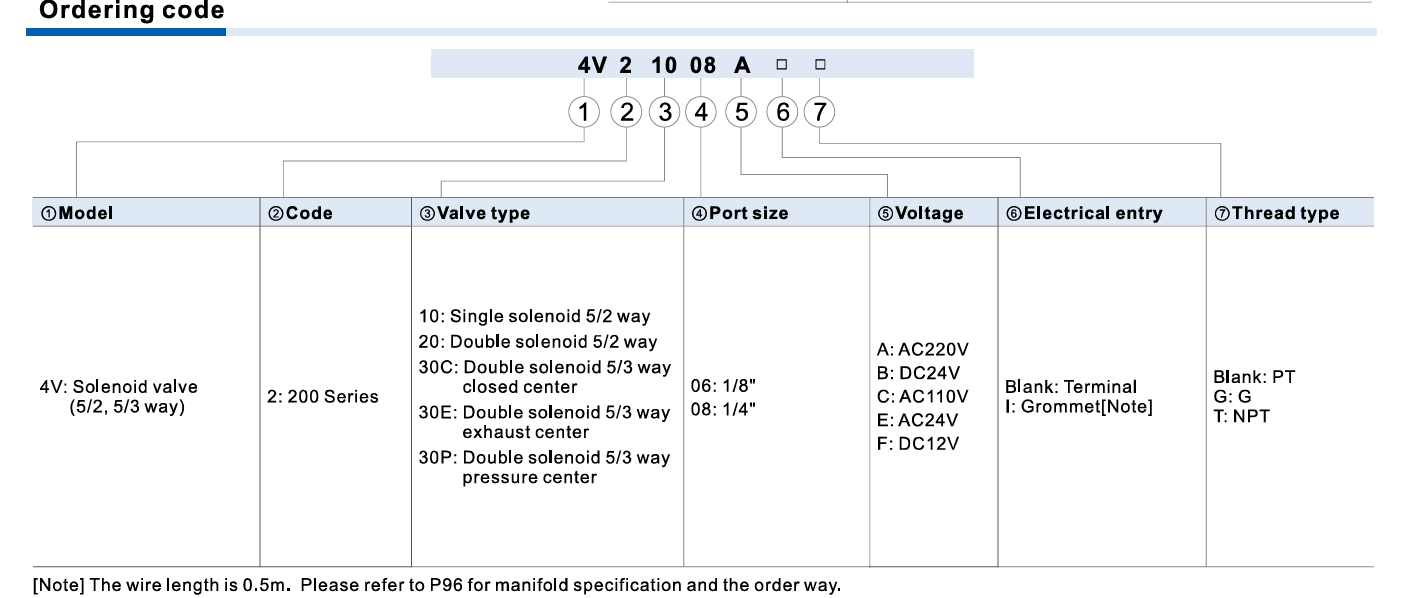

AirTAC 4V200 Model Overview

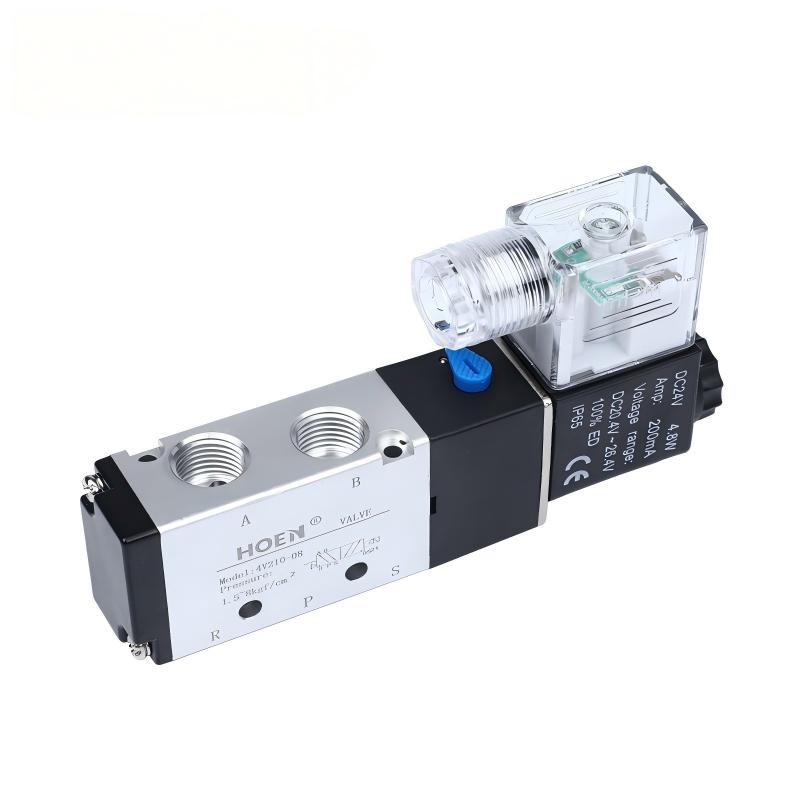

4V210-08: 5/2 Way Single Solenoid Valve (1/4" Port).

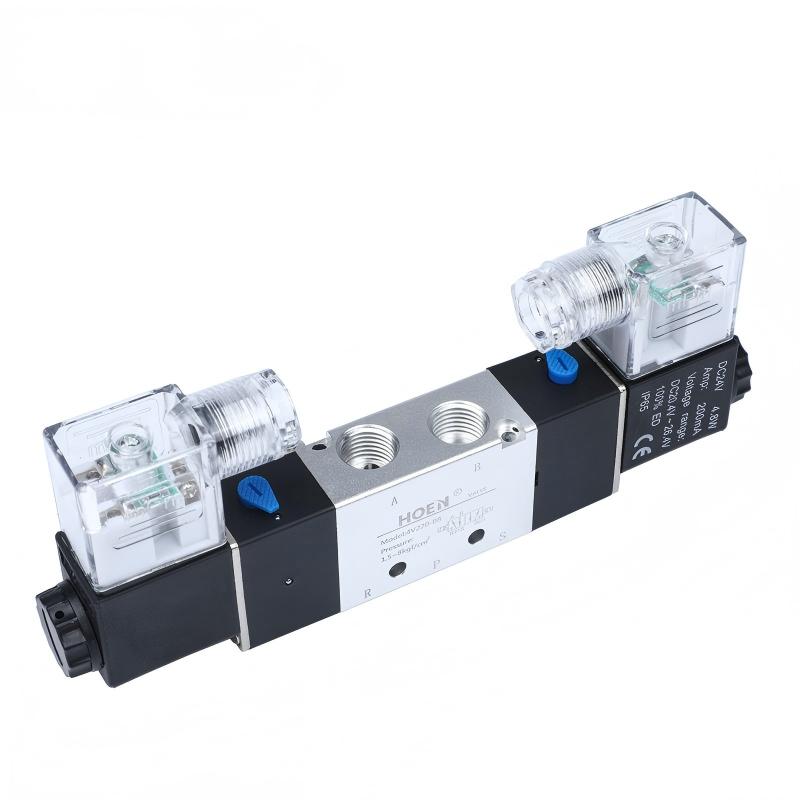

4V220-08: 5/2 Way Double Solenoid Valve (1/4" Port).

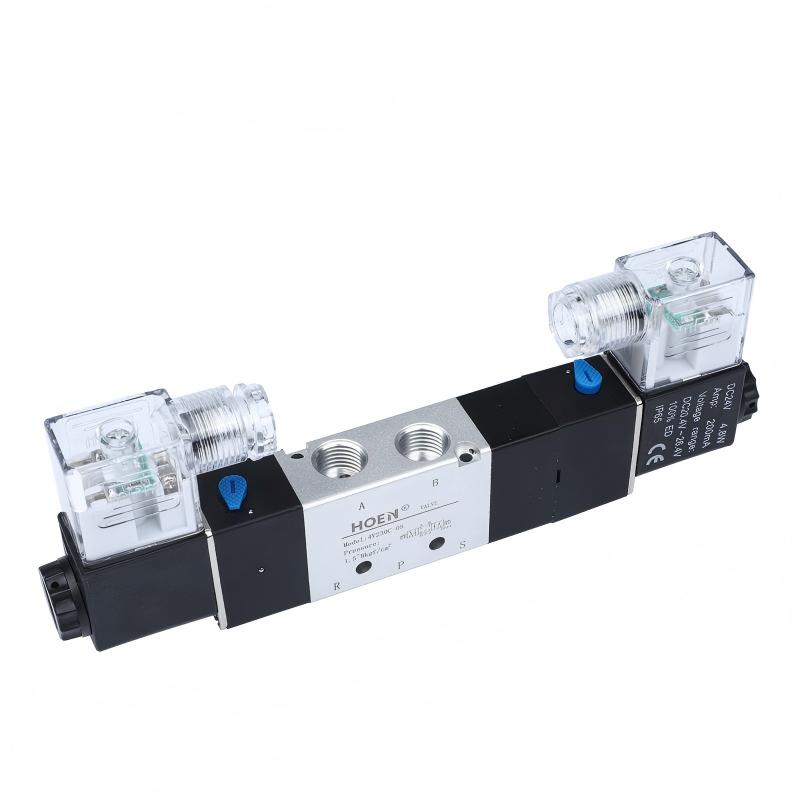

4V230C/E/P-08: 5/3 Way Double Solenoid Valve (Closed/Exhaust/Pressure Center types).

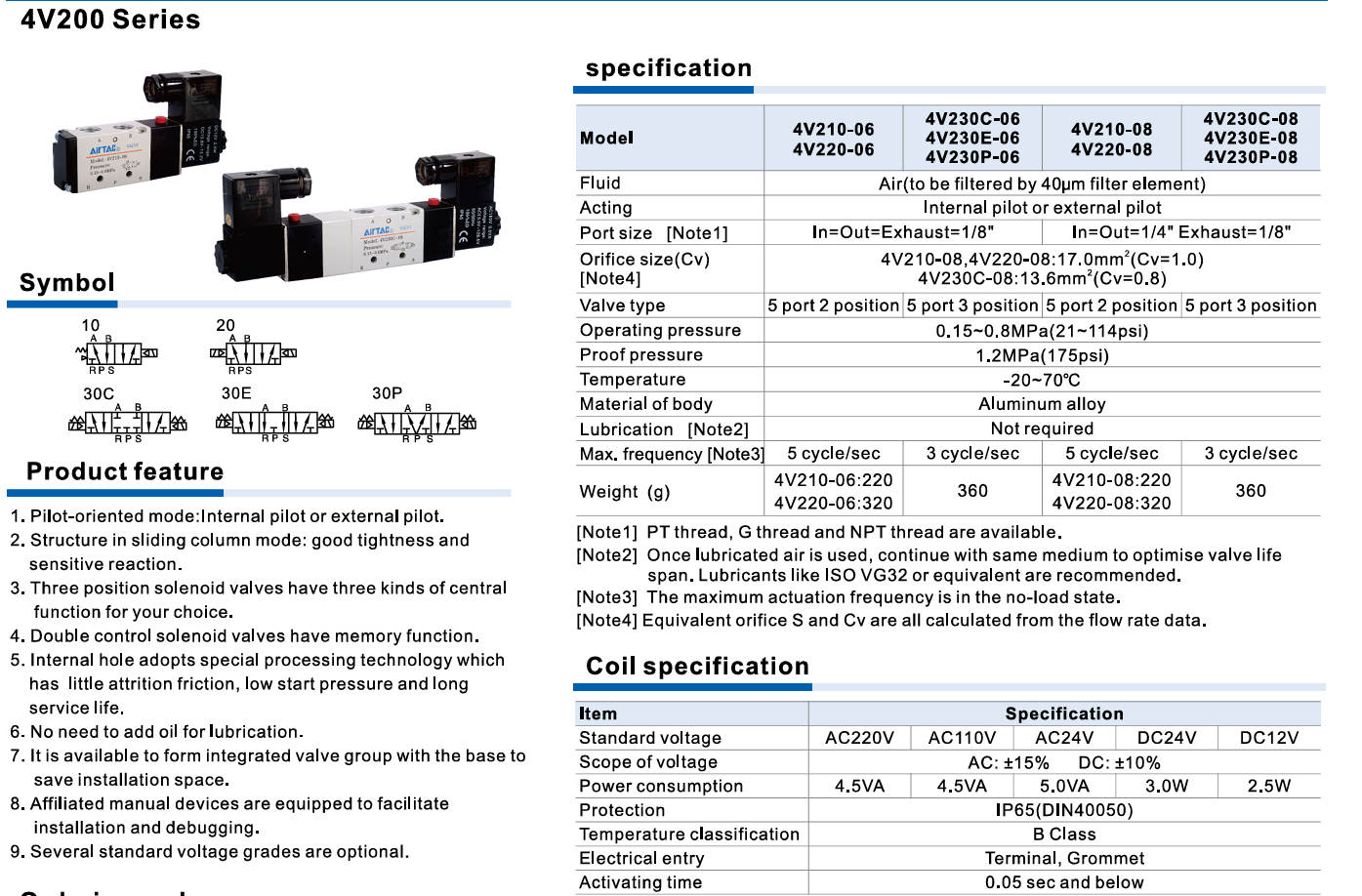

Technical Specifications Overview
Primary Industrial Applications
The AirTAC type 4V200 series is widely utilized in:
Automotive Assembly: Controlling medium-sized cylinders on production lines.
Food & Packaging Machinery: Reliable actuation for sorting, sealing, and boxing.
Electronics Manufacturing: High-frequency pneumatic control in SMT and assembly cells.
General Machinery: Universal air control for jigs, fixtures, and material handling systems.
