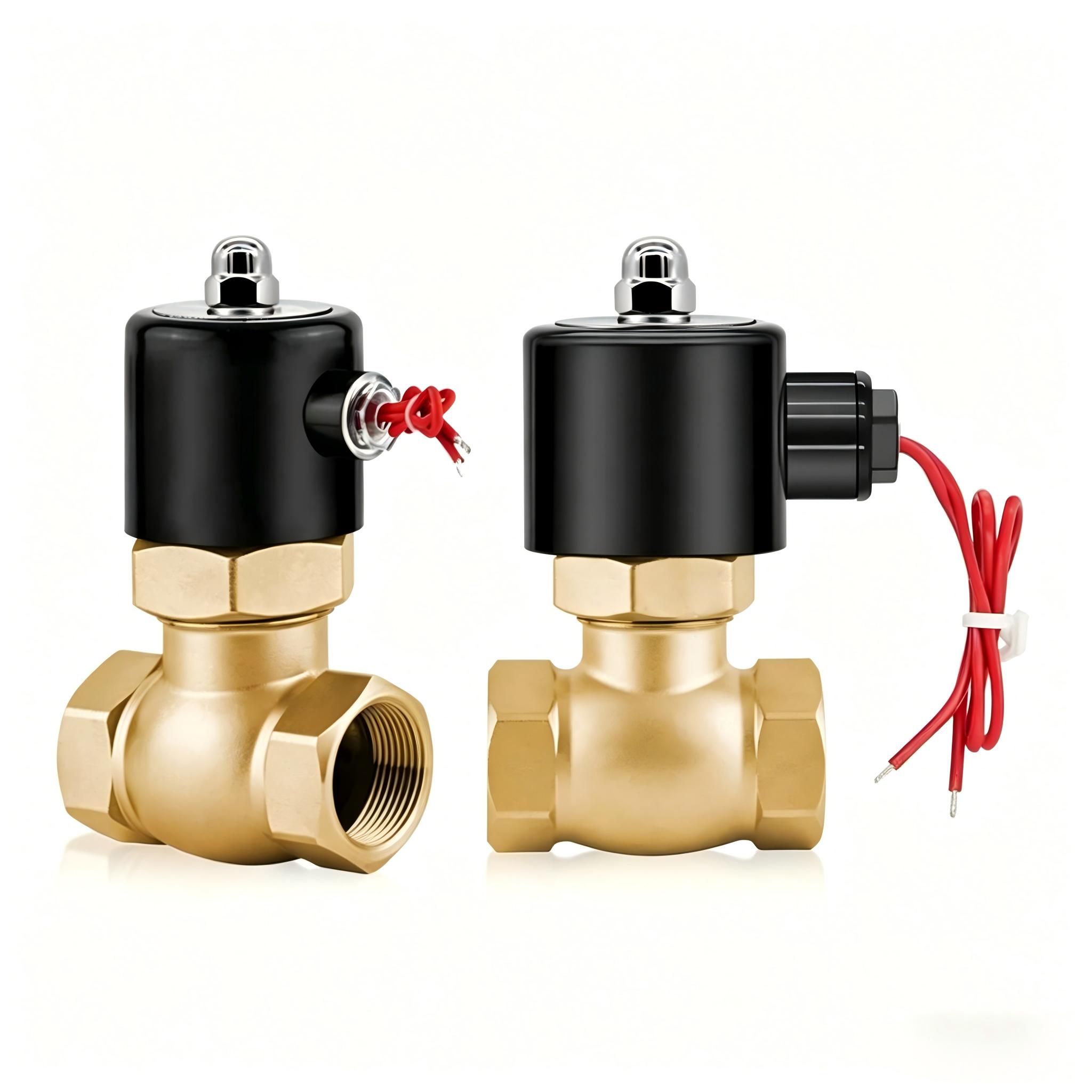

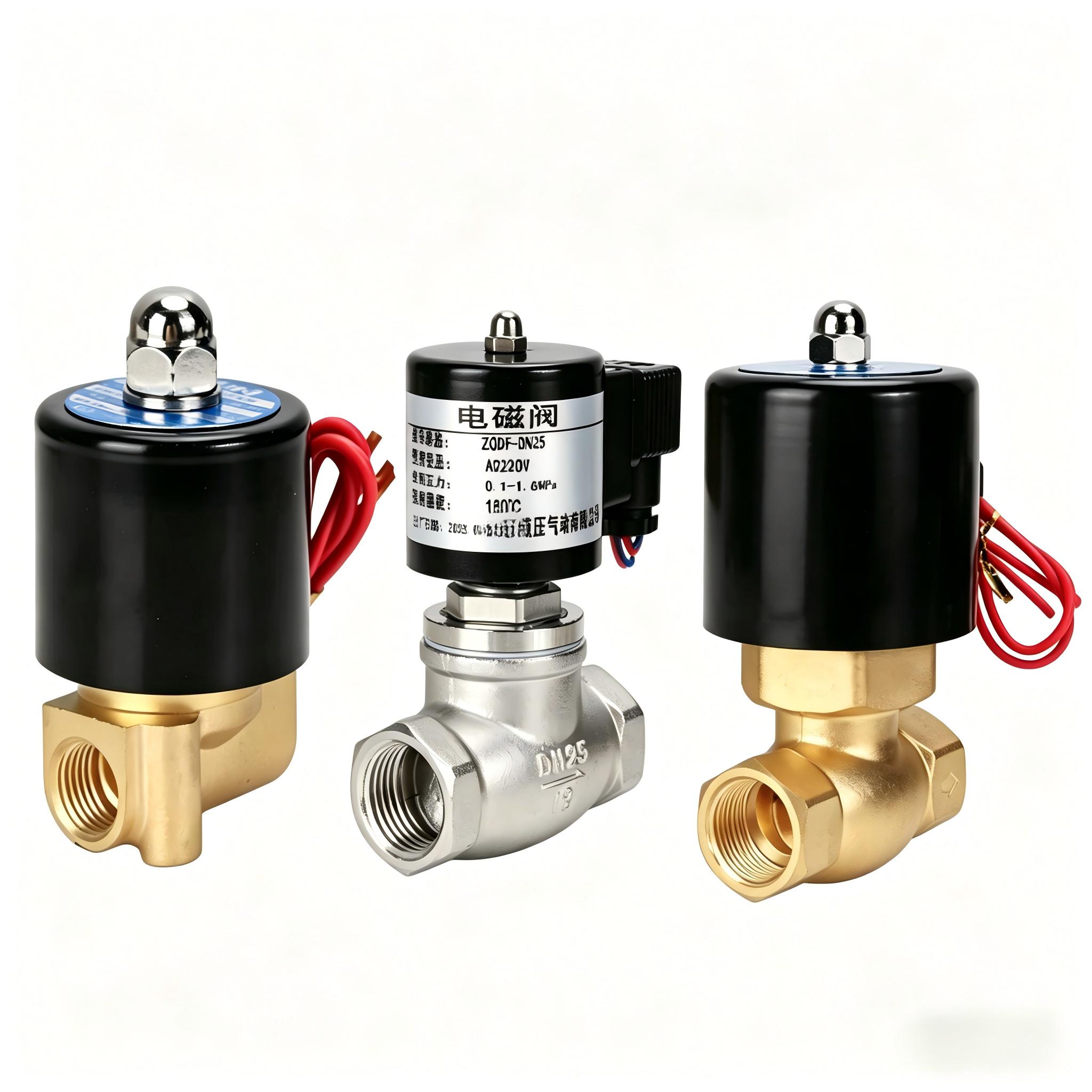

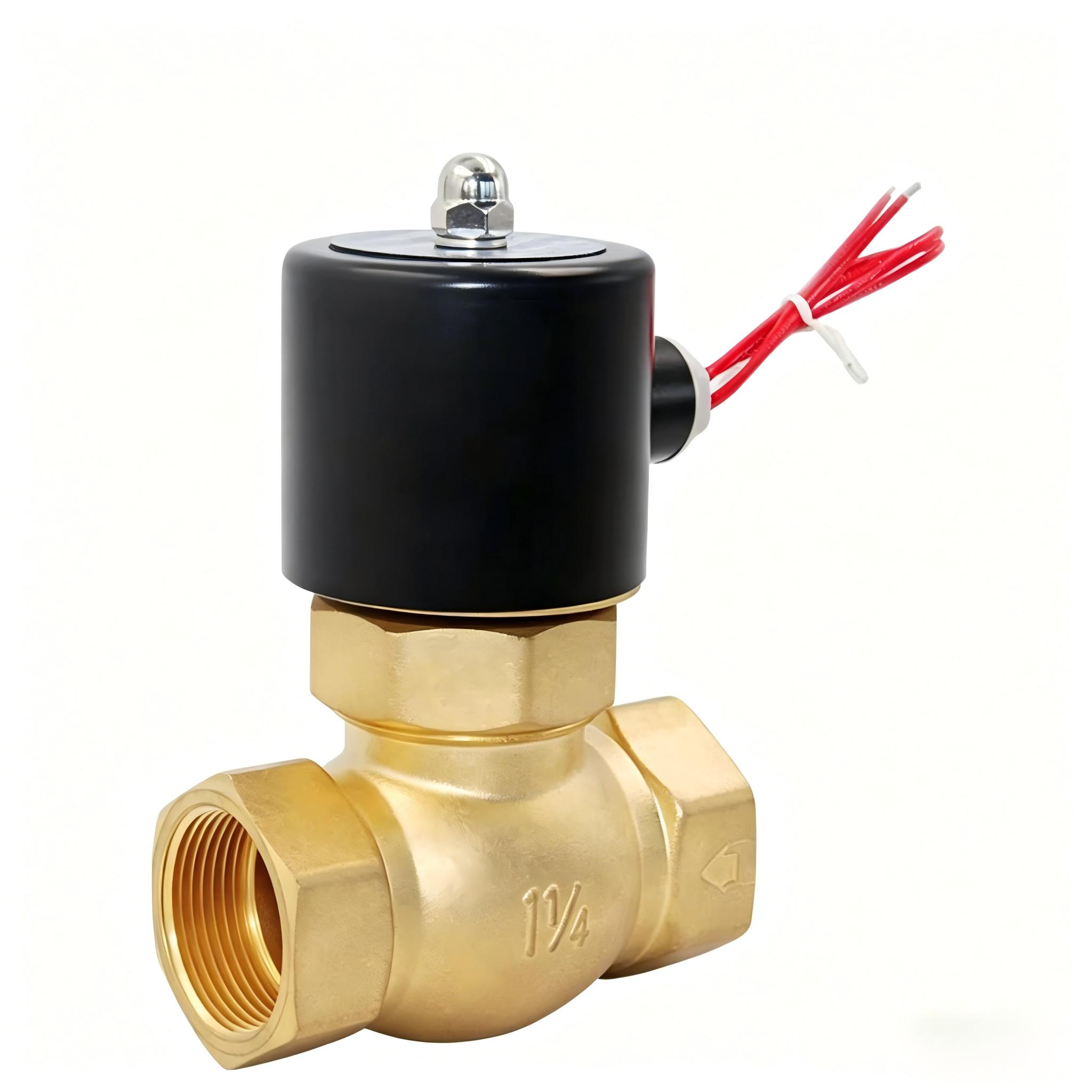

US Series All Brass High Temp Steam Solenoid Valve
- US series steam solenoid valve
- All brass steam solenoid valve
- High temperature steam solenoid valve
- Brass boiler steam valve
- Pilot operated steam solenoid valve
- 185°C steam solenoid valve
- 16 bar steam solenoid valve
- 2/2 way brass steam valve
- Industrial steam control valve
- US brass steam valve for boiler
Our US Series All Brass High Temperature Steam Solenoid Valve is engineered for reliable on/off control of saturated steam in demanding industrial environments. Constructed with a robust forged brass body, this valve delivers exceptional durability and corrosion resistance for long service life.
All Brass Construction: Solid brass body for superior heat resistance and strength.
High Temperature Capability: Operates efficiently with steam up to 185°C (365°F).
High Pressure Rating: Working pressure up to 1.6MPa (16 bar).
Pilot-Operated Design: Ensures stable performance and requires minimal pressure differential.
Premium Sealing: Equipped with PTFE seals for tight shut-off and extended durability in high-heat conditions.
2/2-Way Normally Closed: Standard configuration for reliable steam control.
Versatile Sizing: Available in port sizes from G1/2" (DN15) to G2" (DN50).
Wide Voltage Options: AC220V, DC24V, and other custom voltages available.
Perfectly suited for use in boiler systems, steam heaters, dryers, laundry equipment, food processing, textile dyeing, and other industrial automation systems requiring precise high-temperature steam control.
