AC Series Modular F.R.L. Unit AC Series Modular F.R.L. Unit AC Series Modular F.R.L. Unit AC Series Modular F.R.L. Unit AC Series Modular F.R.L. Unit

AC Series Modular F.R.L. Unit

  • Professional AC series integrated F.R.L. unit
  • Complete pneumatic air preparation in one modular assembly
  • High-efficiency 5-micron filtration for superior air quality
  • Precise pressure regulation with secure push-lock knob
  • Proportional lubrication for extended component life
  • Space-saving compact design with standardized spacers
  • Transparent bowl guards for 360° visibility
  • Port sizes available: 1/8", 1/4", 3/8", 1/2", 3/4", 1"

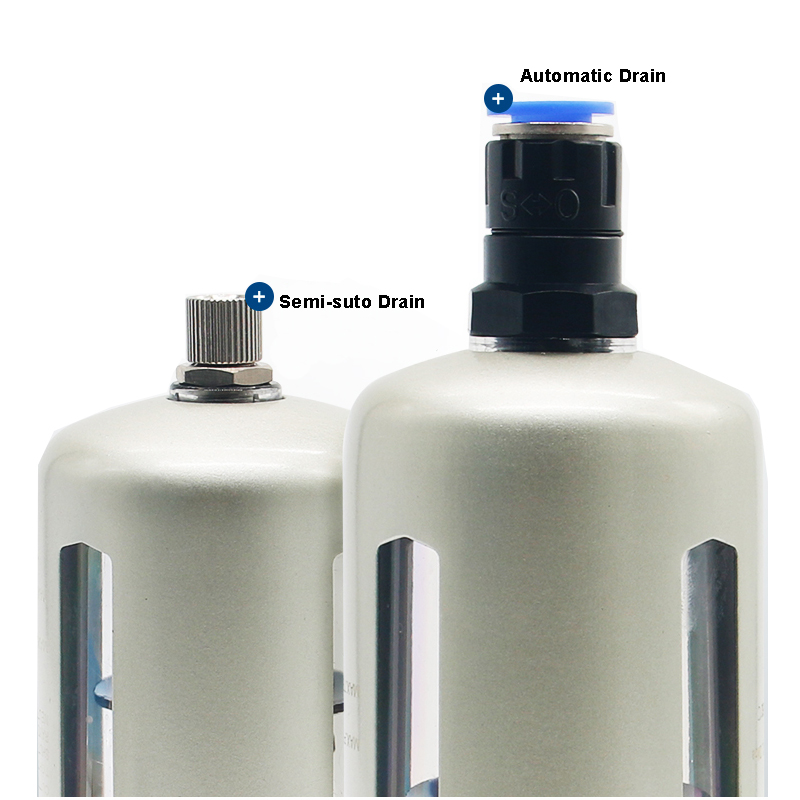

  • Choice of manual, semi-auto, or automatic drain
  • ISO certified global industrial quality
  • Easy tool-free maintenance and element replacement.

AC Series: The Complete Modular Solution for Air Preparation

The AC series represents the gold standard in integrated pneumatic air preparation. By combining an Air Filter, Pressure Regulator, and Mist Lubricator into a single, cohesive unit, the AC series provides the "clean, dry, and lubricated" air necessary for the long-term reliability of your solenoid valves and pneumatic cylinders. Its modern modular design ensures a compact footprint while maximizing flow performance.

Key Technical Features & Engineering Highlights

  • Integrated Modular Architecture: The AC series utilizes a standardized spacer and bracket system. This allows the individual components (Filter, Regulator, Lubricator) to be easily connected or removed for maintenance without disturbing the main piping, significantly reducing downtime.

  • High-Efficiency Filtration: Equipped with a high-quality 5-micron filter element as standard, the unit effectively removes moisture droplets, dust, and oil particles that cause internal corrosion and wear in pneumatic actuators.

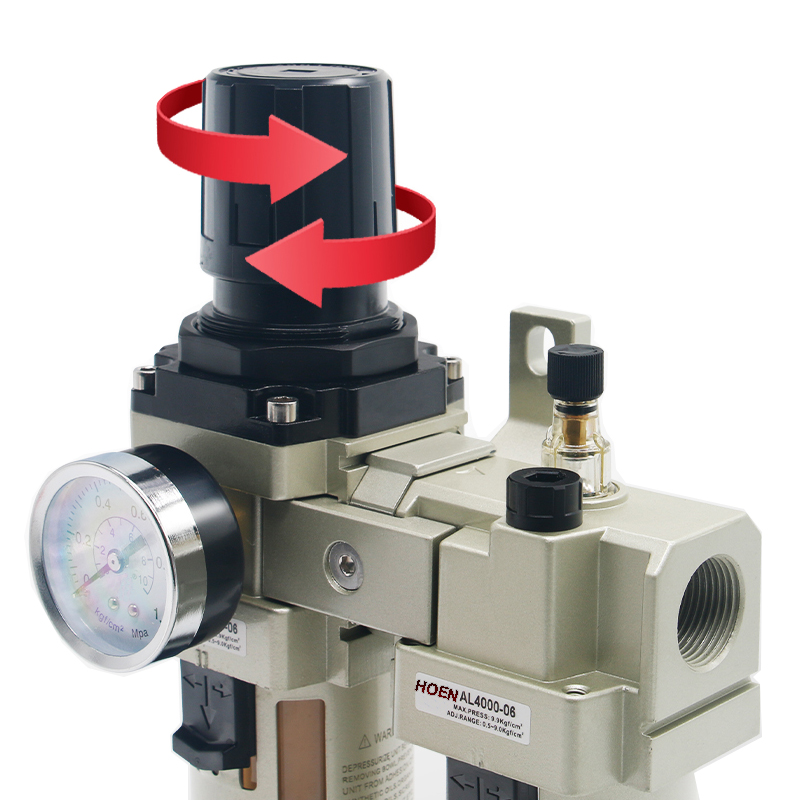

  • Precision Pressure Stability: The integrated regulator provides a constant air supply even under fluctuating inlet conditions. The "Push-to-Lock" adjustment knob prevents accidental pressure changes due to vibration or manual error.

  • Consistent Proportional Lubrication: The mist-type lubricator ensures a stable oil-to-air ratio across a wide flow range, reducing friction and extending the lifecycle of high-speed automated equipment.

  • Enhanced Visibility Bowl Guards: The latest AC-A/B designs feature transparent bowl guards, offering 360-degree visibility of condensate and oil levels from any angle, ensuring safer and easier inspections.

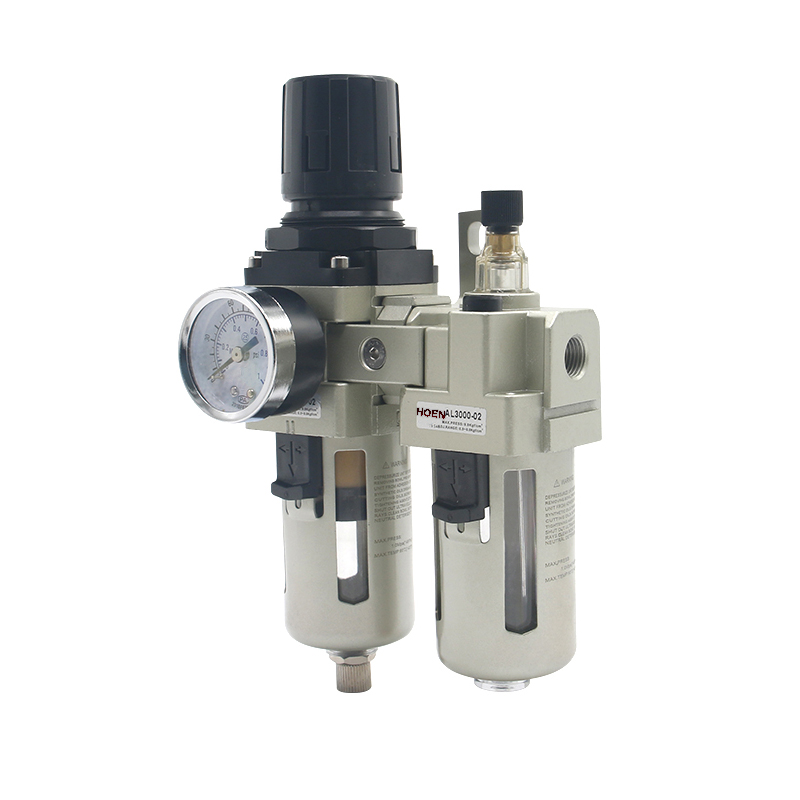

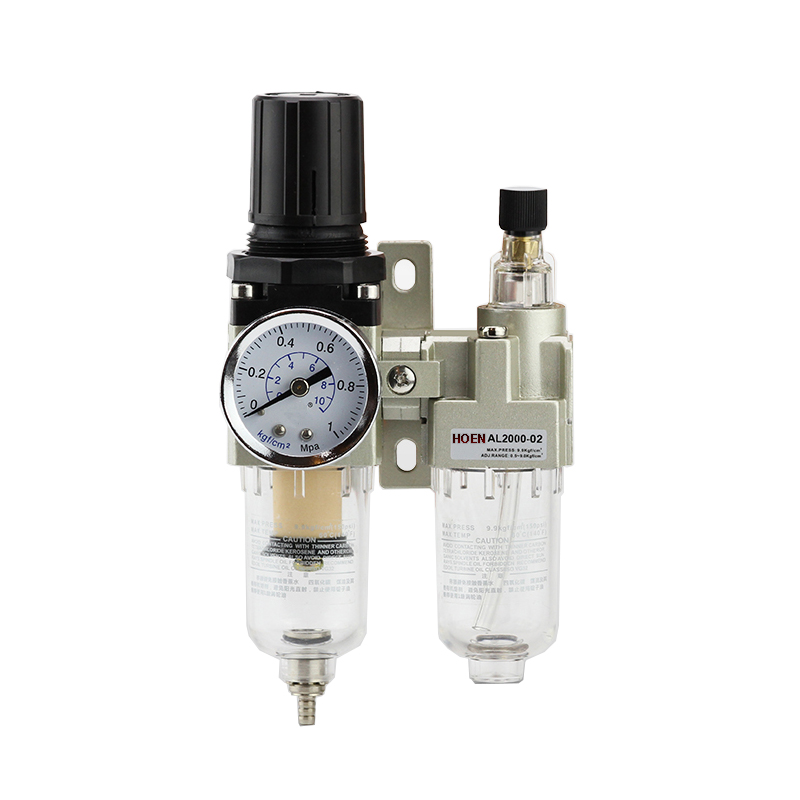

  • Customizable Configurations: Available as a 3-unit set (Filter+Regulator+Lubricator) or a 2-unit set (Filter-Regulator + Lubricator), providing the flexibility to match specific application needs.

AC Series Model Overview

  • AC10: Ultra-compact M5 port size for micro-automation.

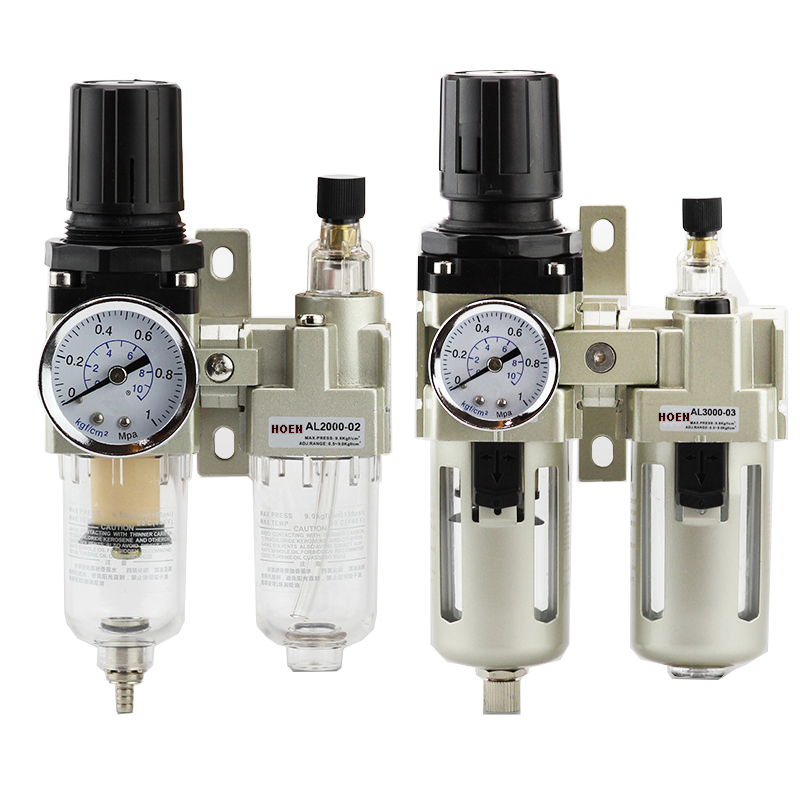

  • AC20 / AC25 / AC30: The standard choice for medium industrial automation (1/8", 1/4", 3/8" ports).

  • AC40: High-flow performance for 1/2" and 3/4" air lines.

  • AC50 / AC60: Heavy-duty integrated air preparation for 3/4" and 1" main headers.


Technical Specifications Overview

FeatureDetails
Model SeriesAC10, AC20, AC25, AC30, AC40, AC50, AC60
FluidCompressed Air
Filtration Grade5μm (Standard)
Set Pressure Range0.05 ~ 0.85 MPa (Standard)
Max. Operating Pressure1.0 MPa (145 psi)
Proof Pressure1.5 MPa (215 psi)
Ambient & Fluid Temp.-5°C to 60°C (No freezing)
Drain TypeManual / Semi-auto / Auto Drain

Primary Industrial Applications

  • Factory Automation: Protecting sensitive valve terminals and actuators.

  • Automotive Assembly: Reliable air supply for robotic welders and paint lines.

  • Food & Packaging: Maintaining clean air for pneumatic sorting and boxing machinery.

  • Material Handling: Stable air pressure for high-speed conveyor diverters and lifts.
