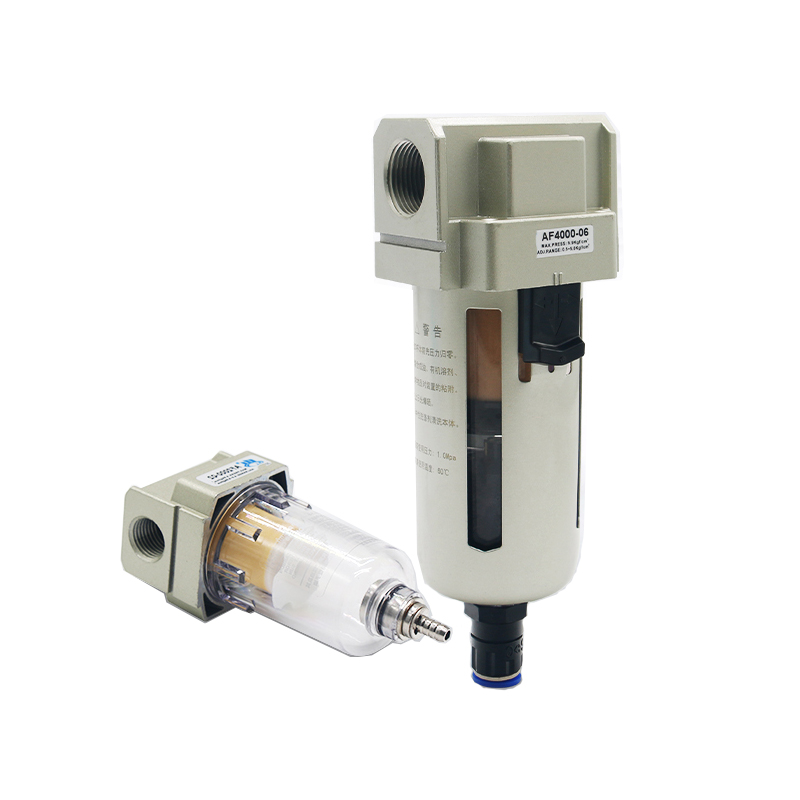

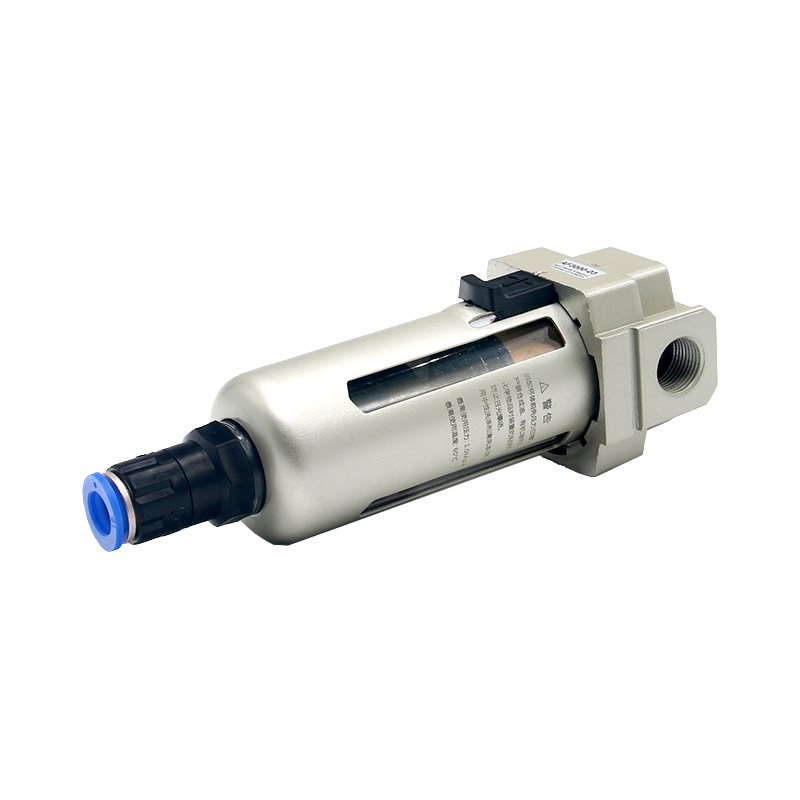

AF Series Air Filter
- AF series air filter
- High-performance modular pneumatic filtration
- 5-micron filter element for effective particle and water removal
- Transparent bowl guard for 360° condensate visibility
- Lightweight and compact AF-A design
- Tool-free element replacement for easy maintenance
- Port sizes available: 1/8", 1/4", 3/8", 1/2", 3/4"
- Choice of manual, semi-auto, or automatic drain
- Reliable protection for valves and actuators
The AF series (specifically the new AF-A generation) is the industry-leading standard for compressed air filtration. Designed to remove moisture droplets and solid contaminants from your air lines, the AF series protects sensitive downstream components such as solenoid valves and cylinders. Its modular design allows for seamless integration with SMC regulators and lubricators to create a complete F.R.L. assembly.
Key Technical Features & Engineering Highlights
Modular Design for Easy Integration: The AF-A series features a streamlined, modular connection system. Using SMC spacers and brackets, it can be combined with other air preparation equipment to save space and simplify piping.
Enhanced Visibility with Transparent Bowl Guard: The latest design features a double-layer transparent bowl guard, providing 360-degree visibility of the condensate level while offering maximum protection from the environment.
High-Efficiency 5-Micron Filtration: Equipped with a high-quality 5μm filter element as standard, it effectively captures fine particles and separates water droplets to prevent internal corrosion and mechanical wear.
Lightweight & Compact Construction: Reduced weight and dimensions compared to previous generations allow for easier installation on robotic arms and compact machine frames.
Versatile Drain Options: Available with manual drains, semi-auto drains, and high-reliability auto-drains (N.O. or N.C. types) to suit various maintenance requirements.
Technical Specifications Overview
Model Range & Port Sizes
AF10-A: M5 x 0.8
AF20-A: 1/8", 1/4"
AF30-A: 1/4", 3/8"
AF40-A: 1/4", 3/8", 1/2"
AF50-A / AF60-A: 3/4", 1"
Primary Industrial Applications
Factory Automation: Protecting solenoid valves and cylinders from contaminants.
Packaging Machinery: Ensuring clean air for food-grade and sterile environments.
Automotive Production: Reliable air supply for pneumatic tools and robotic welders.
Precision Instruments: Preventing moisture damage in testing and laboratory equipment.
