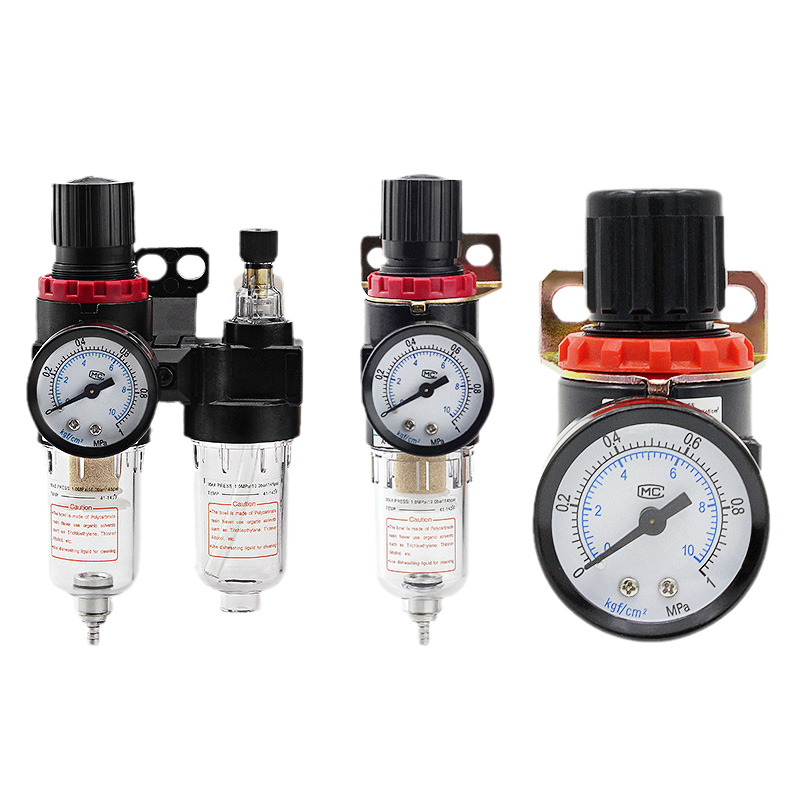

AR BR Regulators & AFR BFR Filter Regulators
- air preparation series
- Integrated AFR/BFR filter regulators and stand-alone AR/BR regulators
- High-precision pressure adjustment with secure locking knob
- Efficient water and particle removal (40μm/5μm filtration)
- Compact and space-saving design for machine integration
- Durable aluminum alloy body with high-grade surface treatment
- Transparent bowls for easy maintenance and 360° visibility
- Port sizes available: 1/8", 1/4", 3/8", 1/2" (G, NPT, and PT threads)
- Choice of manual, semi-auto, or automatic drain
AR, BR, AFR & BFR Series: Precision Control and Filtration
The range of air preparation units provides the essential foundation for any reliable pneumatic system. This series includes stand-alone pressure regulators (AR and BR) and integrated 2-in-1 filter-regulators (AFR and BFR). These units are engineered to deliver stable air pressure and remove contaminants, protecting your downstream solenoid valves and cylinders from wear and damage.
Series Breakdown & Selection Guide

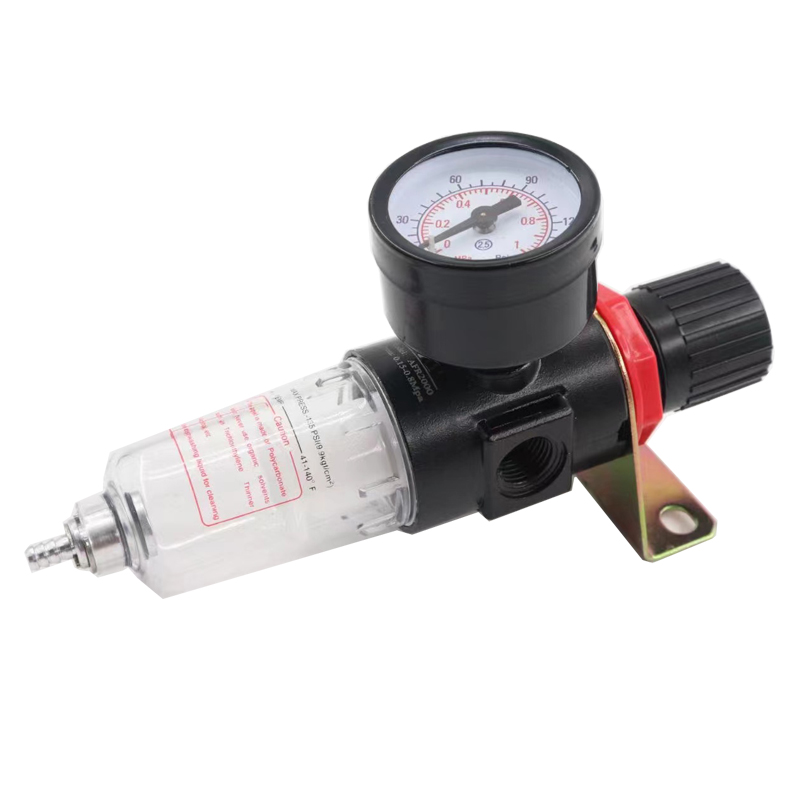

AFR & BFR Series (Filter-Regulators): These 2-in-1 integrated units combine high-efficiency filtration with precise pressure regulation.
AFR Series (Standard/Mini): Compact design (e.g., AFR2000) for space-limited applications.
BFR Series (Large Body): Designed for higher flow rates and more demanding industrial environments (e.g., BFR3000, BFR4000).

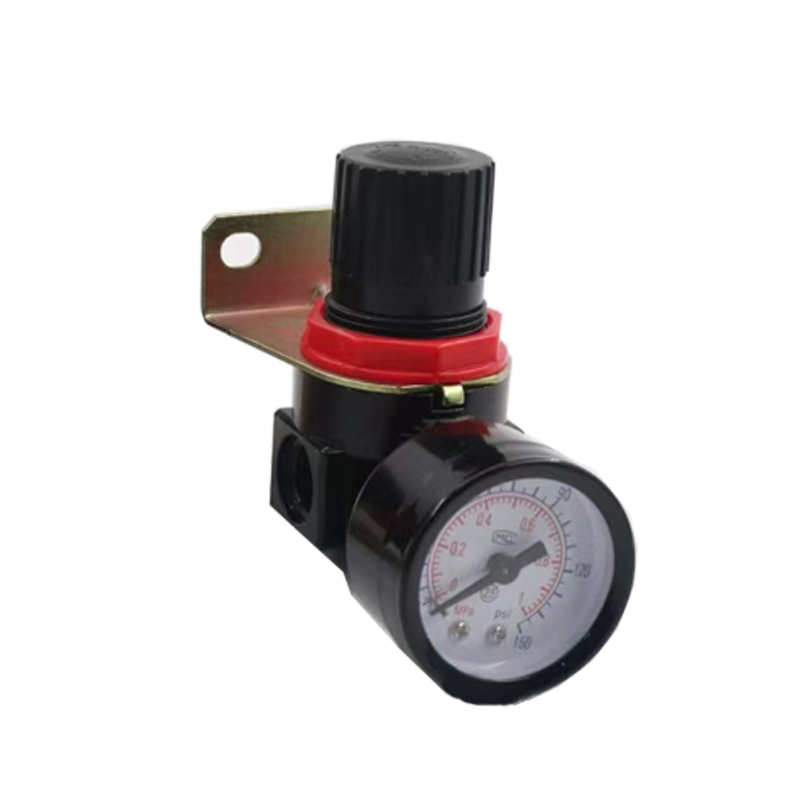

AR & BR Series (Pressure Regulators): Stand-alone regulators focused on maintaining a constant outlet pressure regardless of inlet fluctuations.
AR Series: Standard modular regulator for general automation.
BR Series: Heavy-duty regulator designed for high-flow stability.
Key Technical Features & Engineering Highlights
Precise Pressure Regulation: Both the regulator and filter-regulator units feature a balanced internal structure and a "Push-to-Lock" adjustment knob, ensuring the set pressure remains stable even under high-vibration conditions.
High-Efficiency Filtration (AFR/BFR): Equipped with a 40μm (standard) or 5μm (optional) filter element, effectively removing moisture, oil, and dust particles from the compressed air line.
Space-Saving Integrated Design: The AFR and BFR series reduce the overall footprint and the number of leak points by combining two functions into a single body.
Durable & Transparent Bowls: AFR/BFR units come with high-strength polycarbonate bowls, providing 360-degree visibility of condensate levels.

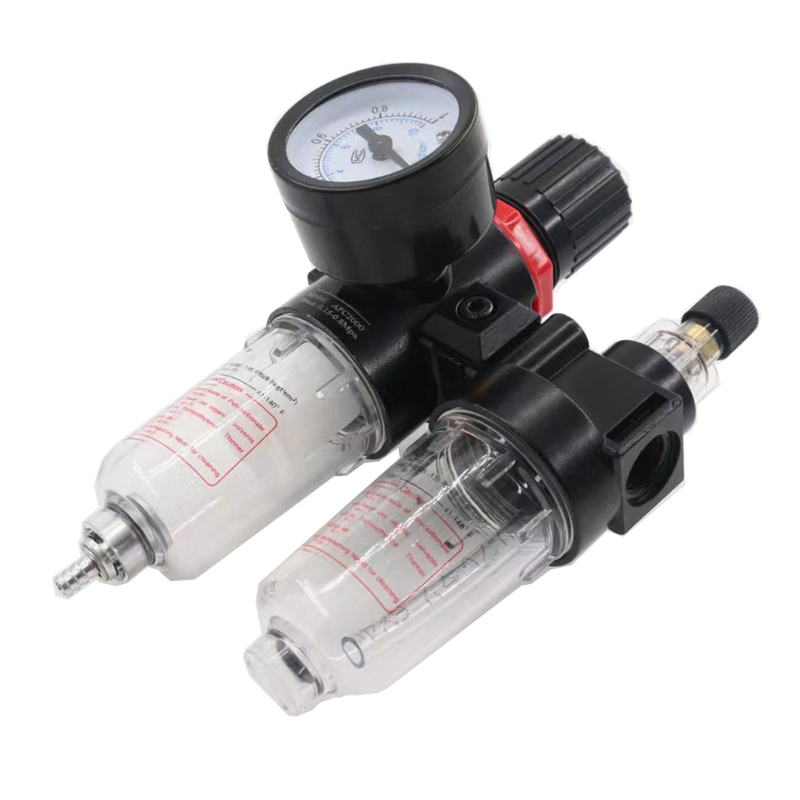

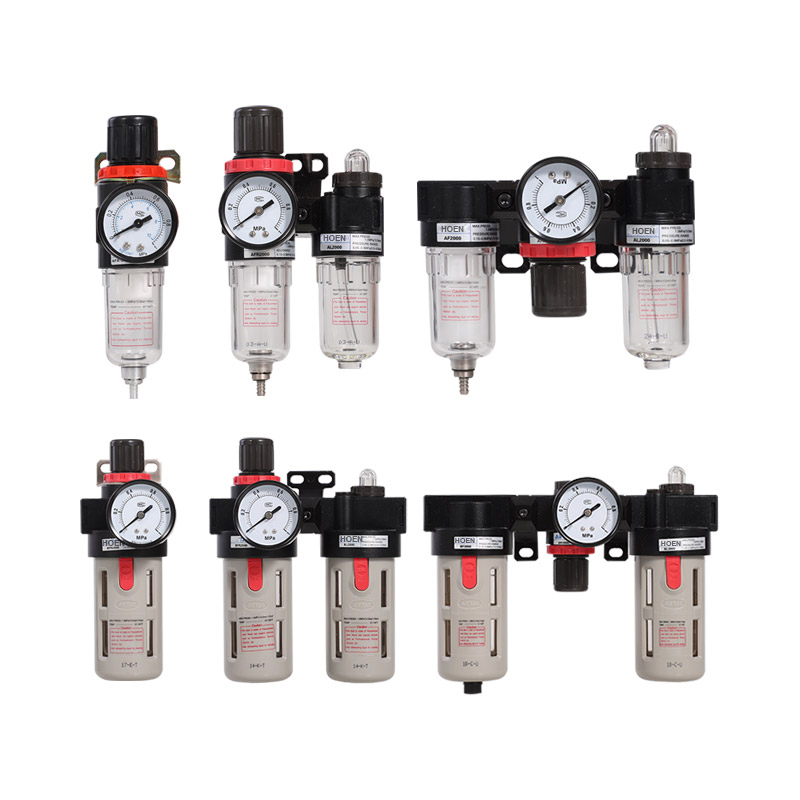

Modular Flexibility: All units are compatible with AirTAC’s modular bracket system, allowing them to be easily combined with lubricators to form a complete F.R.L. assembly.
Technical Specifications Overview
Primary Industrial Applications
Factory Automation: Protecting solenoid valves and actuators in production lines.
Packaging Machinery: Maintaining stable air pressure for high-speed boxing and sorting.
Pneumatic Tool Stations: Reliable air preparation for hand-held pneumatic tools.
Textile & Printing: Ensuring clean and stable air supply in humid or dusty environments.
