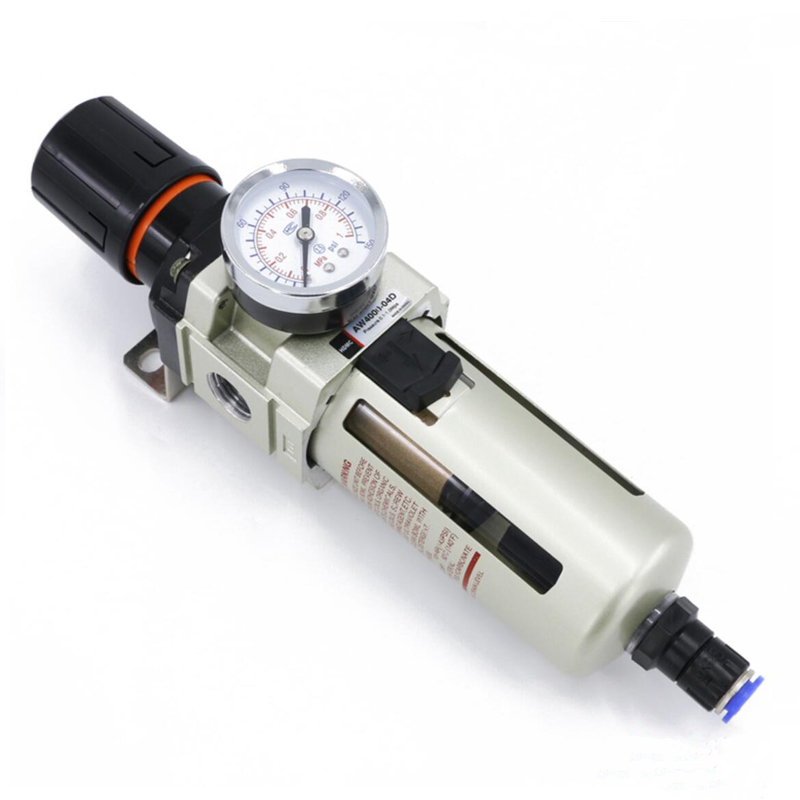

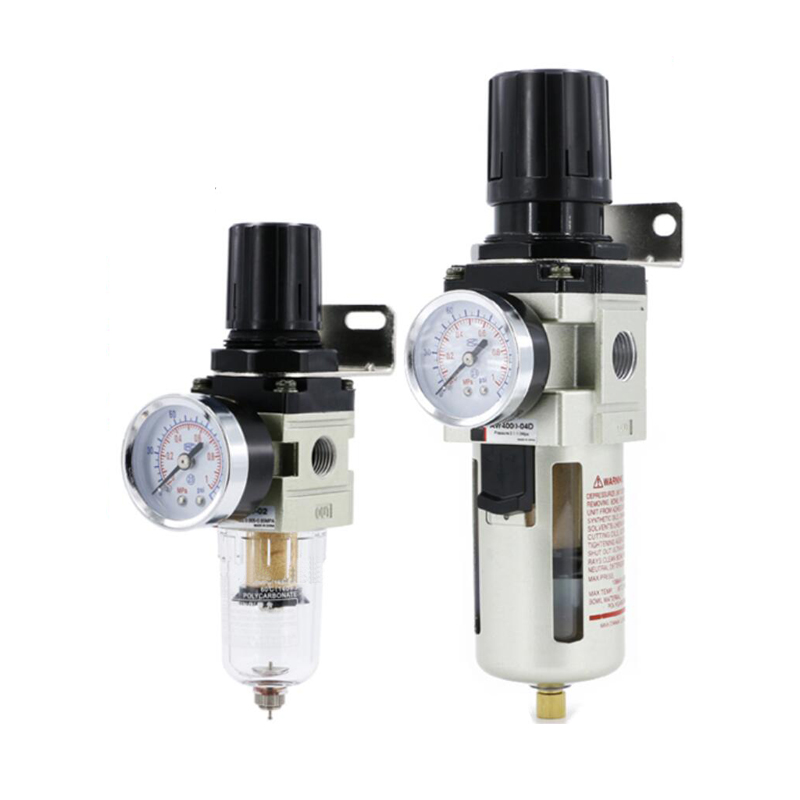

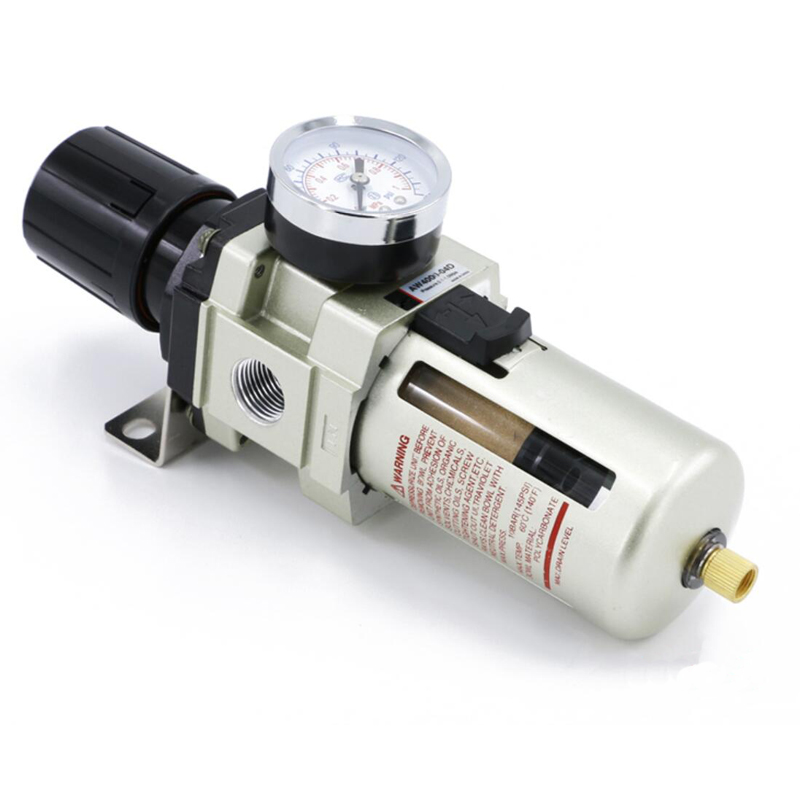

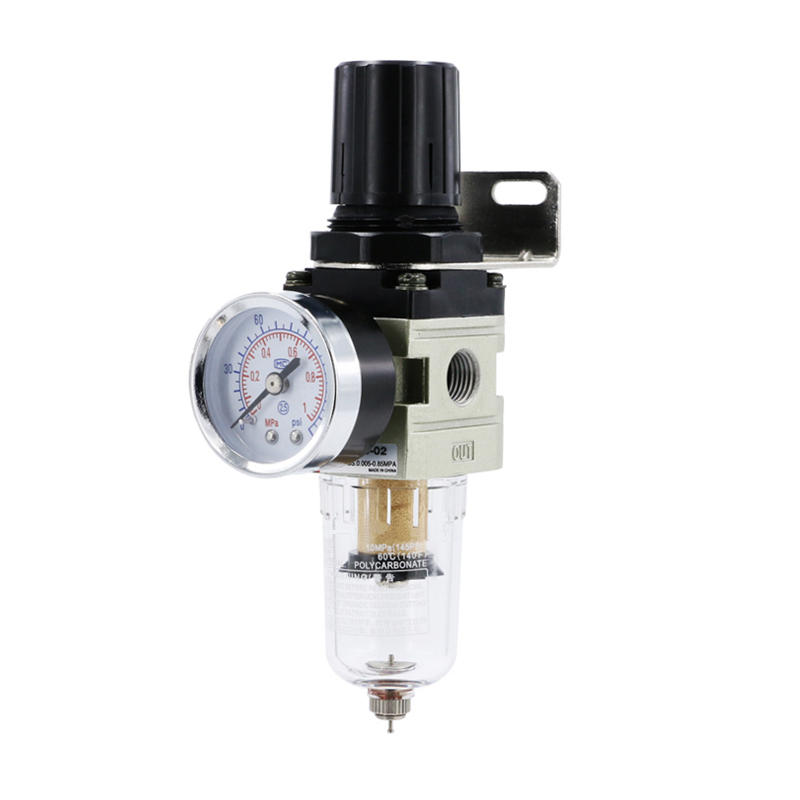

AW Series Filter Regulator
- AW series filter regulator
- Integrated 2-in-1 design for space-saving air preparation
- High-efficiency 5-micron filter element for superior air quality
- Precise pressure regulation with secure push-lock knob
- Modular assembly compatible with standard air preparation units
- Transparent bowl guard for 360° visibility
- Choice of manual, semi-auto, or automatic drain
- Port sizes available: M5, 1/8", 1/4", 3/8", 1/2", 3/4", 1"
- Lightweight and compact AW-A/B modular design
- Easy tool-free maintenance and element replacement.
AW Series: The Space-Saving Solution for Integrated Air Preparation
The AW series is an industry-leading Filter Regulator that combines the functions of an air filter and a pressure regulator into a single, compact unit. By integrating these two essential components, the AW series (including the latest AW-A and AW-B models) reduces installation space, simplifies piping, and provides superior protection and control for downstream pneumatic equipment.
Key Technical Features & Engineering Highlights
Integrated 2-in-1 Design: The AW series performs high-efficiency filtration and precision pressure regulation simultaneously. This modular integration reduces the overall footprint of your air preparation assembly by up to 50% compared to separate units.
Modular Connectivity: As part of the SMC modular F.R.L. line, the AW series can be seamlessly connected to lubricators, pressure switches, and soft-start valves using standardized spacers and brackets.
Enhanced Visibility Bowl Guard: The latest AW-A models feature a double-layer transparent bowl guard. This provides 360-degree visibility of the condensate level from any angle while protecting the bowl from environmental impact.
High-Efficiency 5-Micron Filtration: Equipped with a high-quality 5μm filter element as standard, it effectively removes moisture, dust, and solid particles, preventing internal corrosion and wear in valves and cylinders.
Stable Pressure Regulation: The integrated regulator features a locking adjustment knob (push-lock type) to prevent accidental setting changes. It maintains a stable output pressure even under fluctuating inlet conditions.
Optional Backflow Function: The AW-K models include an integrated backflow mechanism, allowing the air on the outlet side to be exhausted quickly through the regulator when the supply pressure is removed.
Technical Specifications Overview
Primary Industrial Applications
Factory Automation: Protecting solenoid valves and actuators in compact machine frames.
Packaging Machinery: Precise air control for high-speed sorting and boxing.
Semiconductor Processing: Stable and clean air supply for delicate wafer handling.
General Manufacturing Jigs: Reliable 2-in-1 air preparation for manual and automated fixtures.
