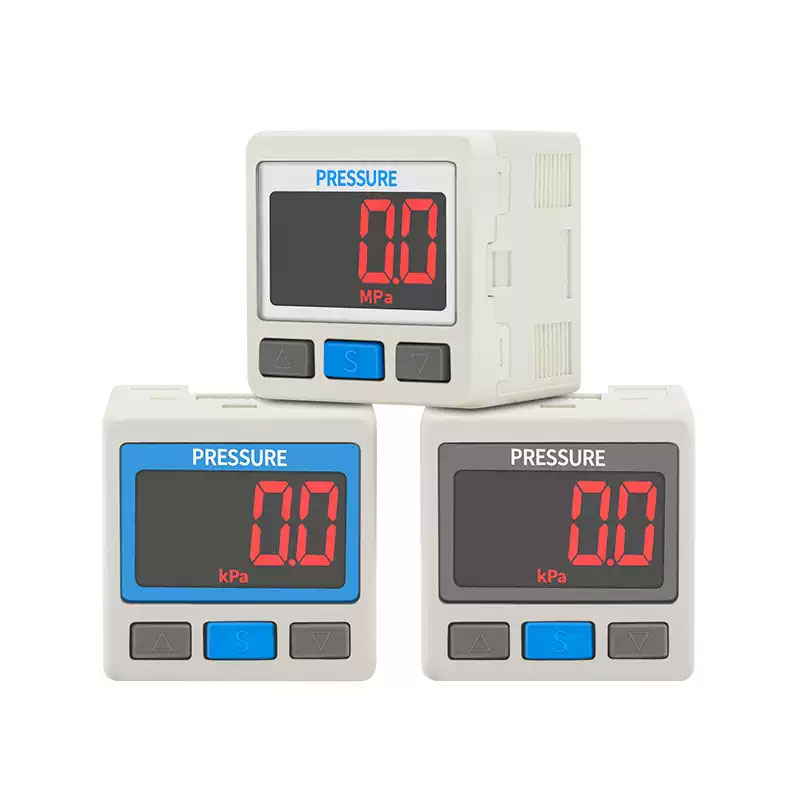

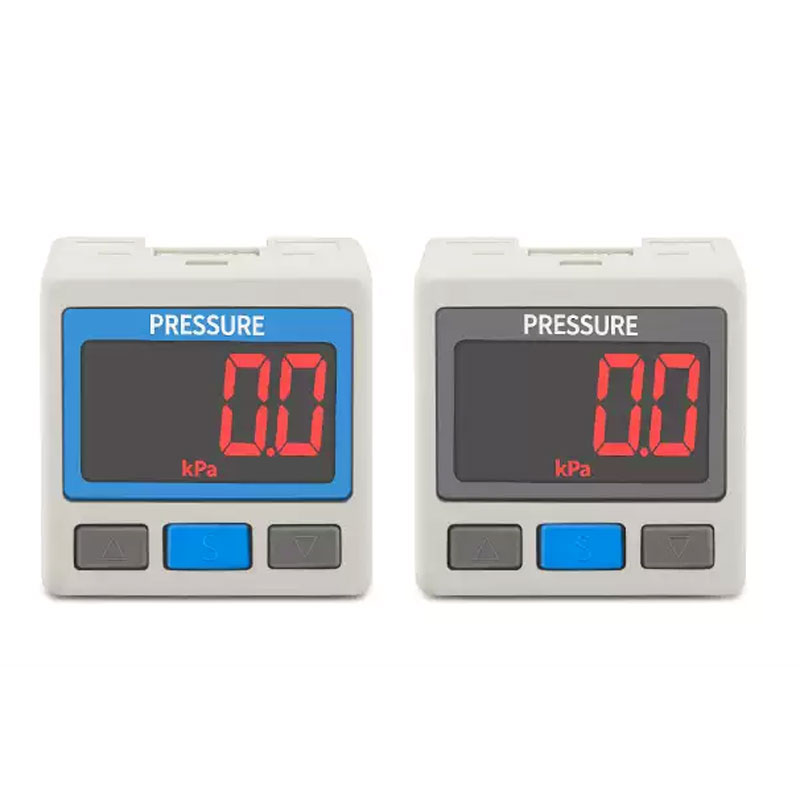

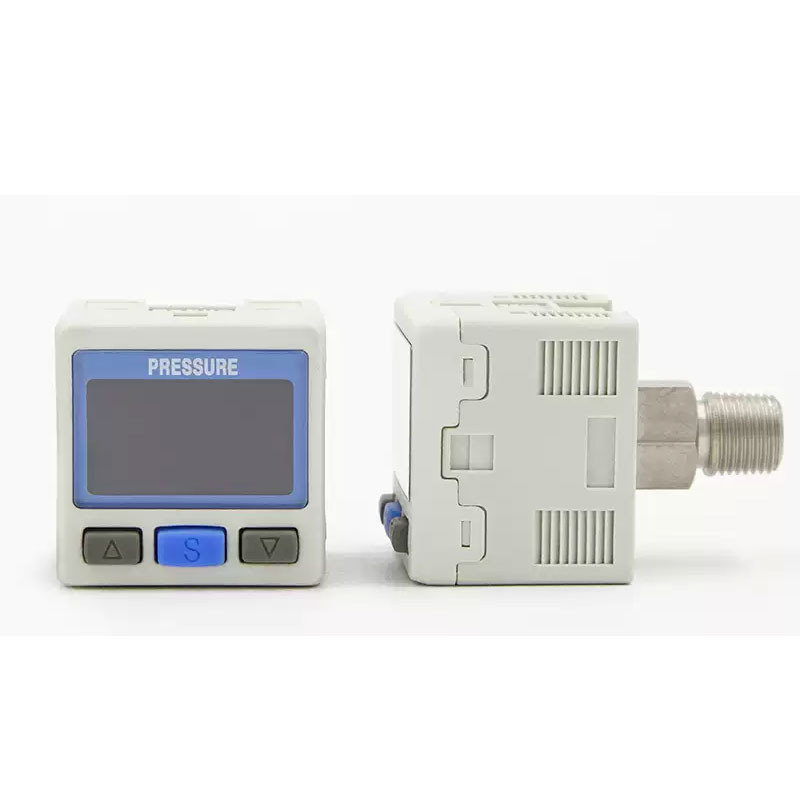

ZSE ISE Series Digital Pressure Switch
- High-precision ±0.2% FS repeatability
- 2/3-color digital display for easy status recognition
- Space-saving compact design (9.8mm width)
- One-touch copy to 10 units simultaneously
- IP65 protection for harsh industrial environments
- NPN/PNP & analog (1-5V/4-20mA) outputs
- Power-saving function (20% energy reduction)
- Password setting to prevent misoperation
- Multi-angle visibility for easy reading
- RoHS/CE compliant
- Fast response ≤2.5ms
- Dual mounting options (direct/din rail)
- IO-Link compatible for remote monitoring
- 3-step simple setting process
- Suitable for vacuum/positive pressure measurement
Upgrade your pneumatic systems with SMC ZSE (vacuum/compound pressure) and ISE (positive pressure) digital pressure switches, also known as DPSN positive/negative pressure controllers (models: 01, L, D). Designed for high-precision pressure monitoring, these units feature a bright 2-color digital display for clear readouts and quick status recognition.
Key Specifications:
Pressure range: ZSE (vacuum): 0 to –101 kPa; ISE (positive): –0.1 to 1 MPa
High accuracy: ±0.2% FS repeatabilityg3s.smc.com.cn
Fast response: ≤2.5 ms
IP65 protection (L-type) for harsh industrial environments
NPN/PNP outputs + analog (1–5 V / 4–20 mA)SMC Pneumatics
One-touch copy to 10 devices for easy setup
RoHS/CE compliant, low power consumption (25 mA)
Ideal for pneumatic automation, vacuum control, and pressure monitoring in industrial machinery.
Parameter | Specification |
|---|---|
Pressure Range | Vacuum: -101 kPa ~ 0; Positive: 0 ~ 1 MPa |
Accuracy | ±0.5% FS |
Display Type | High-contrast LED digital display |
Protection Level | IP65 |
Output Type | NPN/PNP pressure switch output |
