AFC/BFC Series F.R.L. Unit
- Integrated 2-unit design (Filter-Regulator + Lubricator)
- High-efficiency 40μm/5μm filtration for clean air supply
- Precise pressure regulation with secure push-lock knob
- Consistent proportional lubrication for extended component life
- Space-saving compact design with integrated bracket
- Transparent bowls with protective guards for 360° visibility
- Port sizes available: 1/4", 3/8", 1/2" (G, NPT, and PT threads)
- Choice of manual, semi-auto, or automatic drain
- Reliable performance in high-frequency automation.
AFC/BFC Series: Integrated Excellence in Air Preparation
The AFC and BFC series are high-performance F.R.L. (Filter-Regulator-Lubricator) units designed to protect your pneumatic equipment and ensure long-term operational stability. By combining an integrated Filter-Regulator with a mist-type Lubricator into a compact 2-unit assembly, the AFC/BFC series provides clean, dry, and lubricated air while significantly reducing installation space and piping complexity.
Key Technical Features & Engineering Highlights

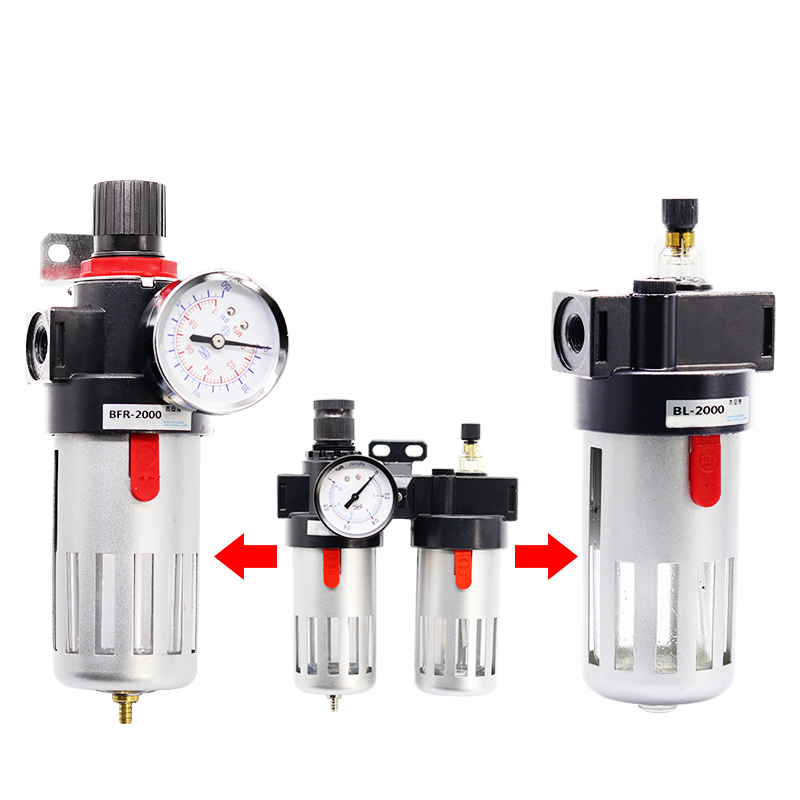

Modular 2-Unit Design: The AFC/BFC series consists of a Filter-Regulator (AFR/BFR) and a Lubricator (AL/BL). This modular configuration provides the same functionality as a 3-unit set but with a smaller footprint and fewer leak points.
High-Efficiency Water Removal: The filter section utilizes a 40μm (standard) or 5μm (optional) element to effectively remove moisture, dust, and contaminants, preventing internal corrosion of valves and cylinders.
Stable Pressure Regulation: The integrated regulator features a balanced design and a secure locking adjustment knob. It provides stable output pressure even under fluctuating inlet conditions, ensuring precise actuator performance.
Proportional Oil Mist Lubrication: The lubricator ensures a stable oil-to-air ratio, providing consistent lubrication to downstream components to reduce friction and extend service life.
Durable & Safe Construction: Equipped with high-strength polycarbonate bowls and metal guards as standard for the BFC series, offering 360-degree visibility of oil and condensate levels with enhanced safety.
Standardized Mounting: All units come with a pre-installed T-type bracket for quick and secure mounting to machine frames or walls.
Model Breakdown & Port Sizes

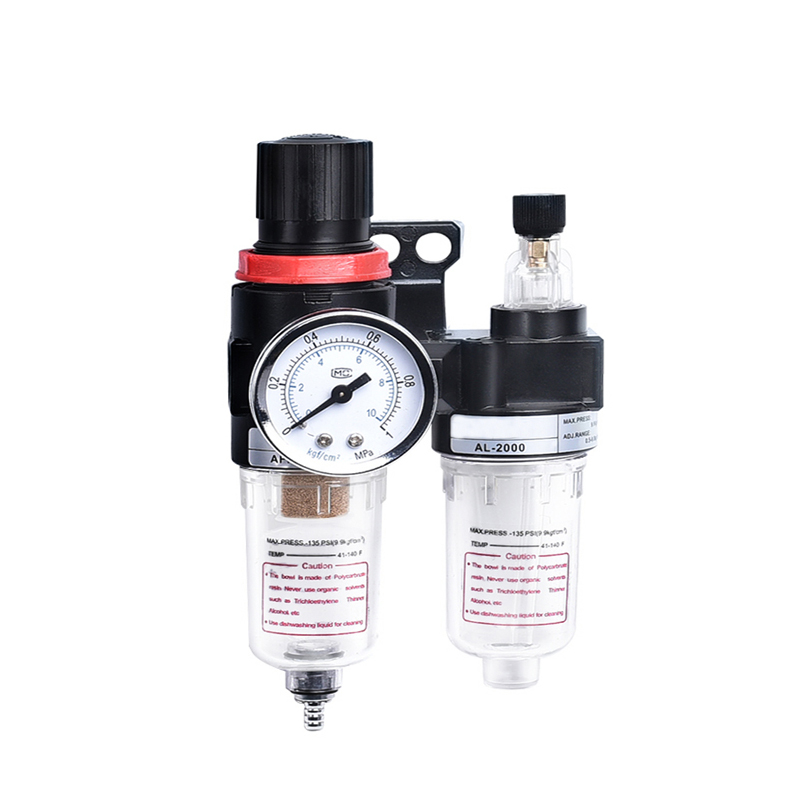

AFC2000: Compact 1/4" port size for small-to-medium pneumatic circuits.
BFC2000: Large-body 1/4" port size for higher flow requirements.
BFC3000: Standard 3/8" port size for general industrial automation.
BFC4000: High-flow 1/2" port size for large-bore cylinders and heavy machinery.
Technical Specifications Overview
Primary Industrial Applications
The AirTAC AFC/BFC series is the definitive choice for:
Factory Automation: Protecting sensitive solenoid valves and actuators.
Packaging Machinery: Maintaining clean air for pneumatic sorting and boxing.
Material Handling: Stable air supply for high-speed conveyor diverters and lifts.
Woodworking & CNC: Reliable air preparation for high-vibration machining environments.
