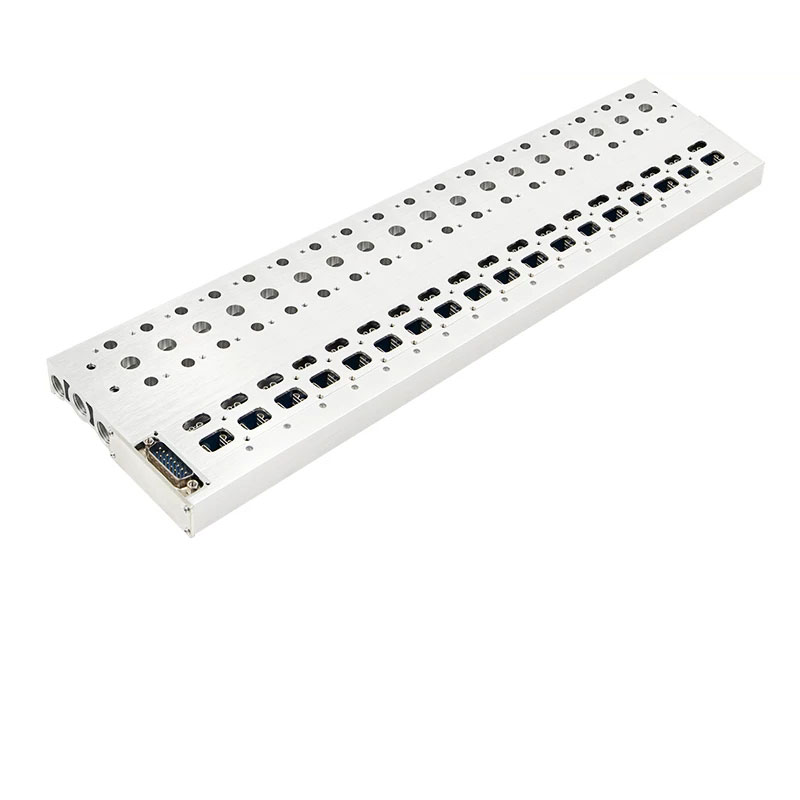

Integrated Plug-in Valve Island
- Centralized Electrical Integration
- Lower Plug-in Valve Connectivity
- Modular Manifold Scalability
- Internal PCB Circuitry
- D-sub & Serial Interface Compatibility
- Rapid Tool-Free Valve Replacement
- High-Density Pneumatic Control
- Reduced Wiring Labor (Up to 70%)
- Leak-Proof Shared Exhaust Channels
- Corrosion-Resistant Anodized Base
- Space-Saving Compact Footprint
- Industrial Automation Reliability
- Error-Free Signal Transmission
- Smart Factory Ready (Fieldbus Support)
- Professional-Grade System Integration
Product Overview
The Integrated Lower Plug-in Valve Island Series represents the pinnacle of pneumatic control efficiency, designed to replace bulky individual wiring with a streamlined, centralized manifold solution. By integrating pneumatic supply and exhaust channels with a pre-wired internal electrical circuit, this system allows for the high-density mounting of solenoid valves in a fraction of the space required by traditional setups.

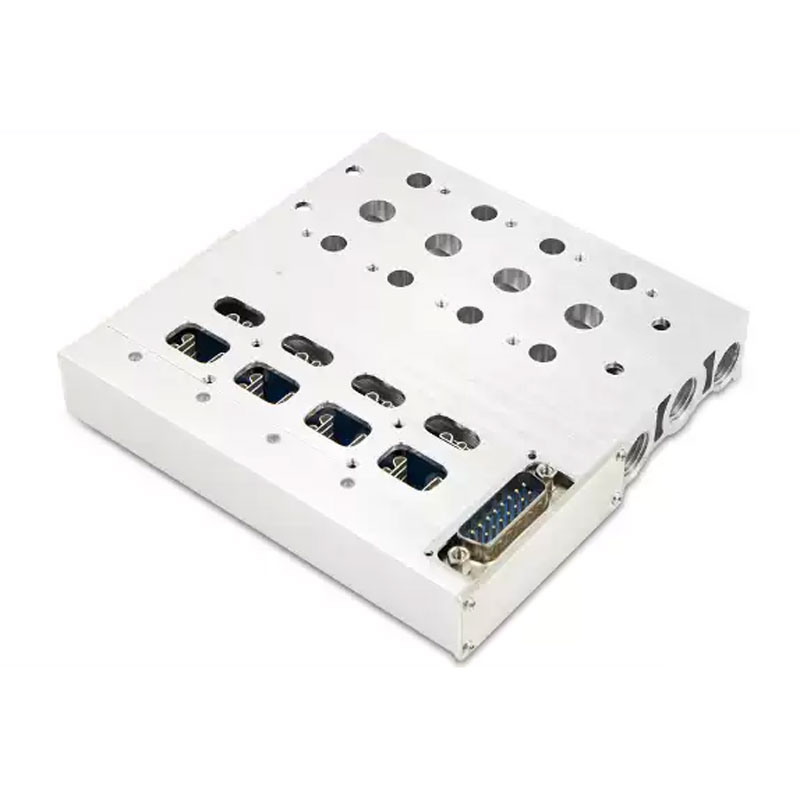

The core of the system is the Integrated Circuit Manifold Base. Each station features a "lower plug-in" electrical interface, where the valve body connects directly to a built-in PCB via high-precision pins. This design eliminates the need for individual solenoid leads, reducing installation labor by up to 70% and virtually eliminating wiring errors. Whether utilized in complex assembly lines, semiconductor tools, or packaging machinery, this valve island provides a "plug-and-play" architecture for sophisticated motion control.
Key Technical Features & Architecture
1. Lower Plug-in Connectivity
The "Lower Plug-in" mechanism ensures that electrical signals are transmitted through a secure, concealed interface at the bottom of the valve. This protects electrical contacts from environmental contaminants and mechanical stress while allowing for the rapid replacement of individual valve stations without disturbing the overall wiring loom.
2. Integrated Internal Circuitry
The manifold base contains a high-integrity printed circuit board (PCB) that consolidates all valve signals into a single multi-pin connector. This centralized approach supports various interface standards, including D-sub connectors, flat ribbon cables, and terminal blocks, as well as advanced Serial Transmission (Fieldbus) modules for smart factory integration.

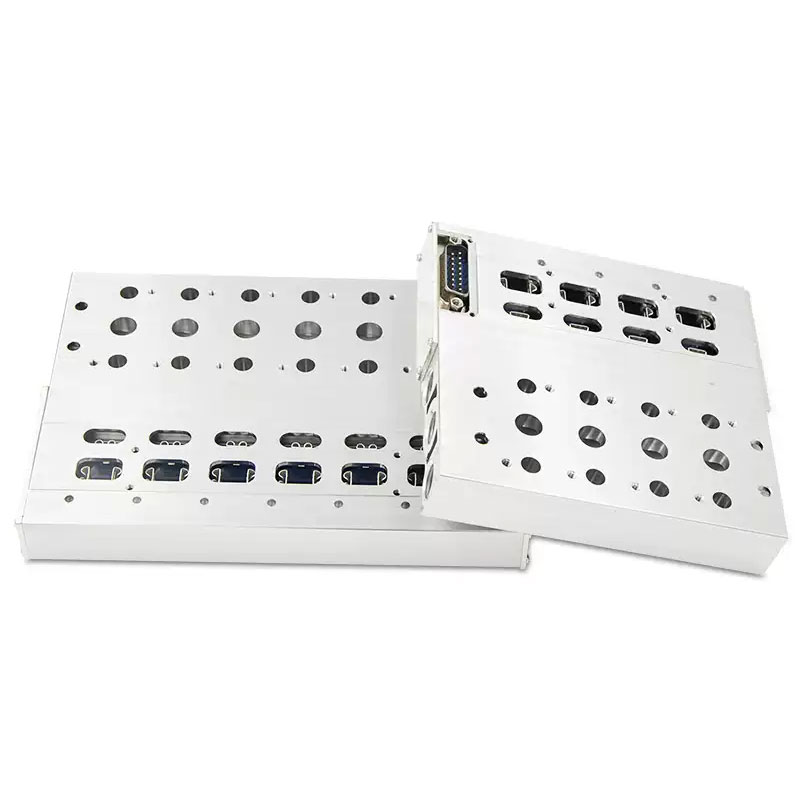

3. Modular Manifold Base Design
Constructed from high-grade, anodized aluminum alloy, the manifold bases are fully modular. Engineers can easily expand or reduce the number of valve stations (ranging from 1 to 24 stations) to match the specific needs of the pneumatic circuit. Shared supply (P) and exhaust (E) ports minimize piping complexity and reduce potential leak points.
4. Space-Saving High-Density Integration
By eliminating individual connectors and streamlining air distribution, this integrated valve island offers a significantly smaller footprint than standard valve banks. This is ideal for installation in compact control cabinets or directly on end-of-arm tooling (EOAT).
