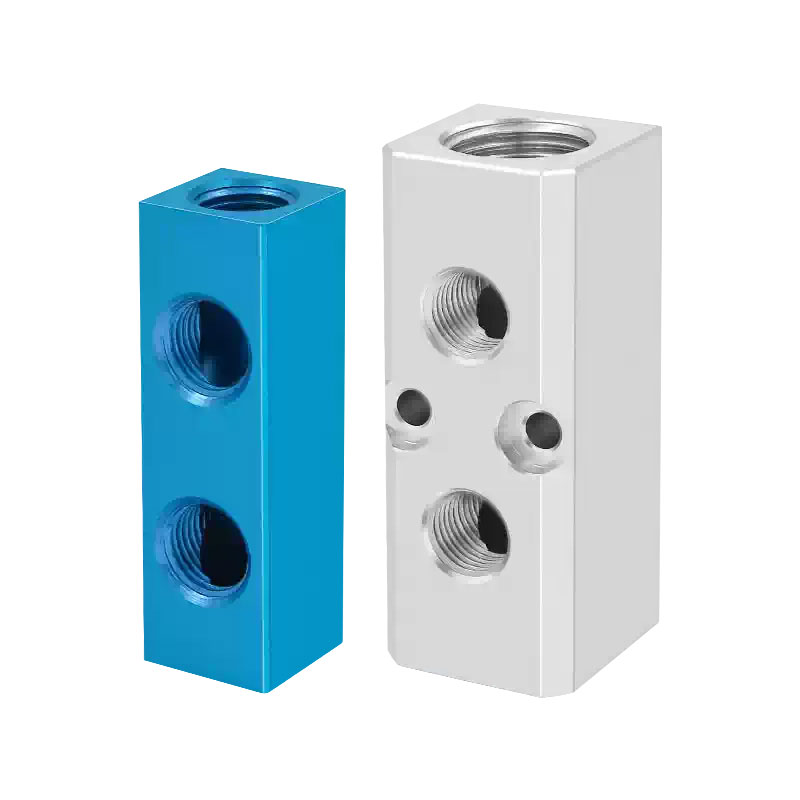

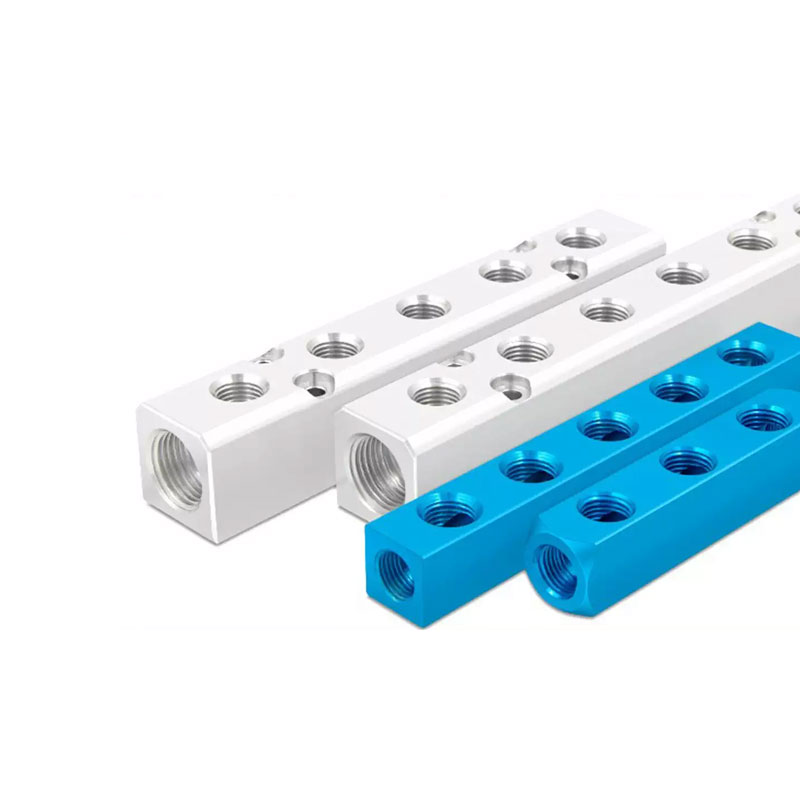

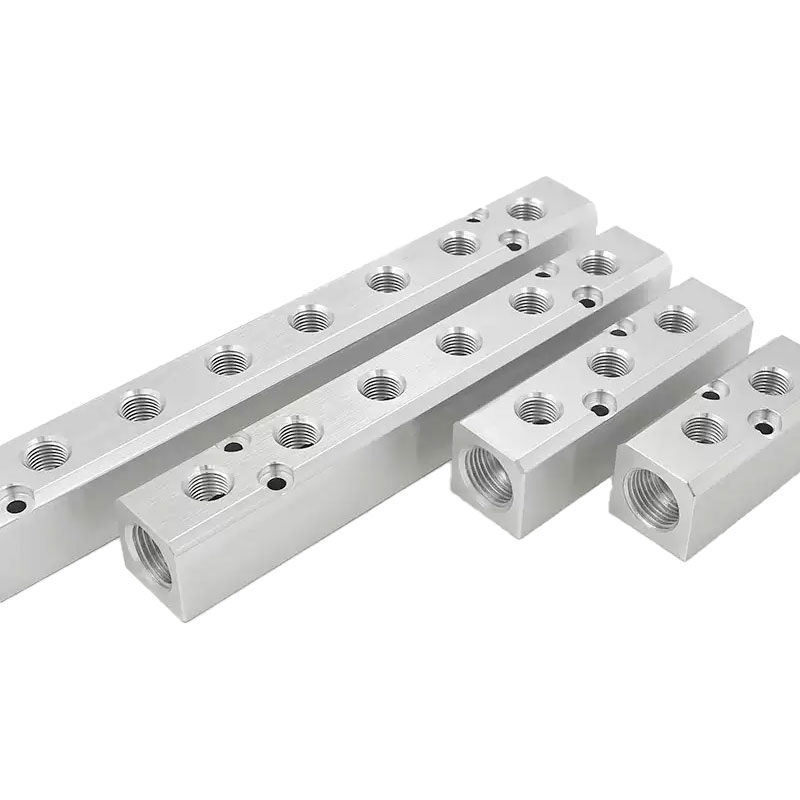

Multi-Port Pneumatic Air Distribution Manifold
- Centralized Air Distribution
- High-Grade Aluminum Alloy
- Leak-Proof Internal Threading
- Multi-Port Scalability
- Corrosion-Resistant Anodized Finish
- Simplified Piping Layout
- High-Pressure Stability
- Easy Installation & Mounting
- Versatile Thread Compatibility (G/NPT/R)
- Professional-Grade Reliability
- Compact Space-Saving Design
- Reduced Installation Labor
- Industrial Automation Efficiency
- Durable Header Block Construction
- Optimized Airflow Management
- Minimal Pressure Drop
- Organized System Architecture
- Universal Pneumatic Compatibility
- Heavy-Duty Mechanical Performance
- Maintenance-Friendly Design Reliability Maintenance-Friendly Design
Product Overview
The Multi-Port Pneumatic Air Distribution Manifold is a critical component for organizing and streamlining air supply in complex pneumatic systems. Designed to act as a centralized header, it takes a single primary air source and distributes it efficiently to multiple pneumatic circuits, valves, or actuators. This eliminates the need for messy "daisy-chaining" with T-connectors, significantly reducing potential leak points and simplifying the overall piping layout.
Constructed from high-grade, lightweight aluminum alloy, our manifolds are engineered for high-pressure stability and long-term durability. Each block is precision-machined with deep, accurate internal threads to ensure a 100% airtight seal when used with standard pneumatic fittings. Whether you are managing a bank of solenoid valves or a series of independent workbenches, these distribution blocks provide a professional, organized solution for industrial air management.
Key Technical Features
1. Centralized Air Distribution
By consolidating multiple air lines into a single distribution point, the manifold ensures that pressure is delivered more evenly across all outlets. This centralized approach makes system diagnostics and maintenance significantly easier, as all branch lines are organized in one accessible location.
2. High-Grade Aluminum Construction
The manifolds are manufactured from reinforced aluminum alloy, providing an excellent strength-to-weight ratio. The exterior is typically finished with an anodized coating or industrial paint to protect against corrosion, moisture, and chemical exposure commonly found in factory environments.
3. Versatile Port Configurations
Available in a wide range of configurations, from 2-way up to 16-way outlets or more. Standardized port sizes (e.g., 1/4", 3/8", 1/2" inlets with 1/8" or 1/4" outlets) ensure compatibility with all international pneumatic hardware, including NPT, G (BSPP), and R (BSPT) thread standards.
4. Easy Installation & Mounting
Every manifold block features pre-drilled mounting holes, allowing it to be secured quickly to machine frames, control panels, or assembly benches. The compact, rectangular design is ideal for space-constrained environments where organized routing is essential.
