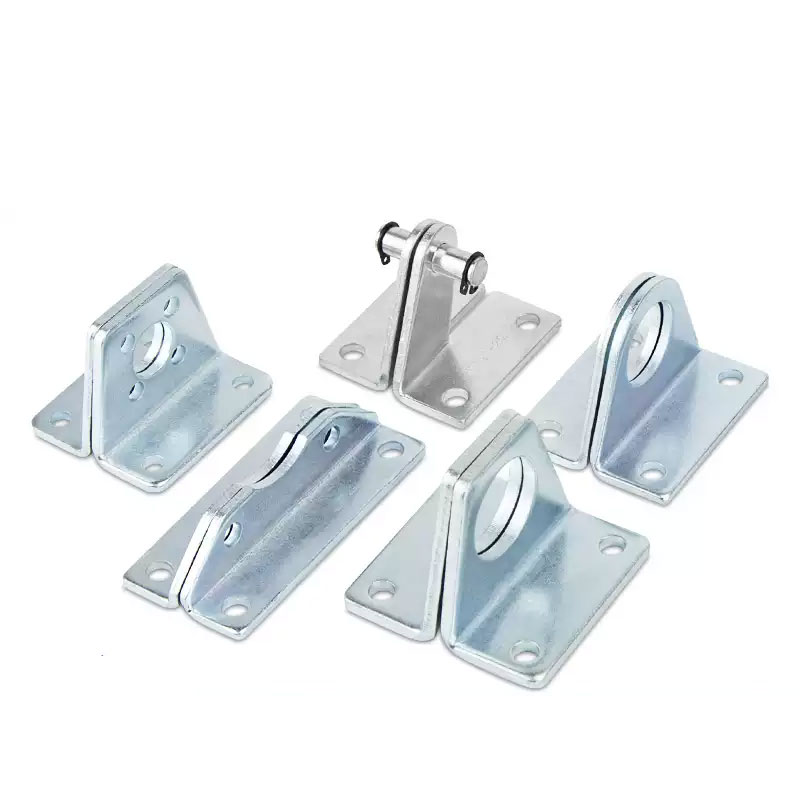

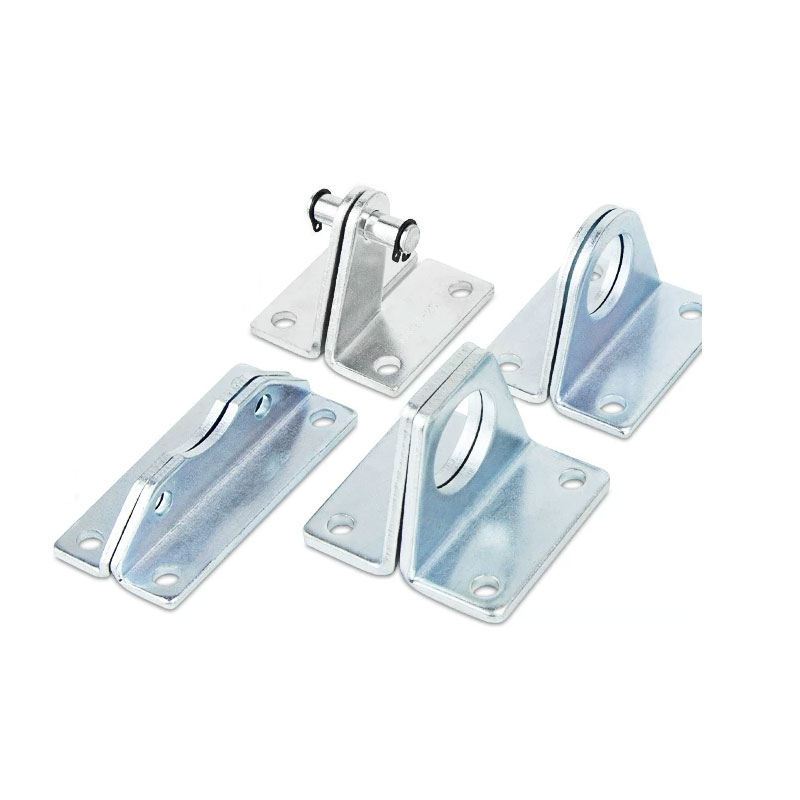

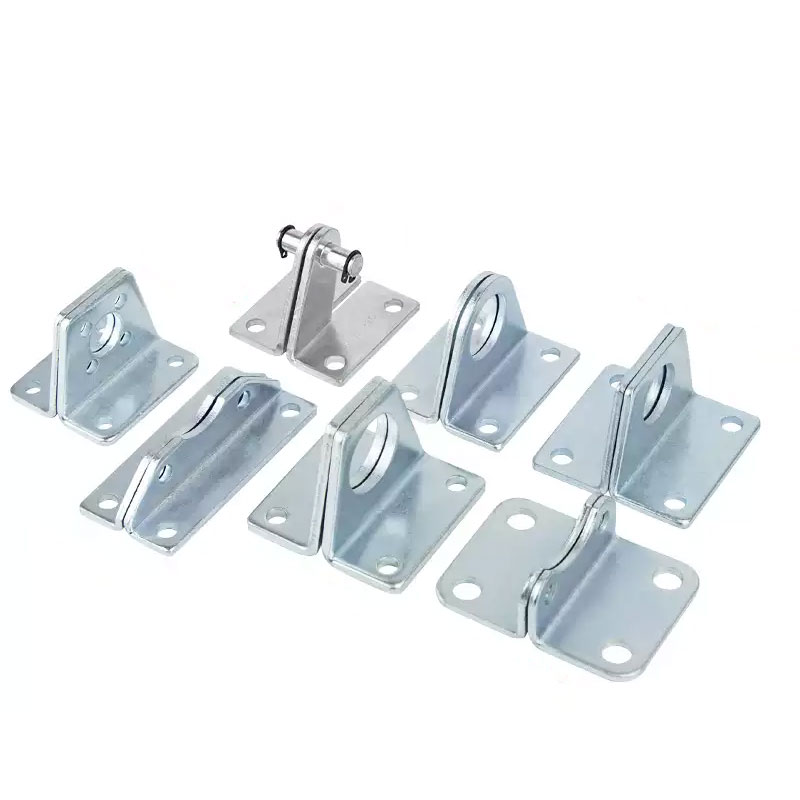

Pneumatic Cylinder Mounting Brackets
- High-Strength Carbon Steel Construction
- Precision Machined Alignment
- Corrosion-Resistant Zinc Plating
- Universal Series Compatibility (SC/MAL/ACQ)
- Stable Low-Vibration Mounting
- Easy Tool-Free Installation
- Heavy-Duty Load Bearing
- Compact Space-Saving Designs
- Wear-Resistant Surface Treatment
- Industrial Automation Reliability
- Accurate Axial Support
- Pivot Flexibility with SDB Series
- Extended Cylinder Service Life
- Reinforced Structural Integrity
Product Overview
Pneumatic Cylinder Mounting Brackets are the structural foundation of any air-driven automation system. While the cylinder provides the force, the mounting hardware ensures that force is directed precisely and safely. Our comprehensive range of accessories is designed to eliminate vibration, reduce mechanical stress on piston rods, and ensure perfect axial alignment across millions of cycles.
Manufactured from high-density carbon steel or reinforced aluminum alloy, these brackets undergo precision stamping and CNC finishing. Every component features a corrosion-resistant surface treatment—such as galvanized zinc plating or industrial painting—to ensure long-term reliability in oily, humid, or high-vibration factory environments.
Specialized Mounting Series
1. LB Series Axial Foot Brackets
The "LB" style is the industry standard for foot mounting, providing a stable base parallel to the cylinder's line of motion.
MAL LB & CDM2B LB Brackets: Tailored for mini cylinders and stainless steel round-body actuators, these brackets provide a secure, low-profile footprint for high-speed applications.
ACQ LB & SDA LB Brackets: Specifically engineered for compact and thin-style cylinders. These allow for high-force output in space-constrained machinery without compromising structural integrity.
SC LB & RMS LB Brackets: Heavy-duty foot mounts designed for standard tie-rod cylinders and specialized rodless series. These are built to handle maximum thrust and pulling loads in large-scale automation.
2. SDB Series Pivot Brackets
SDB Support Brackets: The SDB is a rear-pivot clevis mount that allows the cylinder to swing or tilt. This is essential for applications where the load does not move in a perfectly straight line, as it prevents lateral stress from bending the piston rod and damaging internal seals.
Key Performance Features
Vibration-Dampening Stability: Engineered to absorb the kinetic energy of piston impact, preventing the cylinder from shifting or loosening during high-frequency operation.
Precision Alignment: Standardized mounting holes and precise geometry ensure that the cylinder sits perfectly level, reducing friction and extending the life of the internal seals.
Corrosion Resistance: High-quality surface finishes protect the hardware against moisture, cleaning chemicals, and industrial lubricants.
Easy Integration: All brackets follow international standard dimensions, making them direct replacements for existing hardware in any pneumatic circuit.
