Pneumatic Cylinder Sensor Mounting Brackets
- High-Stability Sensor Mounting
- Corrosion-Resistant 304 Stainless Steel
- Vibration-Resistant Locking Design
- Universal Cylinder Compatibility
- Rapid Positioning Adjustment
- Heavy-Duty Tie-Rod Brackets
- Precise Magnetic Alignment
- Low-Profile Space-Saving Design
- Tool-Free Installation Hardware
- Industrial-Grade Durability
- Round Cylinder Fixing Bands
- Secure Piston Position Tracking
- Multi-Station Rail Mounting
- Reliable Signal Feedback Support
Product Overview
Pneumatic Magnetic Switch Accessories are the essential hardware components required to securely attach auto switches and sensors to pneumatic actuators. Proper mounting is critical for automation accuracy; even a slight misalignment can lead to missed signals or system errors. Our accessory line is engineered to provide a rock-solid mechanical interface between the sensor and the cylinder body.
Whether you are working with large-bore tie-rod cylinders or compact round-body actuators, these accessories offer the flexibility to position your sensors exactly where they are needed. Designed to withstand the high-vibration environments of high-speed production lines, these mounting kits ensure that your detection system remains calibrated and reliable over millions of cycles.
Main Accessory Categories

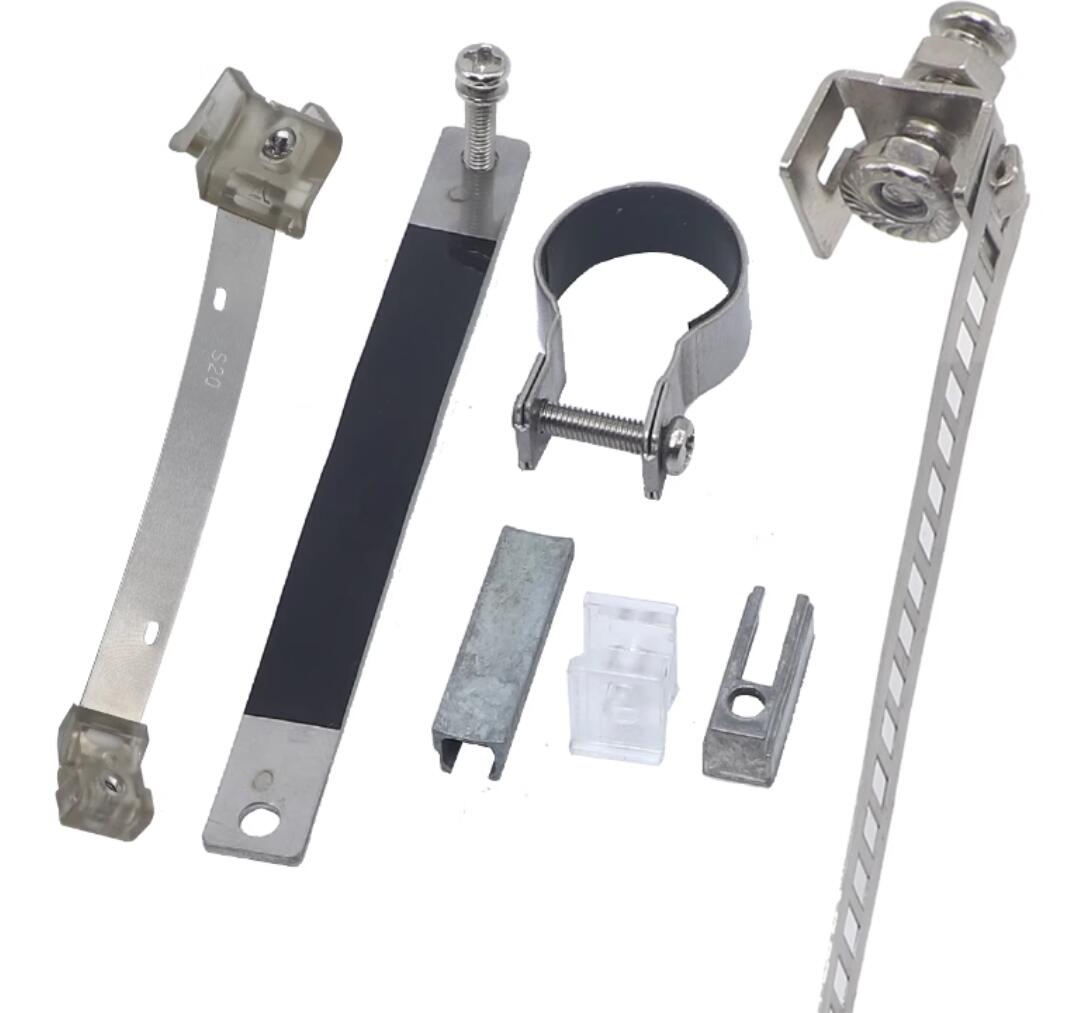

Tie-Rod Mounting Brackets (BQ / BMY Series): Designed for standard heavy-duty cylinders, these brackets clamp securely onto the cylinder's tie-rods. They allow for easy sliding adjustment along the full stroke of the cylinder and provide a stable platform for D-A93, CS1, or DMSG style sensors.

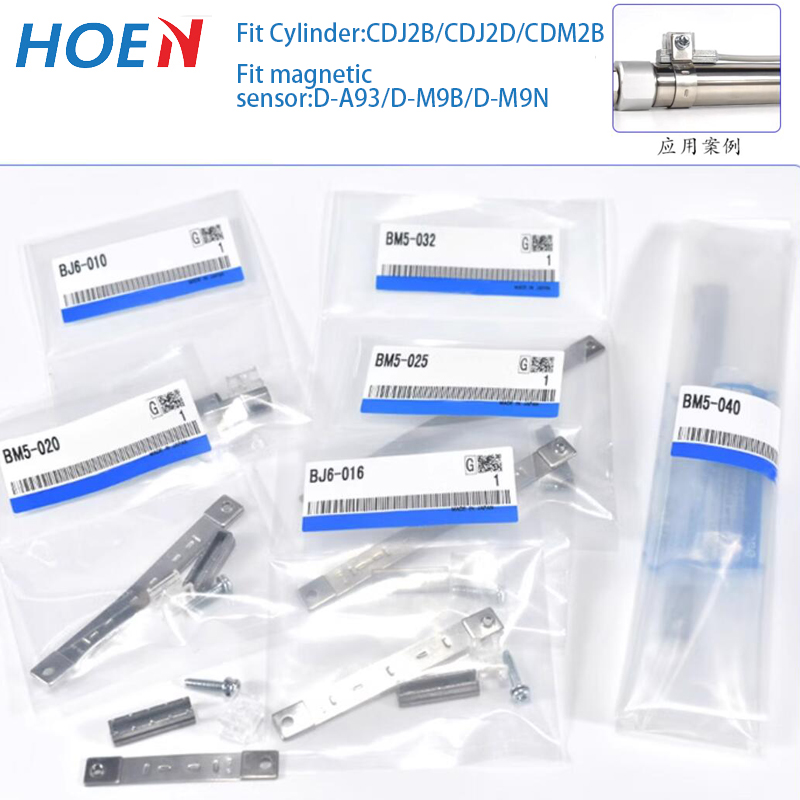

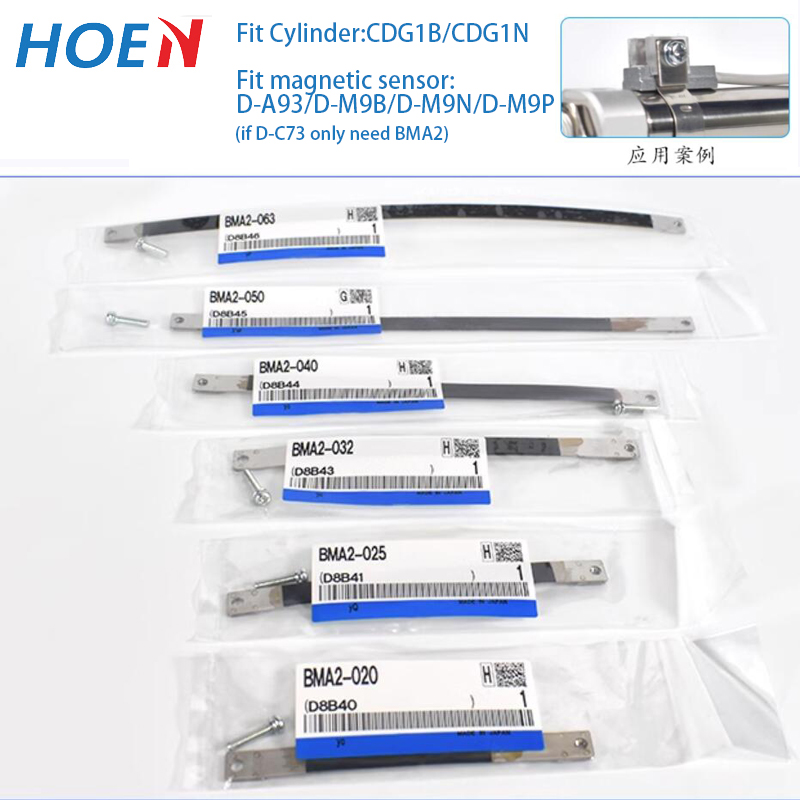

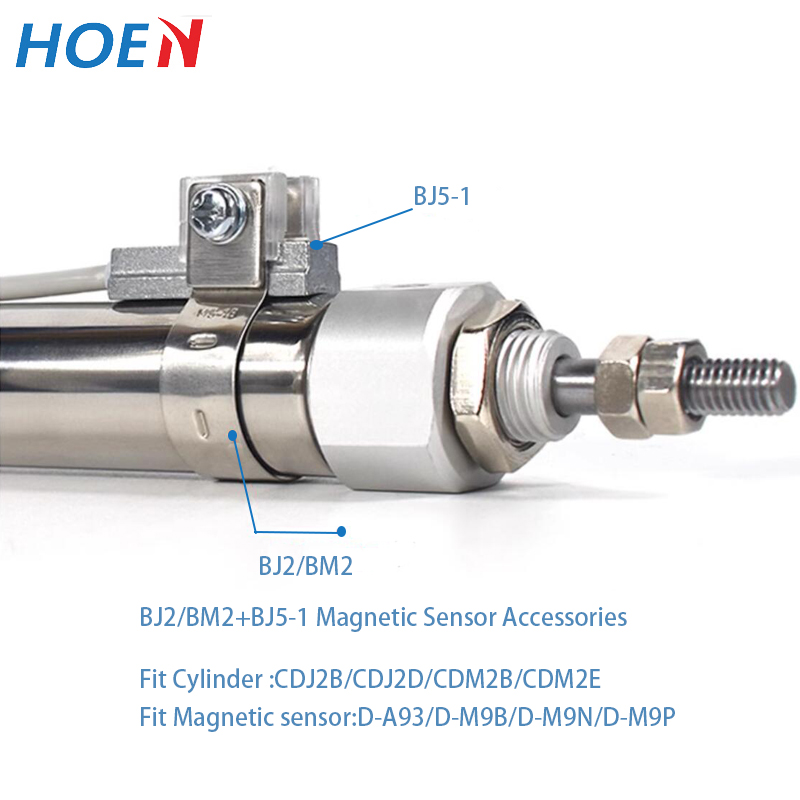

Round Cylinder Clamping Bands (BJ / BM Series): These stainless steel or high-strength resin bands are tailored for round-body pneumatic cylinders. The adjustable strap design ensures a tight, non-slip fit, allowing sensors to be mounted on cylinders with varying diameters.

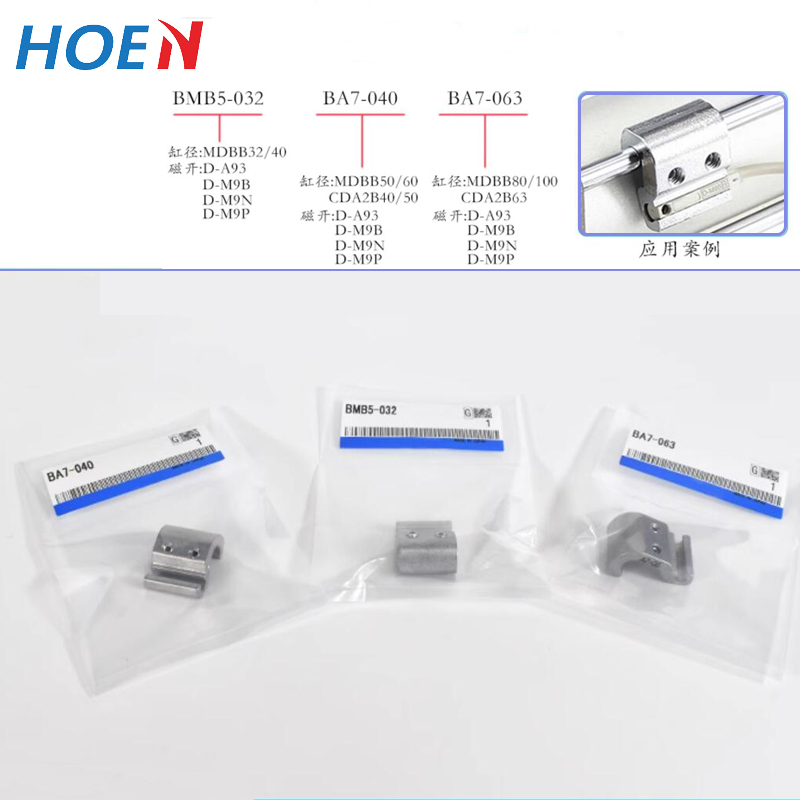

Integrated Slot Adapters & Clips: For cylinders featuring built-in T-slots or C-slots, these specialized clips and rails provide a flush-mount solution. They protect the sensor from external impact while maintaining a close proximity to the internal magnetic ring for maximum sensitivity.
Rail-Mount Mounting Kits: Used primarily for profiled cylinders, these rails allow multiple sensors to be mounted in a sequence, perfect for complex multi-position detection requirements.
Key Performance Features
Vibration-Proof Locking: Featuring reinforced screw-lock mechanisms that prevent the sensor from shifting due to the repeated impact and kinetic energy of the piston.
Premium Material Construction: Brackets are manufactured from 304 Stainless Steel, high-grade aluminum alloy, or reinforced technical plastics to ensure maximum corrosion resistance in humid or oily environments.
Precision Alignment: The low-profile design ensures that the sensor's "sensing face" is held at the optimal distance from the cylinder wall, ensuring a strong magnetic trigger every time.
Rapid Tool-Free Adjustment: Many models feature "slide-and-lock" functionality, allowing maintenance teams to recalibrate sensor positions in seconds without dismantling the machinery.
