Precision Pneumatic Pressure
- High-Visibility Dial
- Compact Space-Saving Design
- Dual Scale (MPa/psi) Support
- Precision Vacuum Monitoring
- Durable Polycarbonate Lens
- Integrated Limit Indicators
- Versatile Thread Connections (R/NPT)
- Vibration-Resistant Mechanism
- Easy Panel Mounting
- Real-Time Pressure Feedback
- Corrosion-Resistant Internals
- Industrial-Grade Reliability
- Fast Installation
- Tool-Free Inspection Capability
Product Overview

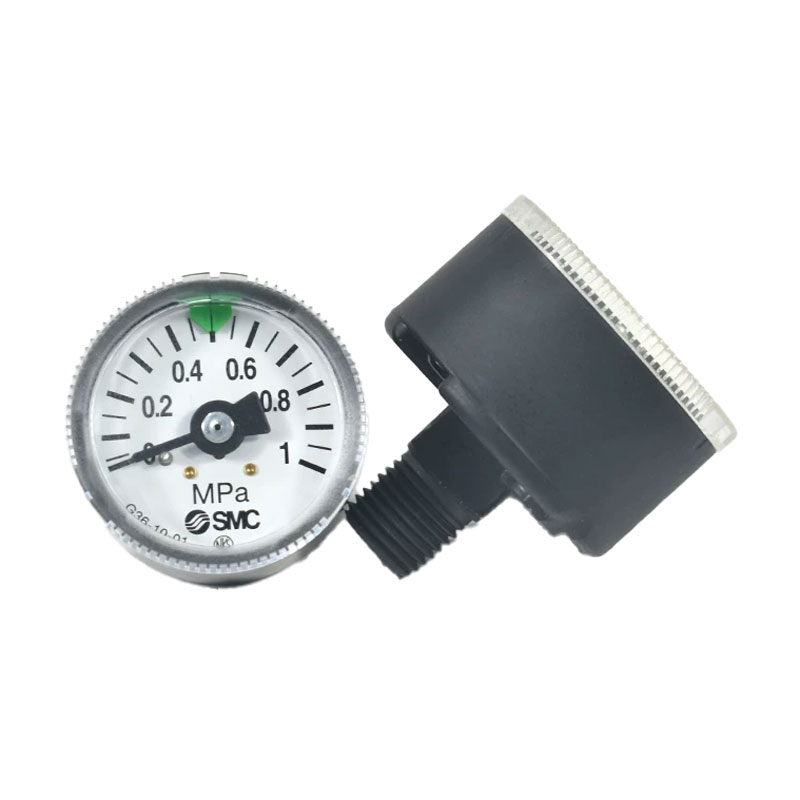

The G36 and G46 Series Gauges are essential instruments for real-time monitoring of pressure and vacuum levels in pneumatic systems. Engineered for durability and precision, these gauges provide operators with clear, instantaneous feedback, ensuring that air preparation units, cylinders, and vacuum circuits are operating within safe and efficient parameters.

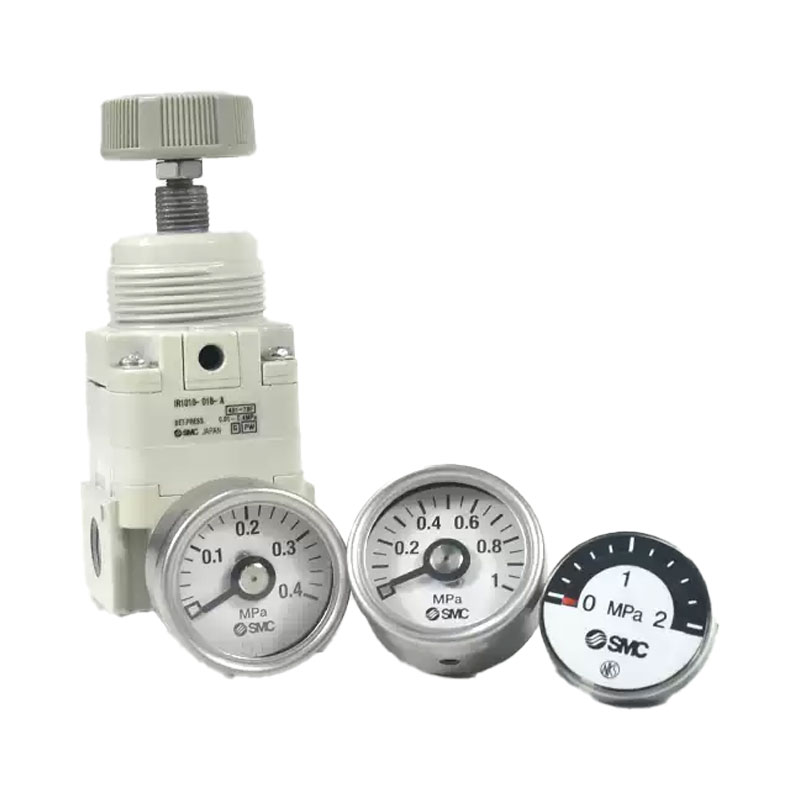

The G36 (36mm diameter) offers a compact footprint for space-constrained installations, while the G46 (42mm diameter) provides a larger, easier-to-read interface for primary monitoring points. Both series are designed to be integrated directly into regulators, filter-regulator units, or mounted via brackets. With high-impact resistant lenses and corrosion-resistant internals, these gauges are built to withstand the vibration and environmental demands of modern factory automation.
Key Features & Performance
Exceptional Readability: Features high-contrast black and white dials with dual-scale options (e.g., MPa and psi) for universal compatibility and error-free reading.
Integrated Limit Indicators: Most models come equipped with adjustable red and green zone stickers, allowing for quick visual "Go/No-Go" inspections at a distance.

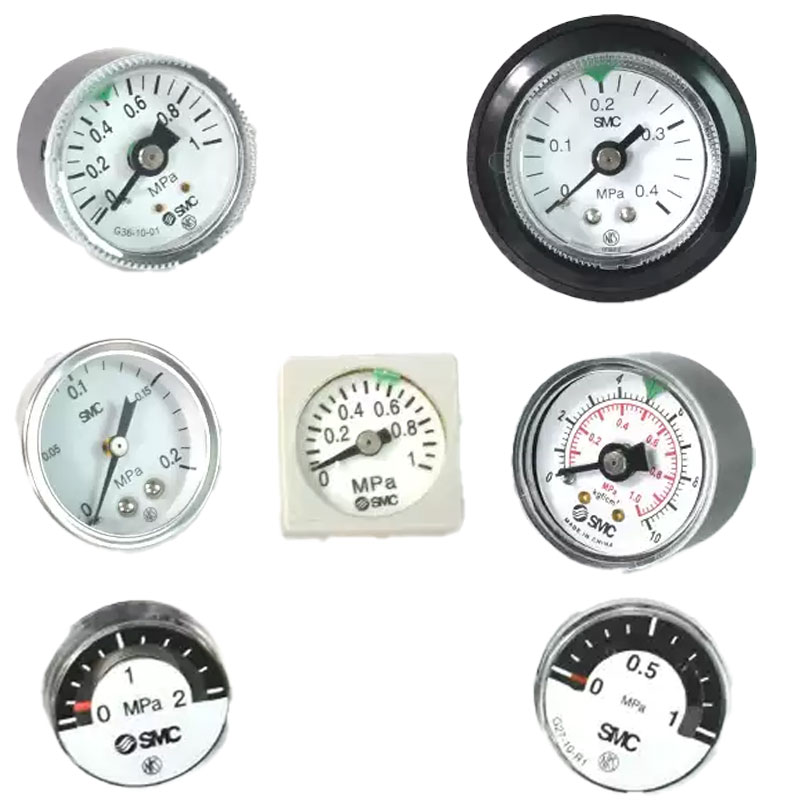

Versatile Range Options: Available in positive pressure ranges (up to 1.0 MPa) and dedicated vacuum ranges (-100 to 0 kPa) to suit various system requirements.
Durable Lens Construction: Utilizes clear polycarbonate or glass lenses that resist yellowing and cracking, maintaining transparency even in harsh industrial settings.
Multiple Connection Sizes: Standard R, NPT, or G threads (1/8" and 1/4") ensure seamless compatibility with standard pneumatic manifolds and air preparation equipment.
Compact Mounting: The low-profile design minimizes the risk of physical impact and allows for mounting in tight control cabinets or directly on moving robotic arms.
