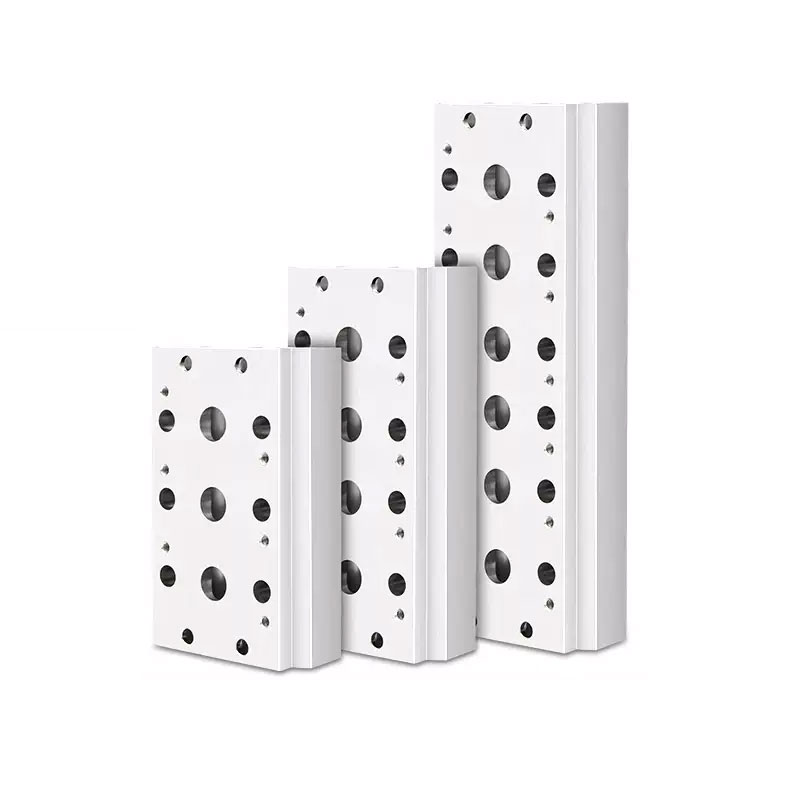

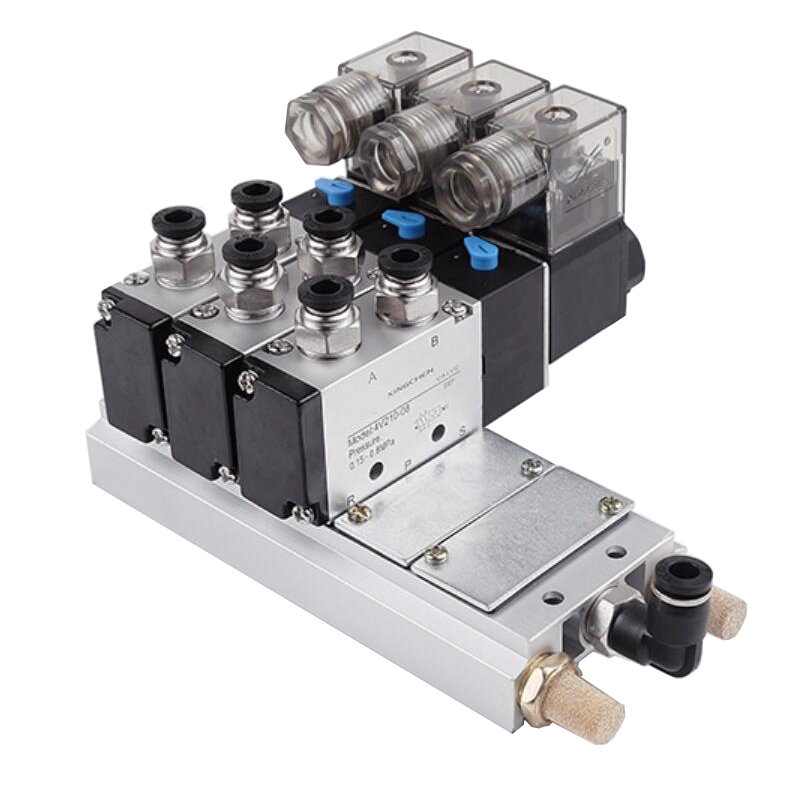

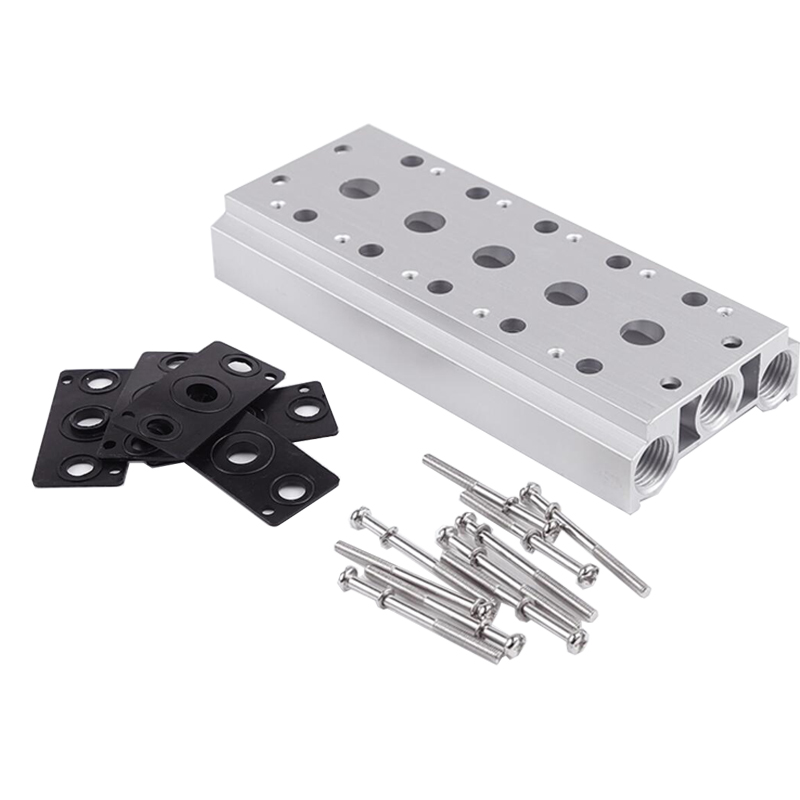

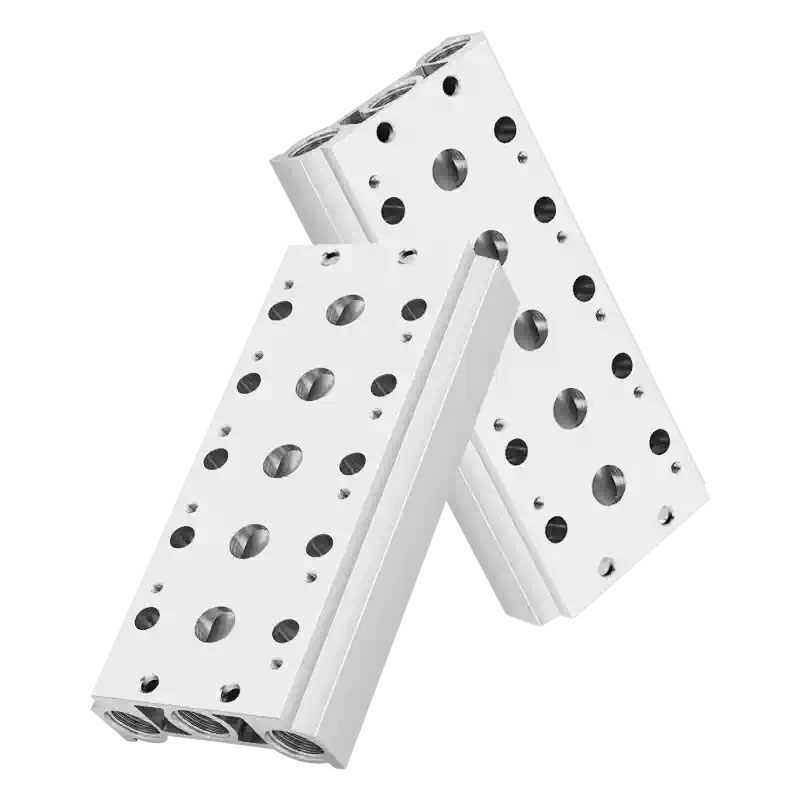

SS5Y3 SS5Y5 SS5Y7 Series Valve Manifolds
- Modular Manifold Expansion
- High-Density Valve Mounting
- Centralized Electrical Wiring
- D-sub & Serial Interface Support
- Space-Saving Compact Design
- Lightweight Aluminum Base
- Individual SUP/EXH Spacers
- DIN Rail Compatibility
- Plug-in & Non-Plug-in Versatility
- High-Speed Response Dynamics
- Reduced Leak Points
- Corrosion-Resistant Finish
- Easy System Integration
- Industrial Automation Efficiency
Product Overview
The SS5Y Series Modular Manifolds provide a centralized and highly efficient platform for mounting and controlling solenoid valves in complex pneumatic systems. Available in three distinct sizes—SS5Y3 (10mm width), SS5Y5 (15mm width), and SS5Y7 (18mm width)—this series allows engineers to customize flow rates and port configurations to meet specific application requirements while maintaining a compact footprint.
Designed for maximum versatility, these manifolds support both plug-in and non-plug-in valve styles. The modular base design enables easy expansion, allowing you to add or remove valve stations as your system evolves. With a focus on reducing labor and wiring complexity, the SS5Y series offers a wide array of electrical interface options, including D-sub connectors, flat ribbon cables, terminal blocks, and advanced serial transmission protocols for "smart" factory integration.
Key Features & System Versatility
Modular Scalability: Easily increase or decrease the number of stations. The tie-rod or block-style construction ensures a rigid, leak-proof assembly regardless of the manifold length.
Diverse Wiring Solutions: Reduce installation time by up to 50% with centralized wiring. Choose from D-sub, circular connectors, or serial interface units (fieldbus) to simplify PLC integration.
Optimized Flow Performance: Each series (3/5/7) is engineered to provide maximum air flow relative to its size, ensuring high-speed actuator response even in high-density installations.
Individual Pressure Control: Supports individual supply (SUP) and exhaust (EXH) spacers, allowing different valves on the same manifold to operate at different pressure levels.
Durable Lightweight Construction: Built from high-grade aluminum and engineered resins, providing a corrosion-resistant and lightweight solution ideal for moving platforms or robotic EOAT.
Flexible Mounting Options: Available with DIN rail mounting for quick cabinet installation or direct bottom-mounting for secure machine attachment.
