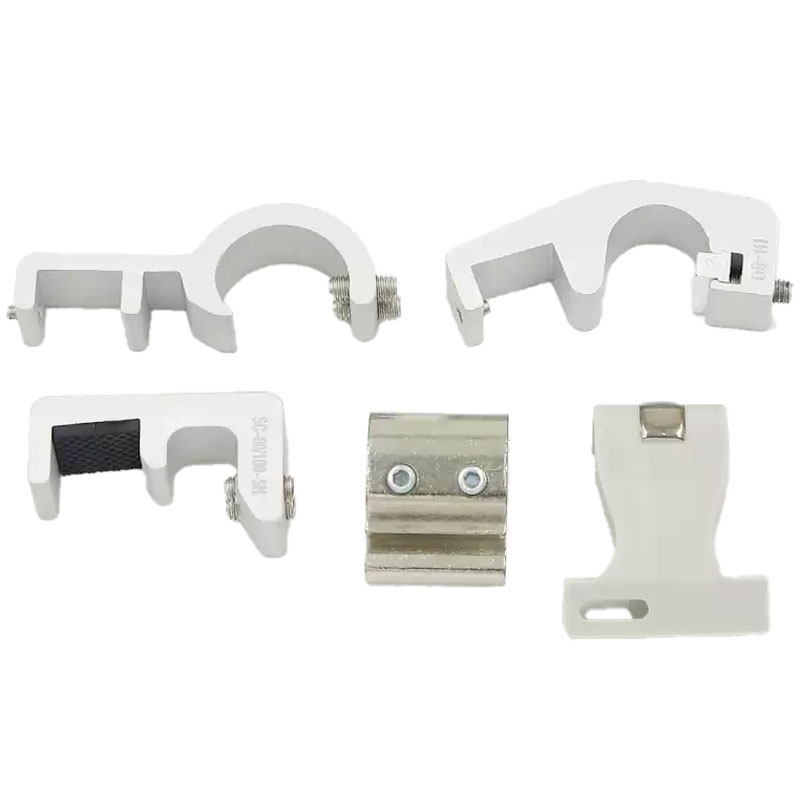

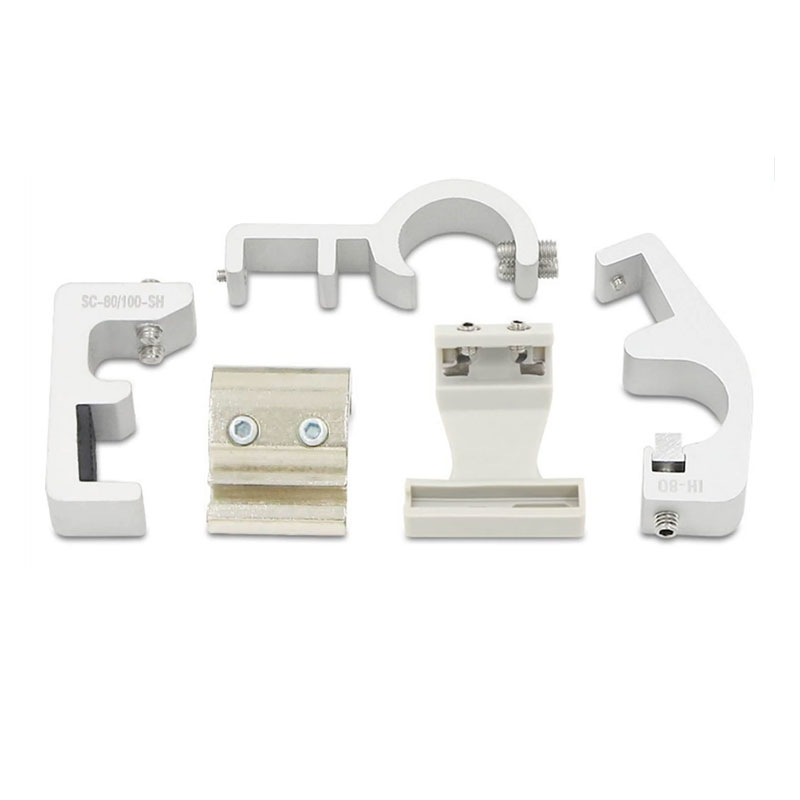

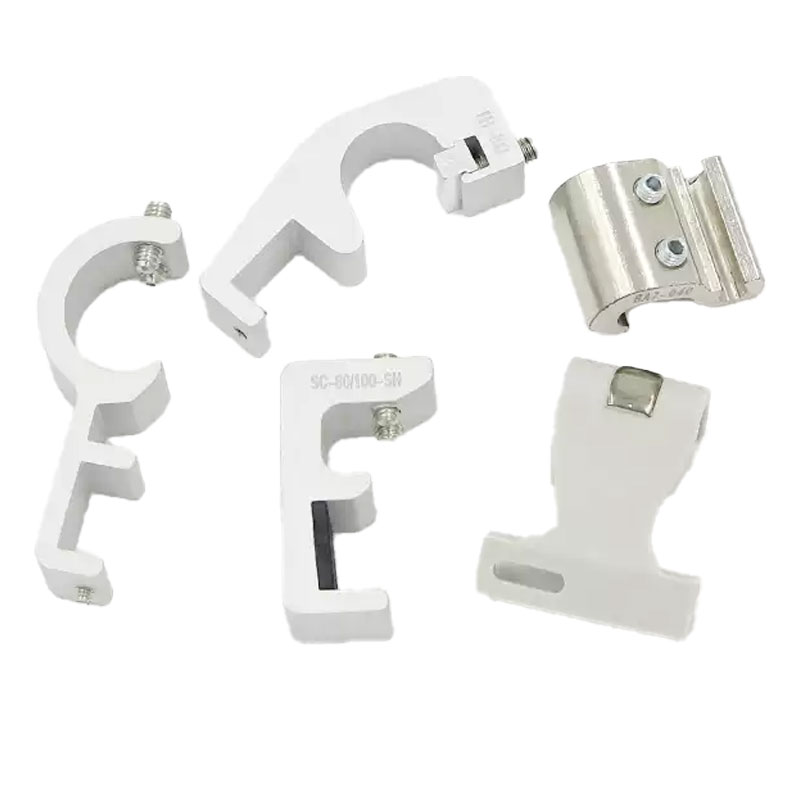

Universal Magnetic Sensor Mounting Brackets
- High-Stability Position Sensing
- Corrosion-Resistant 304 Stainless Steel
- Vibration-Proof Locking Mechanism
- Universal Cylinder Compatibility
- Precision Magnetic Alignment
- Rapid Sensor Integration
- Heavy-Duty Industrial Performance
- Compact Space-Saving Profile
- Tool-Free Adjustment Design
- Reinforced Structural Integrity
- IP67-Rated Support
- Easy Calibrated Setup
- Durable Anodized Finish
- Reliable Signal Feedback Support
- Precision Actuator Hardware
Product Overview
Pneumatic Magnetic Switch Mounting Brackets are essential precision components designed to securely attach auto switches and position sensors to pneumatic actuators. In an automated production line, the accuracy of signal feedback depends entirely on the stability of the sensor’s position. Our mounting hardware is engineered to provide a rigid mechanical interface, ensuring that sensors remain perfectly aligned with the internal magnetic ring of the cylinder across millions of operational cycles.
Constructed from premium industrial-grade materials such as 304 Stainless Steel, anodized aluminum alloy, and reinforced engineered resins, these brackets are built to withstand the harshest factory environments. They offer universal compatibility with a wide range of cylinder profiles, providing a "set-and-forget" solution for system integrators and maintenance professionals.
Comprehensive Mounting Solutions
1. Tie-Rod Mounting Series (Universal Type)
Designed for standard heavy-duty cylinders, these brackets clamp directly onto the cylinder’s external tie-rods.
Stability: Features a reinforced dual-screw locking system to prevent sensor shifting during high-impact piston strokes.
Flexibility: Allows for infinite sliding adjustment along the full length of the cylinder stroke for precise calibration.
2. Round-Body Clamping Bands
Tailored for mini and micro cylinders, these stainless steel bands provide a 360-degree secure grip on the cylinder barrel.
Design: Low-profile, streamlined construction ensures the sensor does not interfere with the machine’s moving parts.
Durability: The flexible yet high-tensile band design accommodates varying cylinder diameters while maintaining constant clamping force.
3. Profile & Slot Mounting Clips
Specifically engineered for modern compact and thin-style cylinders with integrated T-slots or C-slots.
Integration: These clips allow sensors to be mounted flush with the cylinder body, protecting them from external mechanical damage.
Accuracy: Ensures the sensing face is held at the optimal distance from the cylinder wall for maximum magnetic sensitivity.
Key Performance Advantages
Vibration Resistance: Specialized locking mechanisms absorb the kinetic energy of high-speed automation, preventing signal "jitter" or sensor displacement.
Corrosion Protection: Advanced surface treatments (zinc plating, anodizing, or stainless steel construction) ensure resistance to moisture, industrial lubricants, and cleaning agents.
Ease of Installation: Standardized bolt patterns and "slide-and-lock" designs allow for rapid installation and repositioning without dismantling the pneumatic assembly.
Universal Compatibility: Engineered to support all major industrial sensor types, including Reed-type, NPN/PNP Solid-State, and Two-Wire auto switches.
