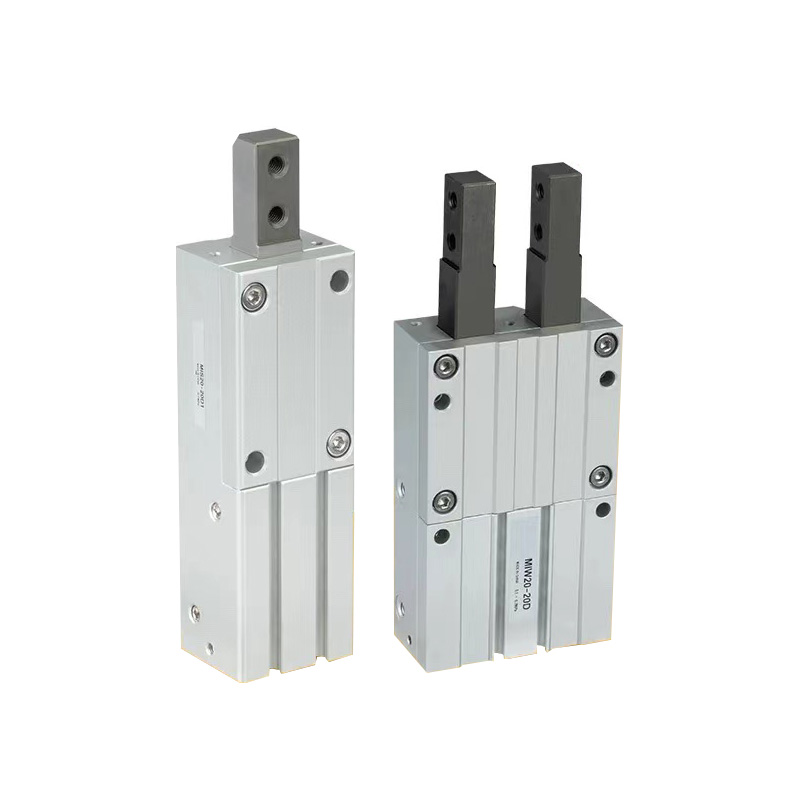

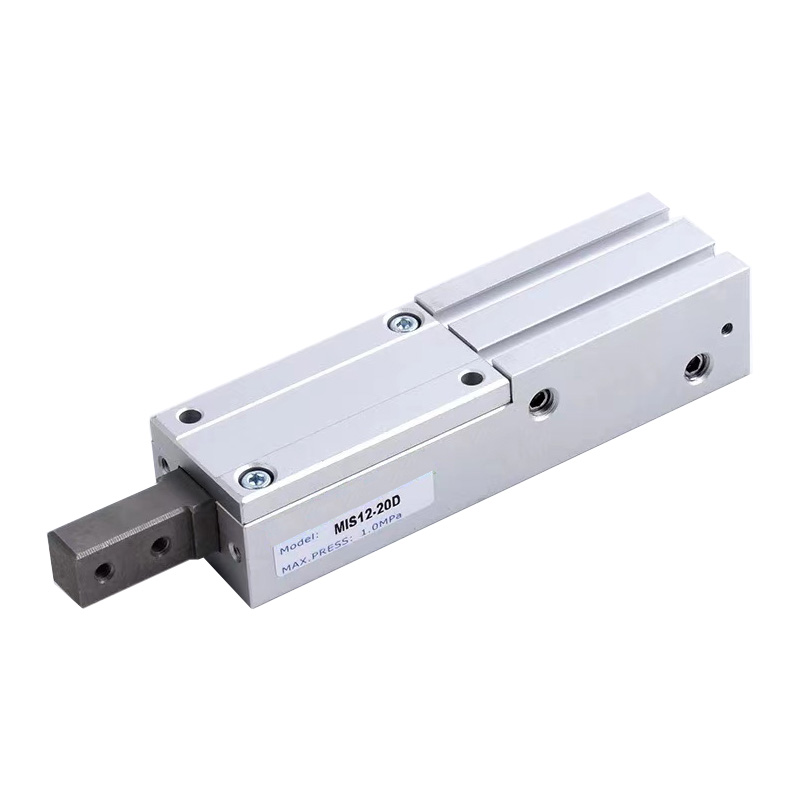

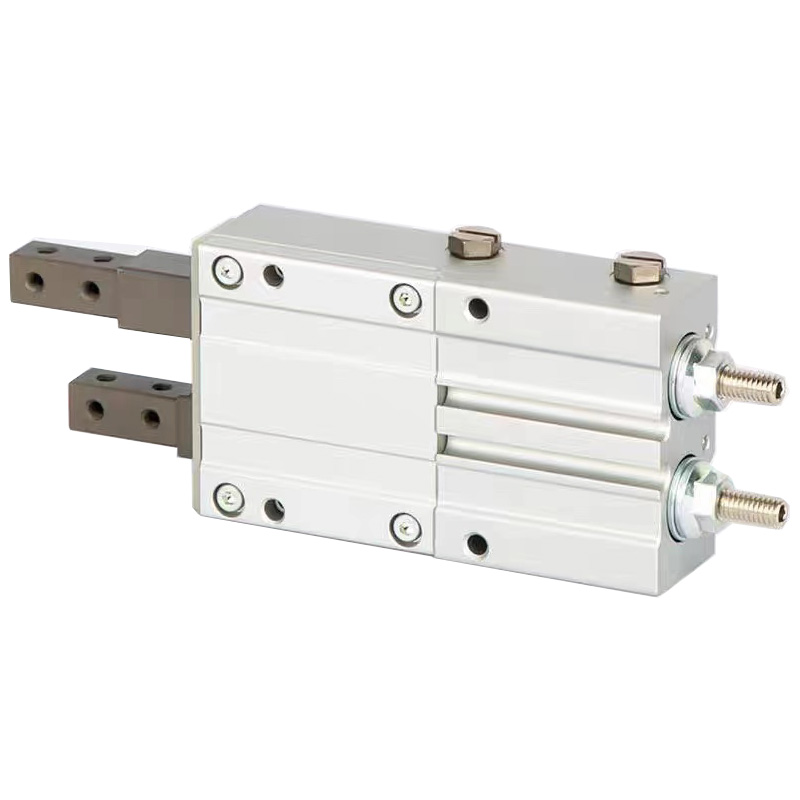

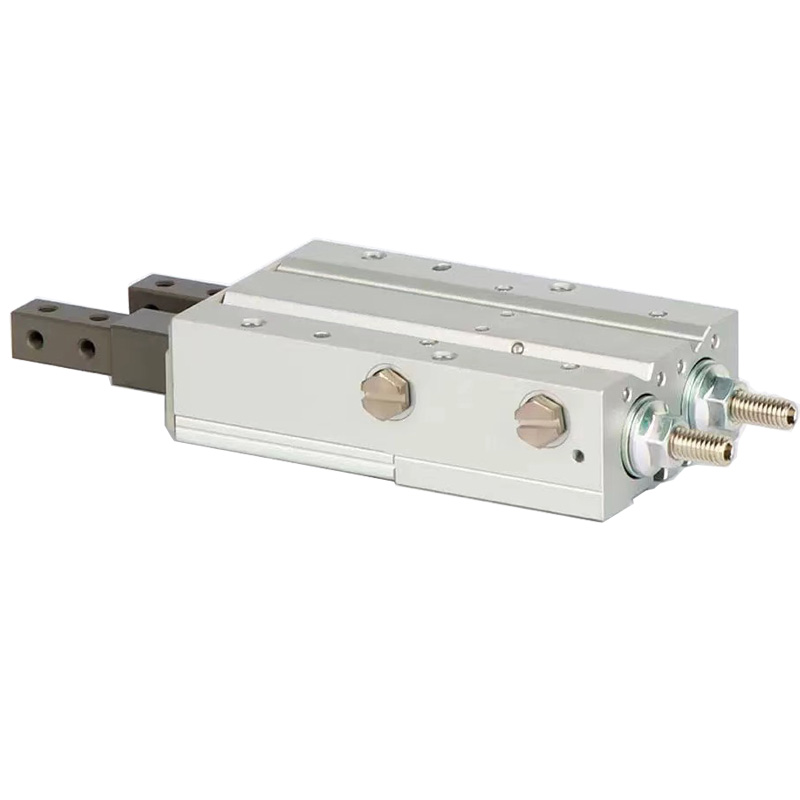

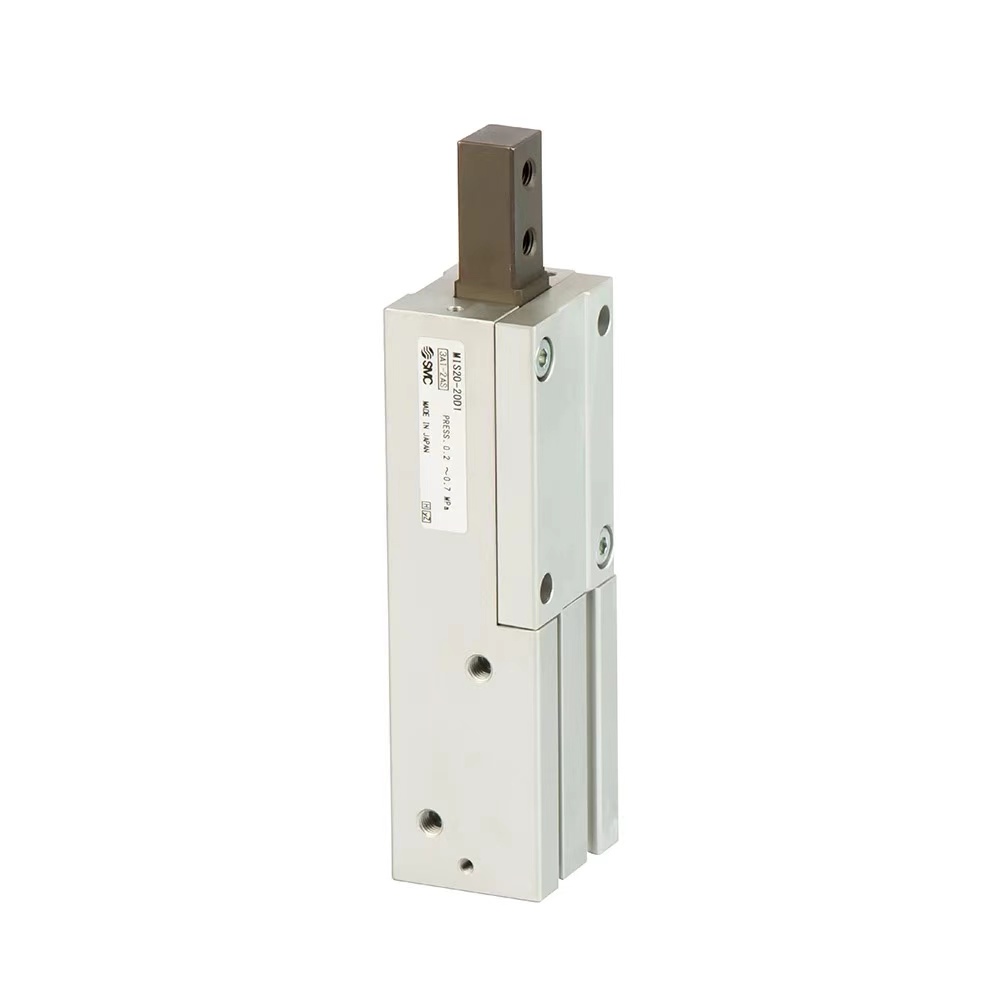

MIS Series Miniature Pneumatic Gripper

  • High-precision MIS series miniature finger cylinder
  • Compact integrated pneumatic gripper design
  • Superior repeatability for micro-assembly
  • High-strength anodized aluminum body
  • Synchronized parallel or angular gripping motion
  • Lightweight design for robotic end-effectors
  • Magnetic auto-switch compatible (flush-mounted)
  • Ideal for electronics, semiconductors, and medical devices
  • Long service life under high-cycle operation
  • Low starting pressure and smooth actuation. Technical Specifications Overview

MIS Series: High-Precision Miniature Finger Cylinders


The MIS series represents the pinnacle of micro-pneumatic gripping technology. Designed for applications where space is critically limited and precision is non-negotiable, these Finger Cylinders (Pneumatic Grippers) provide smooth, synchronized motion for handling delicate components. Whether in parallel or angular configurations, the MIS series ensures a reliable "human-like" touch for automated systems.

Key Technical Features & Engineering Highlights

  • Ultra-Compact Integrated Design: The MIS series features an integrated body and finger structure, minimizing the overall footprint and making it perfect for small robotic end-effectors and tight machine frames.

  • High Repeatability: Engineered with high-precision guide rails and internal mechanisms, these grippers offer a repeatability of ±0.01mm to ±0.02mm, ensuring consistent performance in high-frequency assembly lines.

  • Durable Lightweight Construction: Manufactured from high-strength anodized aluminum alloy, the MIS series is both lightweight (to reduce robotic arm load) and resistant to wear and corrosion.

  • Synchronized Clamping Force: The internal rack-and-pinion or wedge-cam mechanism ensures that both fingers move with perfect synchronization, providing a balanced and secure grip on every cycle.

  • Magnetic Sensor Compatibility: Despite its miniature size, the body includes integrated slots for micro-magnetic sensors, allowing for precise feedback of the "Open" and "Closed" positions.


FeatureDetails
Action TypeDouble Acting / Single Acting (Normally Open/Closed)
Gripping StyleParallel / Angular / 180-Degree Opening
Repeatability±0.01mm ~ ±0.02mm
Operating Pressure0.15 ~ 0.7 MPa (22 ~ 101 psi)
Max. Frequency120 ~ 180 cycles per minute
Ambient Temp.-10°C to +60°C (No freezing)

Primary Industrial Applications

The MIS series finger cylinder is the go-to solution for:

  • Electronics Manufacturing: Picking and placing micro-chips, resistors, and connectors.

  • Medical Device Assembly: Handling small tubes, reagents, and surgical components.

  • Semiconductor Processing: Delicate handling of silicon wafers and miniature dies.

  • Watch & Jewelry Assembly: Precision movement for micro-mechanical parts.
