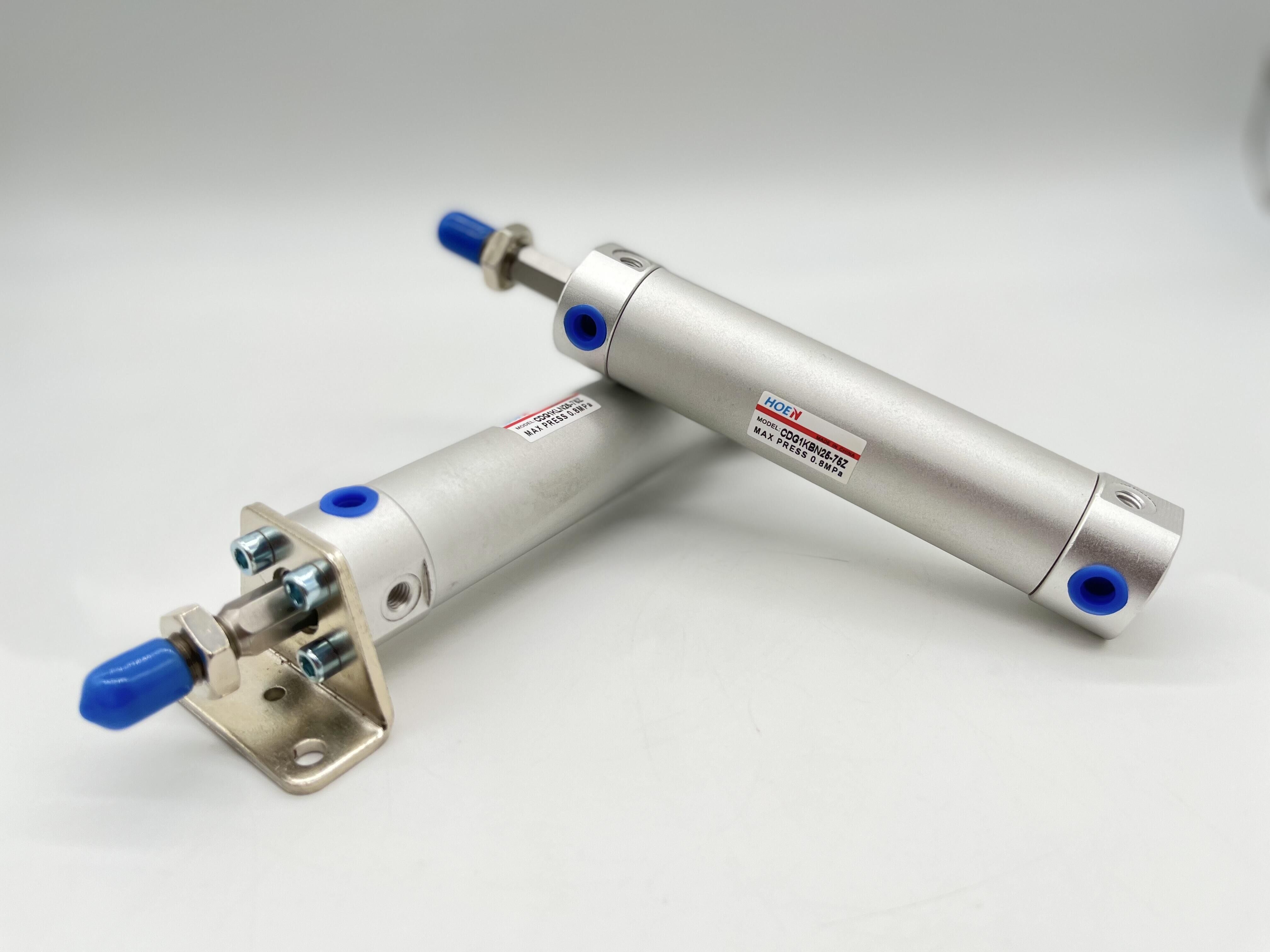

CG1 Series Round Body Pneumatic Cylinders
- Lightweight round body design
- Double-acting stable operation
- Bore sizes 20–100mm
- Low friction & long service life
- Adjustable air cushion available
- Auto-switch compatible for position control
- Multiple mounting options
- Non-lube operation
- Wide temperature range
- Compact & space-saving
The CG1 Series round body pneumatic cylinders offer robust, precision linear actuation for modern industrial automation. Designed for double-acting operation with bore sizes from 20mm to 100mm, these cylinders feature a smooth impact-extruded aluminum tube for low break-away pressure and consistent stroke performance. Built with non-lube operation, rubber bumpers or optional air cushioning, and compatibility with auto-switches for position sensing, CG1 cylinders ensure reliable performance in temperatures from –10°C to 70°C. With a wide range of mounting configurations—including axial foot, front/rear flange, trunnion, and clevis—they adapt seamlessly to packaging machinery, assembly lines, material handling, and automated processing equipment. Engineered for durability, low friction, and long service life, CG1 cylinders provide stable, high-performance motion control for diverse industrial applications.
8 Bore Sizes: 20, 25, 32, 40, 50, 63, 80, 100mm
Double-Acting, Single Rod: smooth, responsive bidirectional motion
Operating Pressure: 0.05–1.0MPa (50–1000mm/s speed range)
Smooth Aluminum Tube: low friction, long seal life, stable operation
Cushion Options: rubber bumper + adjustable air cushion (end shock protection)
Auto-Switch Compatible: easy position sensing with magnetic switch mounting

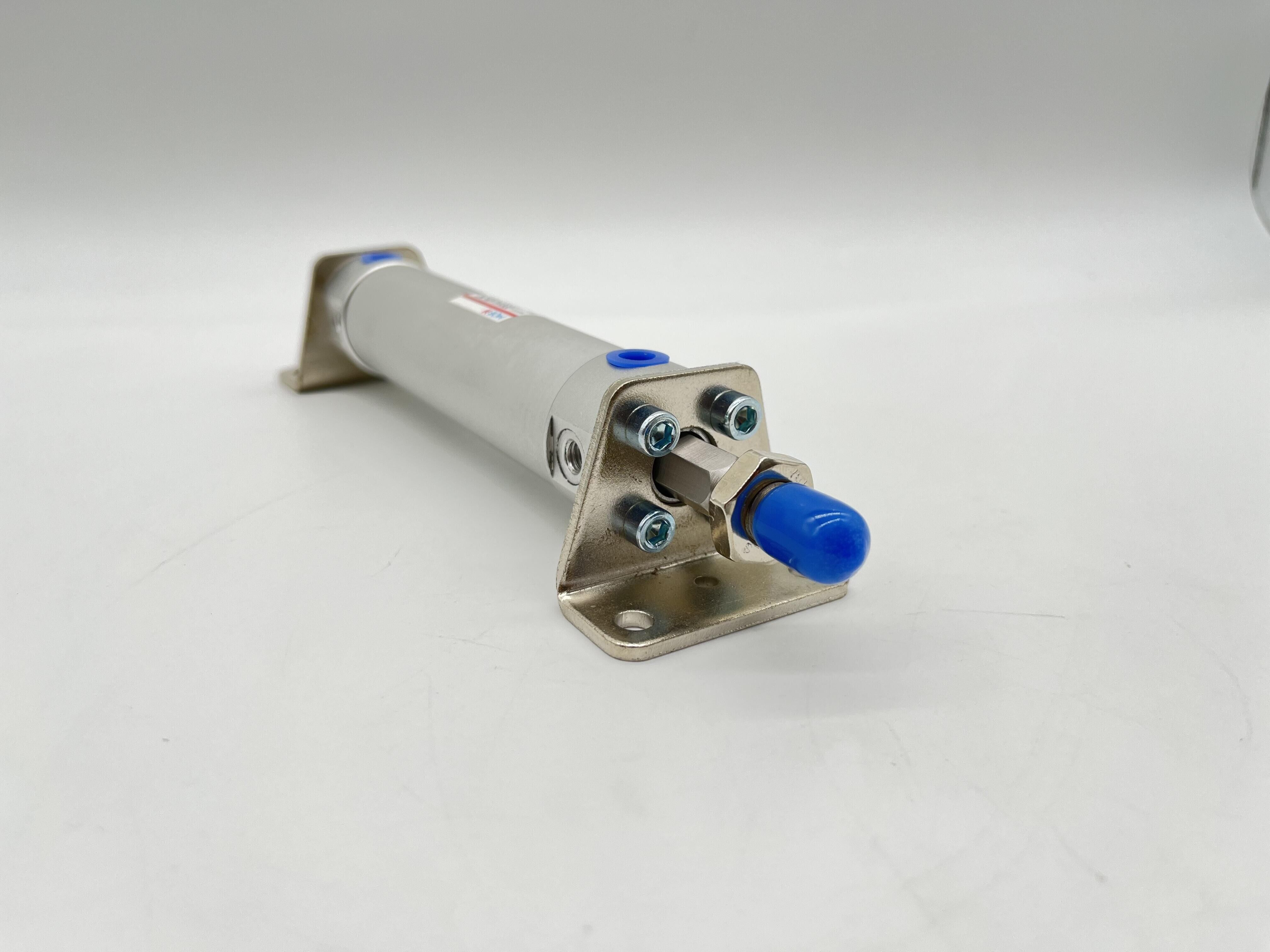

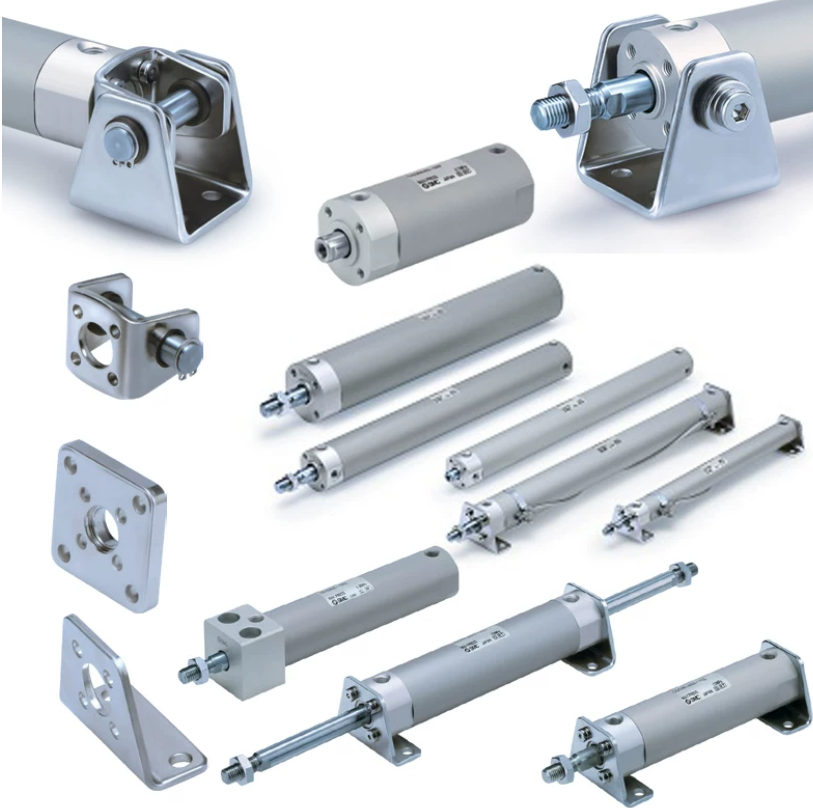

Versatile Mounting: foot, flange, trunnion, clevis—fits most automation setups
Non-Lube Design: maintenance-free, clean operation for food & packaging
Temperature Range: –10°C to 70°C (no freezing)
JIS Standard Construction: interchangeable, high-quality industrial performance
