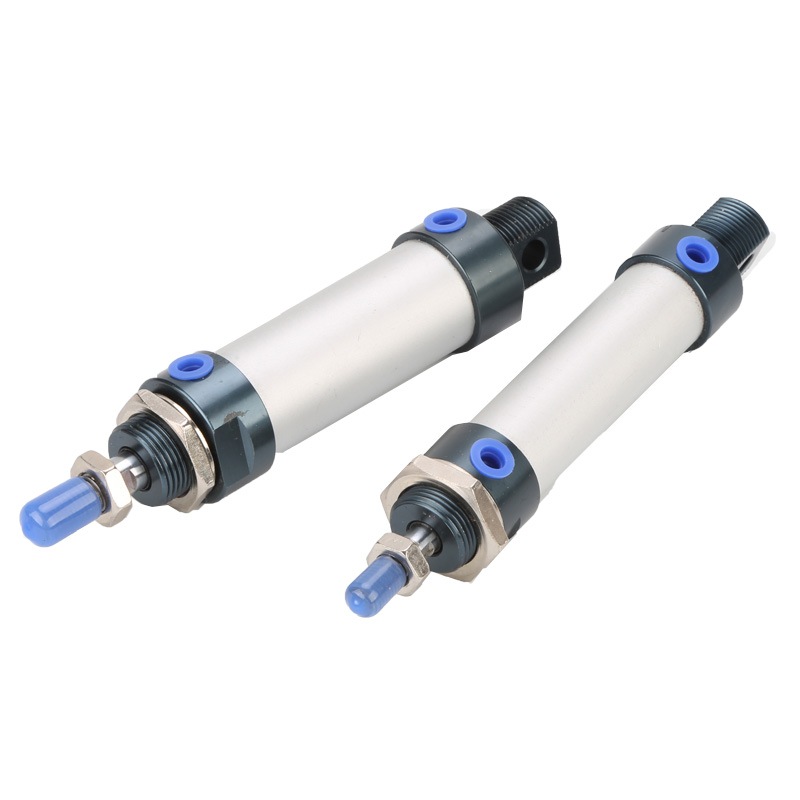

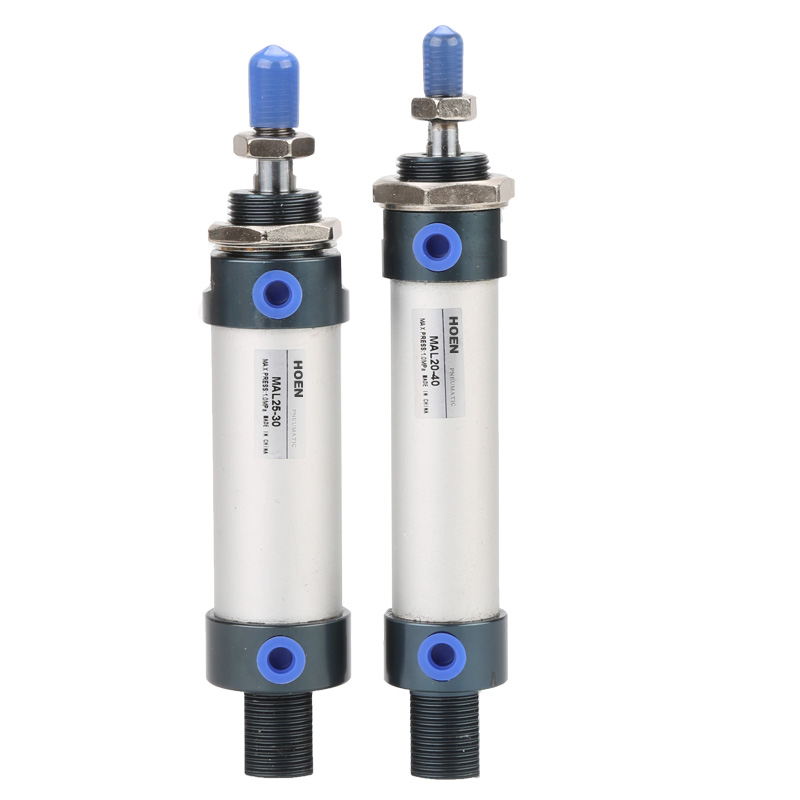

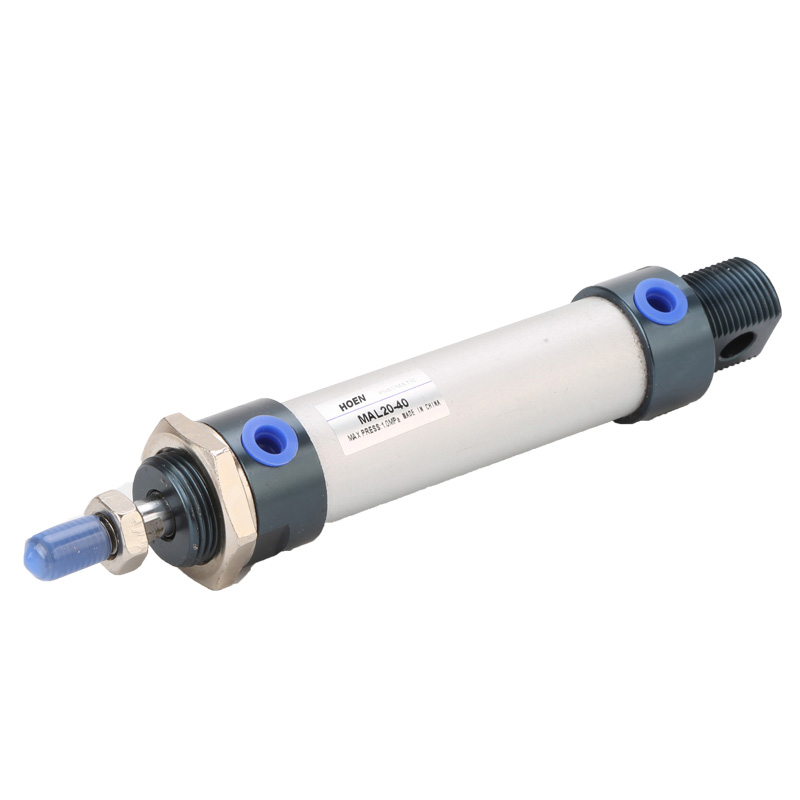

MAL Series Aluminum Alloy Mini Pneumatic Cylinder
- AirTAC Type MAL cylinder
- MAL aluminum alloy mini cylinder
- AirTAC Type MAL series
- lightweight pneumatic cylinder
- compact mini air cylinder
- double-acting small cylinder
- magnetic switch compatible cylinder
The AirTAC Type MAL Series is a lightweight, high-performance miniature pneumatic cylinder constructed with an aluminum alloy barrel for excellent strength and corrosion resistance. Designed for compact automation and light-duty applications, it offers smooth operation, stable thrust, and long service life in confined spaces.
Body Material: High-strength aluminum alloy tube with hard anodizing for wear and corrosion resistance
Action Type: Double-acting, single rod; built-in magnet for magnetic switch sensing
Lightweight & Compact: Optimized profile for installation in small machinery and equipment
Sealing System: High-quality wear-resistant seals for low friction and stable performance
Cushion: Fixed rubber bumper cushion to reduce end impact and noise
Bore Sizes: 16, 20, 25, 32, 40 mm
Operating Pressure: 0.1 – 0.8 MPa
Temperature Range: -20°C ~ +70°C
Port Thread: M5×0.8, with flexible mounting accessories available
Applications
Widely used in small automation machines, electronics assembly, packaging machinery, fixture clamping, pushing, ejecting, and light-duty positioning systems.
