MBL Series Aluminum Alloy Mini Pneumatic Cylinder

  • MBL cylinder
  • aluminum alloy mini cylinder
  • mini pneumatic cylinder
  • double acting mini cylinder
  • bore 20-63mm cylinder
  • adjustable cushion cylinder
  • magnetic switch cylinder
  • compact air cylinder
  • lightweight automation cylinder
  • riveted mini cylinder
  • single acting mini cylinder
  • MBL/MBLC/MBLD cylinder

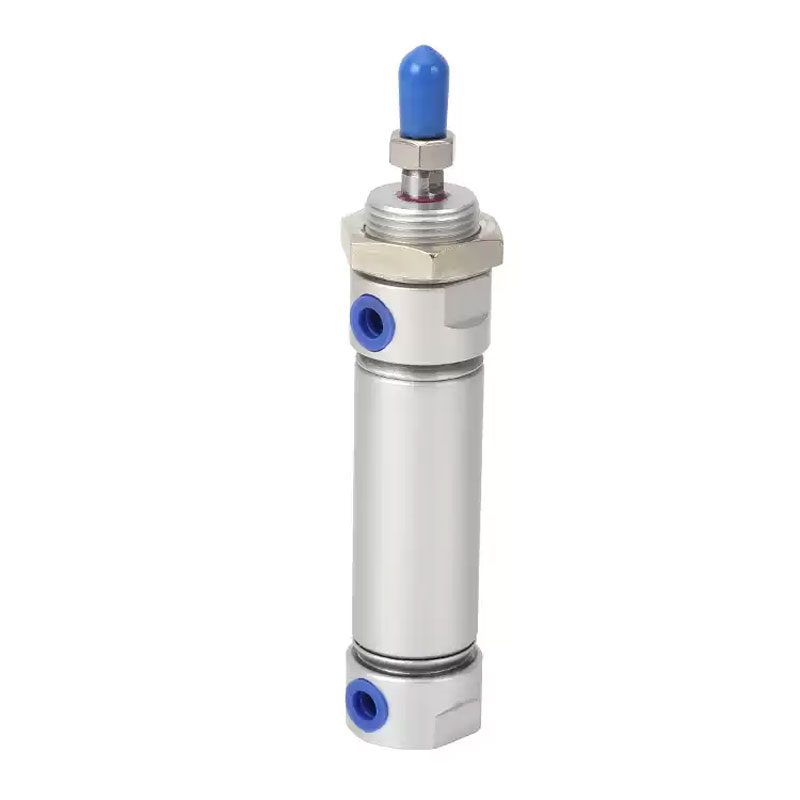

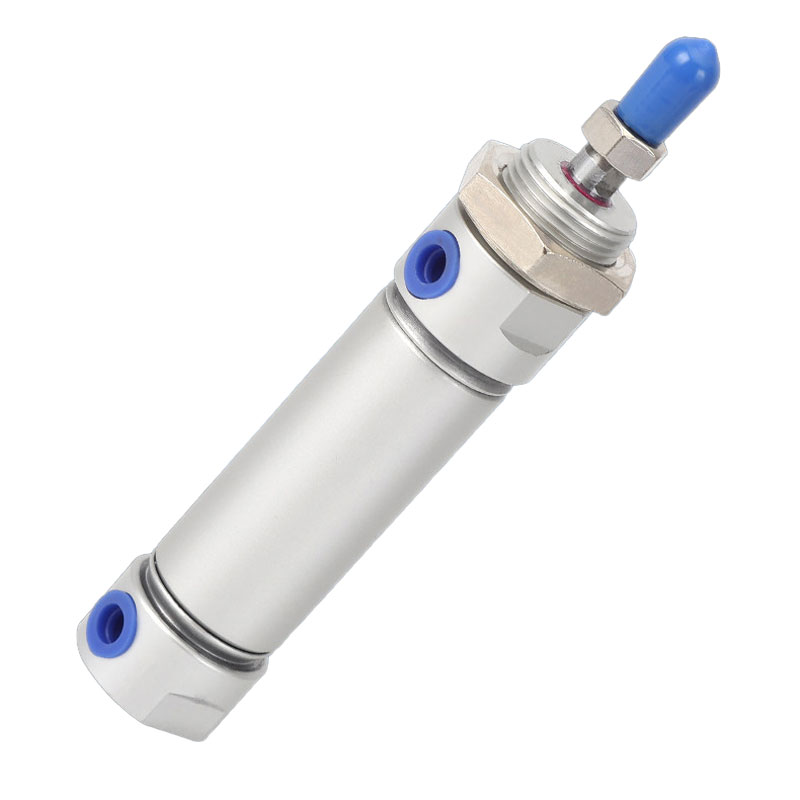

The MBL Series is a high-performance, lightweight aluminum alloy mini pneumatic cylinder engineered for precision linear motion in space-constrained industrial automation. Designed with a durable extruded aluminum barrel and robust riveted rolling-pack construction connecting front/rear covers, it ensures exceptional structural reliability and long service life under continuous operation.


Offering double-acting (MBL) and single-acting (MSBL/MTBL) configurations, the series delivers smooth, responsive actuation with a standard operating pressure of 0.15–1.0 MPa. The MBLC variant features adjustable air cushioning to absorb end-of-stroke impact, reduce noise, and enhance machinery stability, while standard models include fixed rubber bumpers. The piston utilizes an advanced (special-shaped two-way seal) for compactness, excellent grease retention, and maintenance-free (non-lube) performance.

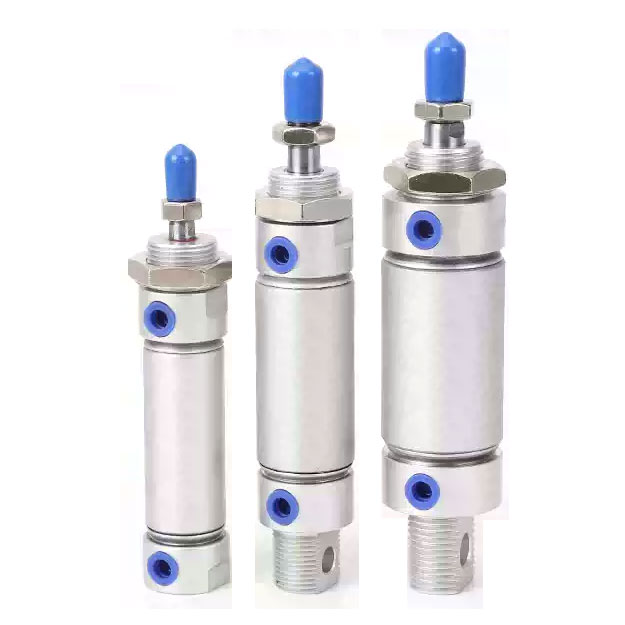

With 6 bore sizes (20, 25, 32, 40, 50, 63 mm) and extensive stroke options, the MBL series caters to diverse application requirements. It provides exceptional installation flexibility with FA flange, LB foot, SDB foot mounts, and dual rear cover styles (U flat-end, CA pivot). The series is fully magnetic switch compatible for precise position feedback, supporting seamless integration into automated control systems.


  • Lightweight Aluminum Alloy Body: Corrosion-resistant, high strength-to-weight ratio.

  • Riveted Roll-Pack Construction: Secure, leak-proof cover-to-tube connection.

  • Dual Action Types: Double acting (standard) & single acting (push/pull).

  • Adjustable & Fixed Cushioning: Reduces shock, extends component life.

  • High-Performance Sealing: Piston seal with grease storage, low friction, no leakage.

  • Versatile Mounting: FA/LB/SDB mounts + U/CA rear covers for flexible installation.

  • Magnetic Switch Ready: Supports position sensing for automated machinery.

  • Wide Temperature Range: Operates from -20°C to 70°C.

  • Extended Model Line: MBLC (cushion), MBLD (double rod), MBLJ (stroke adjustable).

Technical Specifications

  • Bore Sizes: 20, 25, 32, 40, 50, 63 mm

  • Action: Double acting (MBL), single acting (MSBL/MTBL)

  • Operating Pressure: 0.15–1.0 MPa (double acting); 0.2–1.0 MPa (single acting)

  • Proof Pressure: 1.5 MPa

  • Temperature: -20°C to 70°C

  • Piston Speed: 30–800 mm/s (double acting)

  • Cushion: Fixed rubber (standard); adjustable air (MBLC)

  • Lubrication: Non-lube (self-lubricating seals)

  • Port Thread: PT1/8, PT1/4 (varies by bore)

  • Materials: Barrel: Aluminum alloy; Rod: Hard chrome-plated steel; Seals: Nitrile rubber


Typical Applications

MBL cylinders are widely used in automated assembly lines, packaging machinery, electronic equipment, semiconductor tools, medical devices, conveying systems, and robotics. Perfect for applications demanding compact size, lightweight design, reliable performance, and flexible mounting in modern industrial automation.
