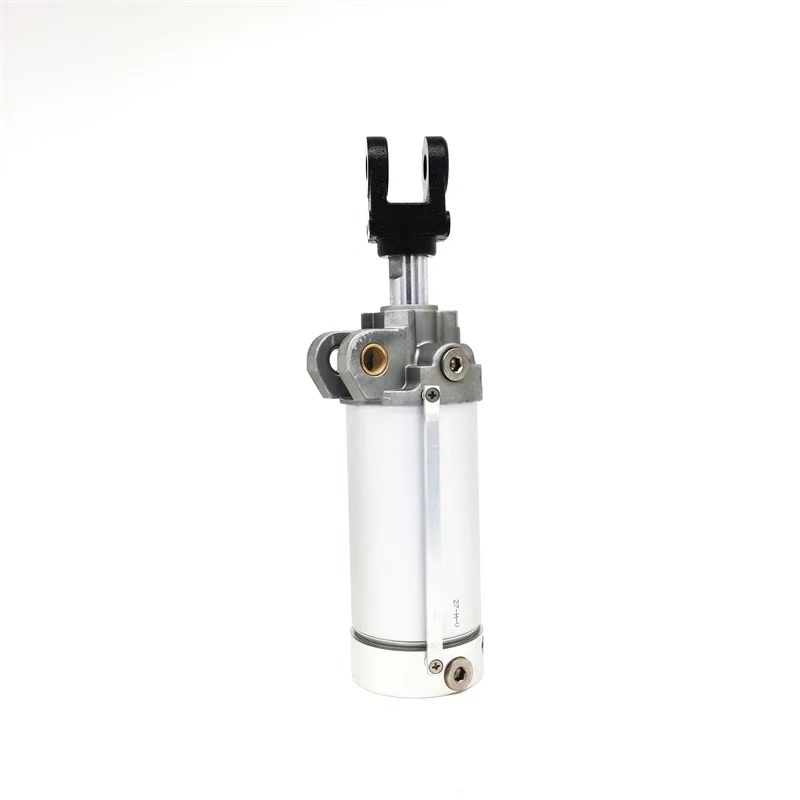

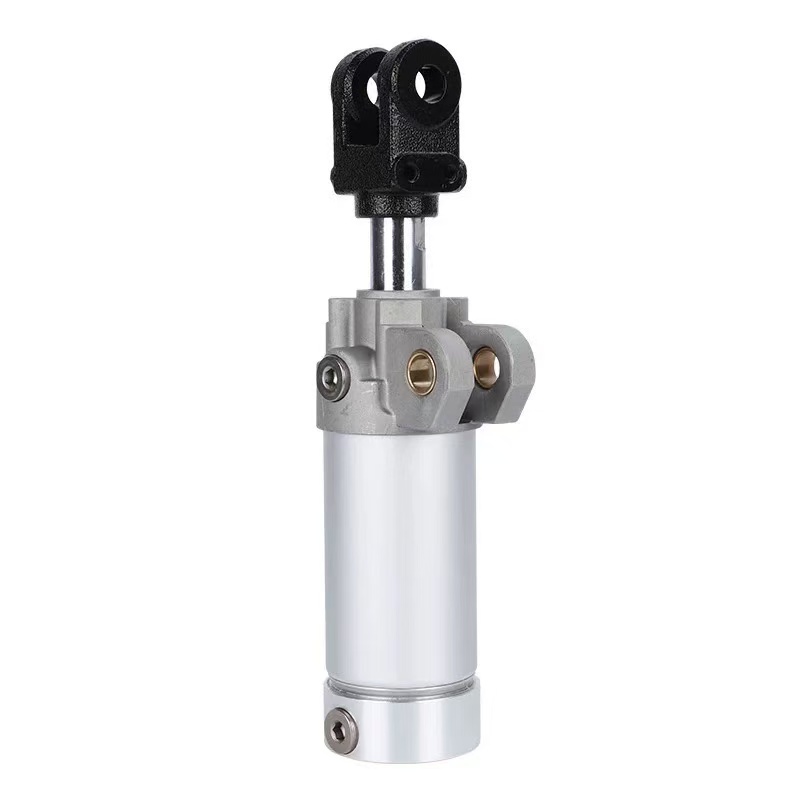

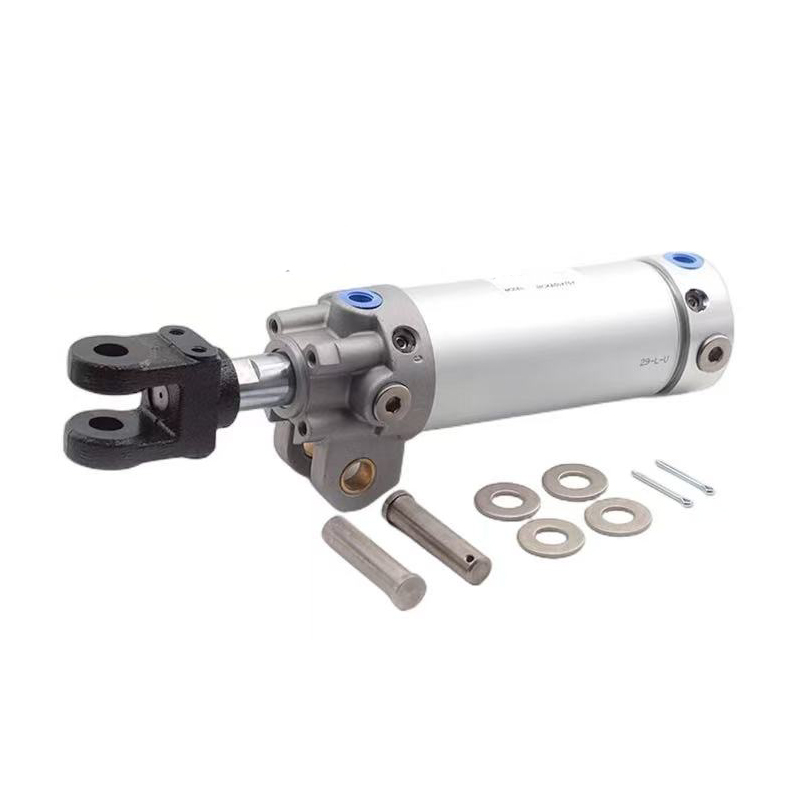

MCK Series High-Force Multi-Mount Compact Cylinder
- Original AirTAC MCK series compact cylinder
- High-force output in a small footprint
- Versatile multi-mount design for flexible installation
- Adjustable air cushioning for smooth operation
- Durable anodized aluminum alloy body
- Magnetic auto-switch compatible (flush-mounted)
- Bore sizes: 32mm, 40mm, 50mm, 63mm, 80mm, 100mm
- Ideal for precision clamping and material handling
- Low friction and long service life
- High-quality seals for reliable pneumatic performance.
AirTAC Type MCK Series: The Compact Powerhouse for Industrial Automation
The AirTAC Type MCK series is a premium compact cylinder designed for applications where high force and minimal space are required. Often referred to as a "Powerhouse" in the pneumatic industry, the MCK series stands out for its robust structural integrity and exceptional mounting versatility, making it the top choice for complex assembly and clamping tasks.
Key Technical Features & Engineering Highlights
Space-Saving Multi-Mount Design: The MCK series features a square, low-profile body with mounting holes on multiple surfaces (front, back, and sides). This allows for flexible installation in tight machine frames without the need for additional brackets.
High Strength & Durability: Built with a high-quality anodized aluminum alloy barrel and a reinforced piston rod, the MCK is designed to handle significant lateral loads and high-frequency operation.
Adjustable Air Cushioning: Unlike many compact cylinders that rely solely on rubber bumpers, the MCK series (bore sizes 32-100mm) offers adjustable pneumatic cushions. This ensures smooth deceleration and protects the machine from impact vibrations.
Integrated Sensor Slots: The cylinder body includes built-in slots for AirTAC CS1 and DS1 magnetic sensors, allowing for flush-mounted position feedback without increasing the cylinder's footprint.
Non-Lubricated Operation: High-performance seals and self-lubricating bushes ensure the cylinder operates reliably without the need for oil mist, keeping your workspace clean.
Technical Specifications Overview
Primary Industrial Applications
The AirTAC MCK series is widely used in:
Precision Clamping: Holding workpieces in jigs and fixtures for CNC machining.
Electronic Assembly: High-force pressing and positioning in SMT lines.
Packaging Machinery: Managing lids, seals, and high-speed sorting.
Automotive Production: Managing sub-assembly components in robotic cells.
