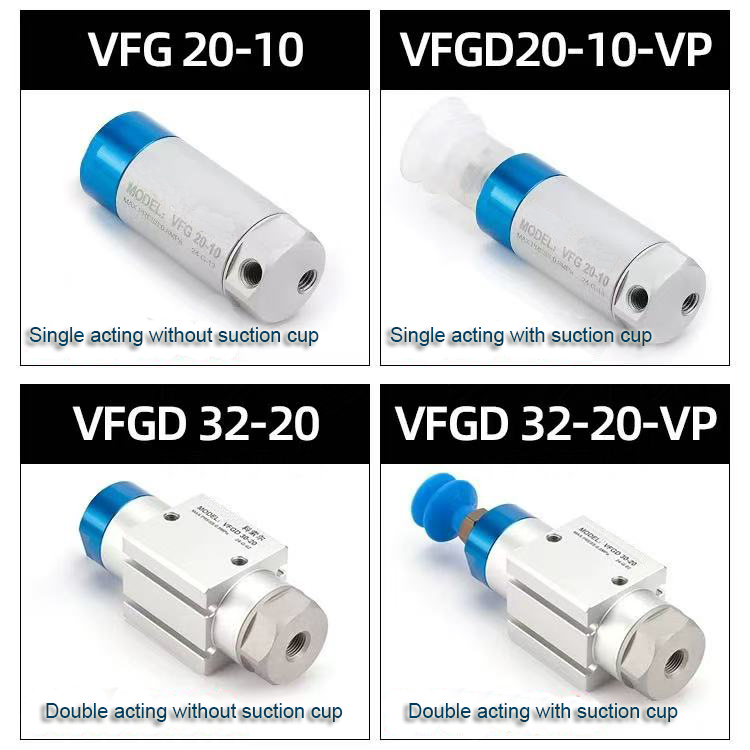

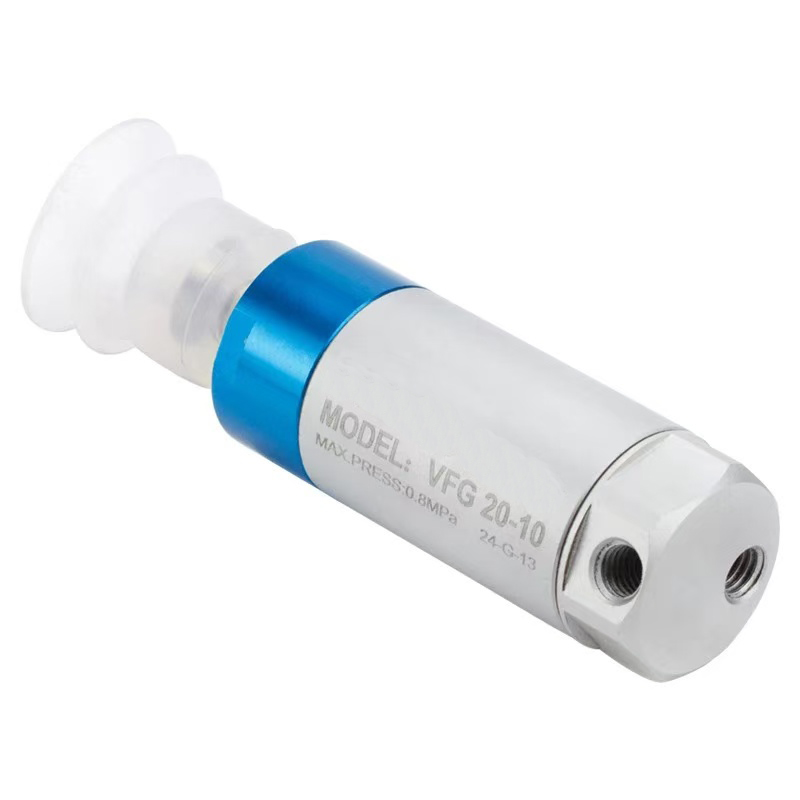

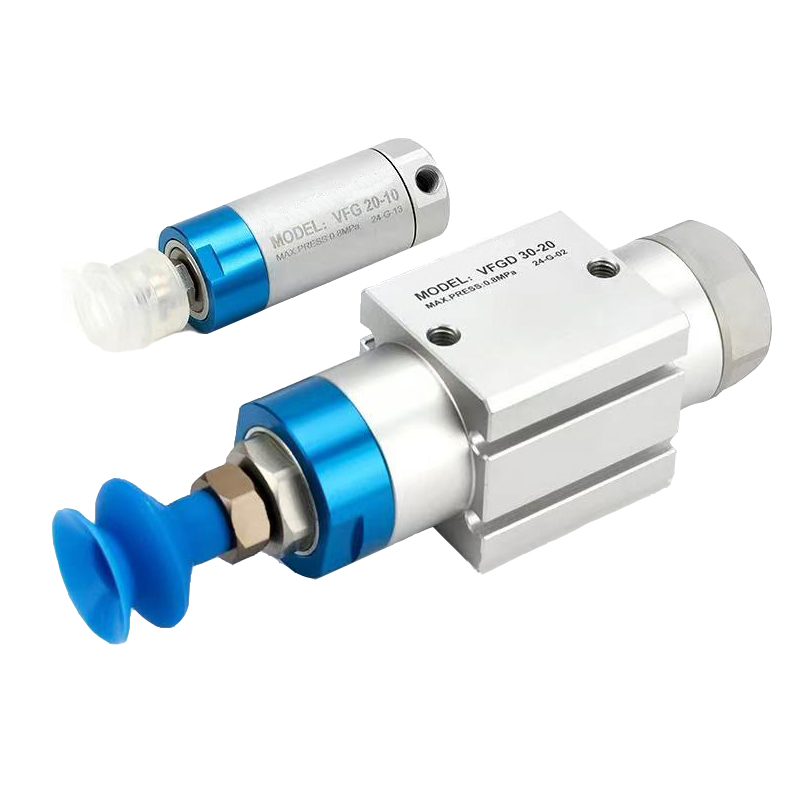

VFGD Series Heavy-Duty Holding Cylinder
- Heavy-duty VFGD series holding cylinder
- High-force pneumatic clamping actuator
- Robust toggle mechanism for maximum stability
- High-strength aluminum alloy body for durability
- Synchronized jaw movement for balanced gripping
- Magnetic auto-switch compatible (flush T-slots)
- Ideal for glass handling, CNC, and heavy automation
- Long service life under high-cycle industrial operation
- Large bore sizes for high-tonnage requirements
- Easy mounting and maintenance.
VFGD Series: The Ultimate Solution for High-Force Holding & Clamping
The VFGD series is a specialized heavy-duty pneumatic cylinder designed for "holding" and "clamping" tasks that require immense force and absolute stability. Engineered with a robust internal mechanism and high-torque jaws, the VFGD series is the definitive choice for handling large, heavy, or oddly shaped workpieces in automated production environments.
Key Technical Features & Engineering Highlights
Massive Clamping Force: The VFGD utilizes a specialized high-leverage or toggle mechanism to convert pneumatic pressure into massive clamping torque, ensuring workpieces are held securely even under high vibration or lateral loads.
Robust & Durable Construction: Built with a reinforced aluminum alloy body and high-strength steel components, this cylinder is designed to withstand the rigors of heavy industrial use and high-frequency cycles.
Specialized Jaw Design: The "Holding" (抱具) style jaws are often customizable or feature anti-slip surfaces, making them ideal for gripping cylindrical, round, or large-surface-area materials like glass, pipes, or metal sheets.
Stable & Synchronized Motion: High-precision internal guides ensure that the clamping jaws move with perfect synchronization, providing a balanced grip that prevents workpiece deformation or slippage.

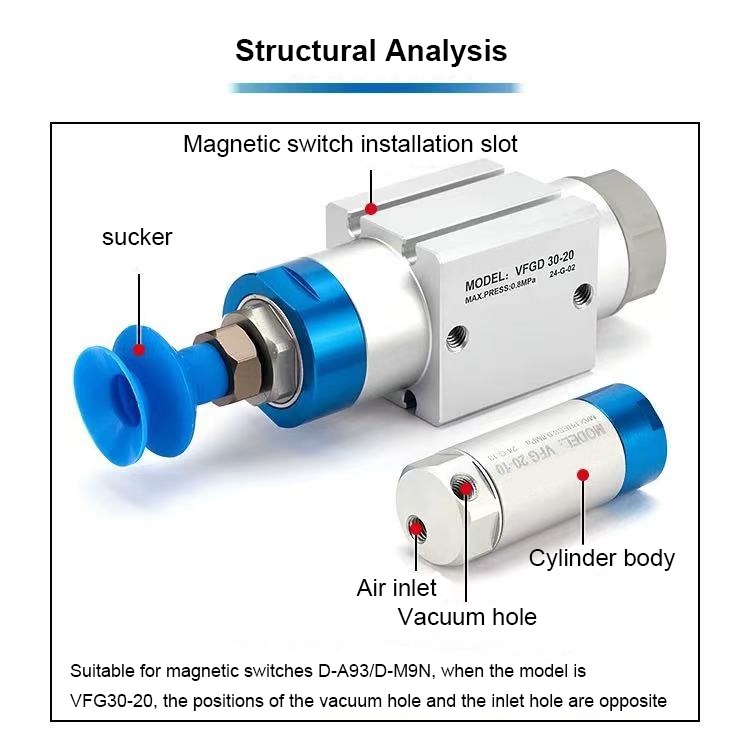

Magnetic Sensing Integration: The body includes integrated slots for flush-mounted magnetic sensors (auto-switches), allowing for precise "Clamped" and "Released" state monitoring for PLC integration.
Technical Specifications Overview
Primary Industrial Applications
The VFGD series holding cylinder is widely utilized in:
Glass Manufacturing: Securely holding large glass plates for cutting, grinding, or transport.
Automotive Assembly: Clamping chassis or engine components for welding and assembly.
CNC Machining: Heavy-duty holding jigs for milling and drilling operations.
Pipe & Tube Handling: Gripping large-diameter cylinders for industrial processing.
Heavy-Duty Packaging: Securely clamping large crates or containers on sorting lines.
