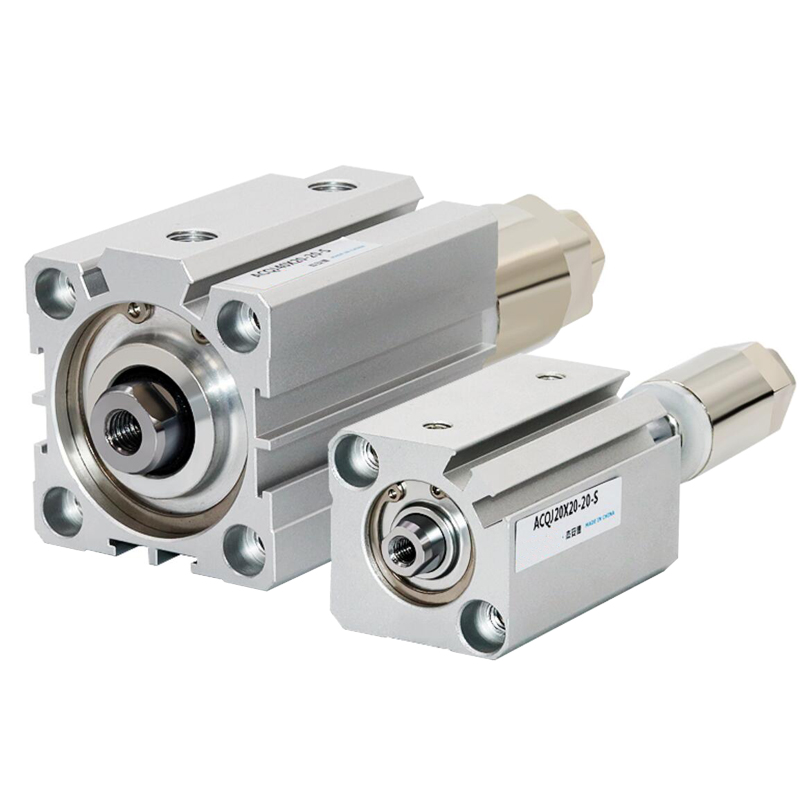

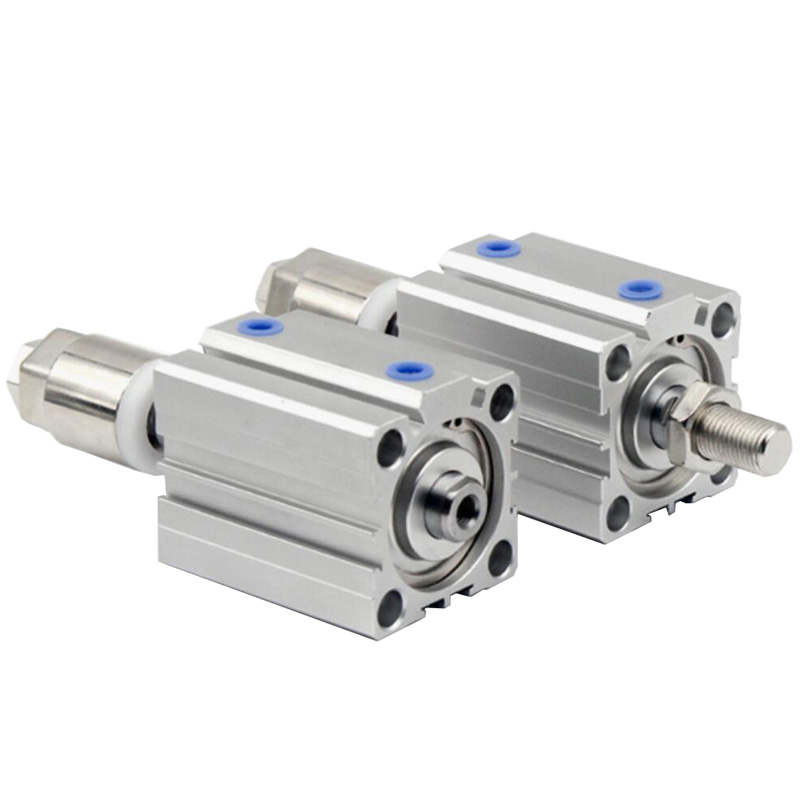

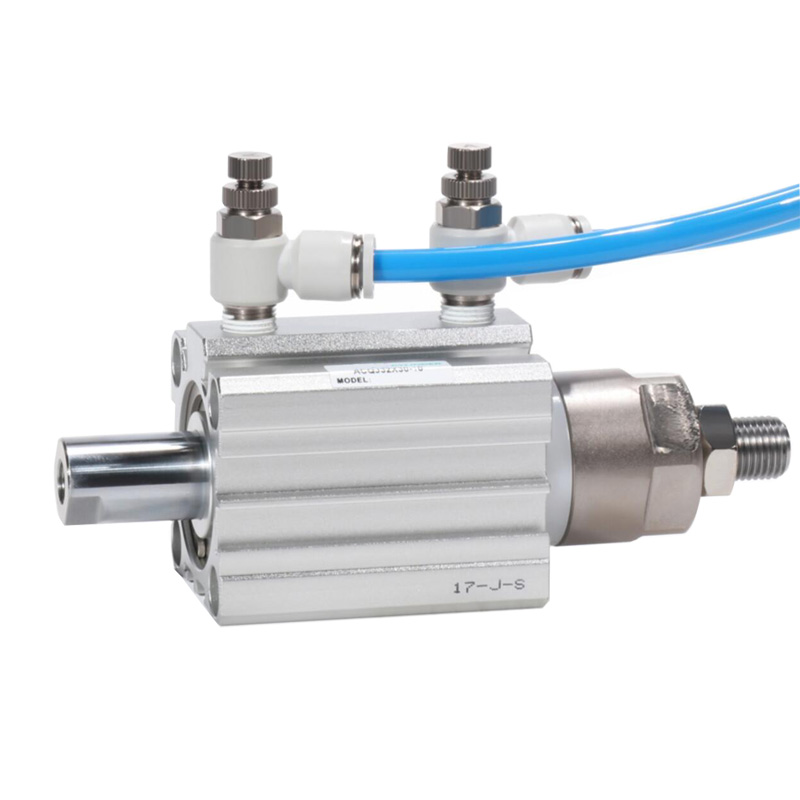

ACQ Series Ultra-thin Pneumatic Cylinder

  • AirTAC ACQ cylinder
  • ultra-thin pneumatic cylinder
  • compact air cylinder
  • JIS standard cylinder
  • double acting thin cylinder
  • magnetic switch cylinder
  • space-saving automation cylinder
  • AirTAC thin cylinder
  • clamping cylinder
  • compact actuator
The AirTAC Type ACQ series is a high-performance ultra-thin pneumatic cylinder designed for space-constrained industrial automation. Built to JIS standards, it features a compact, reliable structure with exceptional durability and stable performance


  • JIS Standard Compliance: Universal interchangeability and reliable quality.

  • Ultra-compact Design: C-ring retainer construction for a slim profile, saving installation space.

  • High Durability: Honed cylinder bore for excellent wear resistance and long service life.

  • Enhanced Guidance: Extended front cover guide for improved stability and precision.

  • Magnetic Switch Ready: 4-sided switch grooves for easy position sensing installation.

  • Versatile Mounting: FA/FB/LB/CB mounting options and a full range of accessories.

  • Riveted Piston & Rod: Secure, robust internal structure for consistent operation.

Technical Specifications

  • Bore Sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 140, 160 mm

  • Operating Pressure: 0.1–1.0 MPa (Double acting)

  • Temperature Range: -20°C to 80°C

  • Speed Range: 30–500 mm/s

  • Action Type: Double acting, single rod

  • Port Threads: M5, PT 1/8", PT 1/4", PT 3/8"

  • Strokes: 5 to 100 mm (standard), customizable available


Applications
Ideal for automated machinery, electronic assembly, fixture clamping, pushing, ejecting, packaging, conveying, and all space-limited industrial automation tasks requiring compact, reliable actuation.
