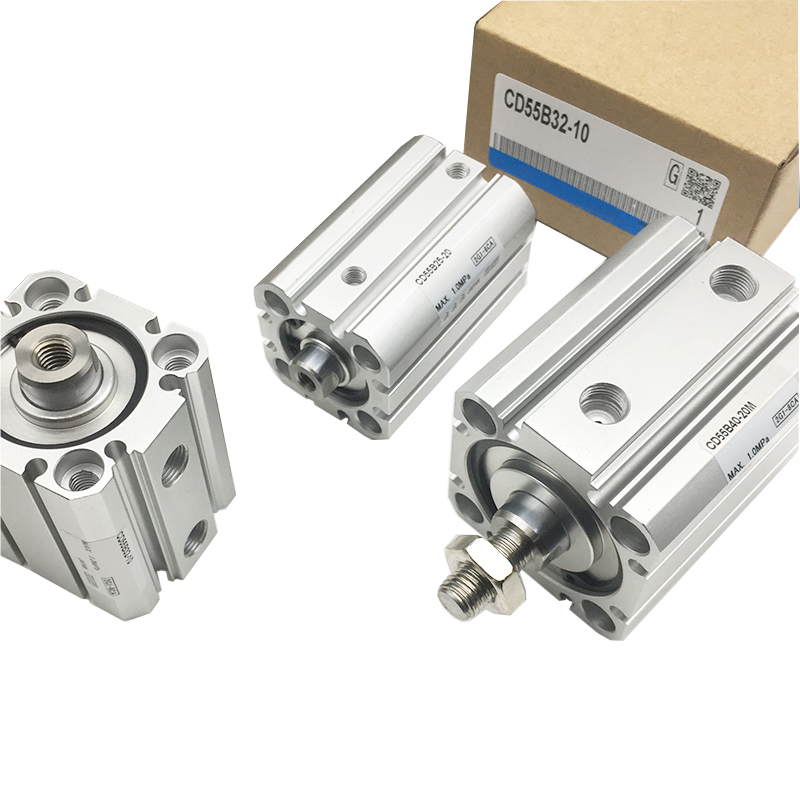

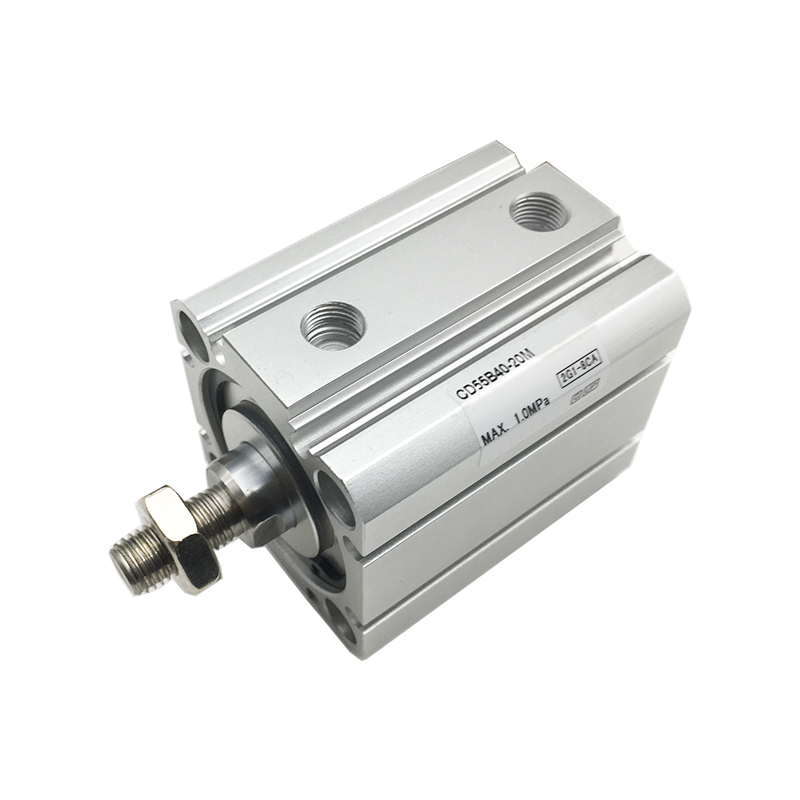

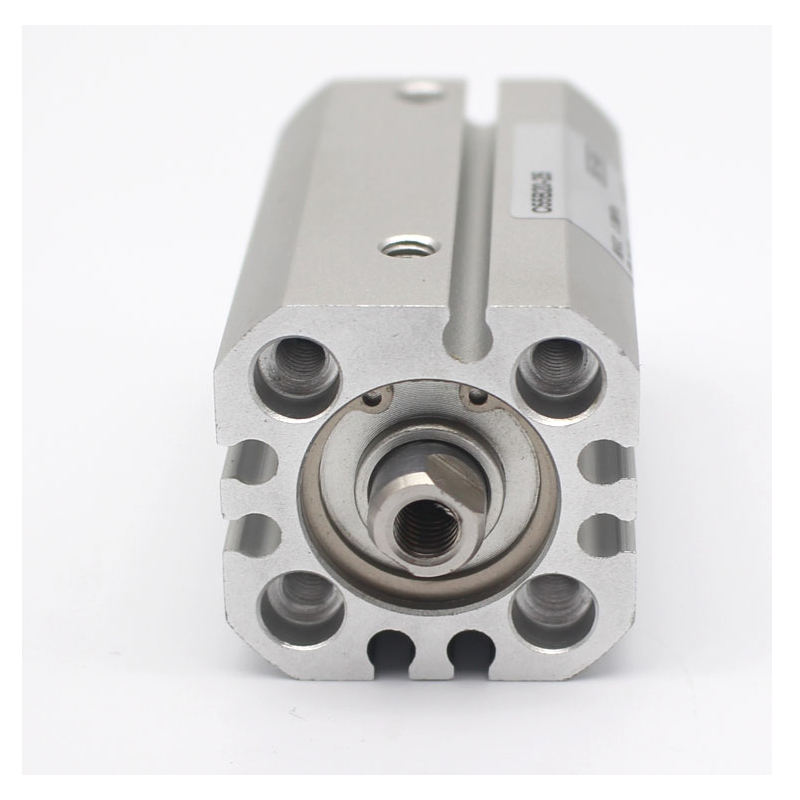

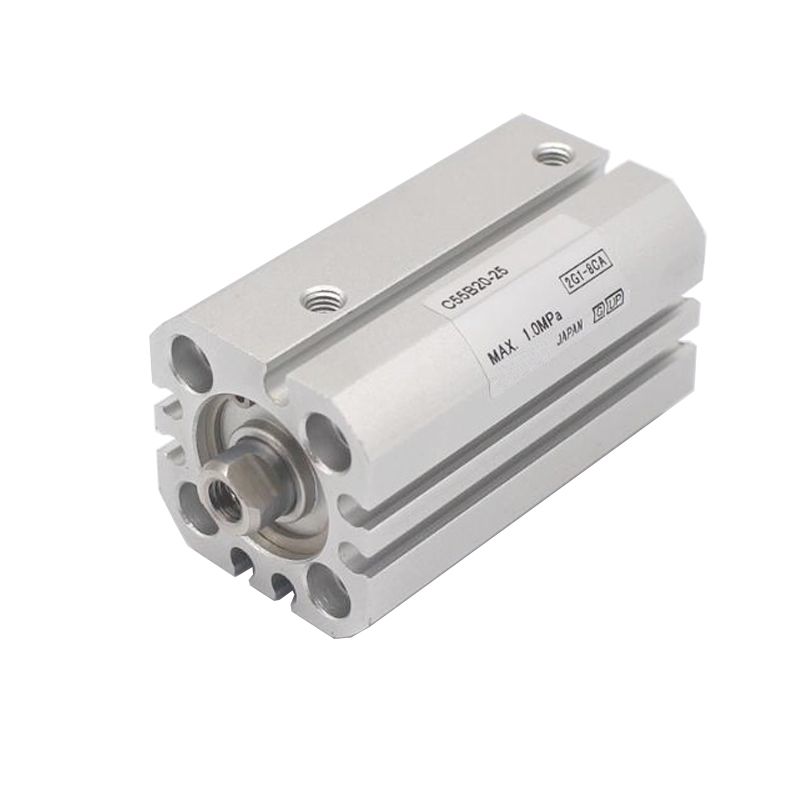

C55 Series ISO 21287 Compact Pneumatic Cylinders
- ISO 21287 standard compliant
- 1.8x higher lateral load resistance
- Compact slim profile
- Bore sizes 12–100mm
- Max stroke 300mm
- Double-acting stable thrust
- Non-lube operation
- Rubber bumper cushion
- Magnetic piston for auto switches
- Versatile mounting options
- Wide pressure 0.03–1.0MPa
- Long service life
The C55 series compact pneumatic cylinders are engineered to meet ISO 21287 international standards, delivering robust performance and versatility for modern industrial automation. Designed with an optimized compact profile, these double-acting cylinders feature an enhanced rod bushing material that boosts allowable lateral load capacity by 1.8 times (for ø20 bore), ensuring stable operation under offset loads. The standard maximum stroke extends to 300mm, accommodating a wide range of linear motion tasks.
Built with durable rubber bumpers on both ends, the C55 series effectively absorbs end-position shock, reducing noise and extending service life. Available in bore sizes from 12mm to 100mm, it supports non-lubricated operation and offers flexible mounting options (foot, flange, single clevis) for seamless integration. With a magnetic piston option for position sensing and a wide pressure range (0.03–1.0MPa), the C55 series excels in automated assembly, packaging, material handling, and general automation equipment.
