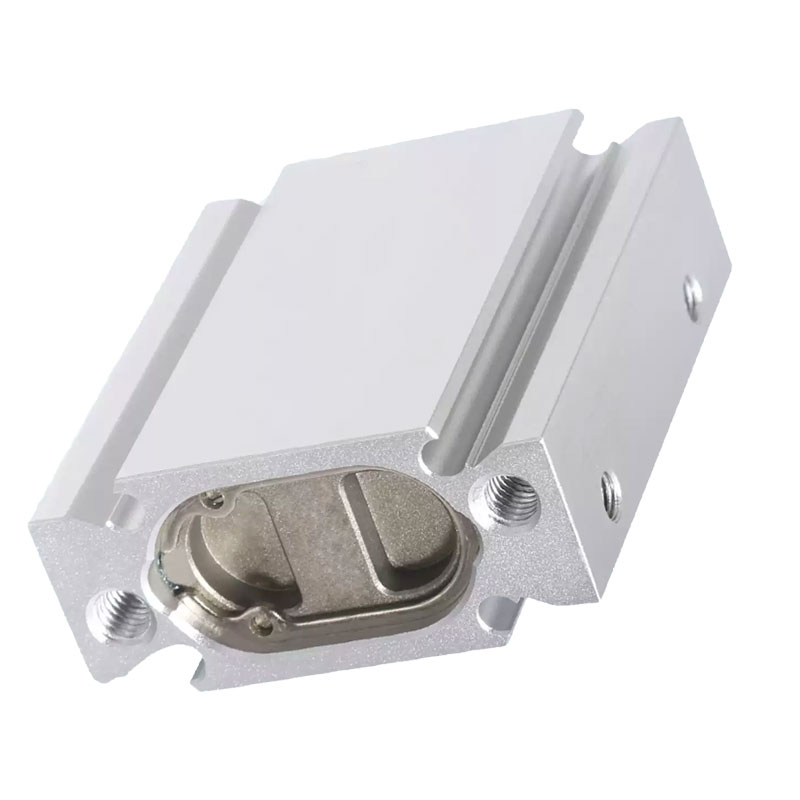

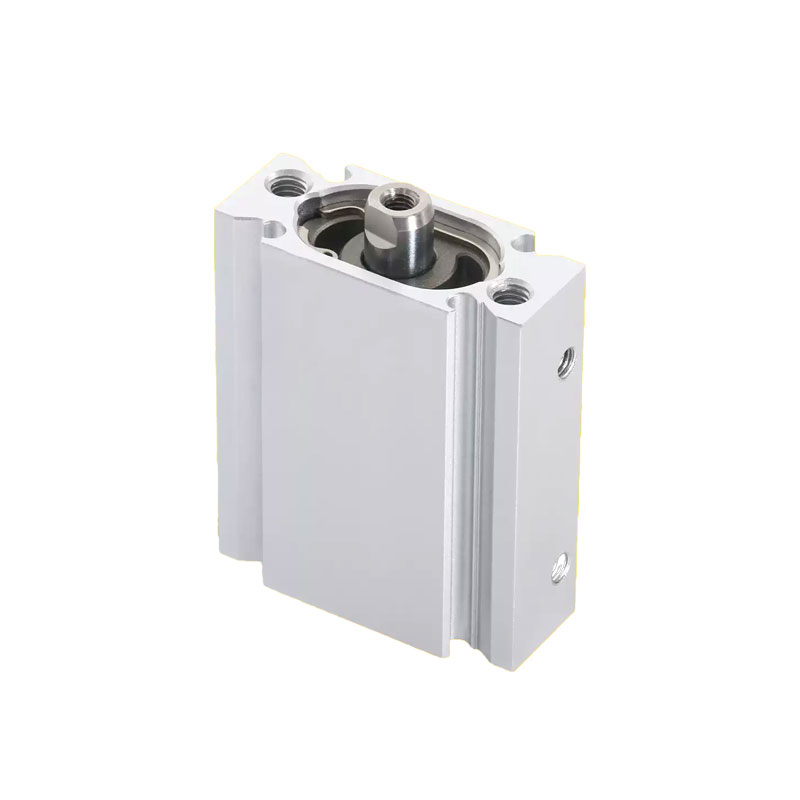

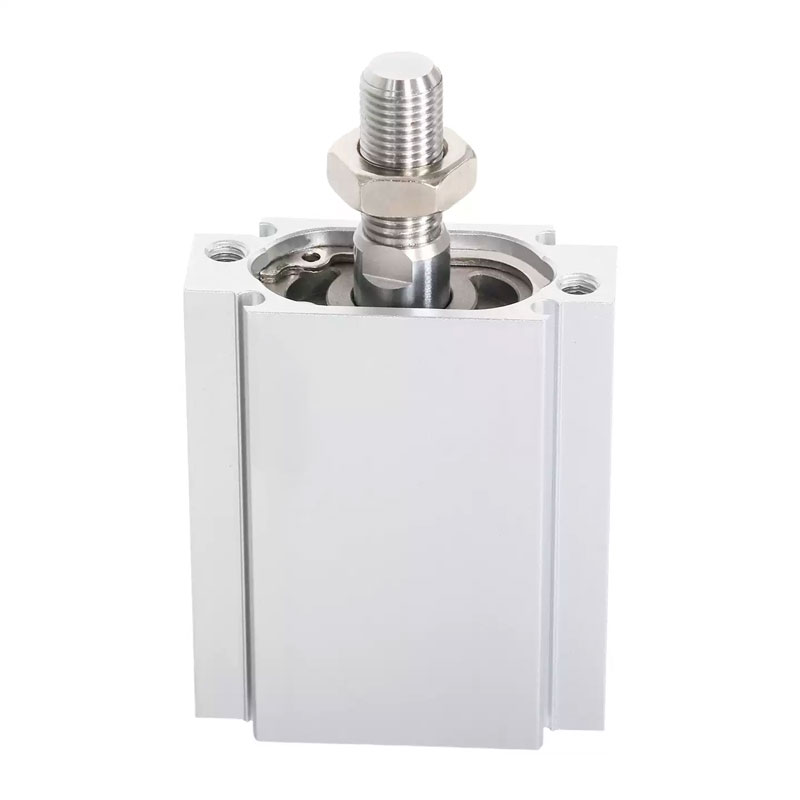

CQUB Series Flat Plate Compact Cylinders
- Ultra-slim flat plate design
- Compact space-saving structure
- Double-acting stable operation
- Auto-switch compatible for position control
- Easy mounting & installation
- Wide bore range 12–100mm
- Low friction & long service life
- Ideal for narrow installation spaces
The CQUB series flat plate compact air cylinders are designed for space-limited automation equipment with a slim, flat body structure. These double-acting pneumatic actuators provide stable linear motion with low friction and long service life. Featuring a compact profile and standard mounting interface, CQUB cylinders can be installed quickly and flexibly in various machinery. They support magnetic auto switches for position detection and operate reliably under standard industrial pressure and temperature conditions. Suitable for automated assembly, conveying, clamping, positioning and other automation applications requiring flat, short-stroke pneumatic solutions.
Ultra-slim flat body design saves installation space and fits perfectly in narrow equipment layouts.
Double-acting structure provides stable and smooth linear actuation with consistent thrust.
Space-saving & lightweight for compact automation machines, assembly lines, and clamping units.
Magnetic piston design supports auto-switch installation for easy position sensing and control.
High rigidity & stable performance with low friction, ensuring long service life and low maintenance.
Standardized mounting interface enables quick and flexible installation in various automation systems.
Wide bore range from 12mm to 100mm to meet different load and stroke requirements.
Non-lubricated operation available for clean and eco-friendly industrial applications.
Rubber bumper built-in reduces end-stroke impact and lowers working noise.
Ideal for clamping, positioning, pushing and small automation devices with limited space.
