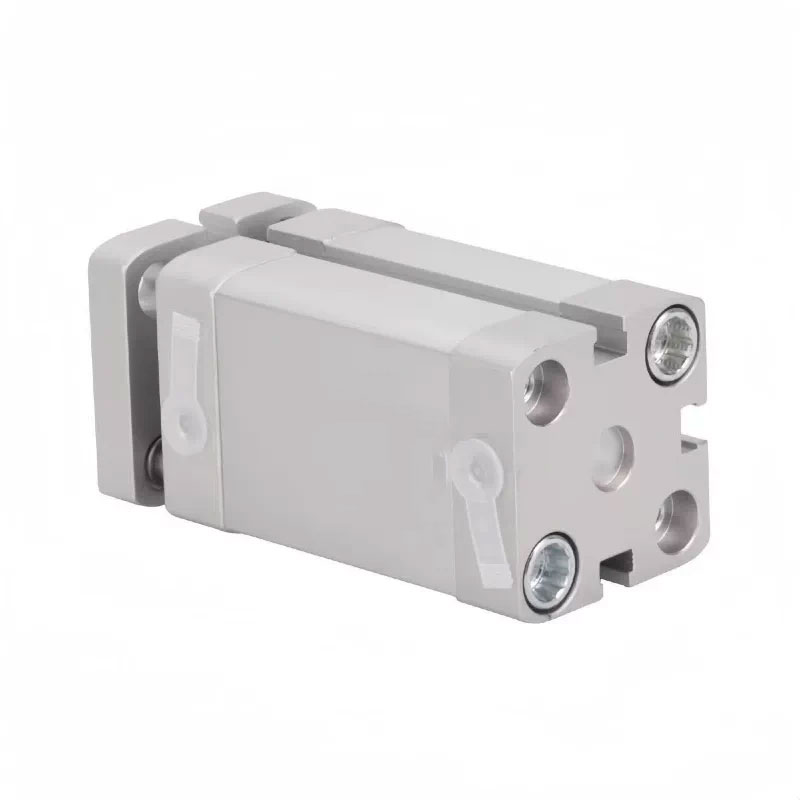

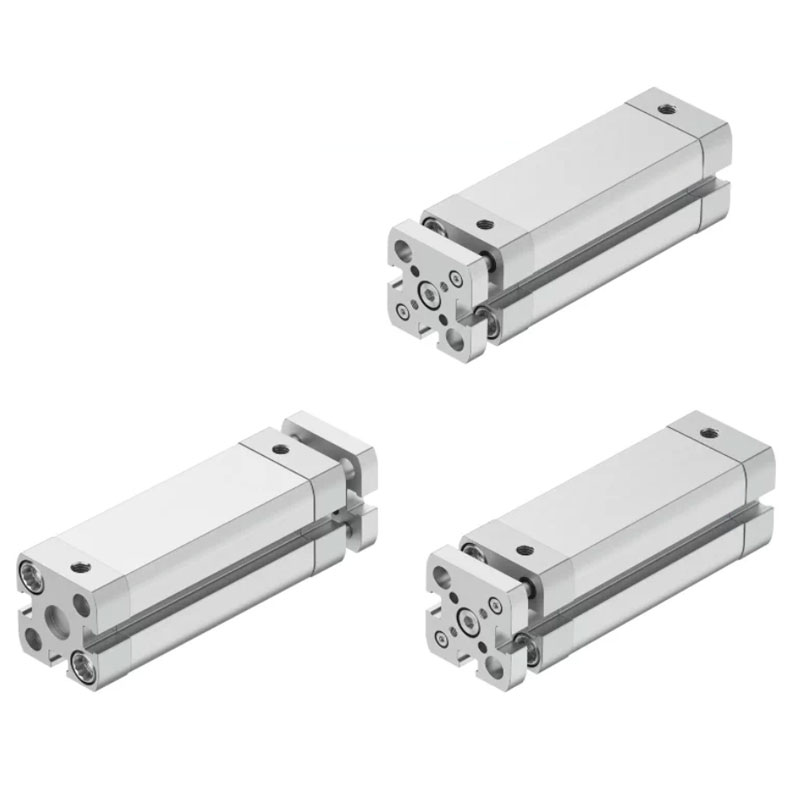

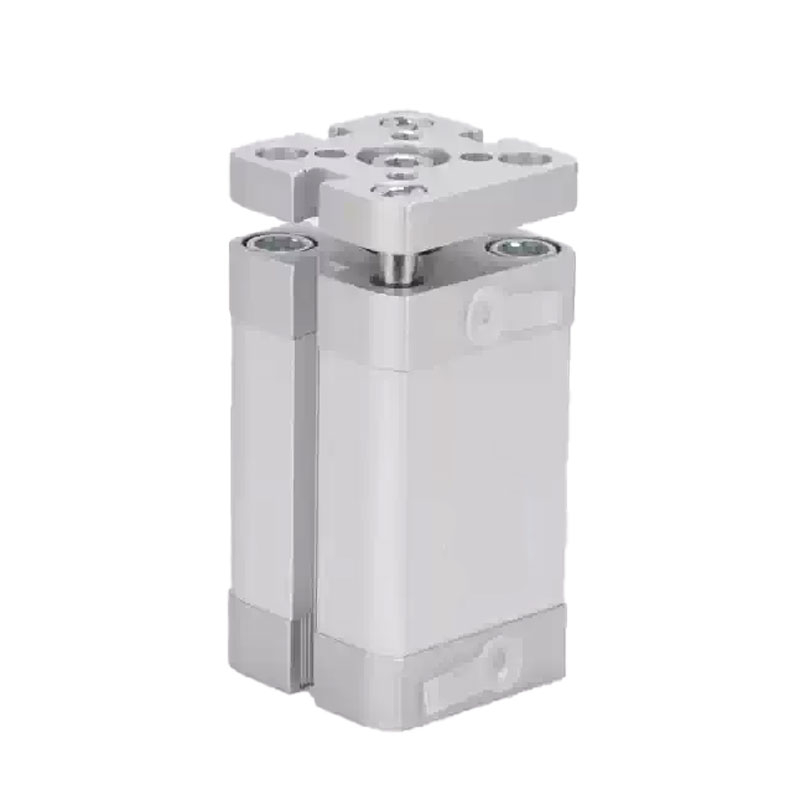

High-Performance ADNGF&TACE Guide Compact Cylinder

Product Overview: ADNGF & TACE Series Compact Cylinders

The ADNGF and TACE series represent the pinnacle of space-saving pneumatic technology. These thin-type cylinders are designed for industrial applications where mounting space is limited but high structural rigidity and precision are required. By integrating advanced guiding mechanisms directly into the cylinder body, these actuators provide superior resistance to lateral loads and torsion.

ADNGF Series: Precision Guided Compact Actuators

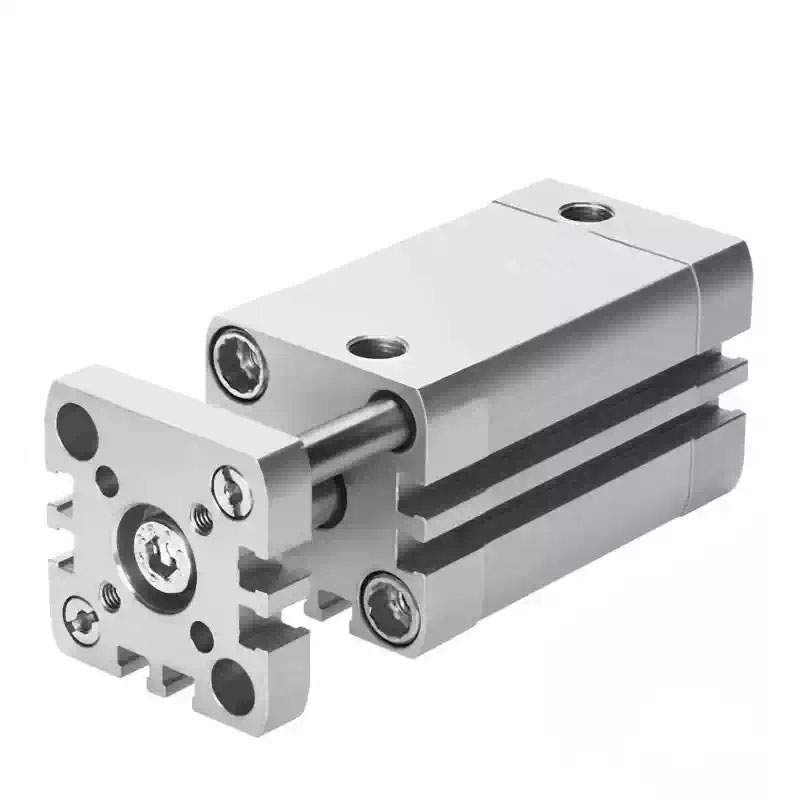

The ADNGF Series is a double-acting compact cylinder equipped with integrated guide rods and a yoke plate.

• Anti-Rotation Accuracy: The dual guide rods ensure the piston rod remains non-rotating, providing high-precision positioning for pick-and-place tasks.

• High Load Resistance: Designed to absorb significant lateral forces and torque, making it ideal for clamping, lifting, and stopping applications.

• Compact Footprint: Based on international standards for compact dimensions, allowing for seamless integration into modular machine designs.

• Integrated Sensing: Features slots for proximity sensors on multiple sides to facilitate easy setup and system feedback.

TACE Series: Ultra-Thin Profile Actuators

The TACE Series focuses on maximum space efficiency without compromising power.

• Minimalist Design: The ultra-thin body allows for installation in the narrowest gaps of machinery, perfect for electronics assembly and packaging lines.

• Optimized Weight: Constructed from high-strength anodized aluminum, reducing the total mass of moving assemblies and improving dynamic response.

• Multiple Mounting Options: Versatile through-hole and internal thread mounting configurations ensure compatibility with various industrial standards.

• Durable Sealing: High-quality elastomer seals ensure low friction and extended service life even under high-frequency operation.

Technical Specifications & Highlights

• Piston Diameters: Available in a wide range of bores to meet diverse force requirements.

• Stroke Lengths: Customizable short-stroke options optimized for high-speed cycling.

• Operating Media: Compressed air, filtered, lubricated, or non-lubricated.

• Pressure Range: Reliable performance across standard industrial pneumatic pressures.

• Temperature Resistance: Engineered to operate efficiently in standard factory environments.

Primary Applications

• Electronics Manufacturing: Precise component positioning and PCB handling.

• Packaging Industry: Small-scale sorting, pushing, and labeling operations.

• Automated Assembly: Clamping and holding parts in high-density workstations.

• Material Handling: Lightweight conveying and directional shifting.
