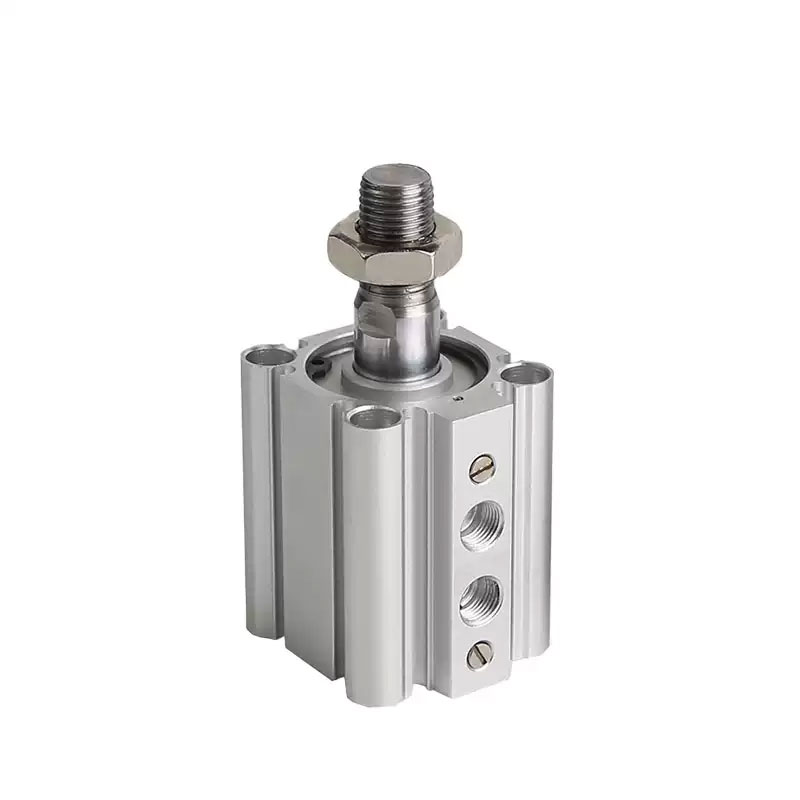

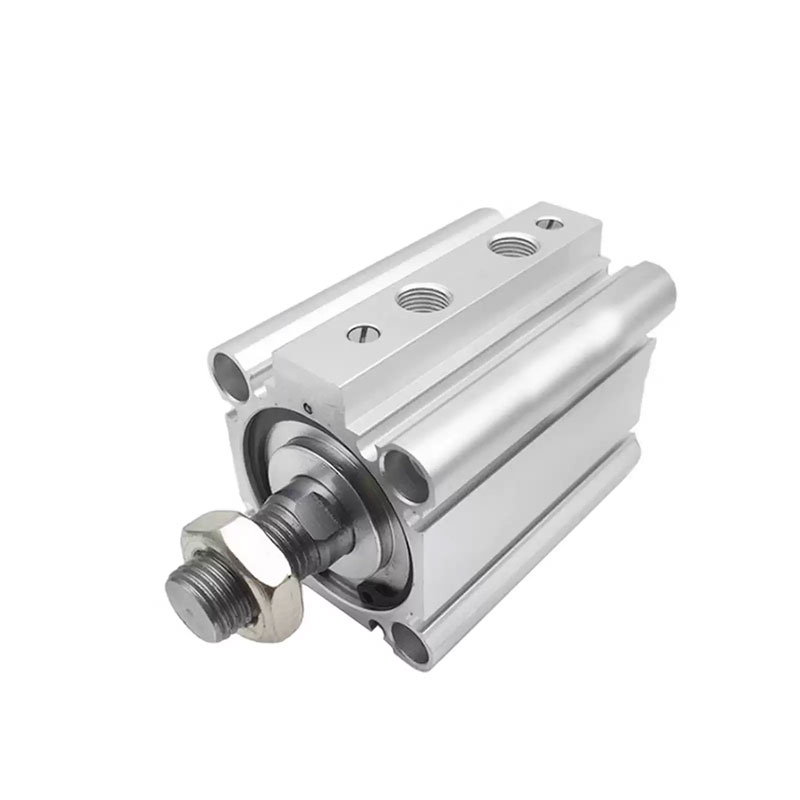

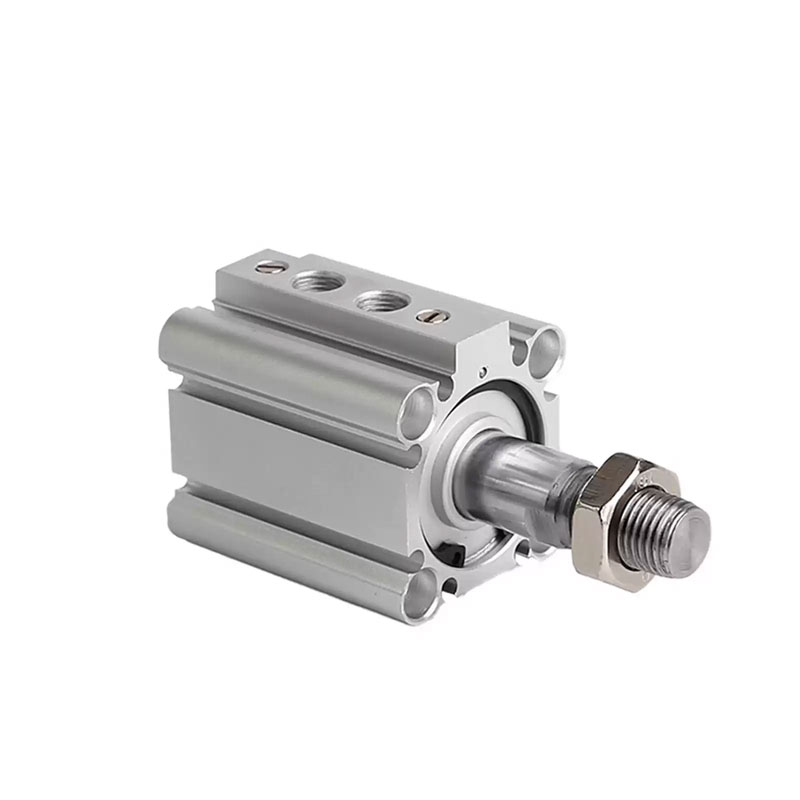

RQ Series Air Cushion Compact Pneumatic Cylinder
- Unique cushion-ring-free air cushion
- Ultra-thin compact profile
- 3x higher kinetic energy absorption
- Minimal length increase (2.5–13mm)
- Bore sizes 20–100mm
- Auto-switch compatible (direct/rail mount)
- Double-acting stable operation
- Low noise & high repeatability
- Non-lube maintenance-free
- Versatile mounting options
- Wide pressure range 0.05–1.0MPa
The RQ series compact pneumatic cylinders integrate a high-performance air cushion into an ultra-slim profile, delivering superior end-position shock absorption while maintaining space efficiency. Featuring a unique cushion-ring-free air cushion design, these double-acting cylinders extend overall length by only 2.5–13mm compared to standard compact models, yet absorb nearly three times the allowable kinetic energy of conventional rubber-bumper cylinders. This advanced cushioning drastically reduces impact noise, improves positioning repeatability, and extends equipment lifespan.
Available in bore sizes from 20mm to 100mm and standard strokes up to 100mm, RQ cylinders support direct/rail-mounted auto switches for precise position sensing. Built for non-lube operation and operating pressures of 0.05–1.0MPa, they excel in high-speed automation, assembly, and material-handling applications requiring smooth deceleration and stable performance
