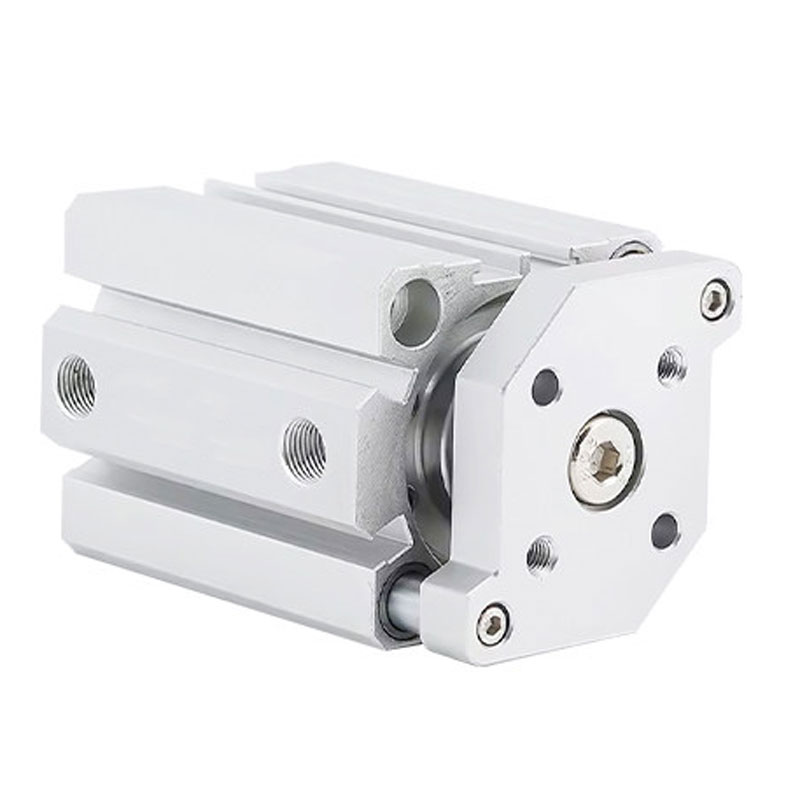

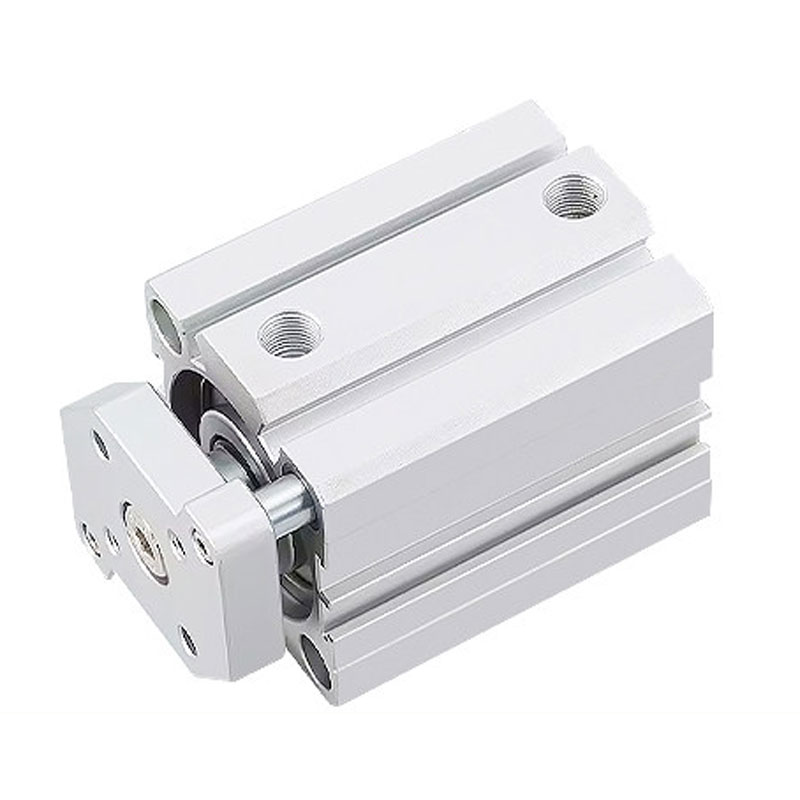

TACQ Series Compact & Anti-Torsion Thin Cylinder TACQ Series Compact & Anti-Torsion Thin Cylinder TACQ Series Compact & Anti-Torsion Thin Cylinder

TACQ Series Compact & Anti-Torsion Thin Cylinder

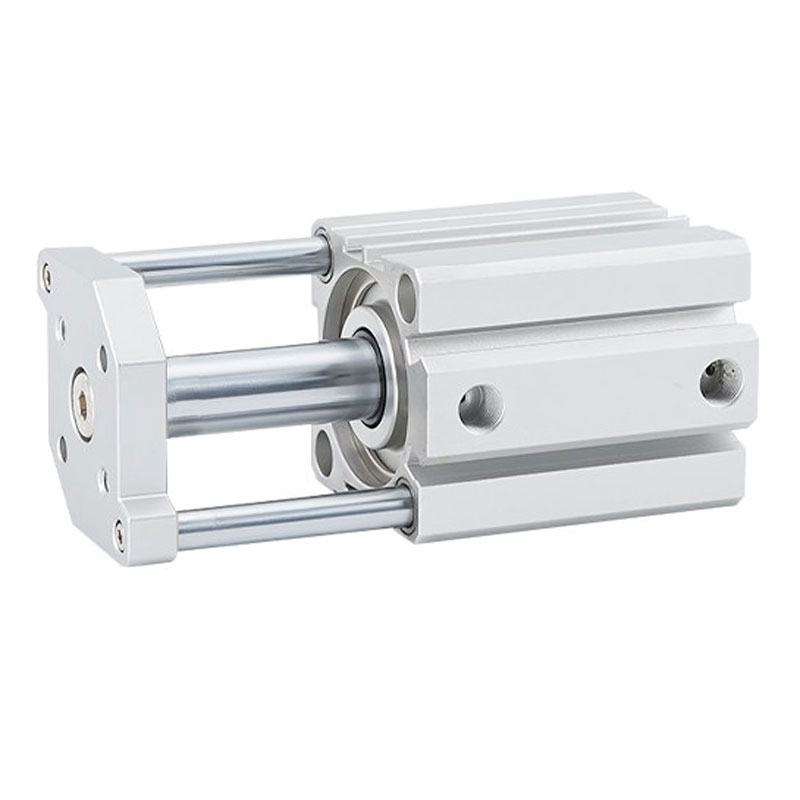

  • Anti-torsion & anti-deflection with dual guide rods
  • Space-saving slim compact design
  • High precision & stable linear motion
  • Built-in magnetic switch slots for position sensing
  • Rubber cushion to reduce end impact
  • Rugged structure for long service life
  • Multiple bore sizes from 12mm to 100mm
  • Easy installation with standard mounting
  • Non-lubrication operation available
  • Ideal for precision automation & narrow spaces
The TACQ series guide rod thin cylinders deliver compact, reliable linear actuation for modern industrial automation. As part of the slim-profile family, these double-acting units feature a dual-guide-rod design with extended front-guide length, ensuring exceptional anti-bending and anti-torsion performance to withstand heavy lateral and dynamic loads. Constructed with C-clamp fixed body covers and riveted piston rods, the units offer robust, maintenance-free operation. Precision-honed bores enhance wear resistance and durability, while built-in sensor slots simplify position sensing integration. With operating pressures from 0.15–1.0MPa and speeds up to 500mm/s, TACQ cylinders suit automated assembly, pick-and-place, packaging, and material-handling lines. Multiple bore/stroke combinations and standardized mounting options make them ideal for space-constrained applications seeking stable, high-precision motion control


  • Dual guide rods: anti-torsion/anti-bending, high load capacity for lateral forces

  • Ultra-slim profile: space-saving design reduces installation footprint

  • JIS standard: C-clamp body + riveted rod structure for reliability

  • Precision honed bore: superior wear resistance & long service life

  • Integrated sensor slots: easy magnetic switch mounting

  • Wide bore/stroke range: 12–100mm bore; custom strokes available

  • Rubber bumpers: reduces end-stroke impact, smooth cycling

  • Versatile mounting: compatible with standard brackets/accessories

  • Wide temp range: -20°C to 70°C; suits diverse industrial environments

  • Non-lube friendly: low-maintenance operation for clean automation

FAQ

  • Q: Are TACQ guide rod cylinders suitable for high lateral loads?

    A: Yes, the dual-guide-rod design provides excellent anti-bending/anti-torsion performance to handle heavy side loads.

  • Q: Can position sensors be easily mounted on TACQ cylinders?

    A: Yes, integrated sensor slots on the cylinder body simplify magnetic switch installation for precise position feedback.

  • Q: What pressure range do TACQ thin cylinders support?

    A: Standard operating pressure: 0.15–1.0MPa (22–145PSI), with speeds up to 500mm/s for responsive motion.
