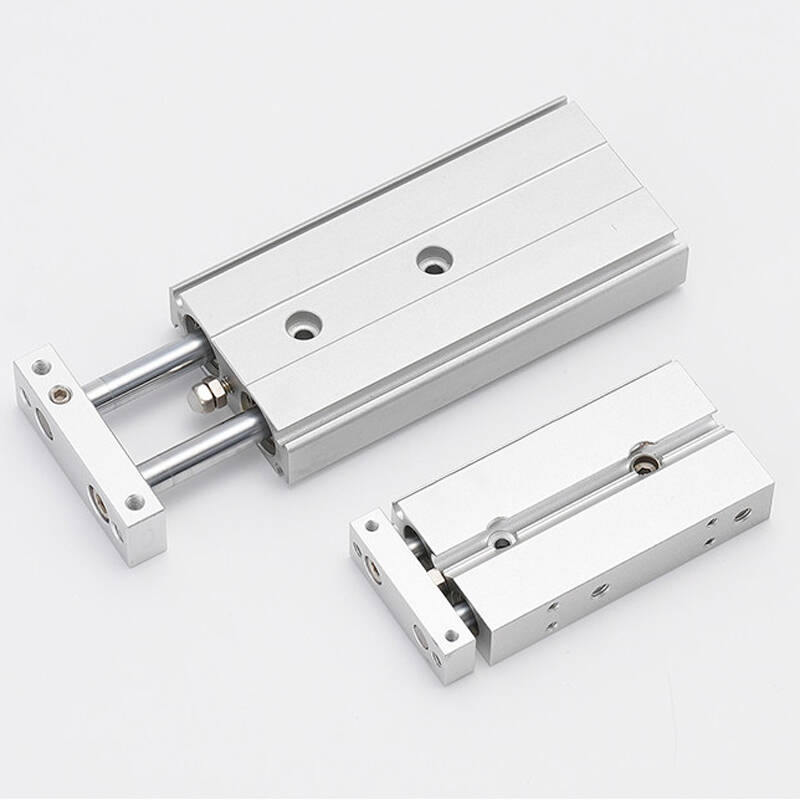

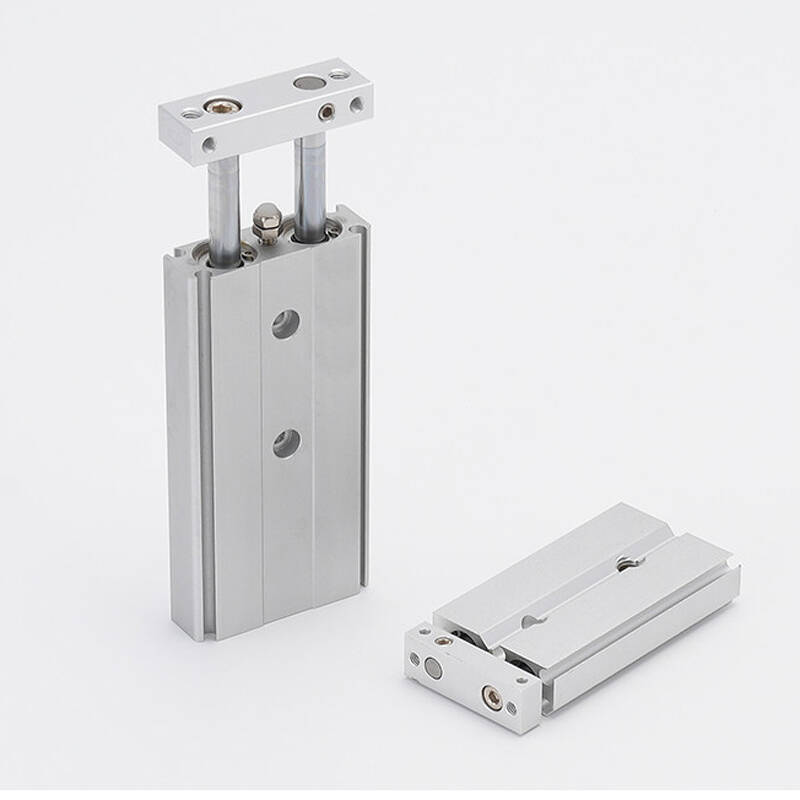

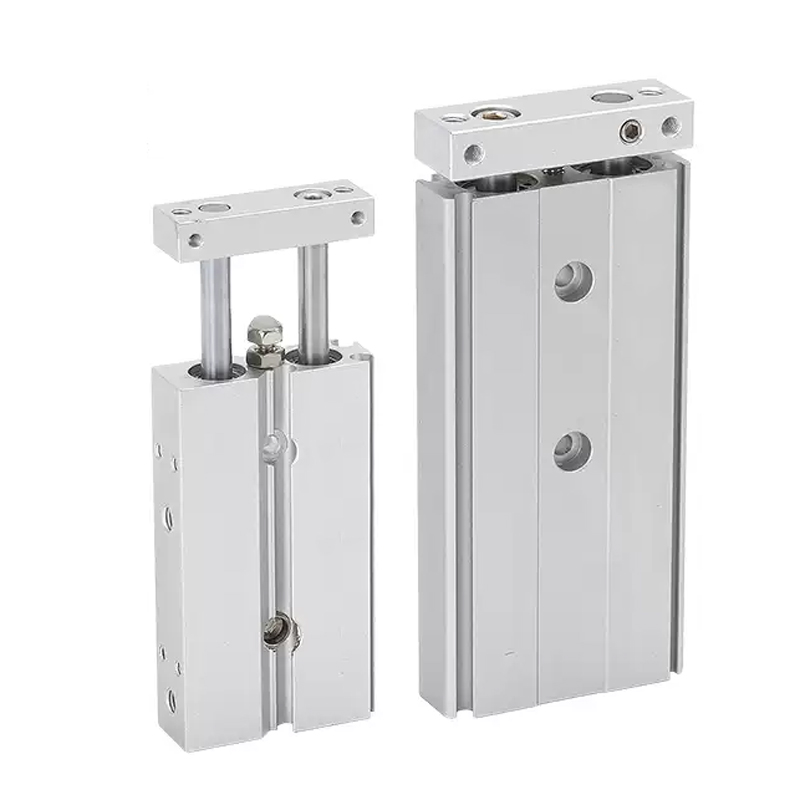

CXSJM Series Compact Twin Rod Cylinder
- High-precision CXSJM series compact twin-rod cylinder
- Integrated slide guide for superior linear accuracy
- Dual-rod design for double output force and non-rotating stability
- Ultra-compact and lightweight aluminum body
- Built-in magnet for flush-mounted sensor integration
- Multiple mounting surfaces for flexible installation
- Bore sizes: 6mm, 10mm, 16mm, 20mm, 25mm, 32mm
- Ideal for electronic assembly and pick-and-place tasks
- High resistance to lateral loads and moments
- Precision-engineered for long service life.
CXSJM Series: The Ultra-Compact Slide Guide Solution
The CXSJM series is a high-precision, compact slide guide cylinder that integrates a guide unit with a twin-rod pneumatic actuator. Engineered to be shorter and more compact than the standard CXS series, the CXSJM is the definitive choice for automated systems where installation space is extremely limited but high non-rotating accuracy and load resistance are required.
Technical Features & Engineering
Dual-Rod Construction: Two parallel piston rods provide double the output force of a single-rod cylinder while inherently preventing the rods from rotating.
Integrated Slide Guide: The built-in guide unit ensures high-precision linear motion and excellent resistance to lateral loads and eccentric moments.
Ultra-Compact Body: Significant reduction in overall length compared to traditional slide cylinders, allowing for higher density machine designs.
Four Mounting Directions: The body features mounting holes on multiple surfaces, providing unmatched flexibility for top, side, or bottom installation.
Built-in Magnet (The "M"): Equipped with a built-in magnet as standard, allowing for flush-mounted magnetic auto-switches (sensors) for precise position feedback.
Adjustable Stroke (Optional): Available with adjustable stroke bolts to fine-tune the extension and retraction points for precise process control.
Technical Specifications Overview
Primary Industrial Applications
The CXSJM compact slide cylinder is the go-to actuator for:
Electronics Manufacturing: High-speed pick-and-place of small components.
Semiconductor Equipment: Precise wafer handling and orientation.
Medical & Lab Automation: Compact liquid handling and sample tray movement.
Precision Assembly: Accurate part pressing and joining in tight workspaces.
