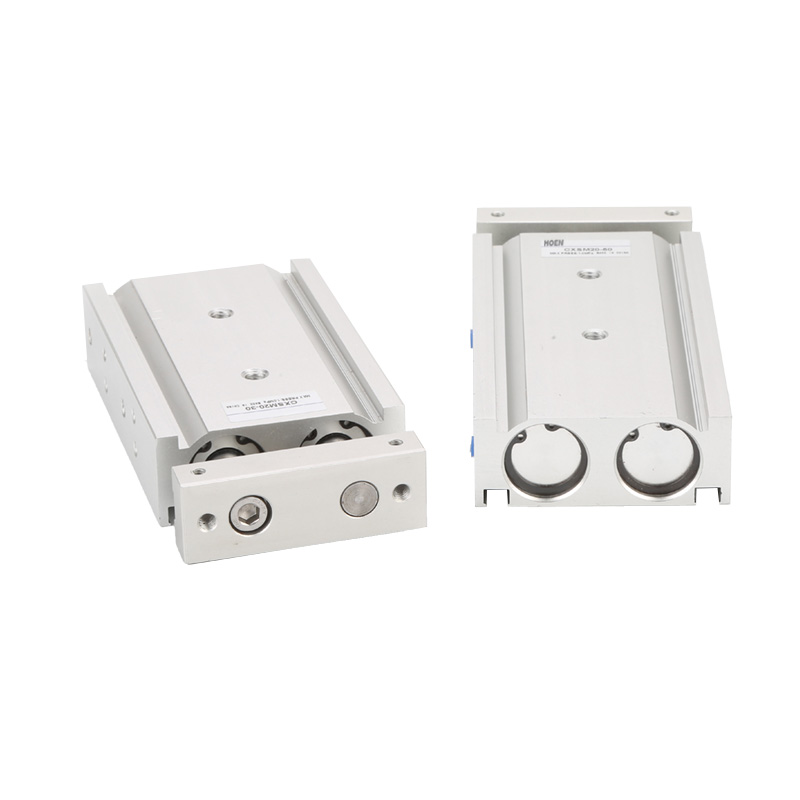

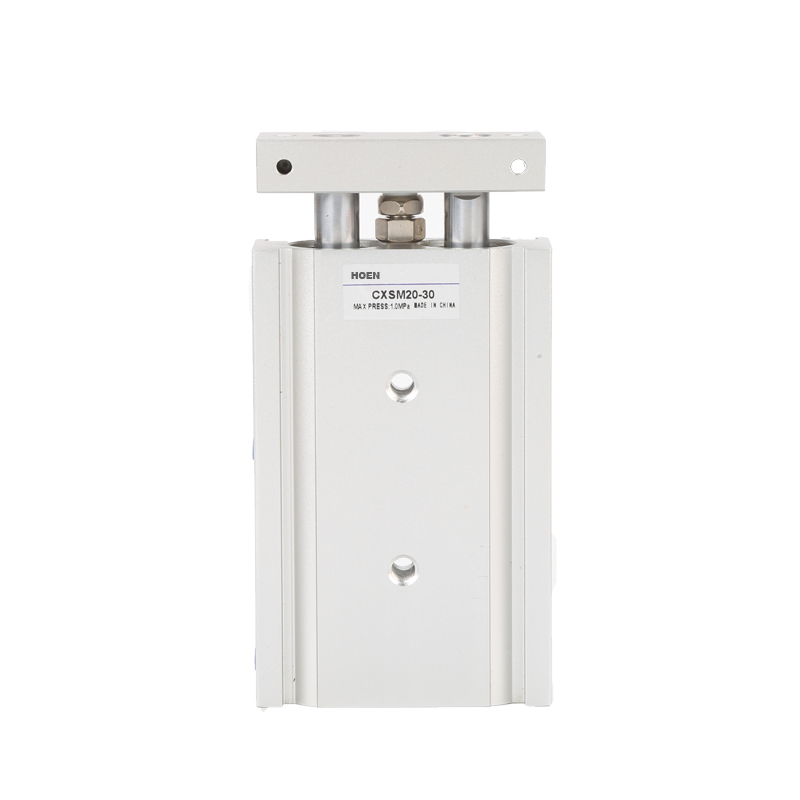

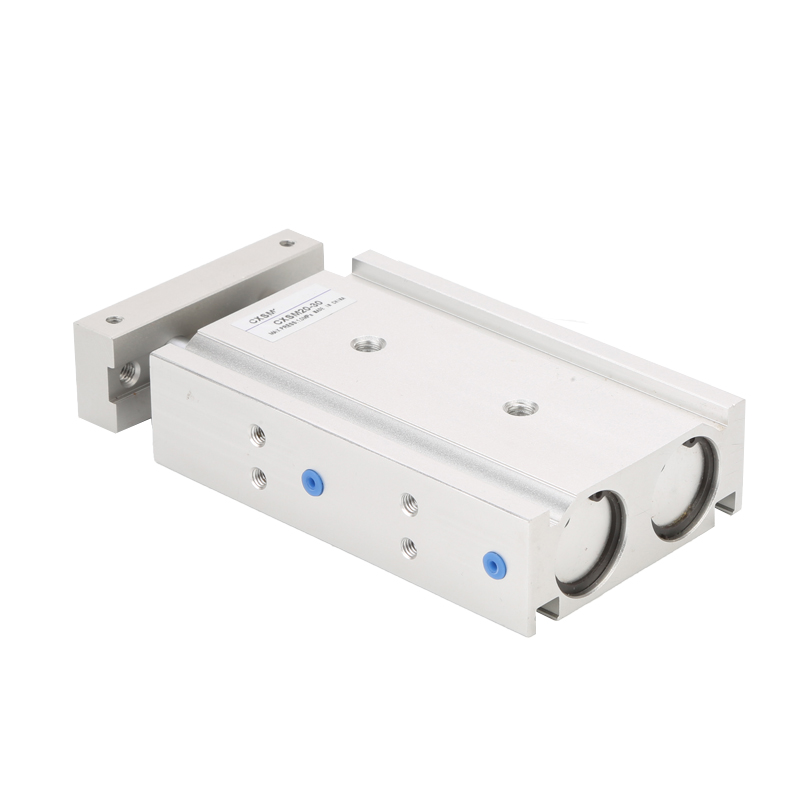

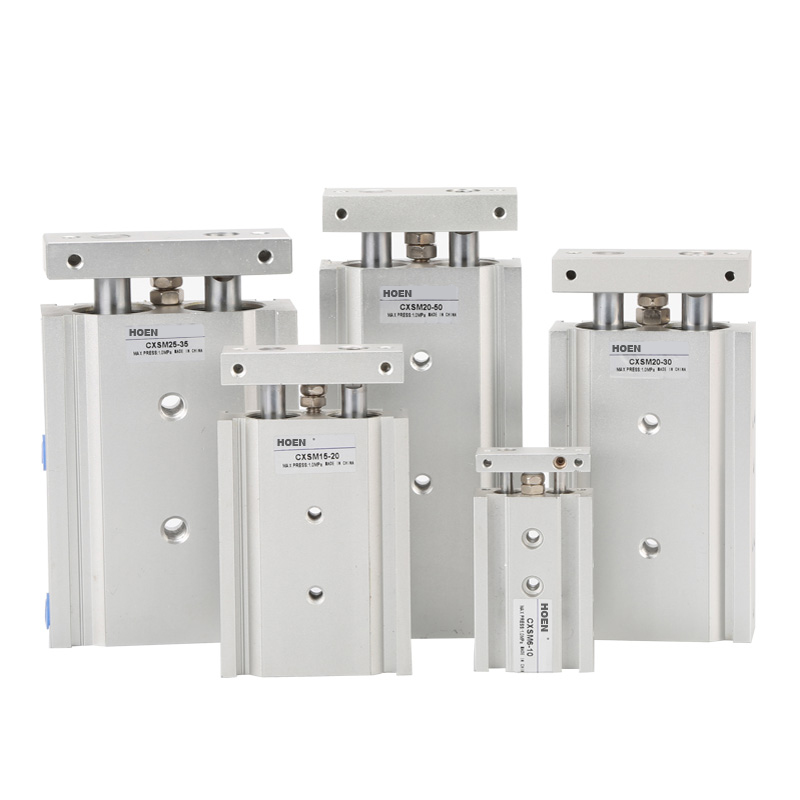

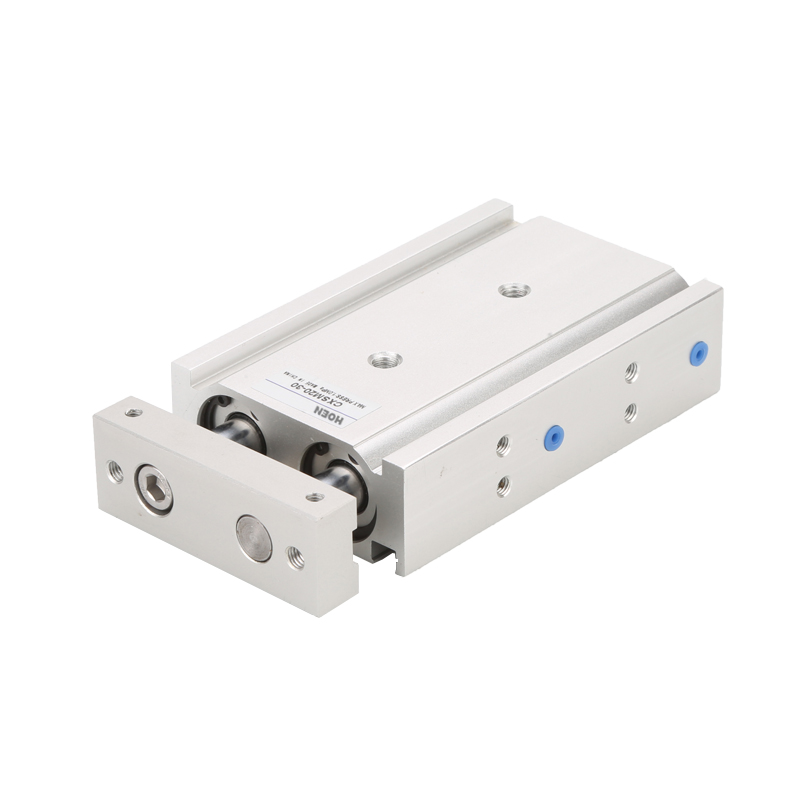

CXSM Dual Rod Cylinder With Stable Lubrication

  • SMC Type CXS cylinder
  • CXS series dual rod cylinder
  • SMC Type CXSM CXSL
  • twin shaft pneumatic cylinder
  • high precision anti-rotation cylinder
  • double force compact cylinder
  • SMC pick-and-place actuator
  • twin rod guide cylinder
  • magnetic switch compatible cylinder
  • clean room dual rod cylinder
The SMC Type CXS Series is a high-performance dual rod (twin shaft) pneumatic cylinder designed for precision linear motion and guiding in automated machinery. Engineered with a dual piston rod structure, it delivers twice the output force of standard single-rod cylinders and exceptional anti-rotation performance (±0.1° accuracy), ensuring stable, deflection-free operation.
Available in both slide bearing (CXSM) and ball bushing bearing (CXSL) types with interchangeable dimensions, the CXS series offers flexible precision guiding for various load conditions. Its compact, thin-body design saves installation space, while multi-directional mounting and workpiece attachment enhance versatility.

Built with high-quality seals and rubber bumpers, the CXS series provides smooth movement, low friction, long service life, and reliable impact absorption. It supports SMC auto switches (D-M9m, D-A9m) for precise position detection and is RoHS compliant


  • Dual rod / twin piston design: Double thrust output, ±0.1° non-rotation accuracy

  • Two bearing options: Slide bearing (CXSM) for rigidity; ball bushing (CXSL) for smooth, low-friction motion

  • Compact & thin profile: Space-saving design ideal for tight automation setups

  • Multi-mount flexibility: Body mountable from 3–4 directions; workpiece mountable from 3 sides

  • Stroke adjustable: 0 to –5 mm stroke fine-tuning relative to standard stroke

  • Double acting: Stable bidirectional thrust and motion

  • Magnetic piston: Compatible with SMC auto switches for position sensing

  • Rubber bumper cushion: Reduces end-position impact and noise

  • Maintenance-free: Non-lube operation, wide pressure/temperature range

  • RoHS compliant: Meets global environmental standards

Technical Specifications (SMC Standard)

  • Bore sizes: 6, 10, 15, 20, 25, 32 mm

  • Operating pressure: 0.05–0.7 MPa (varies by bore)

  • Proof pressure: 1.05 MPa

  • Piston speed: 30–800 mm/s (depending on model/bore)

  • Temperature range: -10°C to +60°C (no freezing)

  • Port threads: M5×0.8 (small bores), Rc 1/8 (larger bores)

  • Standard strokes: 10–100 mm (bore 6–32 mm)

  • Cushion: Rubber bumper (air cushion option: CXS-A)

  • Variations: Basic (CXS), slide bearing (CXSM), ball bearing (CXSL), end lock (CXS-R), clean room (10/11/12-CXS)


Applications

  • Precision pick-and-place systems

  • Electronic assembly & semiconductor equipment

  • Light-duty material handling & conveying

  • Automated clamping, pushing, positioning

  • Packaging machinery & test fixtures

  • Clean room automation (special versions)
