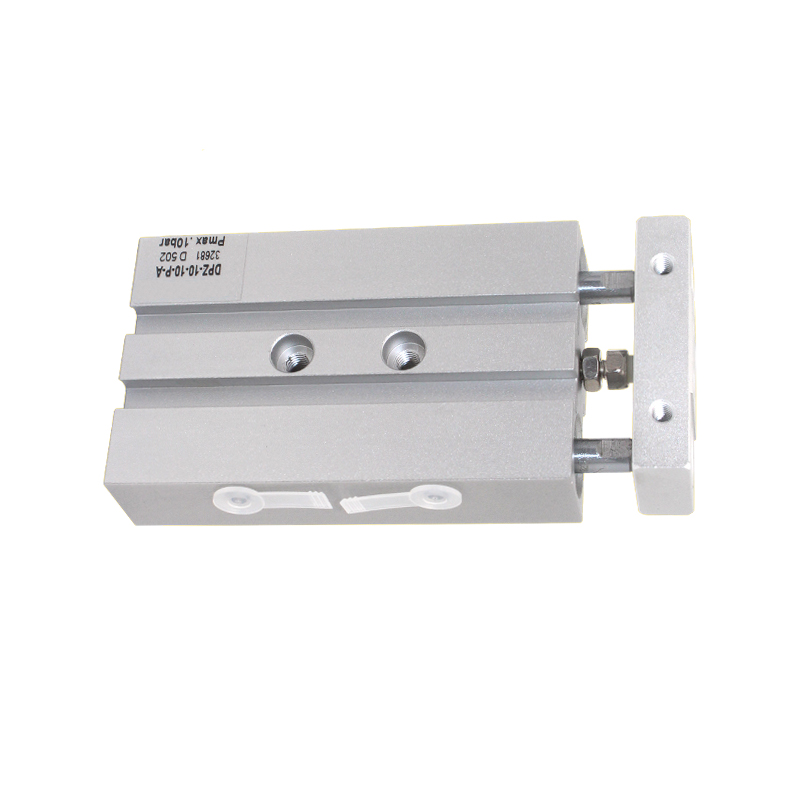

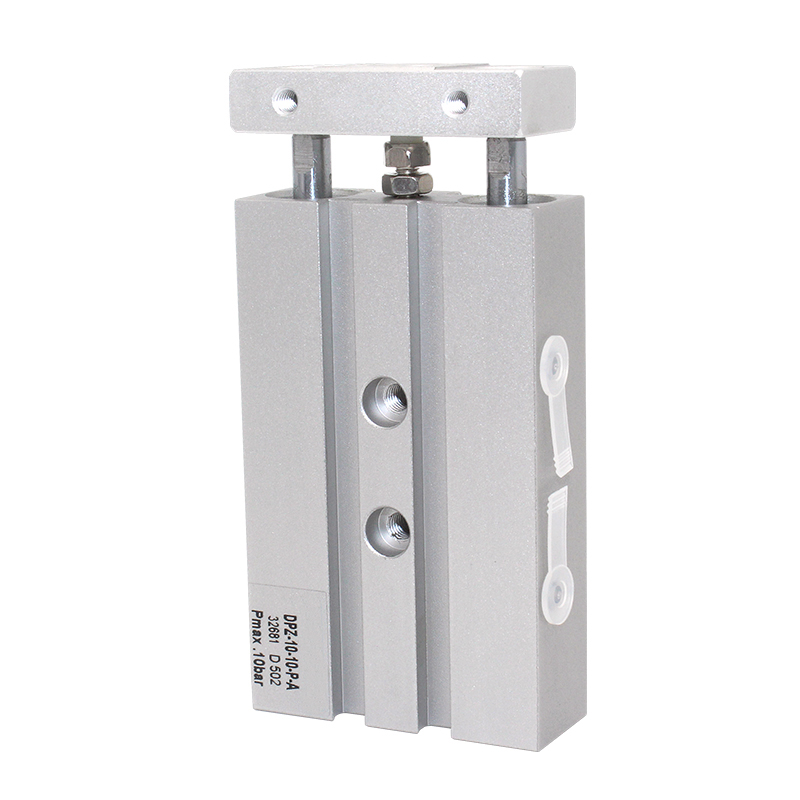

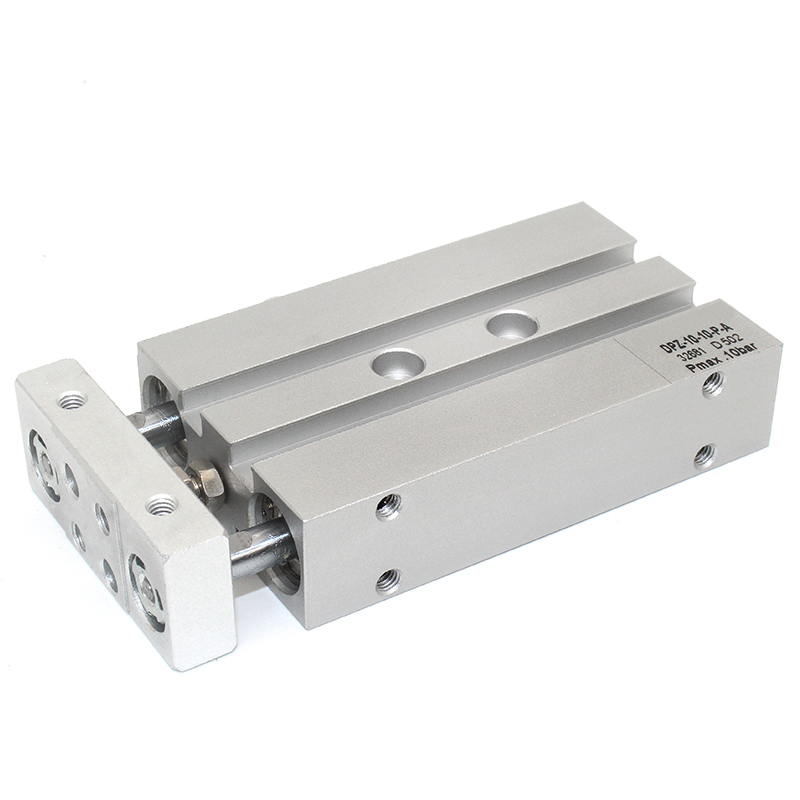

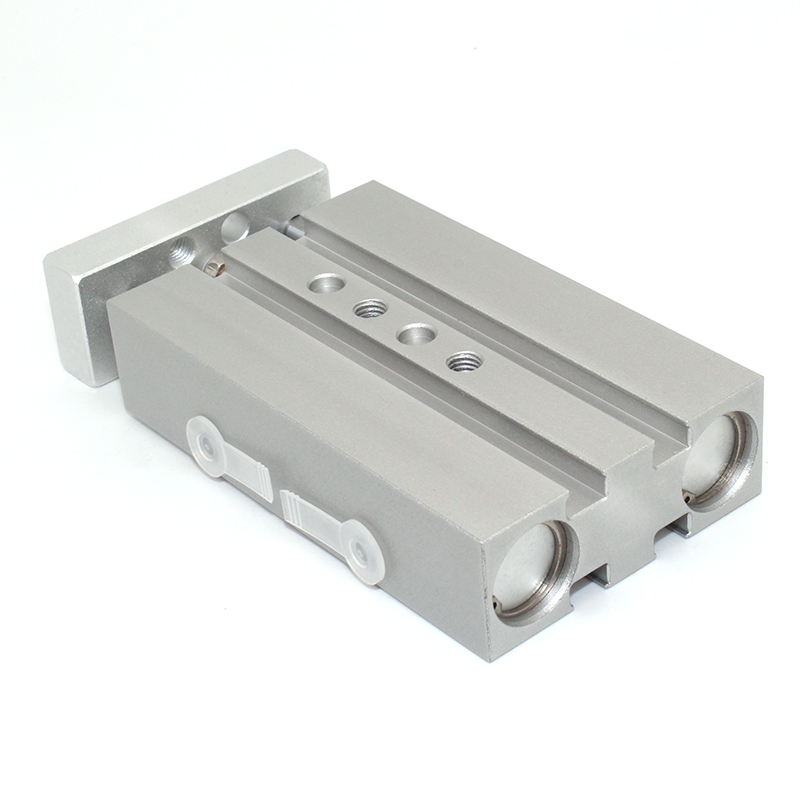

DPZ Series Non-Rotating Twin-Rod Cylinder

  • High-precision DPZ series twin-rod cylinder
  • Dual-rod design for 100% non-rotating accuracy
  • High lateral load and torque resistance
  • Double output force in a compact profile
  • Hard-anodized aluminum alloy body for durability
  • Magnetic auto-switch compatible (flush T-slots)
  • Available in bore sizes: 6mm, 10mm, 16mm, 20mm, 25mm, 32mm
  • Adjustable stroke for precision control
  • Ideal for pick-and-place, clamping, and sorting
  • Easy mounting with multiple positioning holes.

DPZ Series: Precision Twin-Rod Cylinders for Non-Rotating Accuracy


The DPZ series is a high-performance twin-rod (dual-rod) pneumatic cylinder designed for applications where rotation must be prevented and lateral loads are significant. By using two parallel piston rods, the DPZ series provides double the output force of a standard cylinder while maintaining a compact, low-profile footprint. It is the industry standard for high-precision guiding and sorting tasks.

Key Technical Features & Engineering Highlights

  • Superior Non-Rotating Accuracy: The dual-rod construction inherently prevents the piston rod from rotating, ensuring that end-effectors or tooling remain perfectly aligned throughout the stroke.

  • High Lateral Load Capacity: The twin-rod design, supported by high-precision guide bushes or ball bearings, allows the cylinder to handle much higher side loads compared to traditional single-rod cylinders.

  • Double Output Force: With two pistons working in tandem, the DPZ series delivers nearly twice the thrust and pull force of a single-bore cylinder of the same width.

  • Compact & Low-Profile Design: Its flat, rectangular body allows for installation in narrow spaces where height is limited, making it ideal for modern, compact machine frames.

  • Adjustable Stroke Options: Many models include an adjustable stroke bolt, allowing for fine-tuning of the extension to match precise application requirements.

  • Magnetic Sensing Integration: The cylinder body features integrated slots for magnetic sensors (auto-switches) for easy position feedback and PLC integration.


Technical Specifications Overview

FeatureDetails
Bore Sizes (mm)6, 10, 16, 20, 25, 32
Acting TypeDouble Acting
FluidClean Air (40-micron filtered)
Operating Pressure0.1 ~ 1.0 MPa (14 ~ 145 psi)
Proof Pressure1.5 MPa (215 psi)
Speed Range50 ~ 500 mm/s
Non-rotating Accuracy±0.1° to ±0.2° (depending on size)

Primary Industrial Applications

The DPZ series twin-rod cylinder is widely utilized in:

  • Pick-and-Place Automation: Precise transfer of components between stations.

  • Electronic Assembly: Accurate positioning for SMT and PCB handling.

  • Sorting & Distribution: High-speed material pushing and diverting.

  • Packaging Machinery: Managing box flaps, labeling, and lid application.

  • Clamping Jigs: Providing stable, non-rotating pressure for machining.
