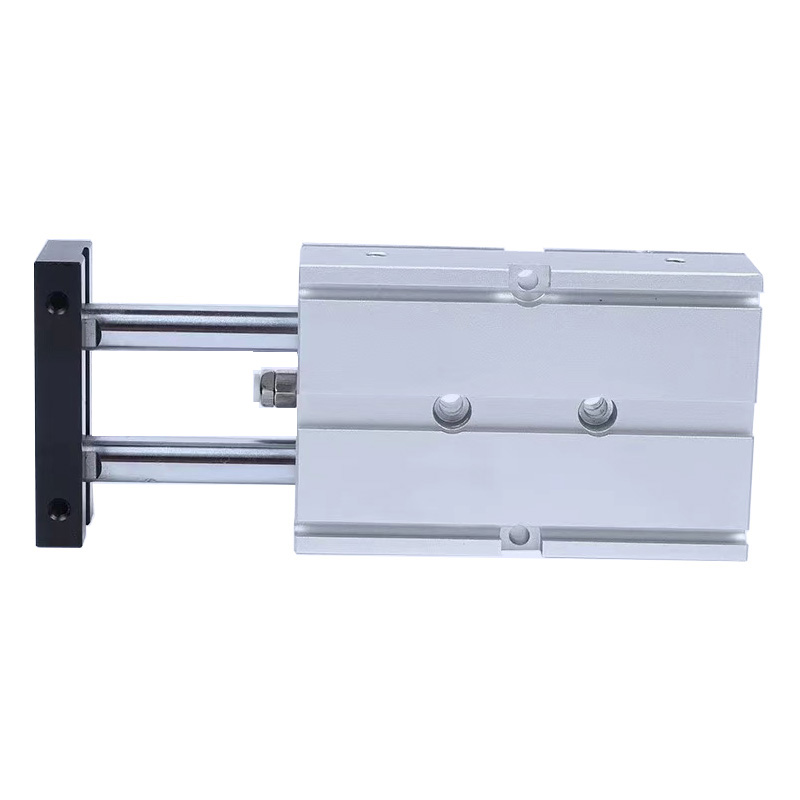

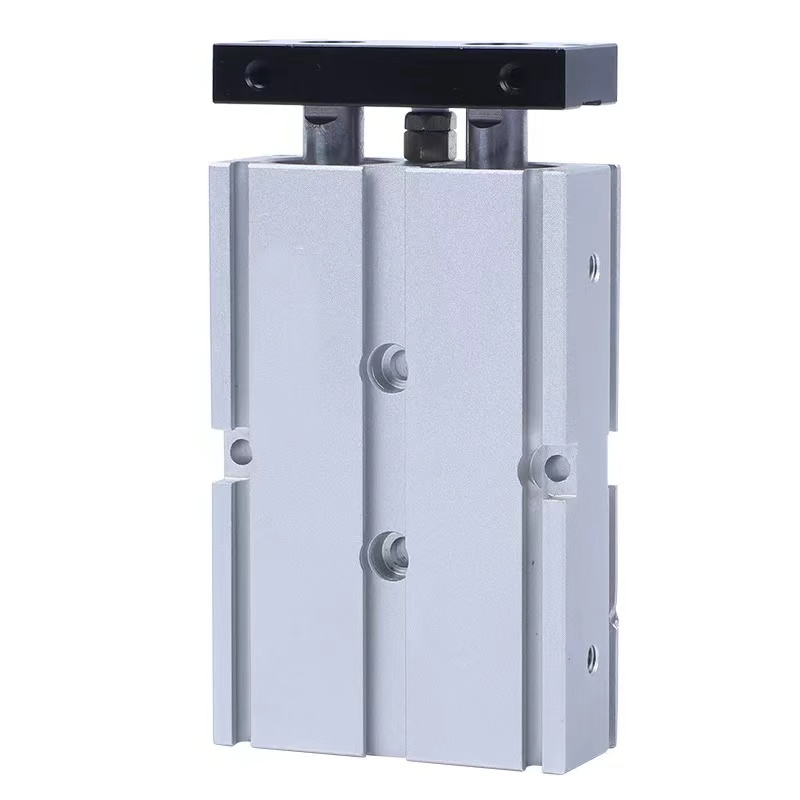

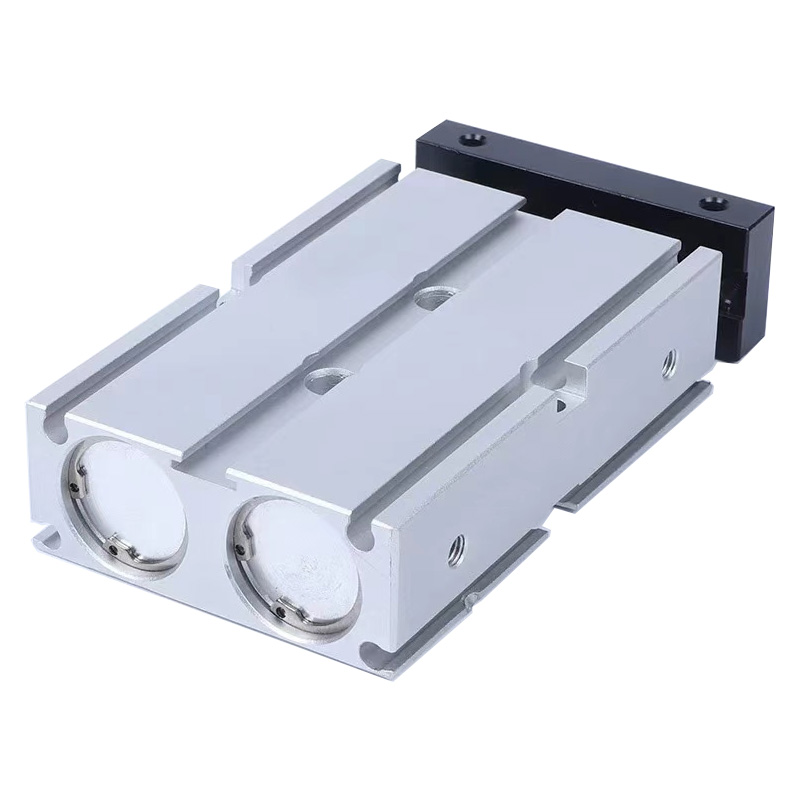

TD Series Twin Rod Compact Air Cylinder
- TD cylinder
- AirTAC TD series
- double shaft cylinder
- twin rod pneumatic cylinder
- dual rod air cylinder
- anti‑rotation compact cylinder
- high rigidity twin shaft cylinder
- automation small double rod cylinder
The AirTAC type TD Series is a compact double shaft pneumatic cylinder designed for stable linear motion and reliable performance in small automation equipment. Featuring a dual piston rod structure, it provides excellent anti‑rotation, anti‑bending and high lateral load capacity, ensuring accurate positioning and smooth operation.
With a compact body, durable construction and stable thrust, TD series cylinders are widely applied in various light‑duty automation applications. They support magnetic switch installation for position detection and offer easy installation with multiple mounting options.
Double shaft / twin rod structure for superior anti‑rotation and high rigidity
Double‑acting design for stable bidirectional thrust
Compact and lightweight for space‑saving installation
High‑quality sealing system for low friction and long service life
Built‑in magnet for magnetic switch compatibility
Fixed rubber bumper cushion to reduce impact and noise
Wide operating pressure and temperature range
Technical Specifications
Bore sizes: 6,10, 16, 20, 25, 32, 40 mm
Operating pressure: 0.1–0.7 MPa
Temperature range: -20°C ~ +70°C
Port thread: M5×0.8,1/8,1/4,1/2
Applications
Widely used in automation machinery, electronic assembly, packaging equipment, fixture clamping, pushing, ejecting, conveying and precision positioning systems.
