MGF Low-Profile Compact Guided Cylinder

  • SMC MGF guide table cylinder
  • MGF series pneumatic actuator
  • low-profile guide cylinder
  • large diameter guide rod cylinder
  • high precision anti-rotation cylinder
  • compact lifting table cylinder
  • SMC MGF interchangeable
  • double acting guide table
  • precision positioning cylinder
  • heavy-duty eccentric load cylinder

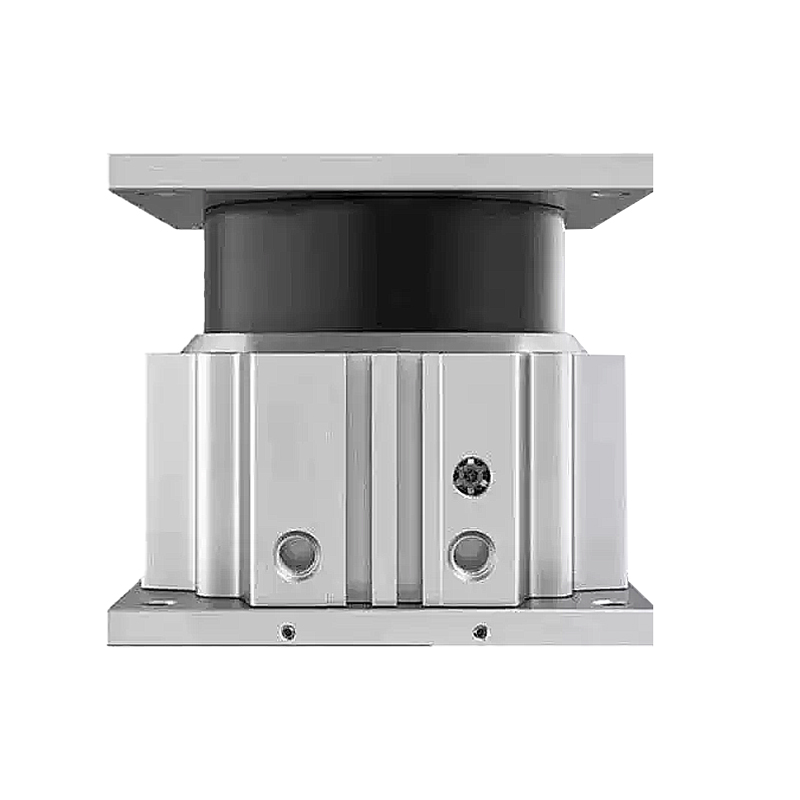

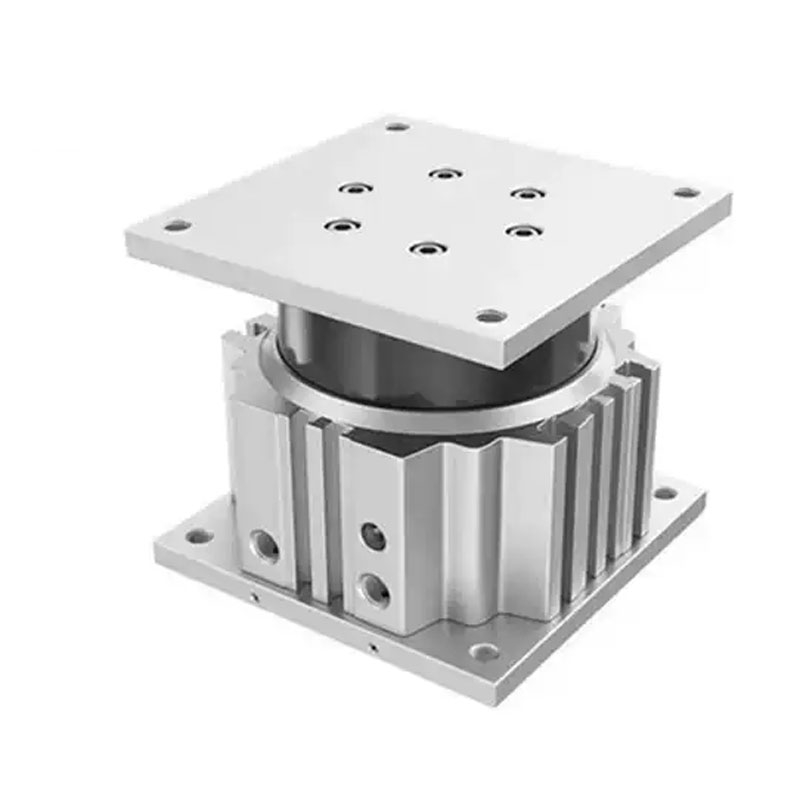

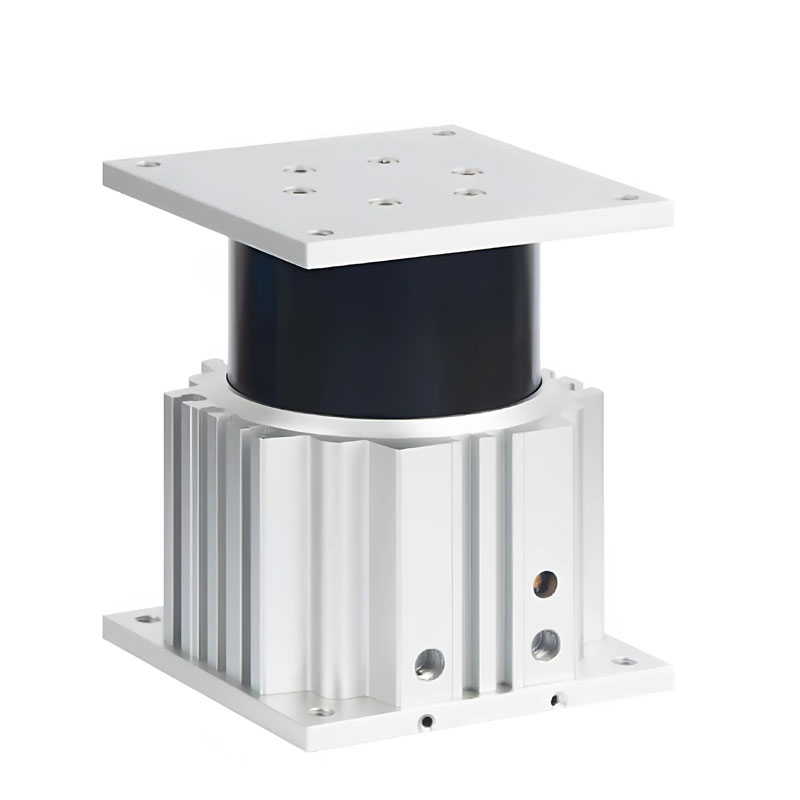

The SMC TYPE MGF Series is an ultra-compact guide table pneumatic cylinder designed for precision automation. Featuring a low-profile, space-saving design and a robust internal anti-rotation mechanism, this actuator delivers exceptional stability and accuracy for high-precision lifting and positioning tasks.

  • Ultra-Low Profile Design: Installation height reduced by 15-20% compared to standard MGQ series, ideal for compact machinery.

  • Built-in Anti-Rotation: Precision anti-rotation pins ensure extremely high accuracy (θ ±0.05° to ±0.08°), preventing table deflection.

  • Large Diameter Guide Rods: Robust guide rods provide superior resistance to eccentric loads and moments from any 360° direction.

  • Bore Sizes: 40, 63, 100 mm.

  • Standard Strokes: 30, 50, 75, 100 mm.

  • Built-in T-Slots: Three sides feature T-slots for easy accessory mounting (excluding port face).

  • Flexible Sensor Mounting: Auto-switches can be mounted on all four lateral faces.

  • Dual Direction Mounting: Can be securely installed from both top and bottom.

  • Double Acting: Standard double-acting operation for precise control.

  • High Durability: Quality internal components ensure long service life.

Applications:
Perfect for precision lifting, positioning, pressing, and transfer in automated assembly lines, semiconductor equipment, and packaging machinery where ultra-compact size, high rigidity, and zero-rotation accuracy are critical.
