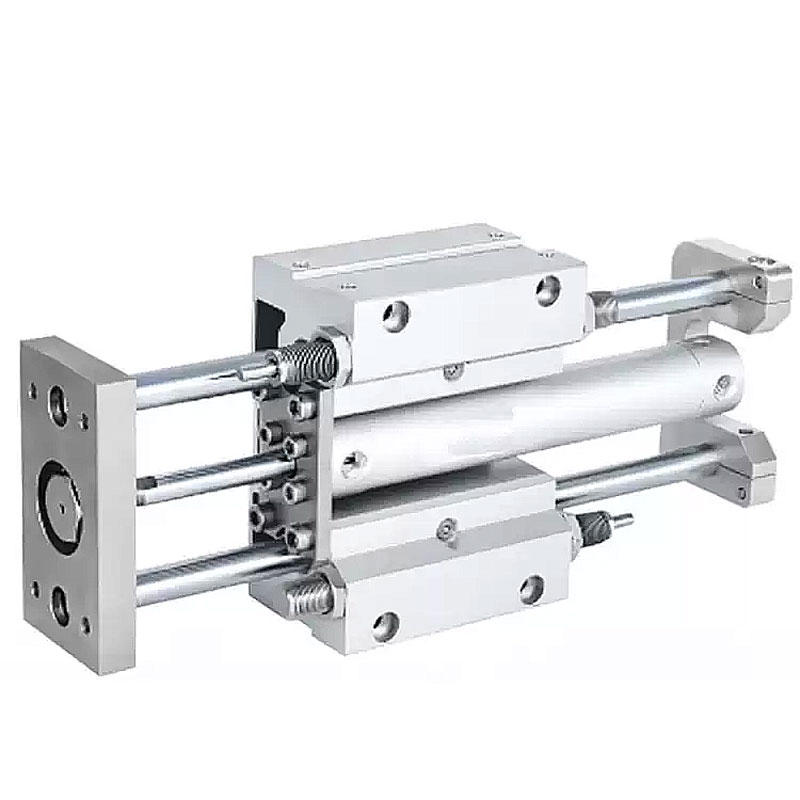

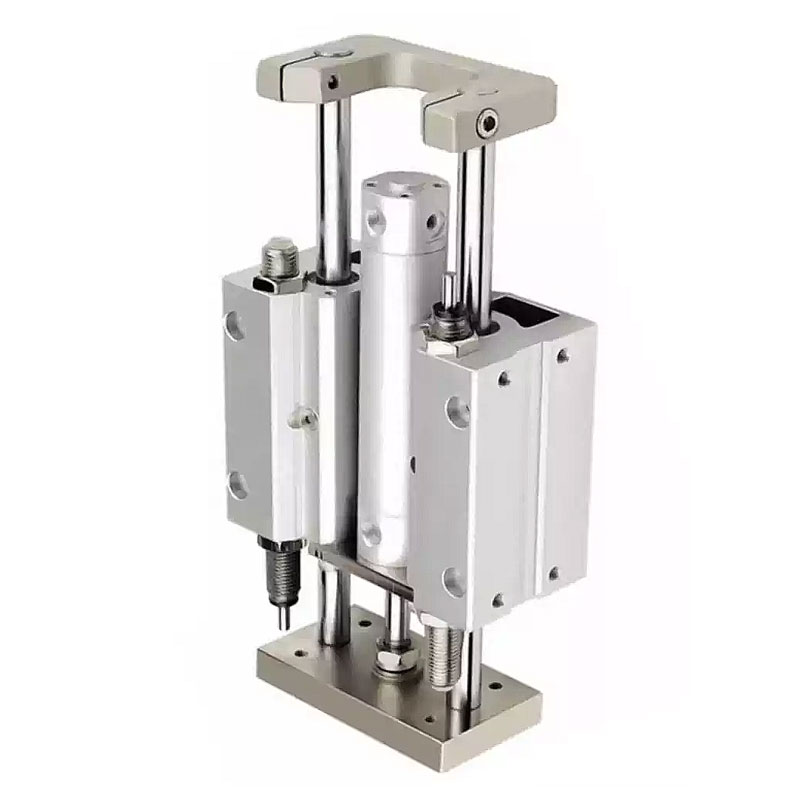

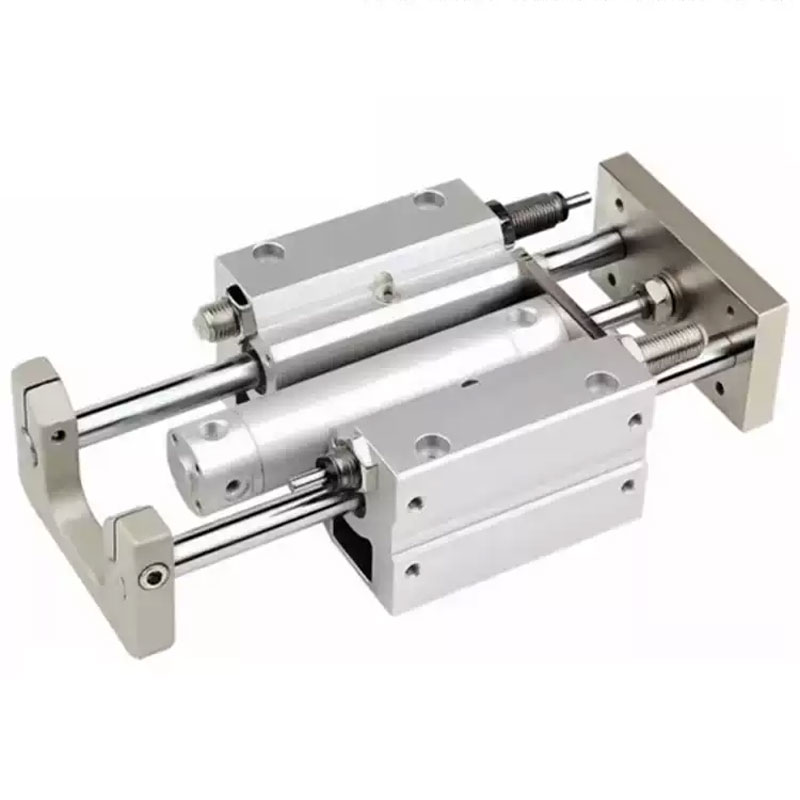

MGG Series Heavy Duty Guide Cylinder

The SMC MGG series is a heavy-duty, external guide rod pneumatic cylinder engineered for high-load, long-stroke industrial automation applications Integrating a round-body cylinder with dual high-rigidity guide rods, it effectively isolates lateral loads and moments from the piston and seals, ensuring exceptional stability, precision, and durability.

• High Rigidity & Load Capacity: Dual parallel guide rods deliver superior resistance to lateral loads and moments, protecting the cylinder core from eccentric forces. Available with MGGM (carbon steel slide bearing) for high side-load stability (ideal for stopping/blocking) or MGGL (precision ball bearing) for smooth, low-friction travel (ideal for pushing/lifting)

• Ultra-Precise Non-Rotation: Industry-leading anti-rotation accuracy from ±0.07° (20mm bore) down to ±0.02° (100mm bore), guaranteeing consistent orientation for precision assembly and transfer

• Built-In Shock Absorption: Standard hydraulic shock absorbers at both ends maximize kinetic energy absorption, enabling high-speed operation (50-1000mm/s) with minimal impact and noise.

• Long Stroke & Adjustable: Supports extremely long strokes up to 1300mm (bore dependent). Features stroke adjustment (0-15mm) on both extend/retract cycles for precise positioning control.

• Standard & Custom Options:

• Bore sizes: 20, 25, 32, 40, 50, 63, 80, 100mm

• Operating pressure: 0.15-1.0MPa

• Temperature range: -10°C to 60°C (high-temp option to 150°C available)

• Standard grease fill port for easy bearing maintenance

• Auto-switch compatible (full stroke detection)

• End-lock versions (MGG-H/R) for safety when air is lost

• RoHS compliant, water-resistant variants available

Applications

• Heavy-duty material handling & transfer

• Precision lifting, pushing, and pressing

• Workpiece stopping & blocking

• Assembly line positioning

• Automotive manufacturing & heavy machinery

• Long-stroke linear transfer units

Why Choose SMC MGG?
