TMIC Compact Pneumatic Actuator with Guide Frame
- AirTAC TMIC guided cylinder
- TMIC series pneumatic cylinder
- compact guide frame cylinder
- dual guide rod air cylinder
- high rigidity anti-rotation cylinder
- AirTAC mini guided actuator
- double acting guided cylinder
- JIS standard guided cylinder
- precision clamping cylinder
- AirTAC TMIC interchangeable

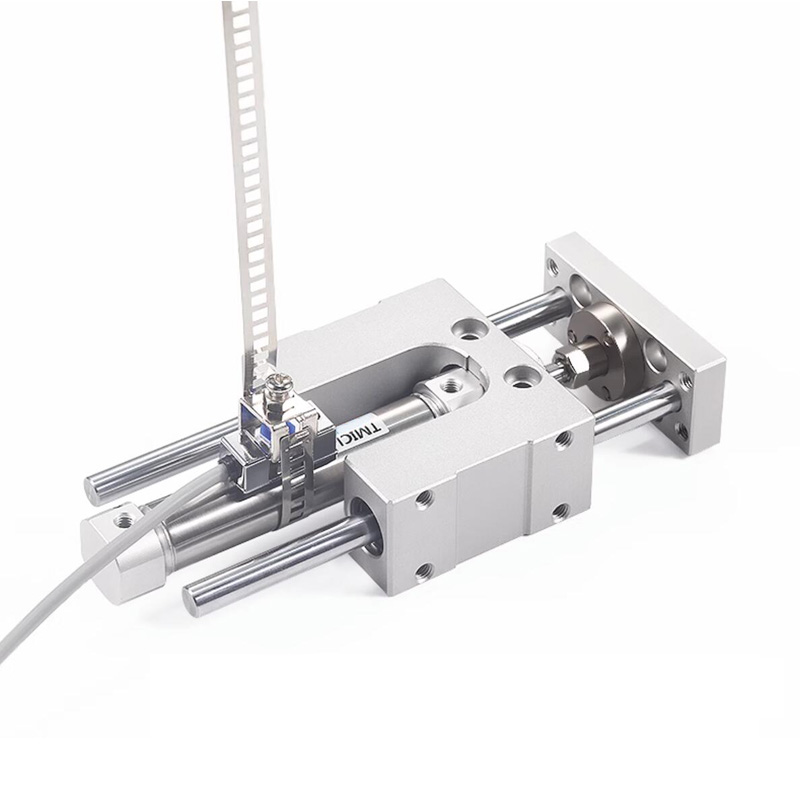

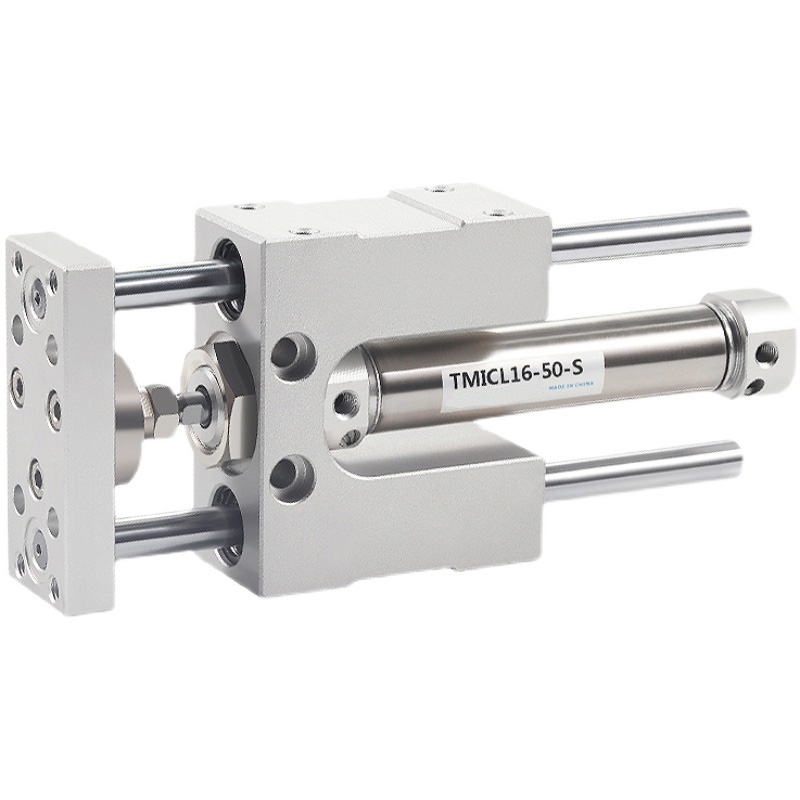

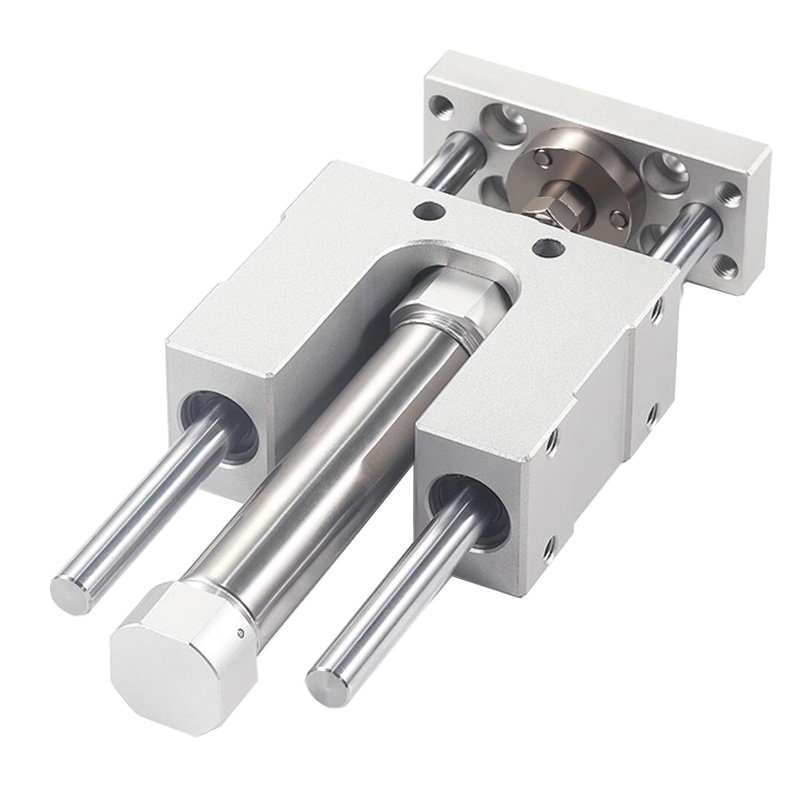

The AirTAC Type TMIC Series is a high-performance guided pneumatic cylinder that integrates a mini cylinder body with a rigid guide frame. Designed in accordance with JIS standards, this compact actuator combines drive and guidance in one unit, delivering exceptional stability and precision for industrial automation。
Dual Guide Rod Design: Two high-precision guide rods for superior anti-rotation accuracy and excellent resistance to lateral loads
Two Bearing Options:
Brass Bushing (Standard): High rigidity & torsional stiffness, ideal for heavy clamping & braking.
Linear Ball Bearing: Low-friction, smooth motion for precision lifting & transferring.
Bore Sizes: 12, 16, 20, 25 mm
Acting Type: Double Acting
Compact & Space-Saving: All-in-one structure minimizes installation footprint.
Multi-Directional Mounting: Flexible installation via body, rear face, and mounting plate.
Magnetic Piston: Compatible with AirTAC auto-switches for position sensing.
Durable Construction: Stainless steel cylinder tube, high-quality seals, and built-in bumpers for long service life.
Versatile: Available in standard (TMIC) and long-stroke (TMICL) versions.
