TSAI Guide Frame Pneumatic Cylinder TSAI Guide Frame Pneumatic Cylinder TSAI Guide Frame Pneumatic Cylinder

TSAI Guide Frame Pneumatic Cylinder

  • AirTAC TSAI guided cylinder
  • TSAI series pneumatic cylinder
  • cylinder with guide frame
  • dual guide rod air cylinder
  • high rigidity anti-rotation cylinder
  • AirTAC heavy-duty guided actuator
  • double acting guide frame cylinder
  • multi-position mounting cylinder
  • precision pneumatic guide cylinder
  • AirTAC TSAI interchangeable

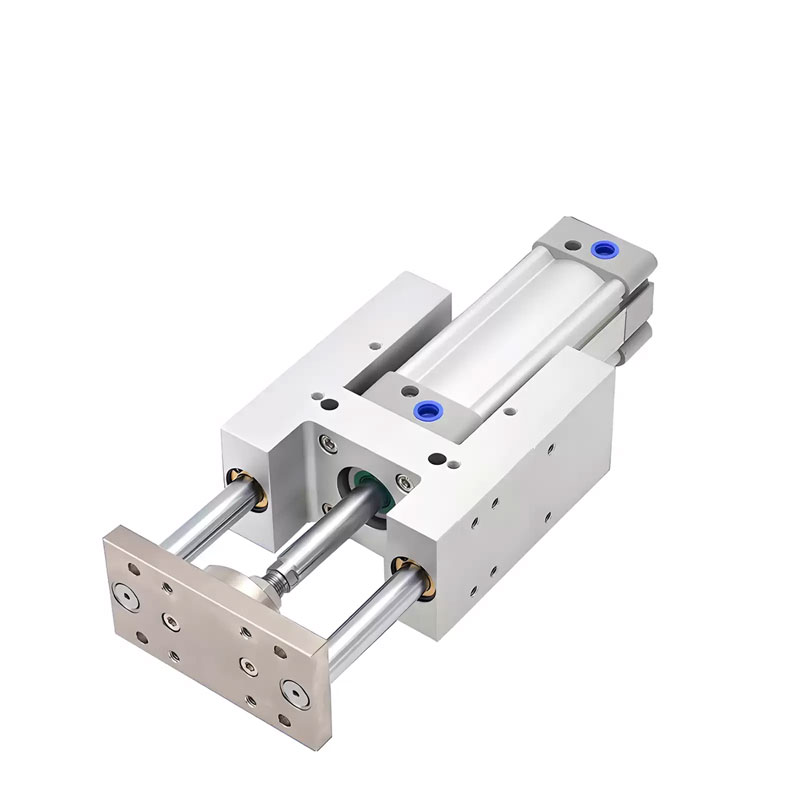

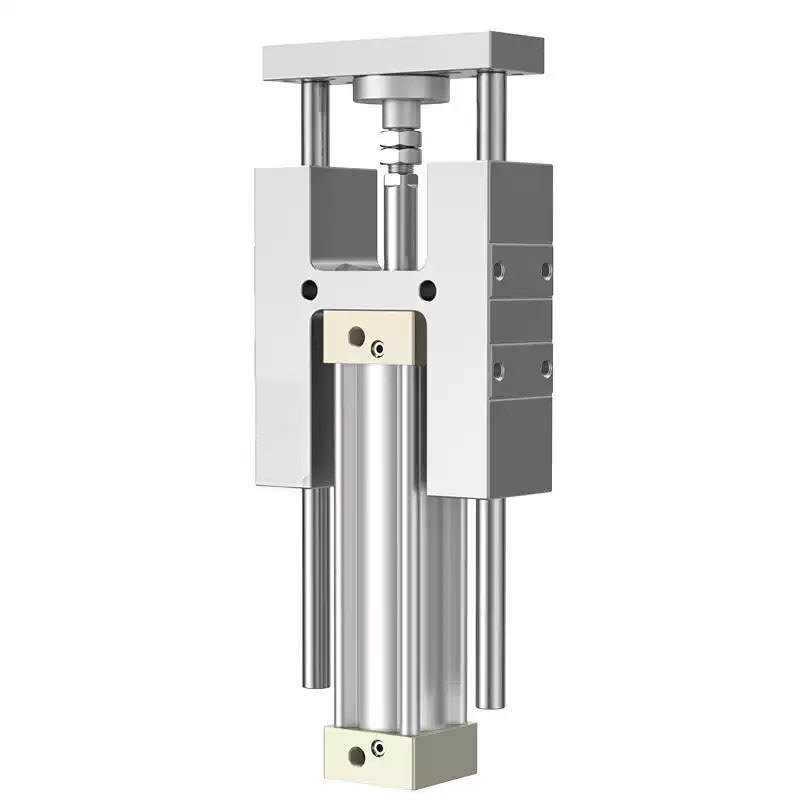

The AirTAC TSAI Series is a robust pneumatic guided cylinder that integrates a standard cylinder body with a high-rigidity guide frame. Designed as a versatile solution for heavy-duty automation, it combines driving and precision guidance in one unit, delivering superior stability and performance

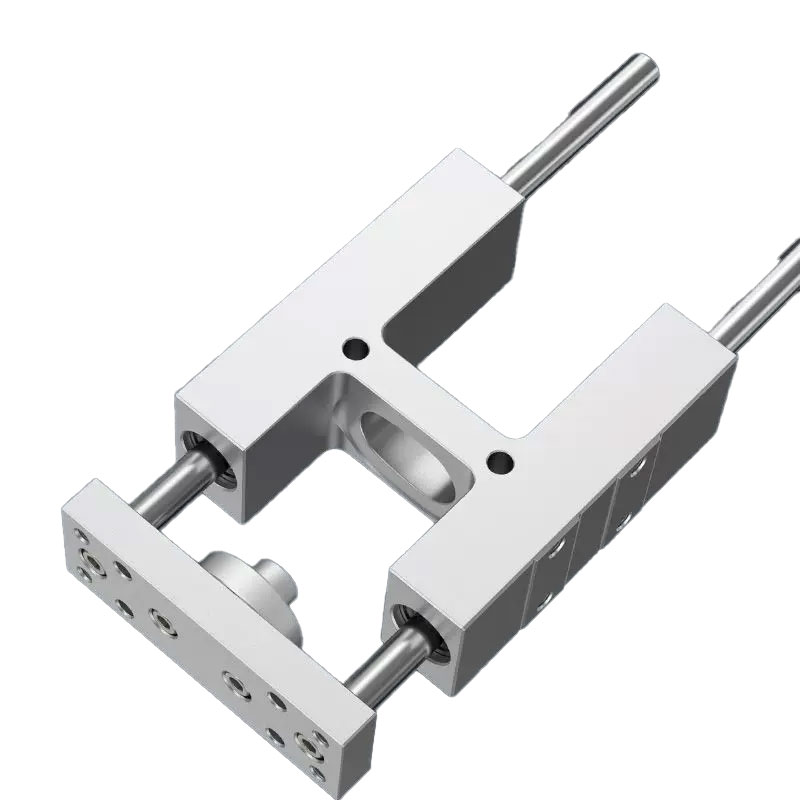

  • Dual Guide Rod Design: Two precision guide rods for exceptional anti-rotation capability and high resistance to lateral loads.

  • Two Bearing Options:

    • Brass Bushing (Standard): Offers maximum torsional stiffness, ideal for braking and high radial-load applications.

    • Linear Ball Bearing: Provides low-friction, smooth motion, perfect for pushing, lifting, and high-precision tasks.

  • Bore Sizes: 32, 40, 50, 63, 80, 100 mm.

  • Acting Type: Double Acting.

  • Multi-Directional Mounting: Flexible body design allows for versatile installation across multiple surfaces.

  • Adjustable Cushioning: Ensures smooth, steady end-position deceleration and reduced noise.

  • Sensor Compatible: Optional sensor mounting brackets (F-TSAI) for flexible position detection.

  • Durable Construction: High-quality components for long service life and reliable performance.

  • Versatile Versions: Available in standard (TSAI) and long-stroke (TSAIL) configurations.

Applications:
Perfect for heavy clamping, lifting, pushing, positioning, and material handling in automated machinery where high rigidity, anti-rotation, and stable linear motion are critical.
