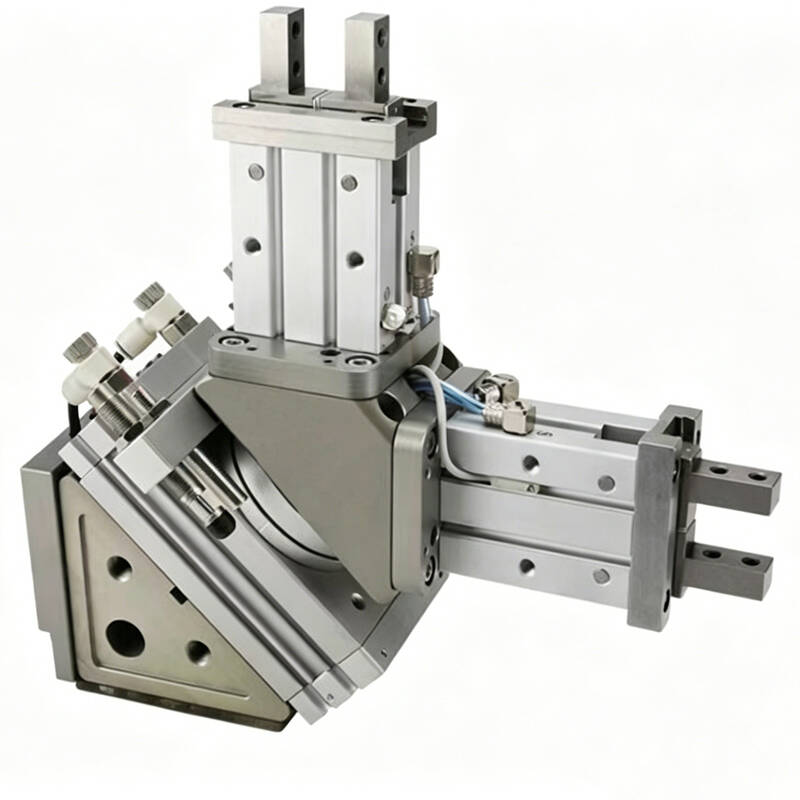

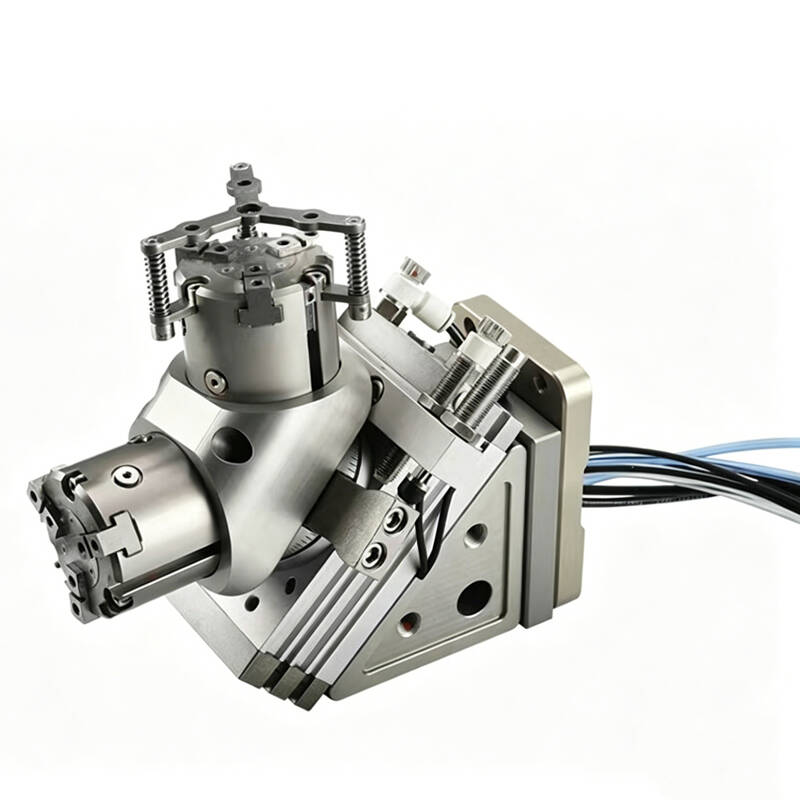

180° Rotary Gripper for Gantry Robot CNC Lathe
- Heavy-duty gantry robot rotary gripper
- 180-degree flip rotation for CNC loading/unloading
- Precision pneumatic finger clamping for machine tools
- Ideal for CNC lathe and milling machine automation
- High-torque rack-and-pinion rotary mechanism
- Dust and coolant-resistant design
- Magnetic auto-switch compatible for PLC integration
- Compact profile for narrow machine workspace
- Reduced cycle time for high-volume production
- Reliable performance in 24/7 automated environments.
180° Rotary Clamping Actuator: The Core of CNC Machine Tending Automation
In the world of smart manufacturing, the Gantry Robot (Truss Robot) is the backbone of CNC lathe efficiency. Our specialized 180-degree rotary gripper combines high-torque rotation with precision pneumatic clamping, providing a seamless solution for automated parts loading, unloading, and reversing (flipping) in machine tool environments.
Key Technical Features & Performance Highlights
Precision 180° Flip Rotation: Utilizing a high-torque rack-and-pinion or vane-type mechanism, the actuator provides smooth 180-degree rotation. This allows the robot to flip parts during the loading/unloading cycle, perfect for dual-spindle machining or multi-step processes.
Integrated High-Force Gripping: Equipped with precision pneumatic fingers (parallel or angular), the unit ensures a firm and stable grip on workpieces, even during high-speed movement and rotation.
High Repeatability & Accuracy: Engineered for the rigorous demands of CNC automation, the unit offers ±0.01mm to ±0.05mm repeatability, ensuring workpieces are seated perfectly in the lathe chuck every time.
Robust Construction for Machine Environments: Built with hard-anodized aluminum and high-strength steel components, it is resistant to coolants, metal chips, and industrial debris commonly found in CNC machine tools.
Compact & Lightweight for Gantry Speed: Optimized weight-to-force ratio allows for faster gantry robot travel speeds, reducing cycle times and increasing overall factory throughput.
Technical Specifications Overview
Primary Applications
This integrated rotary clamping unit is the essential choice for:
CNC Lathe Automation: Picking raw materials and unloading finished parts.
Gantry Loading Systems: High-speed overhead transport and part orientation.
Automated Turning Cells: Flipping workpieces for OP10 and OP20 machining.
Machine Tool Tending: Constant loading/unloading for high-volume manufacturing.
