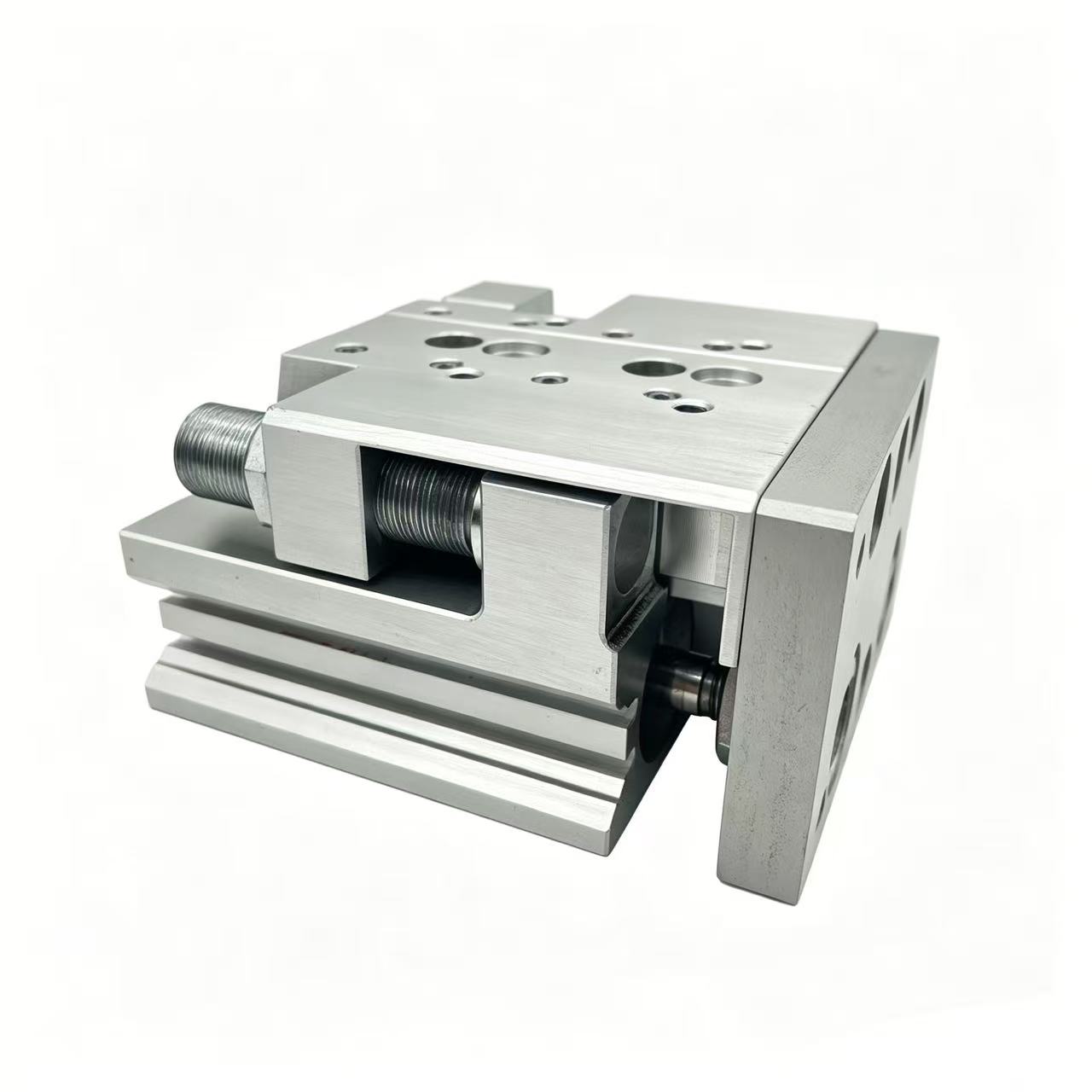

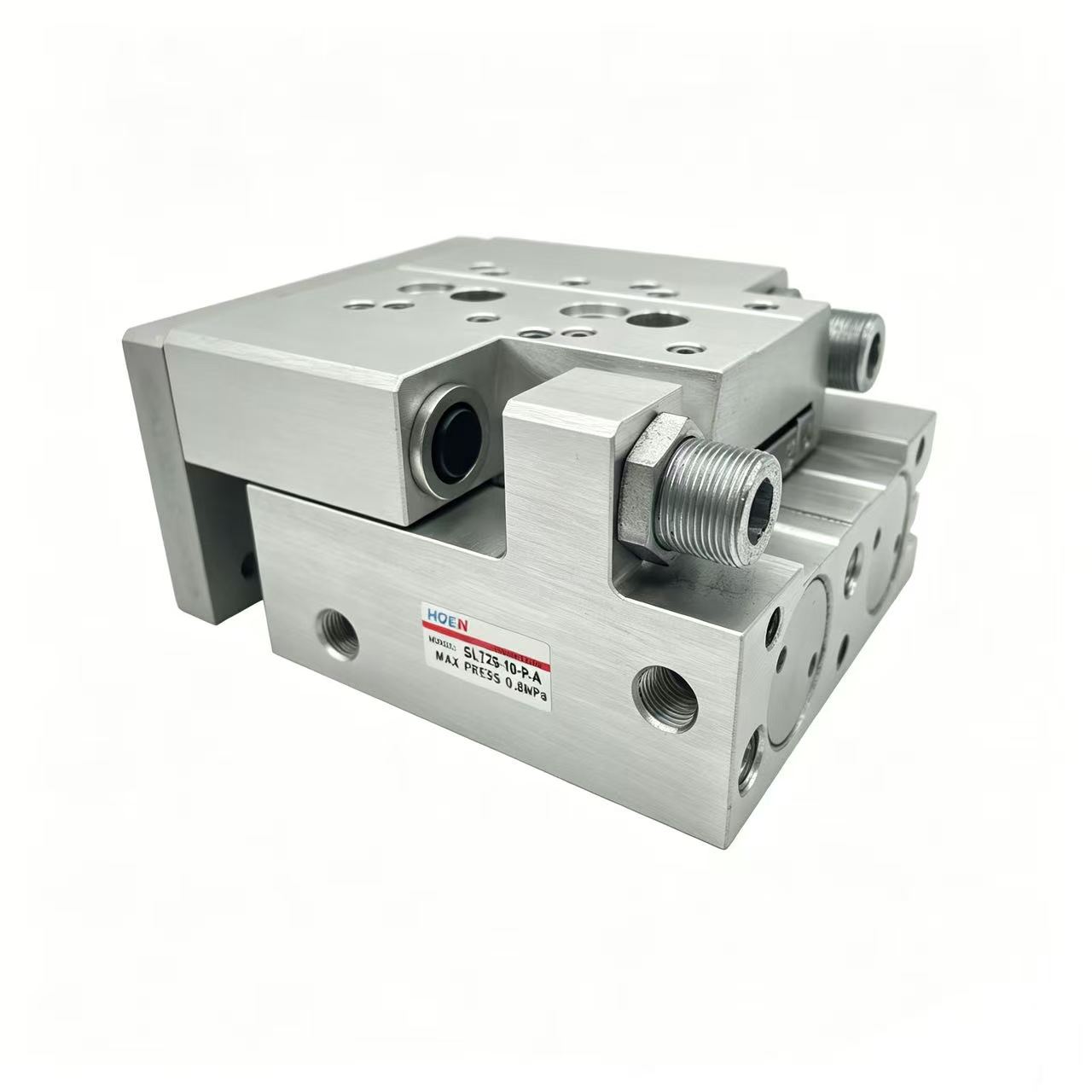

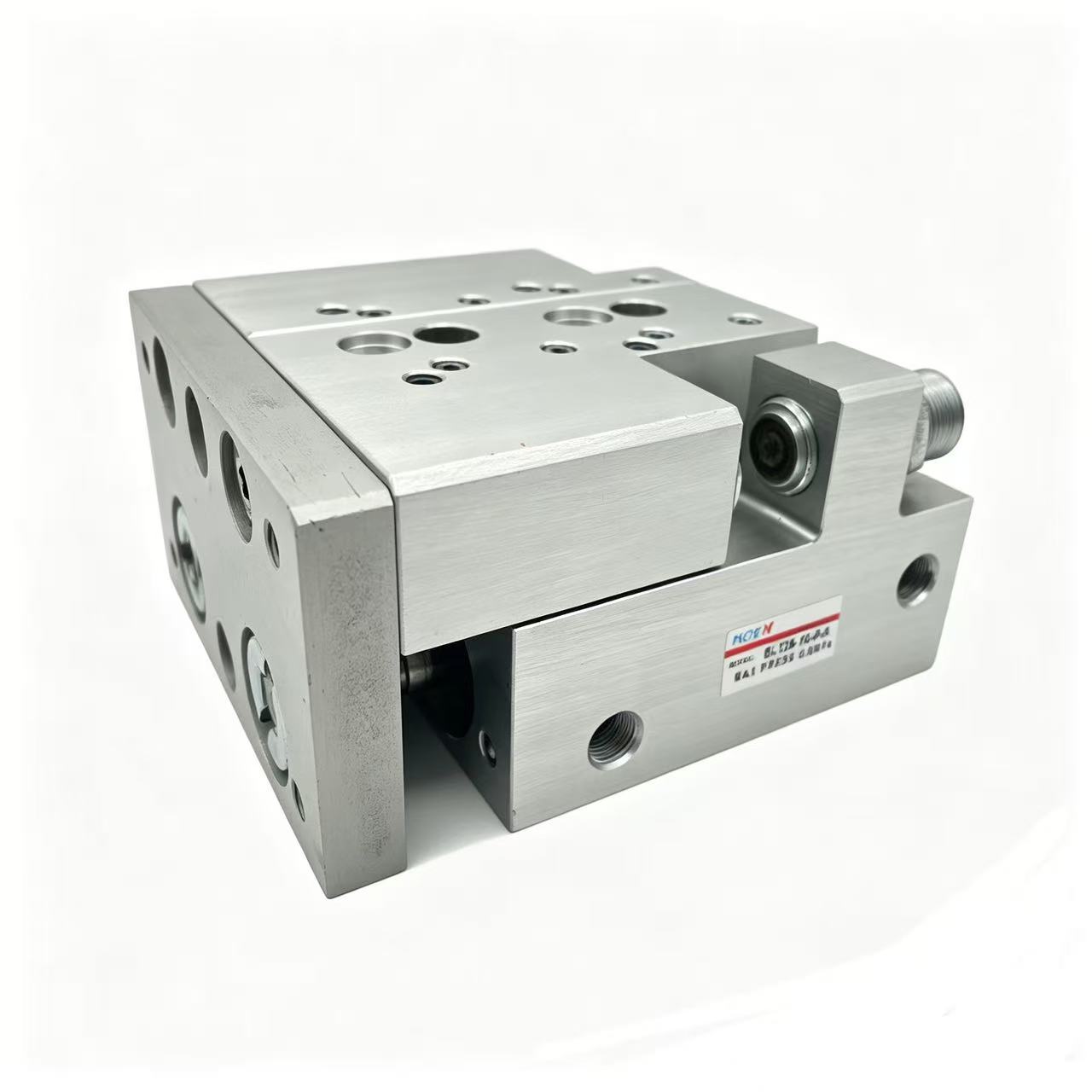

Festo Type SLT Mini Slide Cylinder

  • Festo Type SLT slide cylinder
  • SLT mini slide
  • Festo double-acting pneumatic slide
  • high precision ball bearing guide cylinder
  • dual-piston slide cylinder
  • compact pneumatic slide
  • Festo SLT automation actuator
  • anti-rotation slide cylinder
  • adjustable cushioning slide cylinder
  • Festo SLT for assembly lines
The Festo SLT Series is a high-performance miniature pneumatic slide cylinder engineered for precision linear motion in compact automation systems. Built with Festo’s industrial-grade quality, it combines a dual-piston double-acting drive with a preloaded, zero-backlash precision ball bearing cage guide to deliver exceptional accuracy, rigidity, and load capacity in a space-saving design


  • Dual-Piston Drive: Double-acting operation with two pistons, delivering strong, stable thrust and faster response for high-cycle automation

  • Precision Ball Bearing Guide: Preloaded, rigid ball bearing cage guide eliminates backlash, ensuring ultra-high straightness, non-rotational accuracy (0.01mm repeatability), and superior resistance to lateral loads & torque

  • Bore Sizes: 6, 10, 16, 20, 25 mm; standard strokes 10–50 mm (customizable).

  • Integrated Cushioning: Two adjustable end-position cushioning options—elastic buffer rings (P) or hydraulic shock absorbers (Y)—for smooth, low-vibration deceleration, integrated into the profile for maximum compactness

  • Flexible Installation: Multi-directional mounting (via through-holes on body/slide), compatible with direct assembly to frames, jigs, or other actuators/grippers

  • Versatile Piping: Rear/side pneumatic ports (M5 thread) for easy air connection in confined spaces.

  • Sensor Compatibility: Built-in slots for Festo proximity sensors, enabling precise position detection without adapters

  • Durable Construction: High-strength aluminum alloy body, hardened steel guide rails, HNBR seals; operates on 1–10 bar, temp range -20°C to +60°C.

  • Material Compliance: Copper & PTFE-free, RoHS-compliant for global industrial standards.

Applications

Perfect for precision positioning, clamping, feeding, sorting, micro-assembly, and electronic manufacturing—where high accuracy, compact size, and reliable anti-rotation performance are critical
