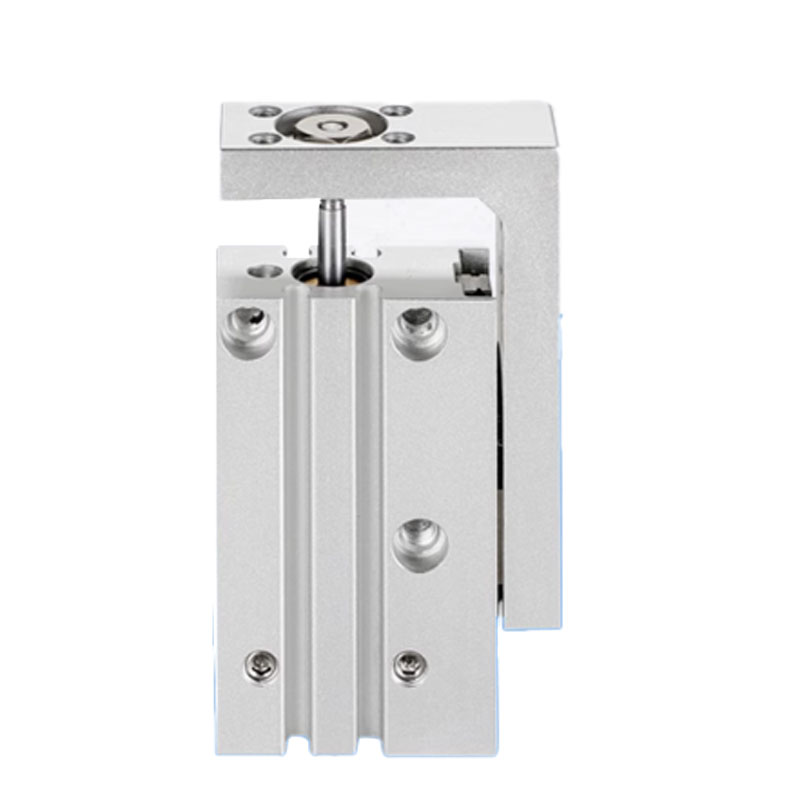

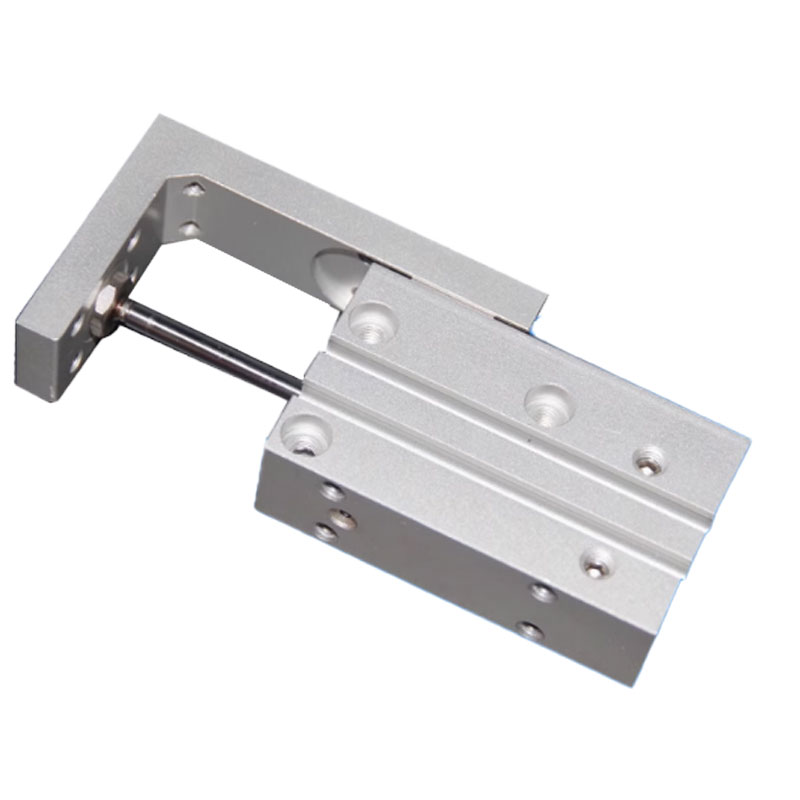

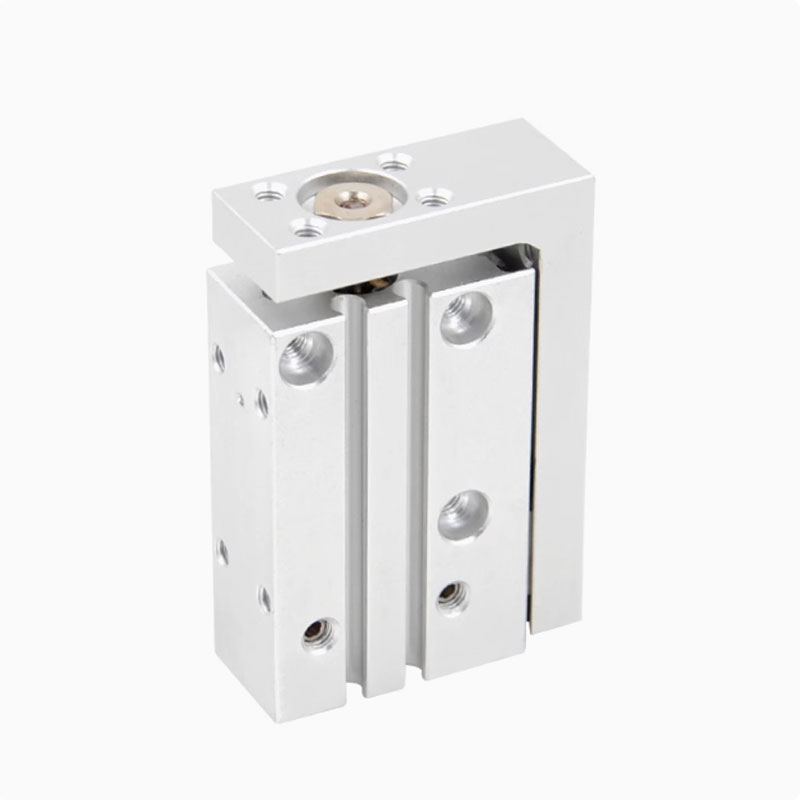

HLH Series Precision Slide Cylinder

The  HLH Series is a high-precision side rail pneumatic slide cylinder engineered for compact and stable linear motion in precision automation applications. Adopting an integrated design of a miniature recirculating ball linear guide and cylinder body, it delivers exceptional straightness, anti-rotation accuracy and high rigidity, making it the ideal choice for precision assembly, positioning and clamping tasks in confined spaces.

• Integrated Guide Structure: Integrated design of miniature recirculating ball linear guide and cylinder body, featuring high rigidity, high precision, excellent straightness and anti-rotation performance.

• Action Type: Double-acting as standard, with stable bidirectional output force for reliable operation.

• Bore Sizes: 6mm / 10mm / 16mm / 20mm; standard strokes available, matching different bore sizes to meet diverse application needs.

• Flexible Mounting: 4-direction mounting (bottom / side / front / rear), compatible with various equipment layouts and installation scenarios.

• Piping Design: 3 sets of air ports (side / rear) optional, 3-way piping design for more flexible on-site wiring and air connection.

• Sensor Compatibility: Built-in sensor mounting grooves on both sides of the body, allowing direct installation of AirTac magnetic switches without additional brackets, enabling precise position detection.

• Operating Parameters:

• Operating Pressure: 0.15–0.7MPa (bore 6) / 0.2–0.7MPa (bore 10/16/20)

• Proof Pressure: 1.2MPa

• Temperature Range: -20℃~+70℃

• Speed Range: 50–500mm/s

• Cushioning: Fixed cushioning at both ends, ensuring low noise and smooth stopping.

• Durable Construction: Aluminum alloy body with hard anodizing, stainless steel piston rod and wear-resistant seals, ensuring long service life and rust resistance.

• Fixture Mounting: Double-position threaded holes on the top and front side of the slide table, allowing direct fixing of fixtures for precise positioning.
