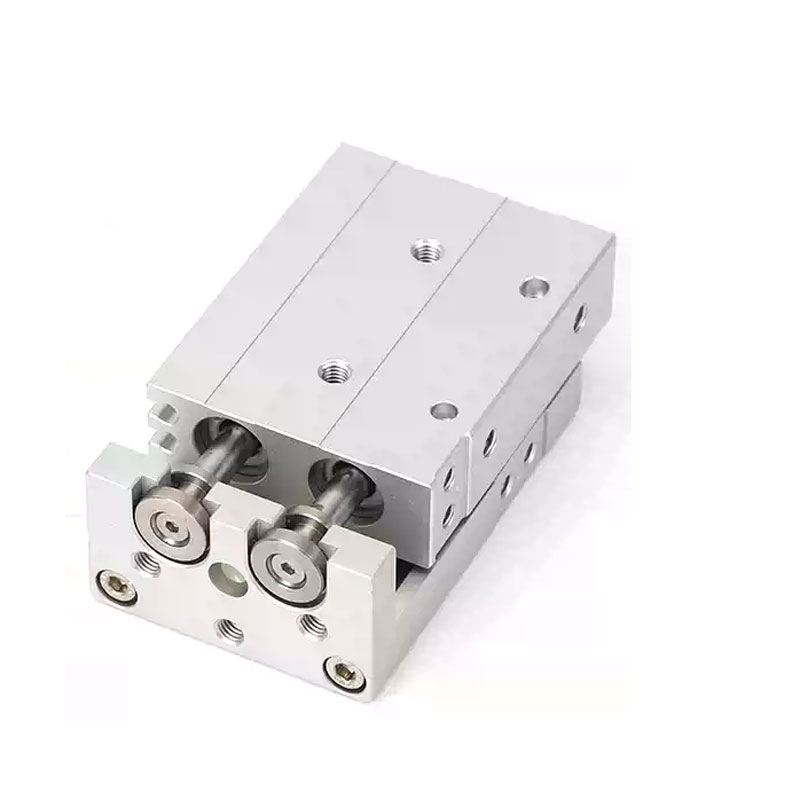

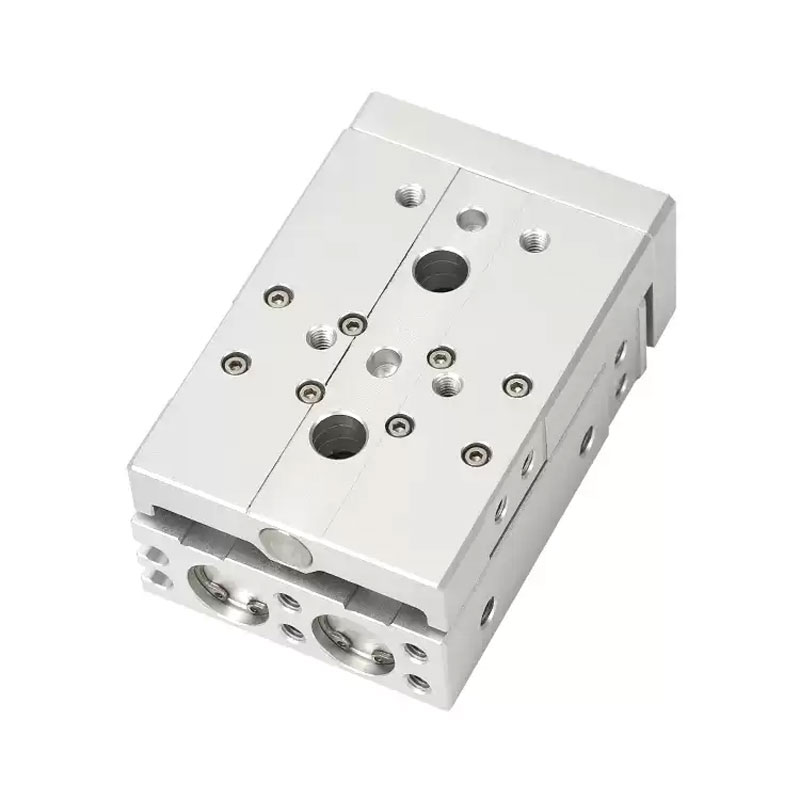

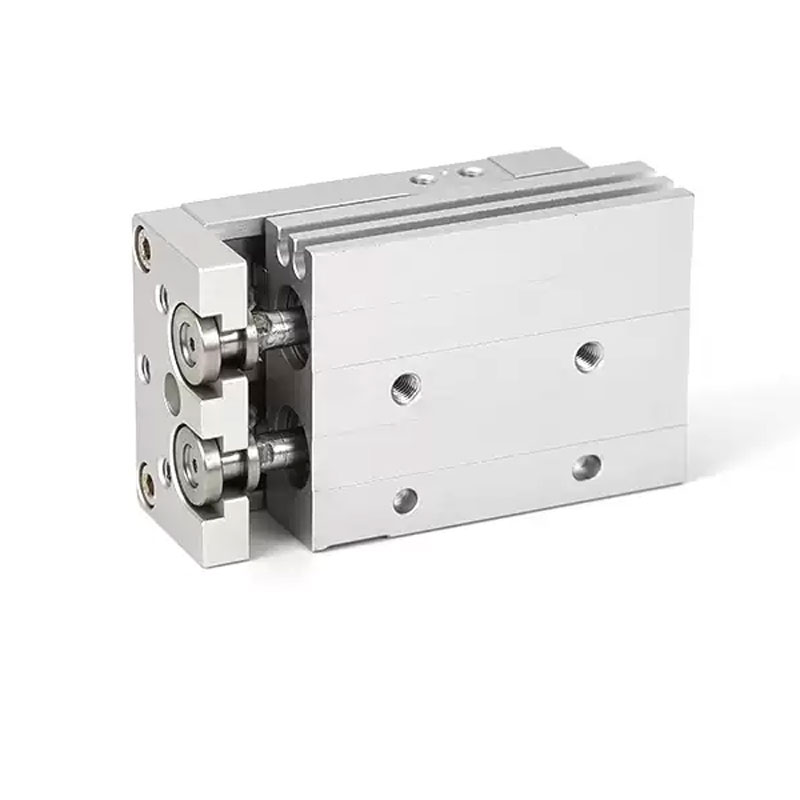

HLQ Ball Bearing Slide Table Cylinder

  • HLQ cylinder, AirTAC HLQL cylinder, ball bearing slide cylinder, double-acting slide cylinder, precision slide actuator, 3-direction mounting cylinder, AirTAC ball bearing cylinder, HLQ series slide, HLQL symmetrical slide, AirTAC precision actuator, small-bore slide cylinder
The AirTAC type HLQ & HLQL Series are high-precision ball bearing type slide cylinders, engineered for stable linear motion and flexible installation in automated production lines. As core products of AirTAC, the two series share superior performance and reliable quality, with differentiated structures to meet diverse layout needs: HLQ is the standard ball bearing slide cylinder, while HLQL adopts a symmetrical design for more flexible integration in equipment layout. Both series feature integrated ball bearing guide structures, ensuring high rigidity, high precision and long service life, making them ideal for precision assembly and positioning tasks in confined spaces.

Core Features

  • Series Differentiation:

    • HLQ Series: Standard ball bearing slide cylinder, optimized for general precision automation scenarios, with a practical structure to meet most assembly and positioning needs.

    • HLQL Series: Symmetrical ball bearing slide cylinder, designed with a symmetrical structure to adapt to equipment requiring symmetrical installation layout, enhancing integration flexibility and applicability[superscript:2]。

  • Action Type: Double-acting as standard, ensuring stable bidirectional force output, suitable for high-frequency cyclic work scenarios[superscript:3]。

  • Bore & Stroke: Bore sizes available: 6mm, 8mm, 12mm, 16mm, 20mm, 25mm; standard strokes range from 10mm to 150mm (varies by bore size), with non-standard strokes available on request. The maximum standard stroke varies by bore: 50mm for φ6, 75mm for φ8, 100mm for φ12, 125mm for φ16, 150mm for φ20/25[superscript:2]。

  • Guide Structure: Integrated ball bearing linear guide, achieving high precision and high rigidity, with excellent linearity and anti-rotation performance, effectively avoiding motion deviation during operation. It has antirust and dustproof functions, ensuring stable operation in various environments[superscript:4]。

  • Flexible Mounting: 3-direction mounting available via body mounting holes, with positioning pin holes on the guide and body to improve installation repeatability. The slide table is equipped with threaded holes for direct fixture installation, simplifying the assembly process[superscript:5]。

  • Sensor Compatibility: Built-in magnetic switch slots on both sides, compatible with AirTAC CMSH, DMSH series magnetic sensors, enabling convenient and precise position detection without additional brackets[superscript:3]。

  • Operating Parameters:

    • Operating Pressure: 0.15–0.7MPa (φ6 bore: 0.2–0.7MPa)

    • Temperature Range: -20℃~+70℃ (suitable for most industrial working environments)

    • Speed Range: 50–500mm/s

    • Proof Pressure: 1.2MPa

    • Fluid: Filtered air (40μm filter element required)[superscript:2][superscript:5]。

  • Durable Construction: Aluminum alloy body (hard anodized), stainless steel piston rod and ball bearing components, wear-resistant and corrosion-resistant, ensuring long service life even in harsh working conditions[superscript:4]。

  • Adjuster Options: Multiple external stopper combinations available, including adjustable rubber stoppers and shock absorbers (shock absorbers not available for φ6 bore). Thread types include PT, G, NPT, meeting different regional usage needs[superscript:5]。

Applications

Ideal for precision positioning, small-part assembly, clamping, transferring and sorting in electronics, semiconductor, packaging, and other industries. HLQ is suitable for general precision automation scenarios, while HLQL is preferred for equipment requiring symmetrical installation layout, providing reliable power support for high-accuracy automated production lines
