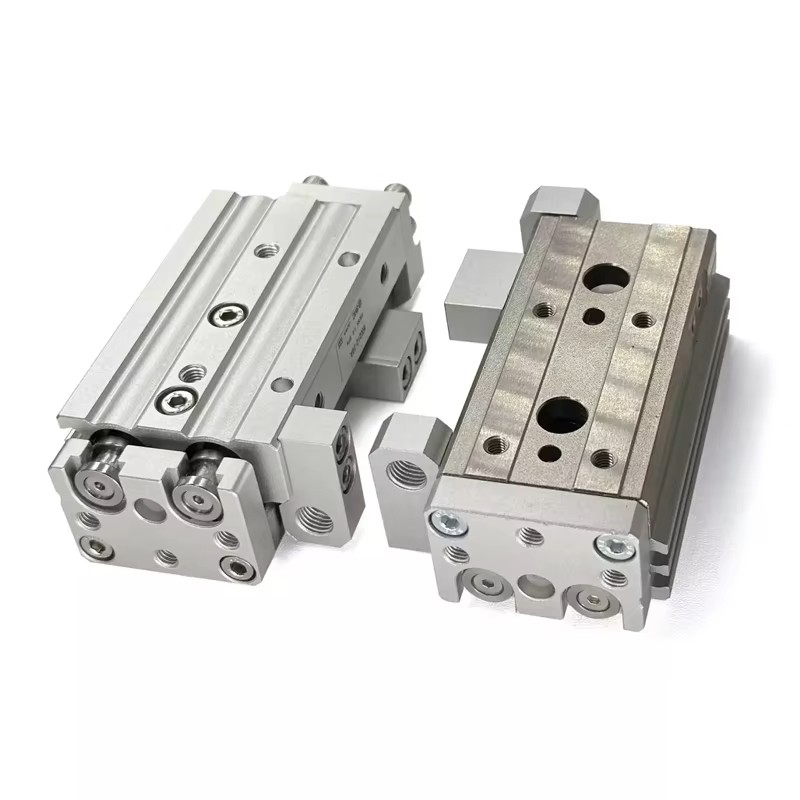

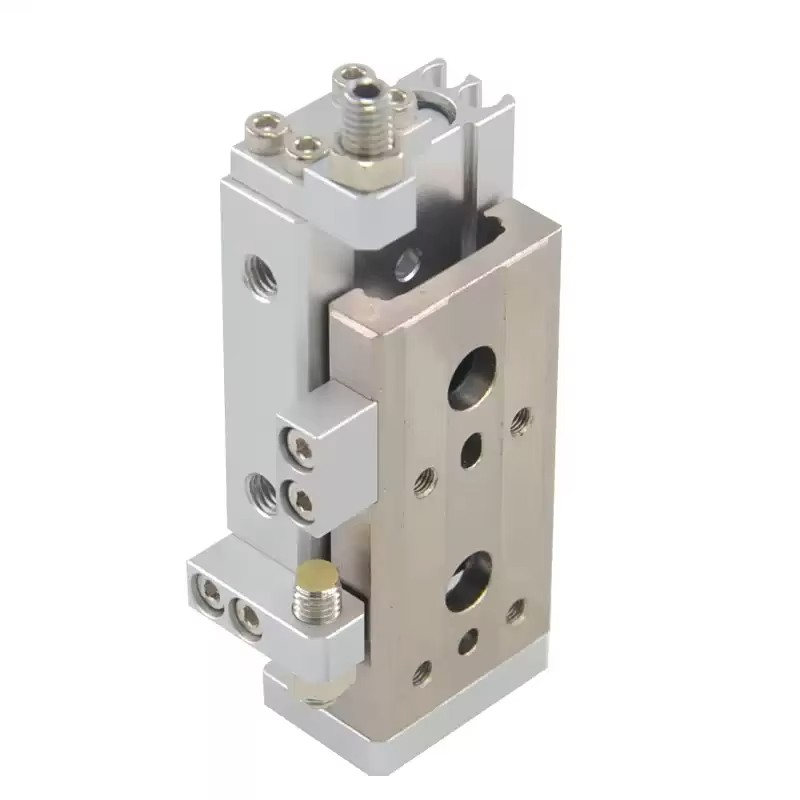

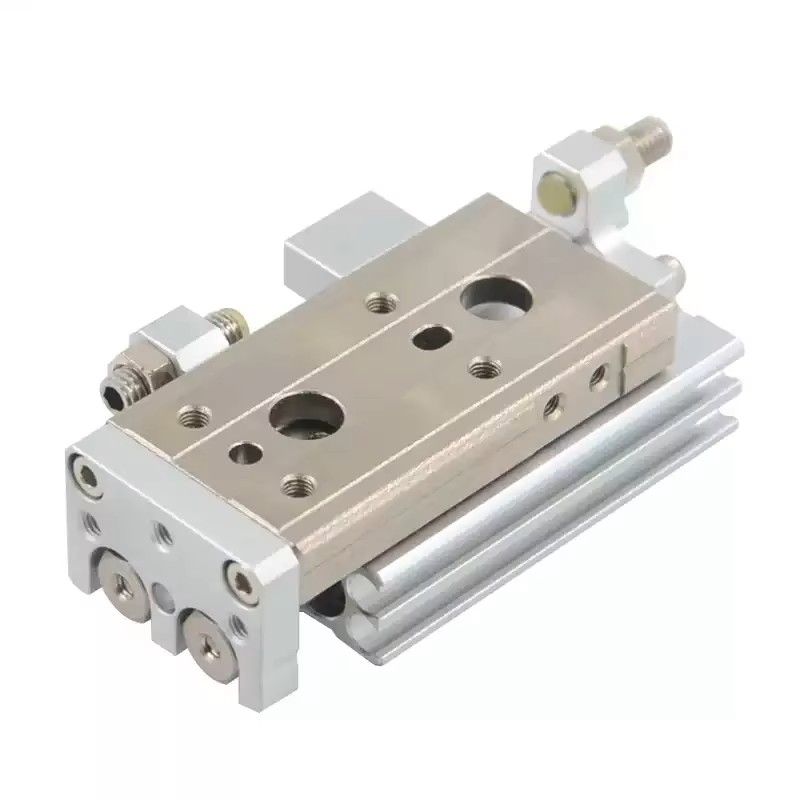

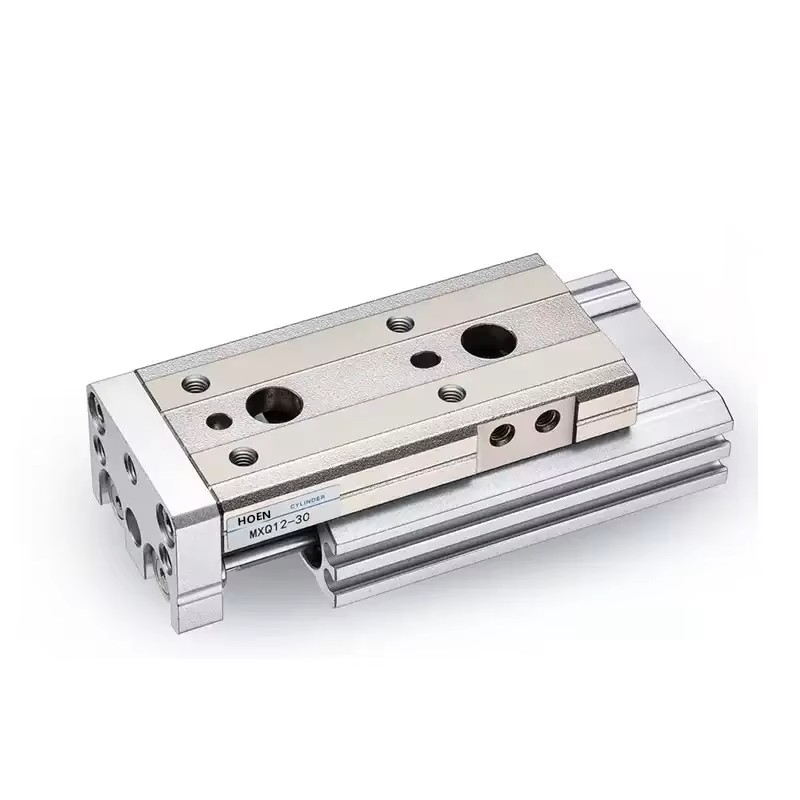

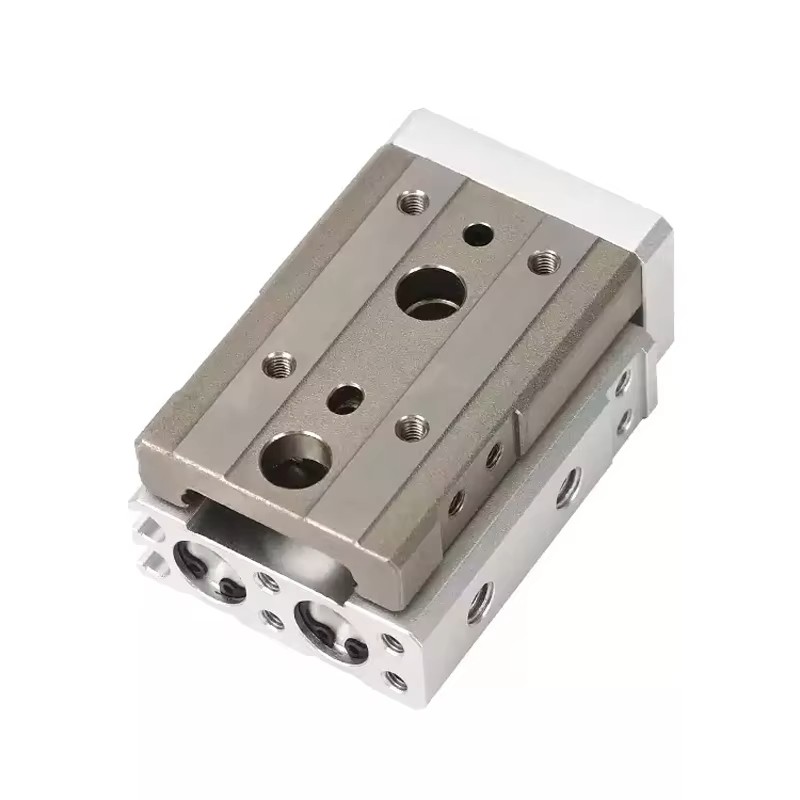

MXQ series pneumatic slide table cylinder integrates a dual-rod cylinder with high-rigidity recirculating ball linear guide and hardened stainless-steel rails, ensuring stable linear motion and accurate positioning. It features a compact, slim profile with 10% height reduction and 22% weight reduction compared to standard models, while improving allowable kinetic energy by 64%.
With repeat positioning accuracy of ±0.05mm, high parallelism (30μm) and perpendicularity (50μm), this slide cylinder delivers exceptional precision. Available bore sizes: 6mm, 8mm, 12mm, 16mm, 20mm, 25mm; stroke ranges from 10mm to 150mm. Options include stroke adjusters, shock absorbers, end lock, and magnetic switch compatibility.
Built with durable anodized aluminum body and precision components, our MXQ slide cylinder is fully interchangeable with SMC MXQ series, offering reliable performance and cost-effective solutions for automated assembly, semiconductor handling, precision testing, and electronic manufacturing.
